The REXROTH 3DREE10P-73/200YG24K31A1V is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. Part of the Rexroth 3DRE series, this direct-operated valve features a wet-pin solenoid actuator with integrated position feedback, ensuring high repeatability and dynamic response under demanding operating conditions.
REXROTH 3DREE10P-73/200YG24K31A1V Technical Specifications
| Valve Type | Proportional Directional Valve, 3-way |
| Size | NG10 (CETOP 5, ISO 4401) |
| Nominal Flow | 200 L/min at Δp = 10 bar |
| Maximum Operating Pressure | 315 bar (ports P, A, B); 210 bar (port T) |
| Actuation | Proportional solenoid with position feedback |
| Supply Voltage | 24 V DC |
| Nominal Solenoid Current | 1.5 A |
| Hysteresis | ≤ 5% |
| Response Sensitivity | ≤ 1% |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 800 mm²/s |
| Filtration | ISO 4406 (c) 18/16/13 or better |
| Mounting Pattern | ISO 4401-05-04-0-05 |
| Weight | Approx. 6.8 kg |
Key Engineering Features
- Direct-operated proportional solenoid with wet-pin armature for minimal wear and long service life
- Integrated inductive position feedback for closed-loop control of spool position
- High-resolution flow control with low hysteresis and excellent repeatability
- Spring-centered spool returns to neutral position upon power loss
- Rugged cast iron housing designed for high-pressure industrial environments
- Compatible with Rexroth proportional amplifier modules for precise command signal conditioning
Industrial Applications
- Injection molding machines – precise injection and clamping force control
- Hydraulic presses – pressure and position regulation
- Machine tools – feed and speed control of actuators
- Steel and metallurgy – continuous casting and rolling mill adjustments
- Test rigs and simulation systems – dynamic flow profiling
- Offshore and marine – reliable operation in harsh environments
For technical inquiries, dimensional drawings, or replacement support for REXROTH 3DREE10P-73/200YG24K31A1V, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

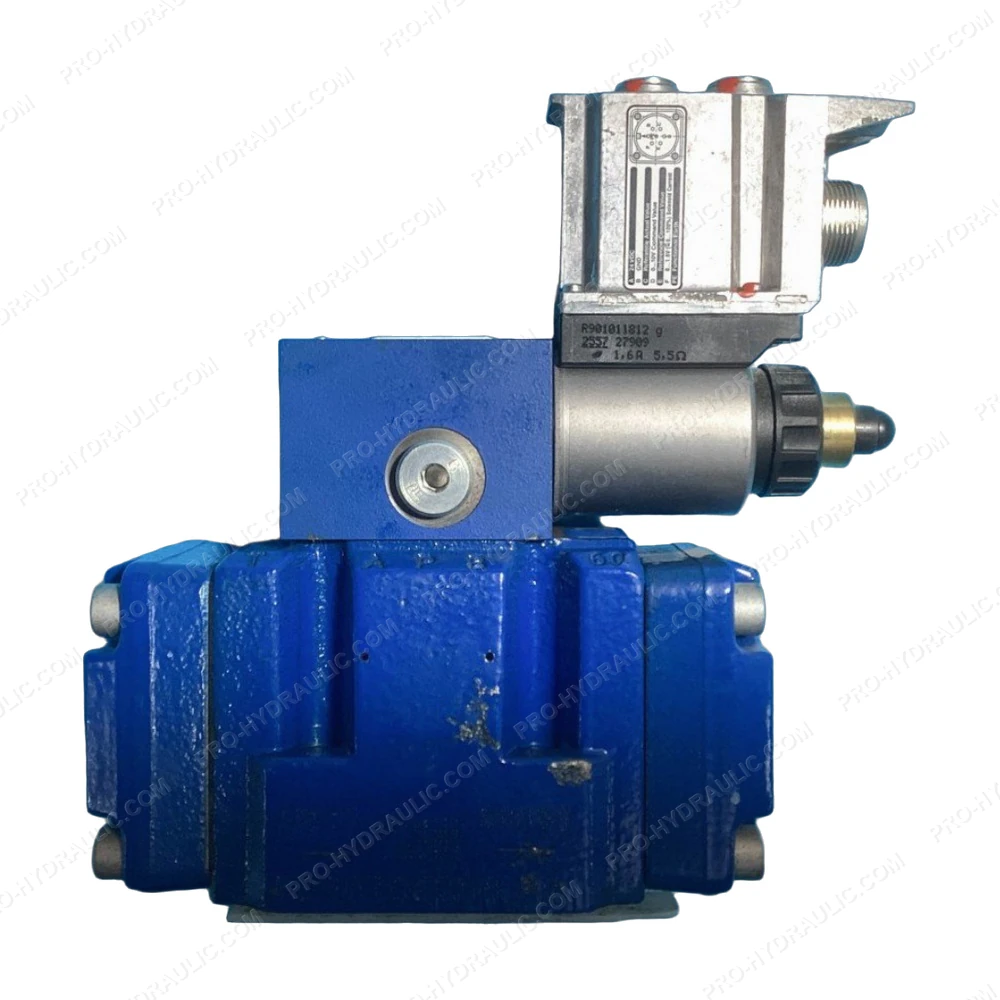

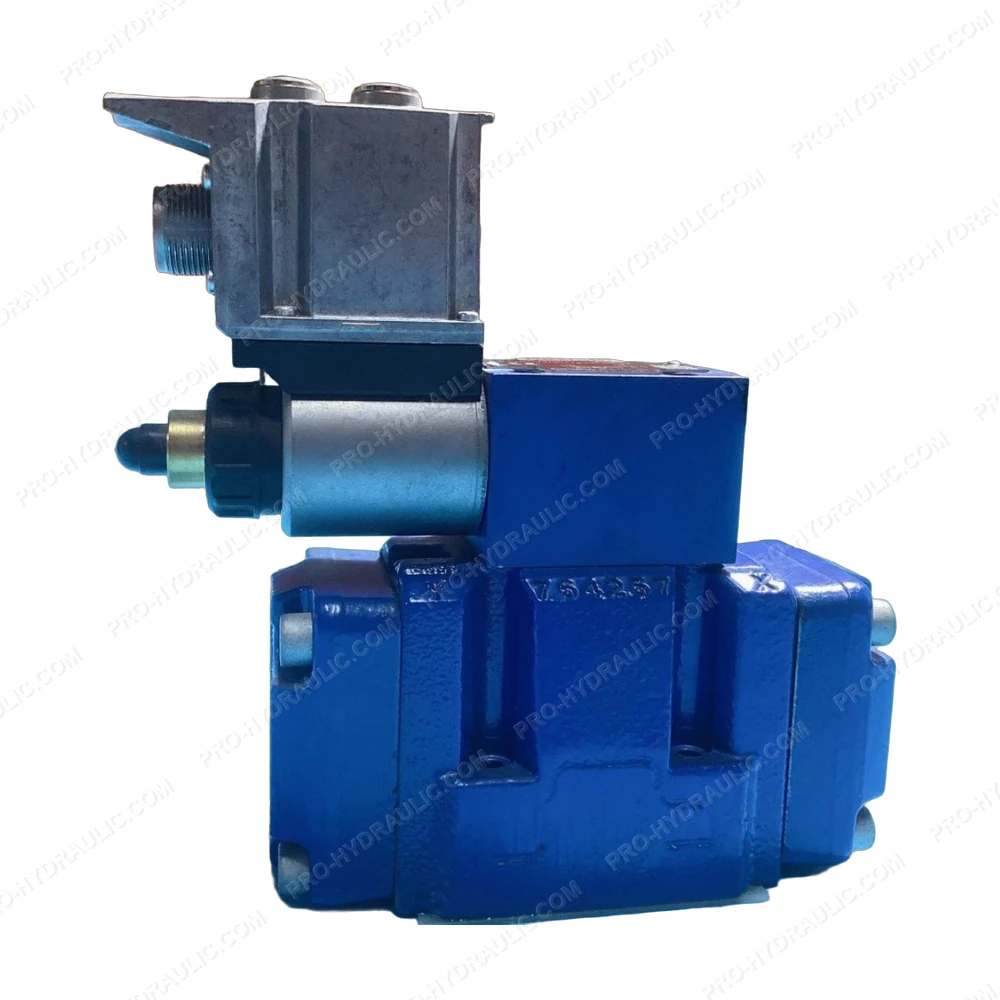

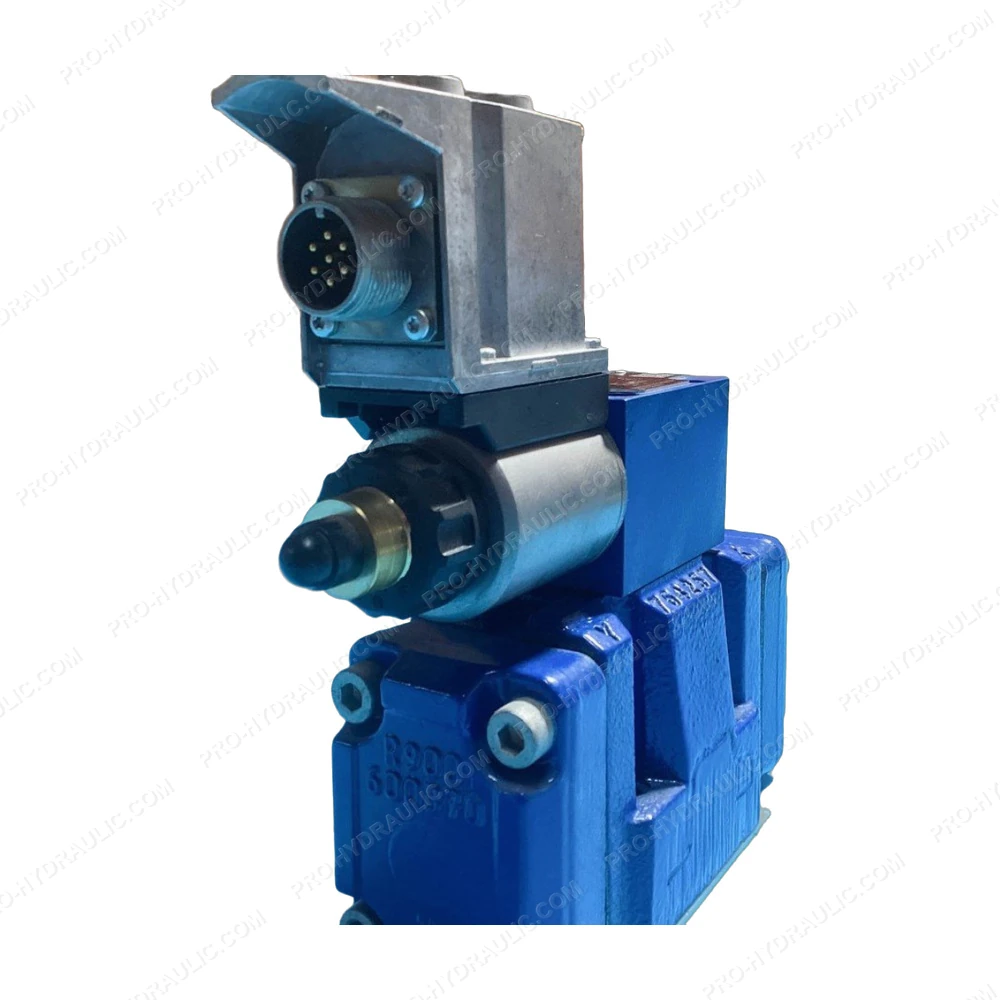

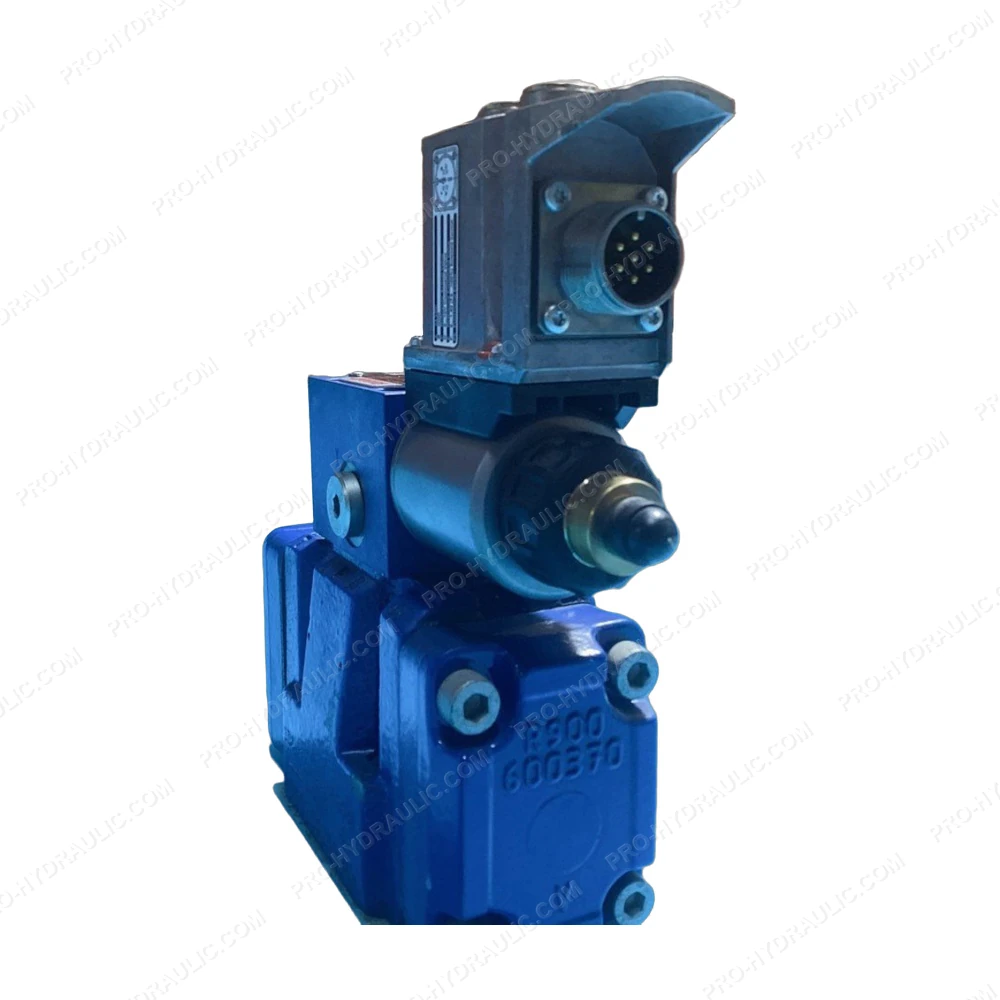

REXROTH 3DREE10P-73/200YG24K31A1V Proportional Valve
