The REXROTH 3DREM16P-73/200YG24K4V / R901218887 is a heavy-duty industrial proportional directional valve engineered for precise flow and pressure control in demanding hydraulic circuits. It features a direct-operated, wet-pin solenoid design with a robust housing and integrated position feedback for closed-loop operation.
REXROTH 3DREM16P-73/200YG24K4V / R901218887 Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | Proportional Directional Valve |
| Series | 3DREM |
| Nominal Size | NG16 (CETOP 16 / ISO 4401-07) |
| Maximum Operating Pressure | 350 bar (P, A, B ports) |
| Nominal Flow Rate | 200 L/min at Δp = 10 bar |
| Actuation | Proportional solenoid, wet-pin, 24 V DC |
| Electrical Connection | K4 connector (DIN EN 175301-803) |
| Control | Integrated electronics (OBE) with position feedback |
| Mounting Pattern | Subplate, ISO 4401-07-04-0-05 |
| Seal Material | NBR (standard) |
| Weight | Approx. 7.5 kg |
Key Engineering Features
- Direct-operated proportional solenoid with wet-pin armature for high dynamic response and minimal hysteresis.
- Integrated digital electronics (OBE) enable closed-loop position, velocity, or pressure control.
- Spring-centered spool with defined fail-safe position in case of power loss.
- Precision-machined spool and sleeve assembly ensures low internal leakage and long service life.
- Rugged housing designed for high-pressure industrial environments and continuous duty.
- Compatible with mineral oil-based hydraulic fluids (HLP, HLVP) per DIN 51524.
Industrial Applications
- Injection molding machines – clamp and injection axis control.
- Hydraulic presses – force and position regulation.
- Steel and metal forming – roll gap and tension control.
- Marine and offshore – deck machinery and winch drives.
- Test rigs and simulators – precise motion and load simulation.
- General industrial automation – high-cycle proportional control tasks.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 3DREM16P-73/200YG24K4V / R901218887, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

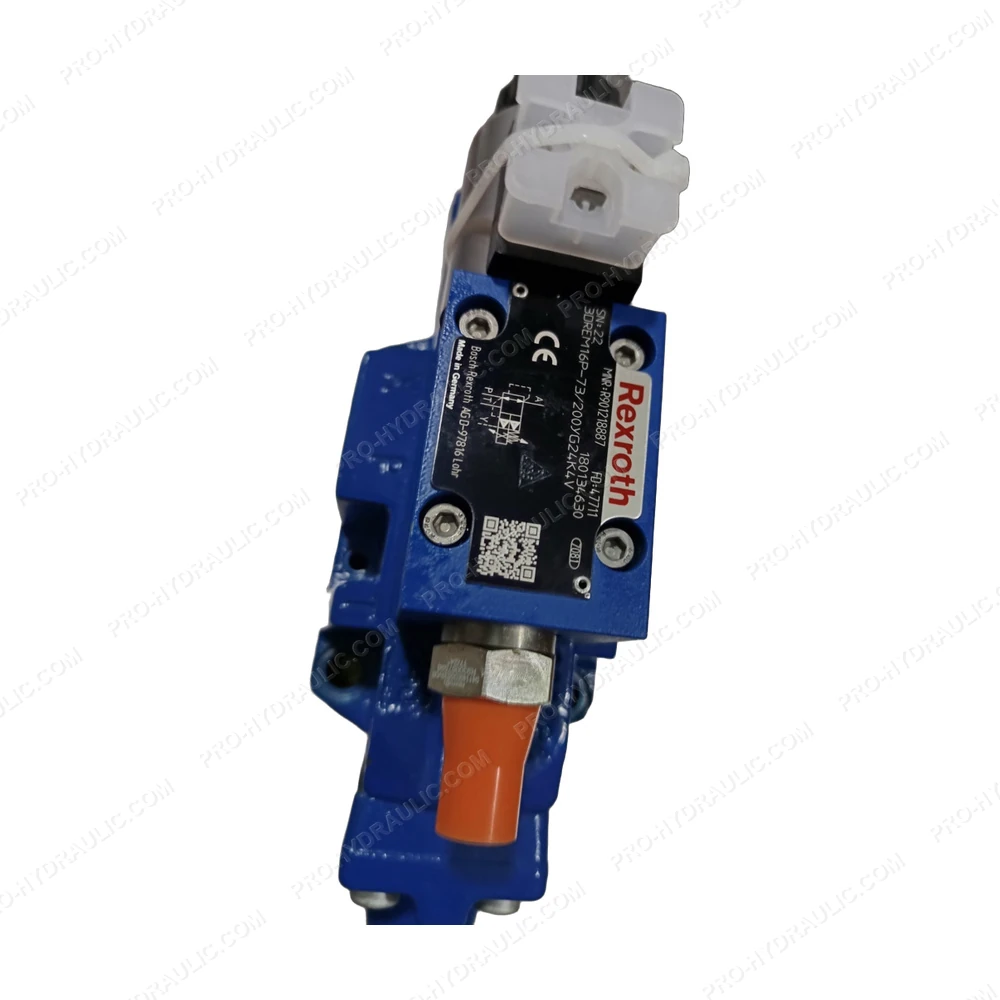

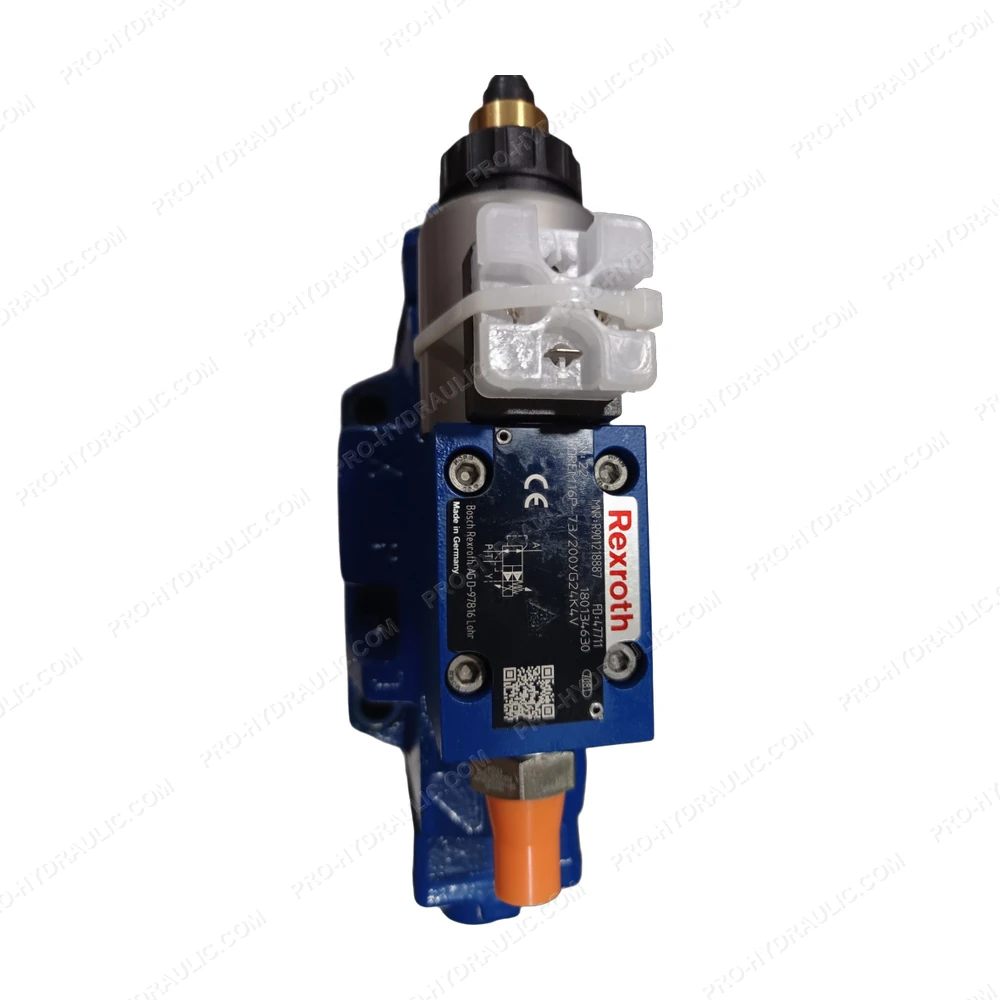

REXROTH 3DREM16P-73/200YG24K4V Proportional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 3DREM16P-73/200YG24K4V / R901218887 Proportional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
