Product Overview
The Rexroth 3DREP 6 C-21=25EG24N9K4/M-00 (Material No. R900956101) is a direct-operated, three-way proportional pressure reducing valve designed for precise, infinitely variable pressure control in industrial hydraulic systems. As a member of the Rexroth 3DREP series, this valve reduces a primary system pressure to a lower, electrically commanded secondary pressure at port A, while simultaneously limiting pressure rise at port B through its three-way spool design. The valve is actuated by a proportional solenoid with central thread and detachable coil, converting an analog electrical command signal into a proportional hydraulic output pressure. This enables stepless pressure regulation, soft-start and pressure ramp functions, and closed-loop pressure control when combined with an external pressure transducer and Rexroth amplifier card. The 3DREP 6 C-21=25EG24N9K4/M-00 is a size 6 (NG6 / CETOP 3) valve with a nominal flow capacity of 25 L/min and is intended for subplate mounting in manifold or sandwich plate assemblies. Its robust construction, precise spool-to-bore fit, and high-resolution solenoid make it a preferred choice for demanding pressure-control circuits in injection molding, metallurgy, and general industrial automation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Reducing Valve (3-way, direct-operated) |
| Model Designation | 3DREP 6 C-21=25EG24N9K4/M-00 |
| Material / Ordering Code | R900956101 |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Nominal Flow Rate | 25 L/min (per model code “25”) |
| Operating Pressure | Up to 315 bar (system pressure at port P); reduced pressure at port A proportional to command signal |
| Solenoid Voltage | 24 V DC (per code “EG24”) |
| Electrical Connection | Connector per DIN EN 175301-803 (per code “K4”) |
| Seal Material | NBR (per code “N9”) |
| Mounting & Connection | Subplate mounting, ISO 4401-03-02-0-05 / CETOP 3 interface |
Engineering Features & Advantages
- Precision Performance: The proportional pressure reducing valve (3-way, direct-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 25 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Its robust construction, precise spool-to-bore fit, and high-resolution solenoid make it a preferred choice for demanding pressure-control circuits in injection molding, metallurgy, and general industrial automation.
PRODUCT IMAGES

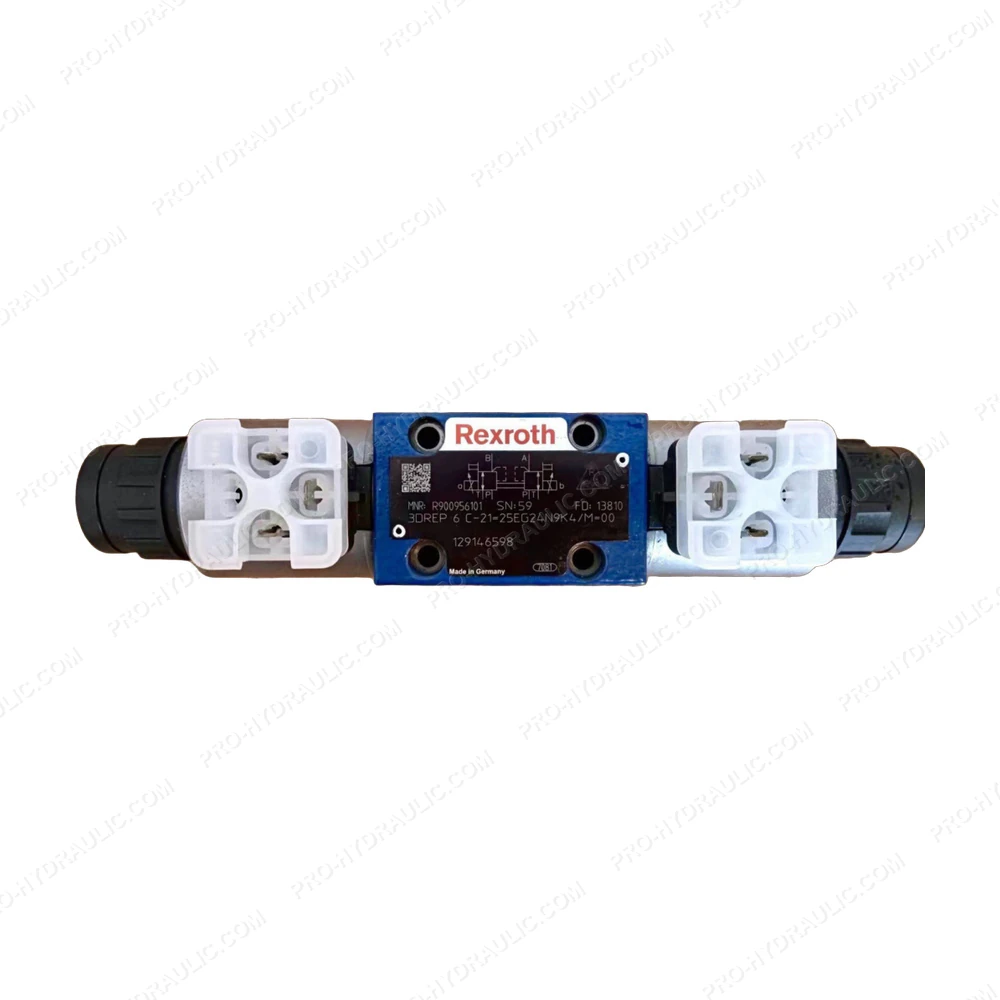

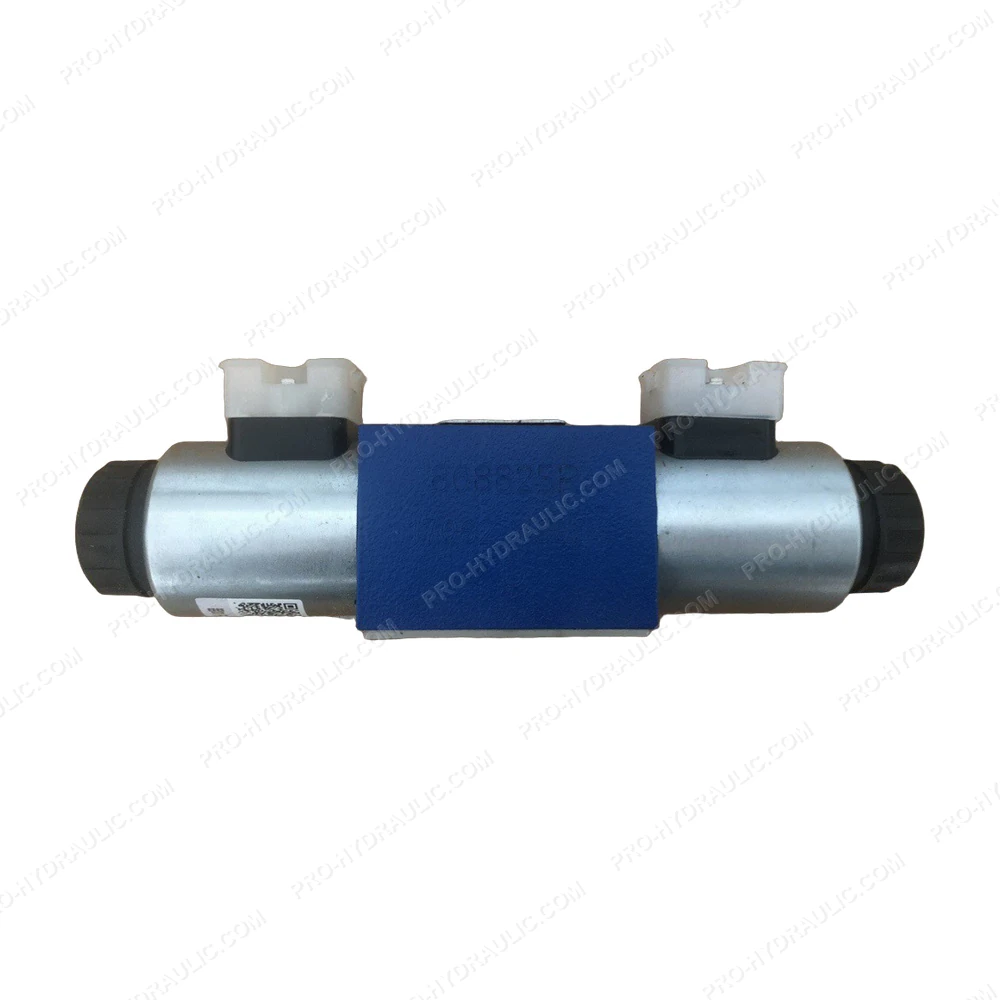

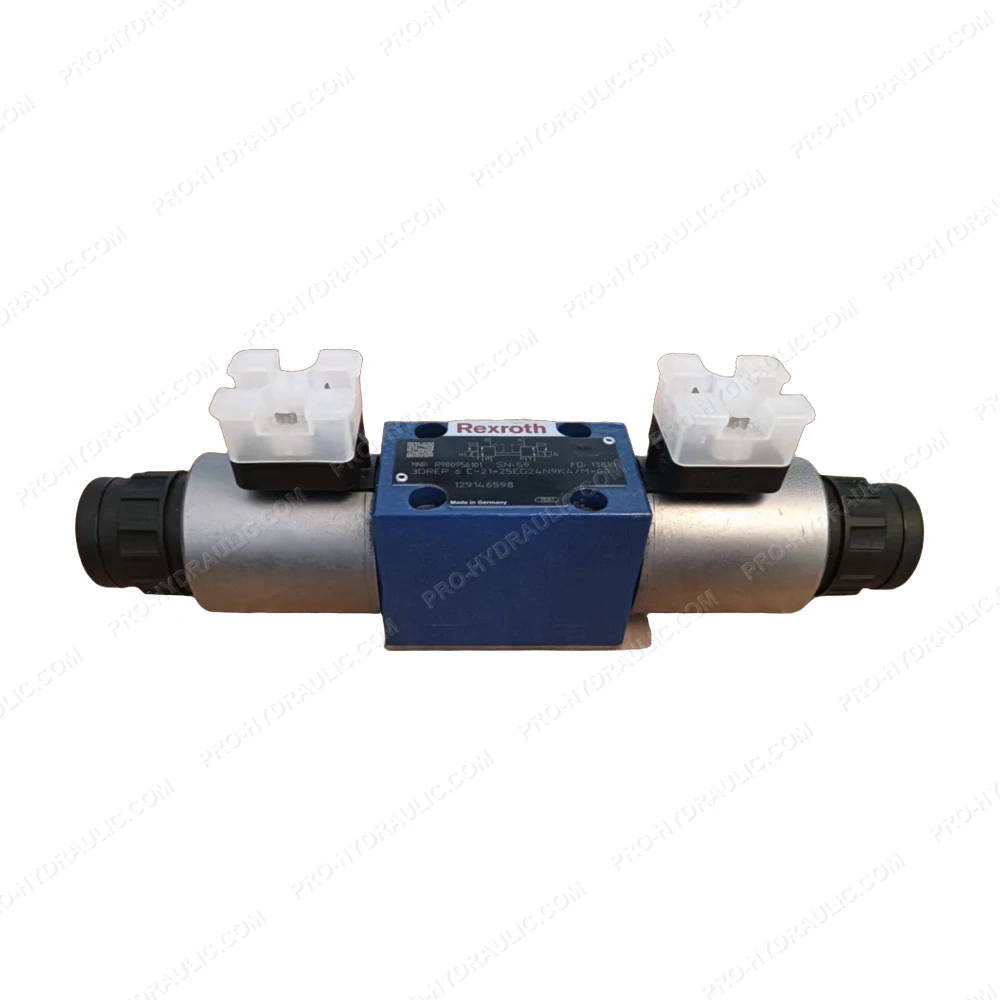

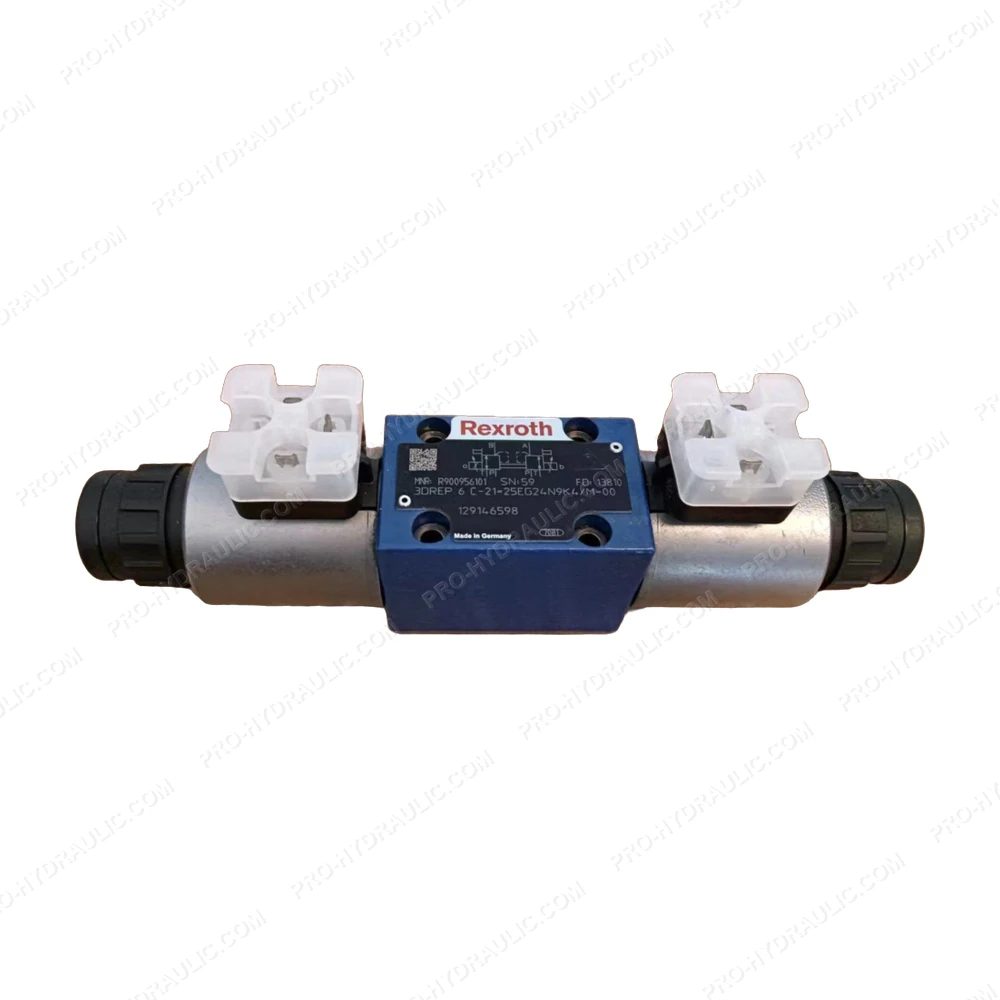

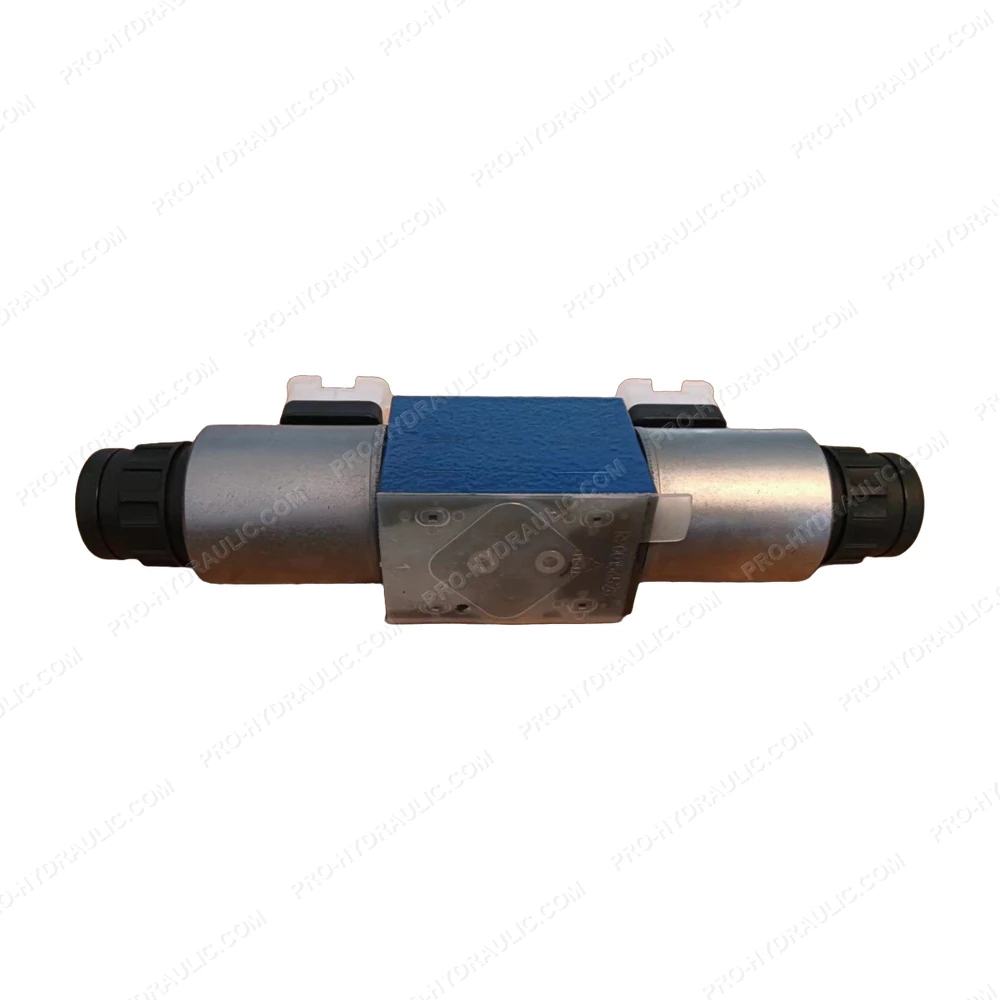

REXROTH 3DREP 6 C-21=25EG24N9K4/M-00 / R900956101 Proportional Pressure Reducing Valve
