Product Overview
The Rexroth 3DREP6A-21/45EG24N9K4/M (Material Number R900962045) is a directly operated, three-way proportional pressure reducing valve from the proven DREP series. It is engineered to continuously convert an electrical input signal into a proportional hydraulic output pressure, enabling stepless, infinitely variable pressure control within industrial hydraulic circuits. The valve operates on a three-way pressure reducing principle, simultaneously regulating the consumer (A) port pressure while providing a return path to tank (T), which allows it to control pressure even under varying load and flow conditions. With a size 6 (NG6 / CETOP 3) subplate mounting interface and a nominal flow capability of 45 L/min, this valve serves as a precise electro-hydraulic interface for pressure regulation, load simulation, and force-controlled actuation in demanding machinery. The integrated proportional solenoid (24 V DC, N9 coil with component plug per DIN EN 175301-803) delivers high actuating force and excellent repeatability, making the 3DREP6A-21/45EG24N9K4/M a reliable choice for closed-loop pressure control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Pressure Reducing Valve (Three-Way, Directly Operated) |
| Model Designation | 3DREP6A-21/45EG24N9K4/M |
| Material Number | R900962045 |
| Size / Mounting Pattern | NG6 (CETOP 3 / ISO 4401-03) Subplate Mounting |
| Nominal Flow Rate | 45 L/min (per model code designation) |
| Operating Pressure | Up to 315 bar (system pressure, port P); regulated outlet pressure proportional to command signal |
| Actuation | Proportional Solenoid, 24 V DC (EG24), N9 coil with component plug |
| Electrical Connection | DIN EN 175301-803 (K4) connector, M-series tuning |
| Mounting & Connection | Standard ISO 4401 / Manufacturer Interface, 4-way subplate pattern |
| Control Characteristic | Proportional pressure vs. command signal, with hysteresis and repeatability optimized for closed-loop control |
Engineering Features & Advantages
- Precision Performance: The integrated proportional Solenoid, 24 V DC (EG24), N9 coil with component plug ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
It is engineered to continuously convert an electrical input signal into a proportional hydraulic output pressure, enabling stepless, infinitely variable pressure control within industrial hydraulic circuits.
PRODUCT IMAGES

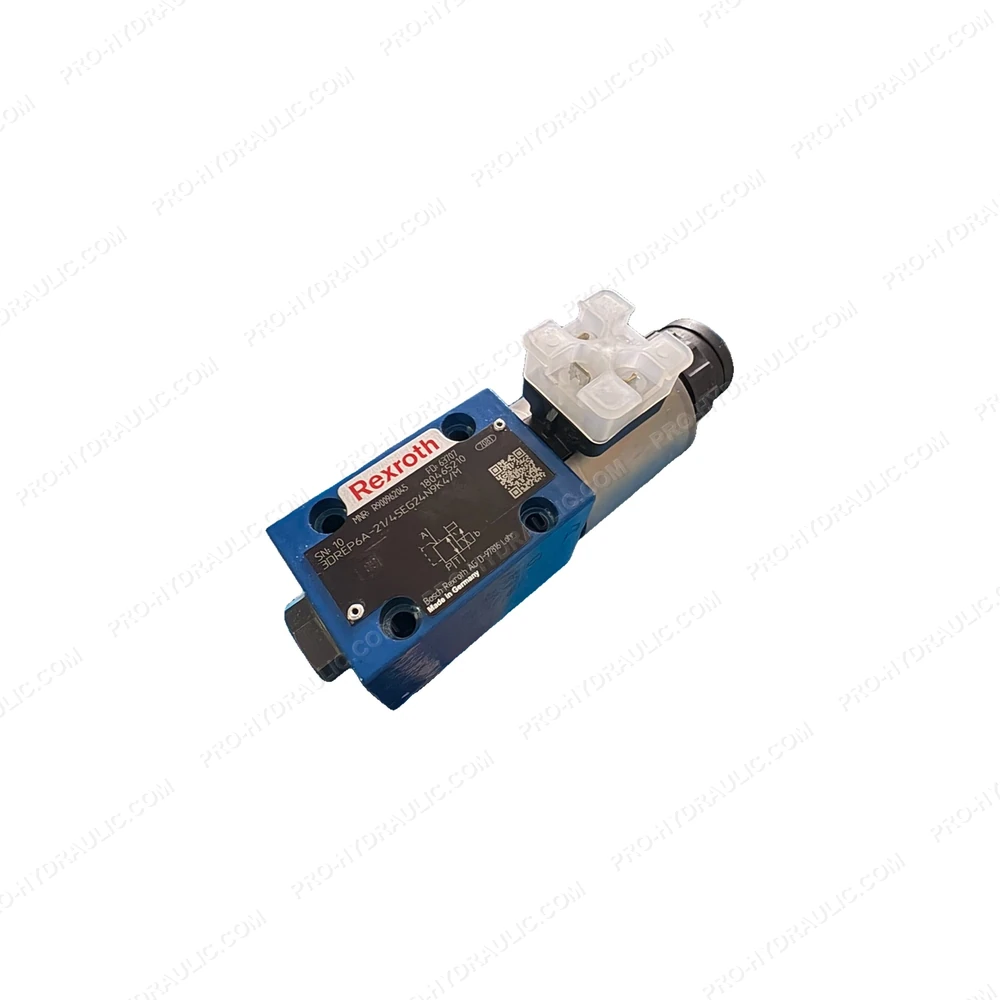

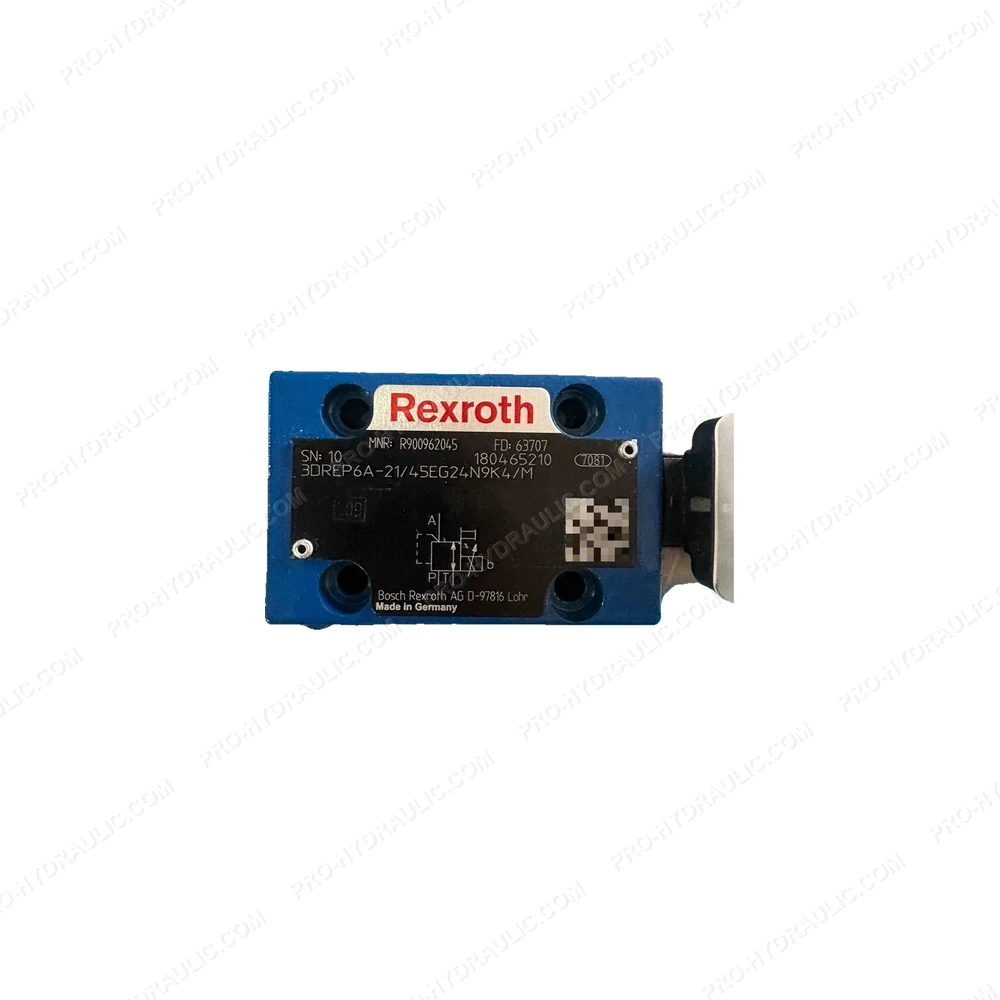

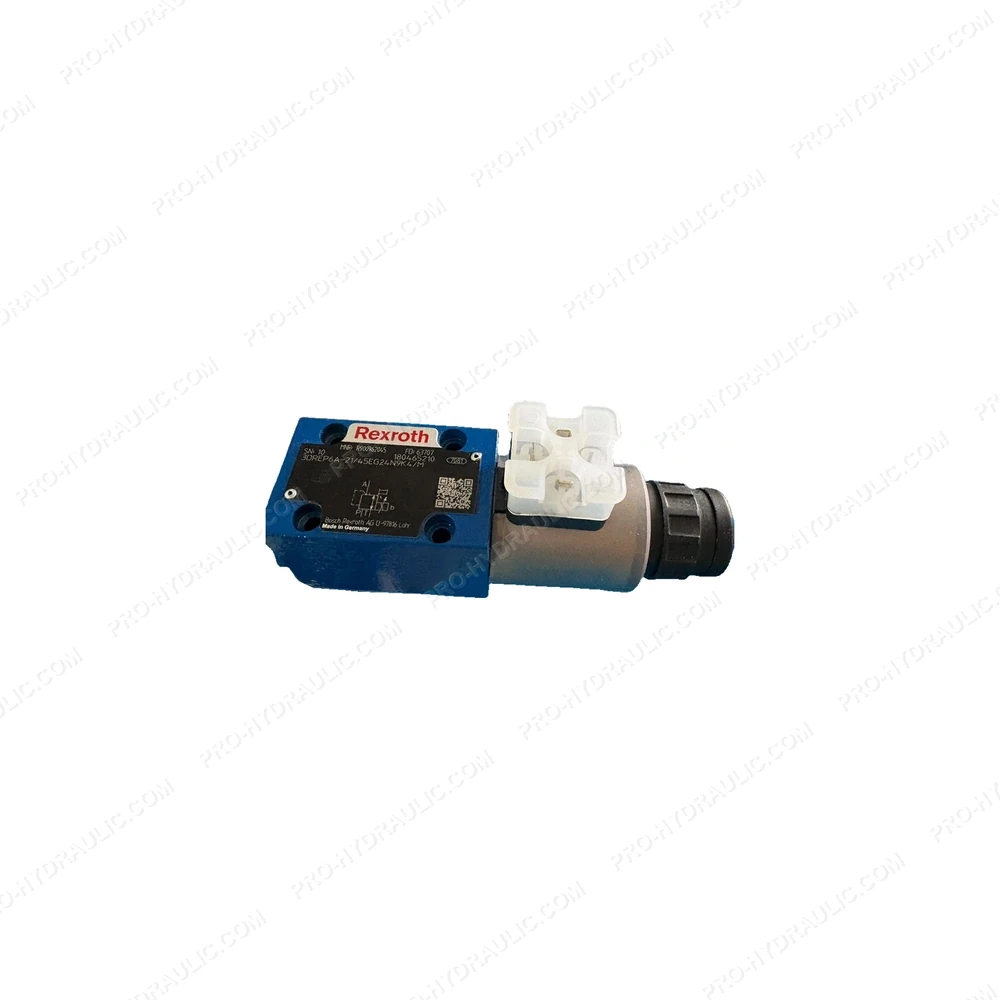

REXROTH 3DREP6A-21/45EG24N9K4/M / R900962045 Proportional Pressure Reducing Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 3DREP6A-21/45EG24N9K4/M / R900962045 Solenoid Operated Directional Spool Valve. This Germany-made 24V DC hydraulic component features a direct-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
