The REXROTH 3DREPE 6 C-2X/25EG24N9K31/F1M is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. This direct-operated, 3-way valve features a wet-pin solenoid with central thread and detachable coil, providing accurate response to electrical input signals. The valve is designed for subplate mounting according to ISO 4401-03-02-0-05 and CETOP 3 standards, ensuring compatibility with standard manifolds. With a nominal flow of 25 L/min and a maximum operating pressure of 315 bar, it delivers reliable performance in demanding applications. The integrated control electronics (type EG24) enable closed-loop position control of the spool, ensuring high repeatability and minimal hysteresis. The F1M designation indicates a specific spool variant and seal material, optimized for mineral oil-based hydraulic fluids.
REXROTH 3DREPE 6 C-2X/25EG24N9K31/F1M Technical Specifications
| Manufacturer | REXROTH |
|---|---|
| Model | 3DREPE 6 C-2X/25EG24N9K31/F1M |
| Part Number | R900958859 |
| Valve Type | Proportional Directional Valve, 3-way, direct-operated |
| Actuation | Wet-pin solenoid with detachable coil, integrated electronics |
| Nominal Flow | 25 L/min |
| Maximum Operating Pressure | 315 bar |
| Mounting Pattern | ISO 4401-03-02-0-05 / CETOP 3 |
| Supply Voltage | 24 V DC |
| Electrical Connection | Connector, 4-pin |
| Seal Material | FKM (F1M) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Weight | Approx. 2.5 kg |
Key Engineering Features
- Direct-operated proportional directional valve with 3-way function for precise flow control.
- Integrated control electronics (EG24) for closed-loop spool position control, ensuring high accuracy and repeatability.
- Wet-pin solenoid with central thread and detachable coil for easy maintenance and replacement.
- Subplate mounting per ISO 4401-03-02-0-05 and CETOP 3 for standardized installation.
- Nominal flow of 25 L/min and maximum pressure of 315 bar for medium-duty hydraulic systems.
- FKM seals (F1M) for compatibility with mineral oils and enhanced durability.
Industrial Applications
- Machine tools and CNC machining centers for precise axis control.
- Injection molding machines for accurate mold movement and pressure control.
- Presses and forming equipment requiring proportional flow and direction control.
- Material handling and lifting systems with dynamic load requirements.
- Test rigs and simulation equipment for hydraulic component testing.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 3DREPE 6 C-2X/25EG24N9K31/F1M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

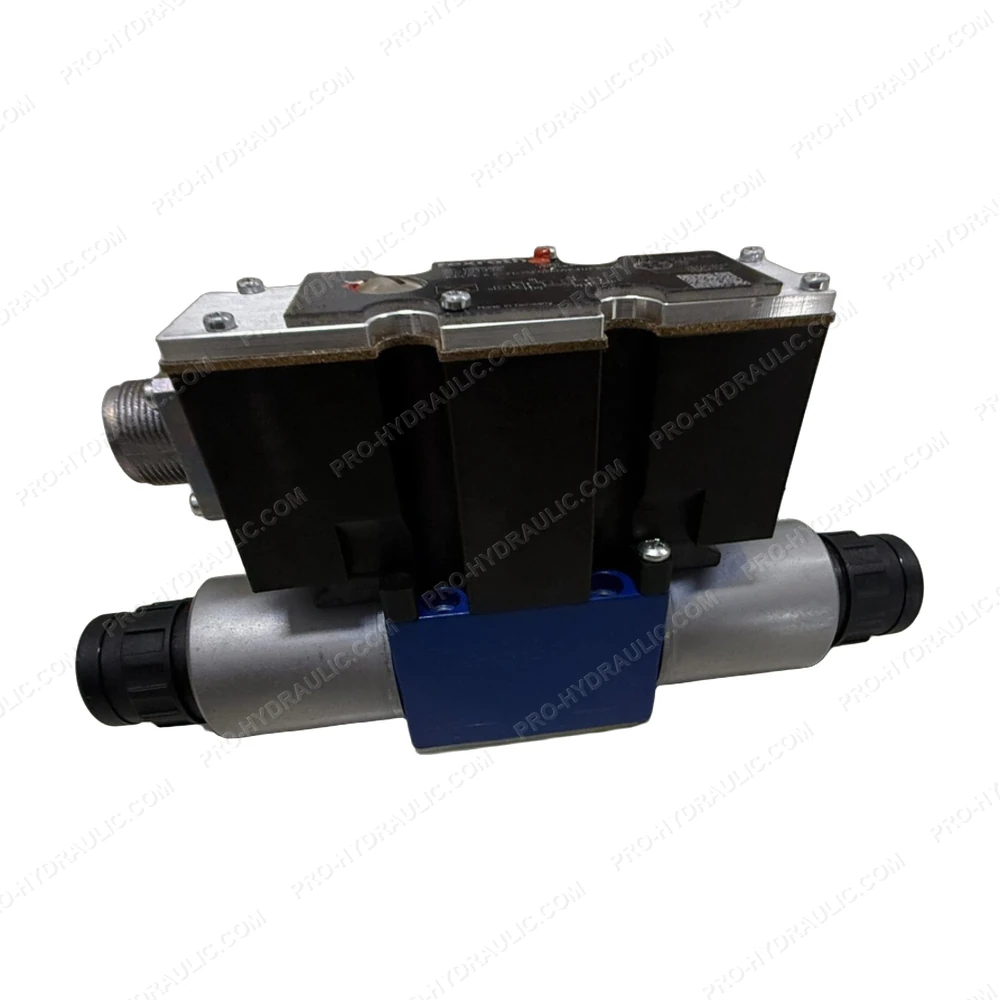

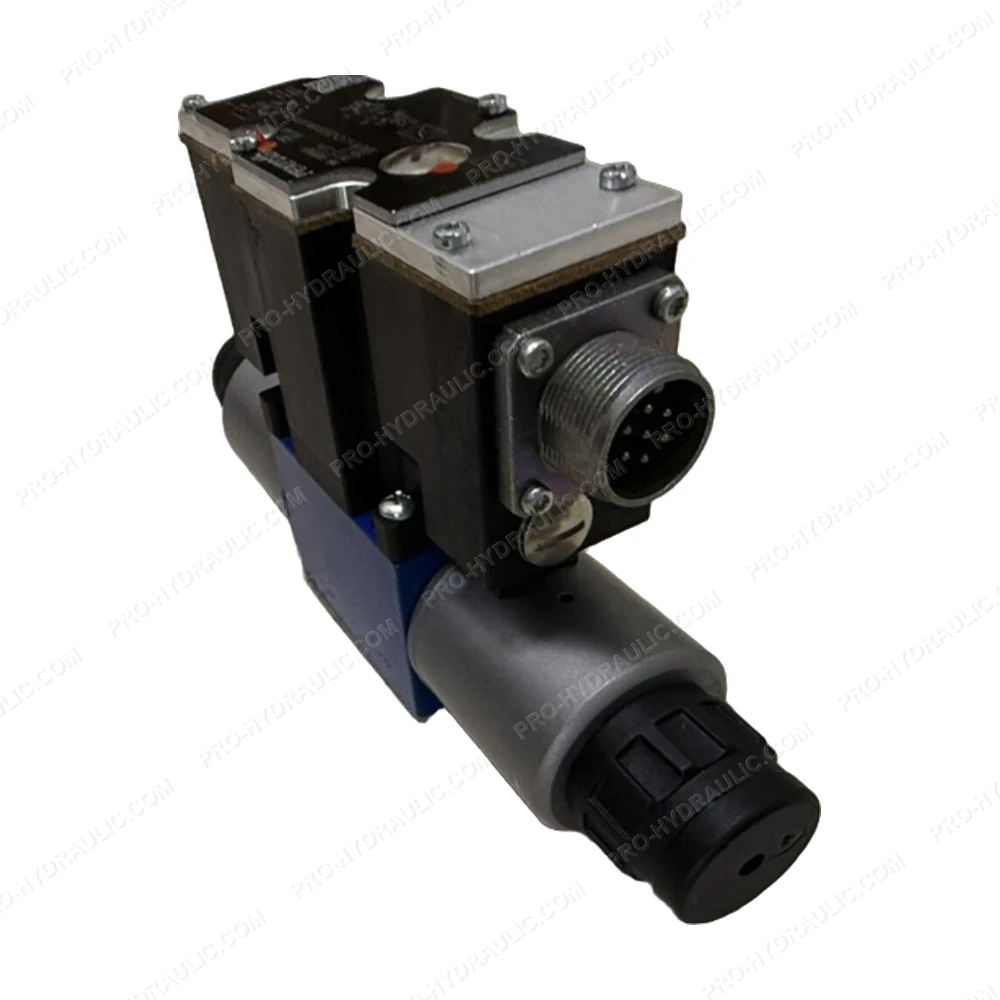

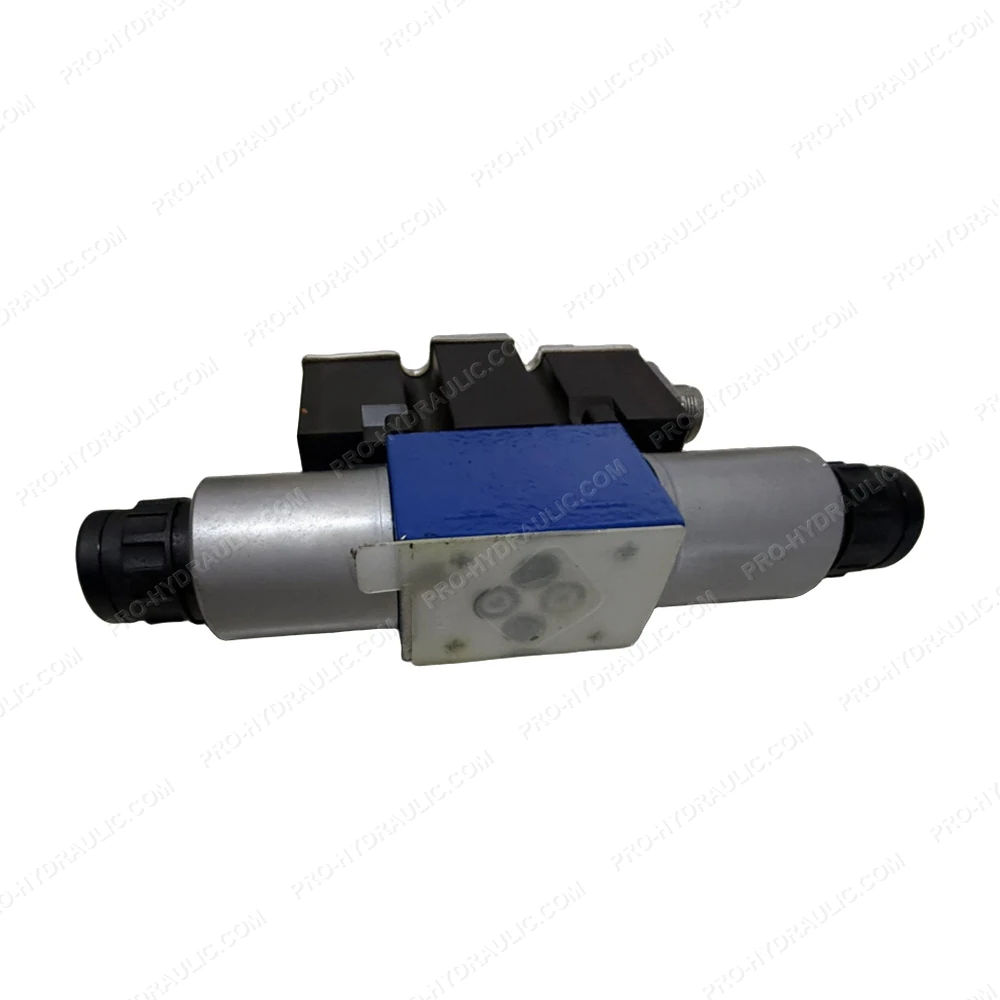

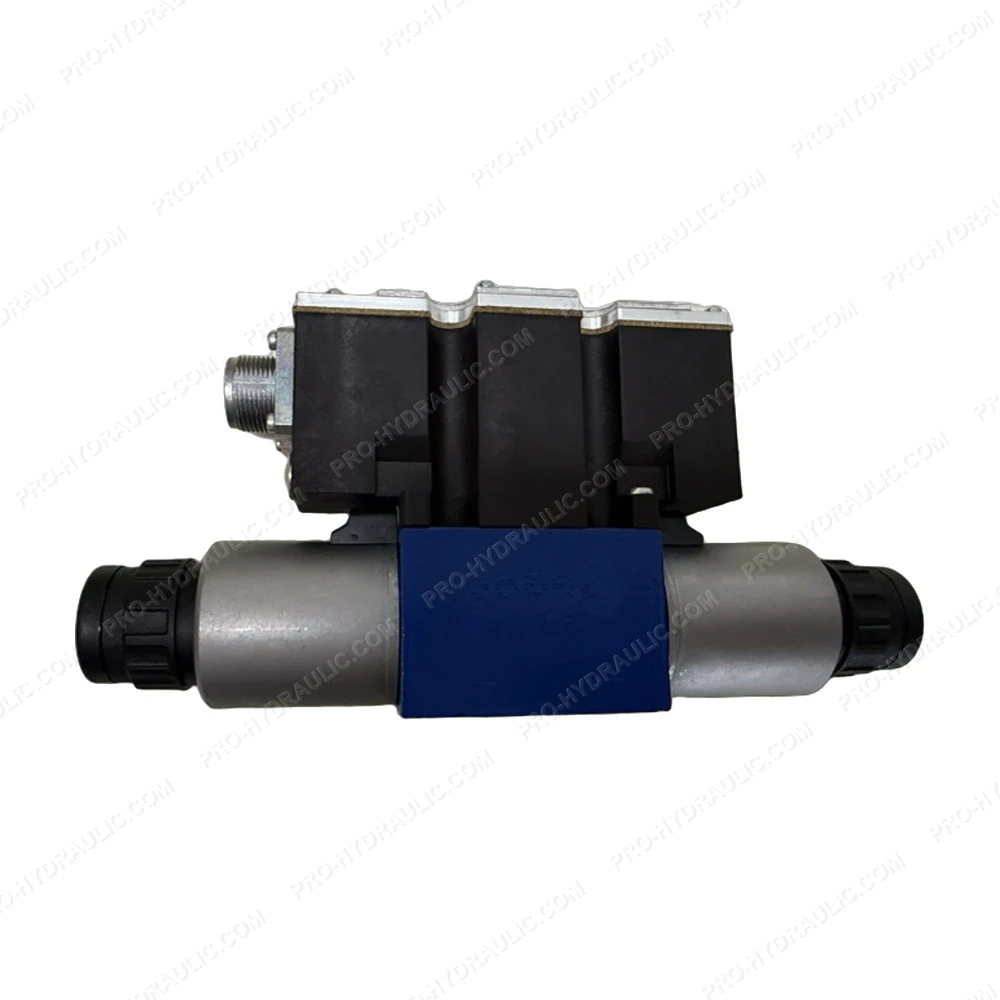

REXROTH 3DREPE 6 C-2X/25EG24N9K31/F1M Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 3DREPE 6 C-2X/25EG24N9K31/F1M Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
