Product Overview
The Rexroth 3WE6B62/EG24N9K4QMAG24 (Material No. R900946092) is a direct-operated, solenoid-actuated directional spool valve from the proven WE6 series, designed for precise control of start, stop, and direction of hydraulic fluid flow in industrial power units. Configured as a 3-way, 2-position (3/2) function with a spring return and a detent-free wet-pin AC/DC solenoid, this valve shifts the spool directly against the return spring when energized, providing fast, repeatable switching without the need for pilot pressure. The “62” design series denotes the current Rexroth generation with optimized spool-to-bore clearance, hardened and ground spool lands, and a high-strength cast iron housing rated for continuous operation at pressures up to 350 bar. The EG24N9K4 solenoid is a 24 V DC high-performance wet-pin actuator with an integrated rectifier, N9 (ISO 4400 / DIN EN 175301-803, 3-pole) connector, and K4 designation, making this valve a direct-fit replacement for OEM manifolds and line-mounted installations in plastic injection molding, machine tool, and general industrial hydraulic systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (3/2, direct-operated) |
| Model Designation | 3WE6B62/EG24N9K4QMAG24 |
| Material Number | R900946092 |
| Spool Type / Function | Type B spool, 3-way / 2-position (P–A, A–T), spring return |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03 / DIN 24340-A6) |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar max. at port T |
| Nominal Flow Rate | Up to 60 L/min (NG6 standard) |
| Solenoid Voltage | 24 V DC (EG24), integrated rectifier, wet-pin design |
| Electrical Connection | N9 connector, ISO 4400 / DIN EN 175301-803, 3-pole + PE |
| Mounting & Connection | Subplate mounting, ISO 4401-03-02-0-05 interface, 4 x M5 mounting bolts |
Engineering Features & Advantages
- Precision Performance: The solenoid directional spool valve (3/2, direct-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The EG24N9K4 solenoid is a 24 V DC high-performance wet-pin actuator with an integrated rectifier, N9 (ISO 4400 / DIN EN 175301-803, 3-pole) connector, and K4 designation, making this valve a direct-fit replacement for OEM manifolds and line-mounted installations in plastic injection molding, machine tool, and general industrial hydraulic systems.
PRODUCT IMAGES

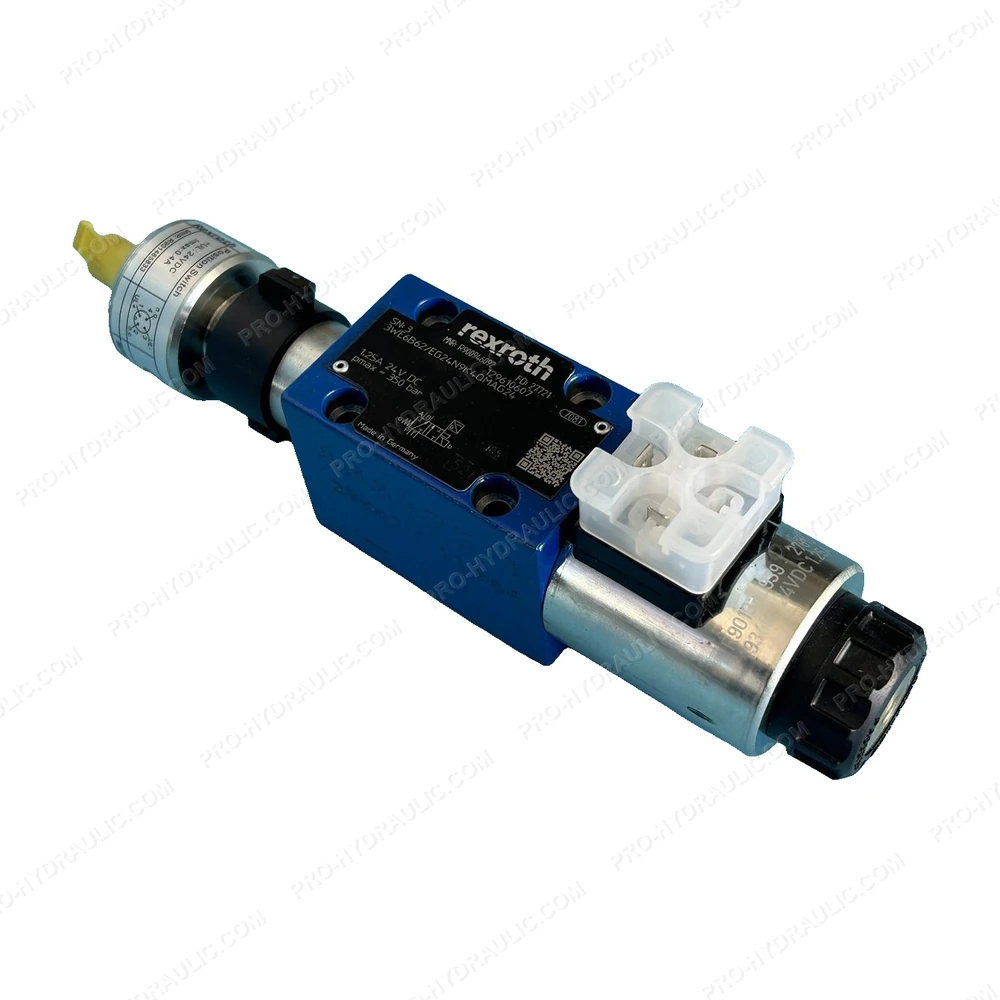

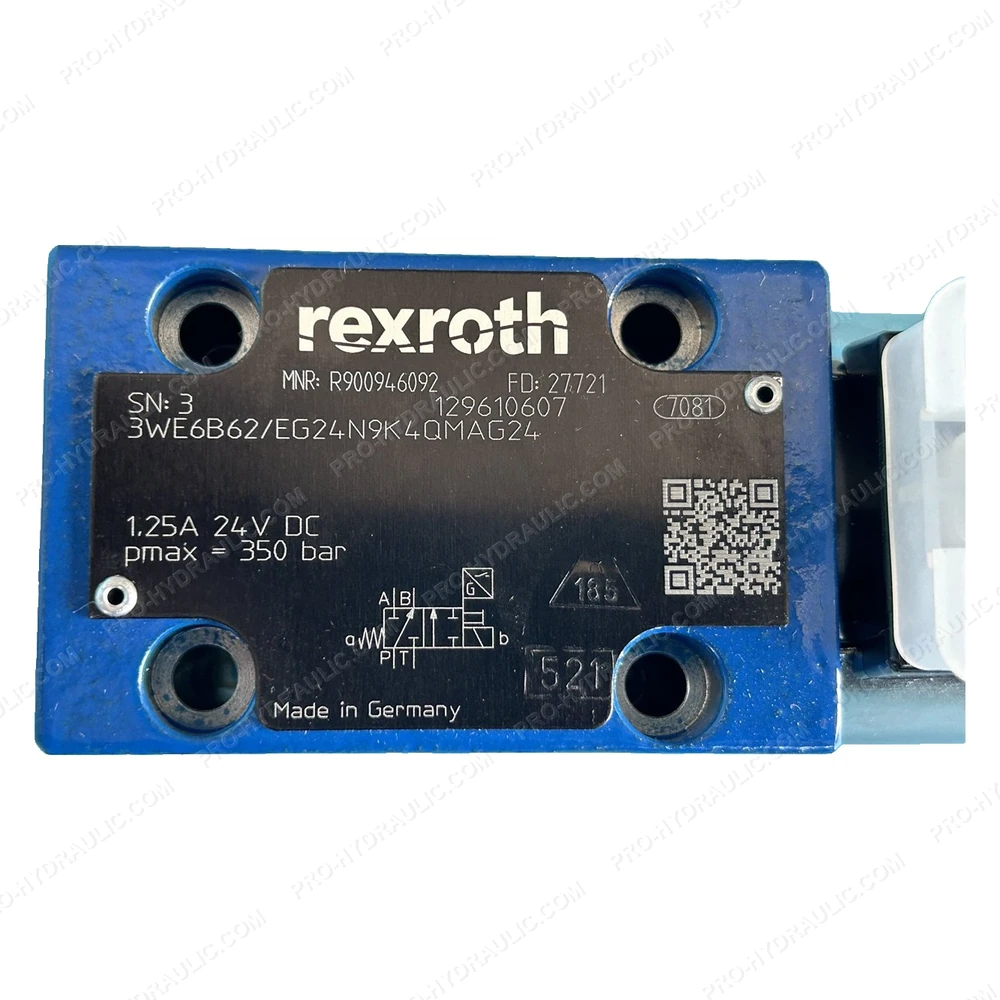

REXROTH 3WE6B62/EG24N9K4QMAG24 / R900946092 Solenoid Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 3WE6B62/EG24N9K4QMAG24 / R900946092 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
