Product Overview
The Rexroth 4 WE 6 EA62/EG24N9K4 (material number R900561280) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth 4WE 6 series, size NG6 (CETOP 3 / ISO 4401-03). It controls the start, stop, and direction of hydraulic fluid flow by shifting a hardened, precision-ground spool within the valve housing via a wet-pin AC/DC solenoid. Configured in a 4-way, 3-position (4/3) spool design with an “EA” spool type, this valve is engineered for reliable switching and load-holding performance in demanding industrial hydraulic circuits. The EG24N9K4 designation indicates a 24 V DC high-performance solenoid with a nominal 30 W rating, an ISO 4401-03-02-0-05 mounting pattern, and an N9 (EN 175301-803, form A) plug-in electrical connector. As a core component in Rexroth’s modular valve program, it serves as a dependable interface between electrical control signals and hydraulic power transmission in machine and plant engineering.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (4/3 Way, Direct-Operated) |
| Model Designation | 4 WE 6 EA62/EG24N9K4 |
| Material Number | R900561280 |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03-02-0-05) |
| Spool Type / Function | EA spool, 4-way 3-position, spring-centered |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar (port T) |
| Nominal Flow Rate | Up to 60 L/min (NG6 standard) |
| Solenoid Voltage | 24 V DC (EG24 high-performance wet-pin solenoid) |
| Solenoid Power | Nominal 30 W per solenoid |
| Electrical Connection | N9 plug-in connector (EN 175301-803, form A) |
| Mounting & Connection | Subplate mounting, ISO 4401-03 |
Engineering Features & Advantages
- Precision Performance: The solenoid directional spool valve (4/3 way, direct-operated) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Configured in a 4-way, 3-position (4/3) spool design with an “EA” spool type, this valve is engineered for reliable switching and load-holding performance in demanding industrial hydraulic circuits.
PRODUCT IMAGES

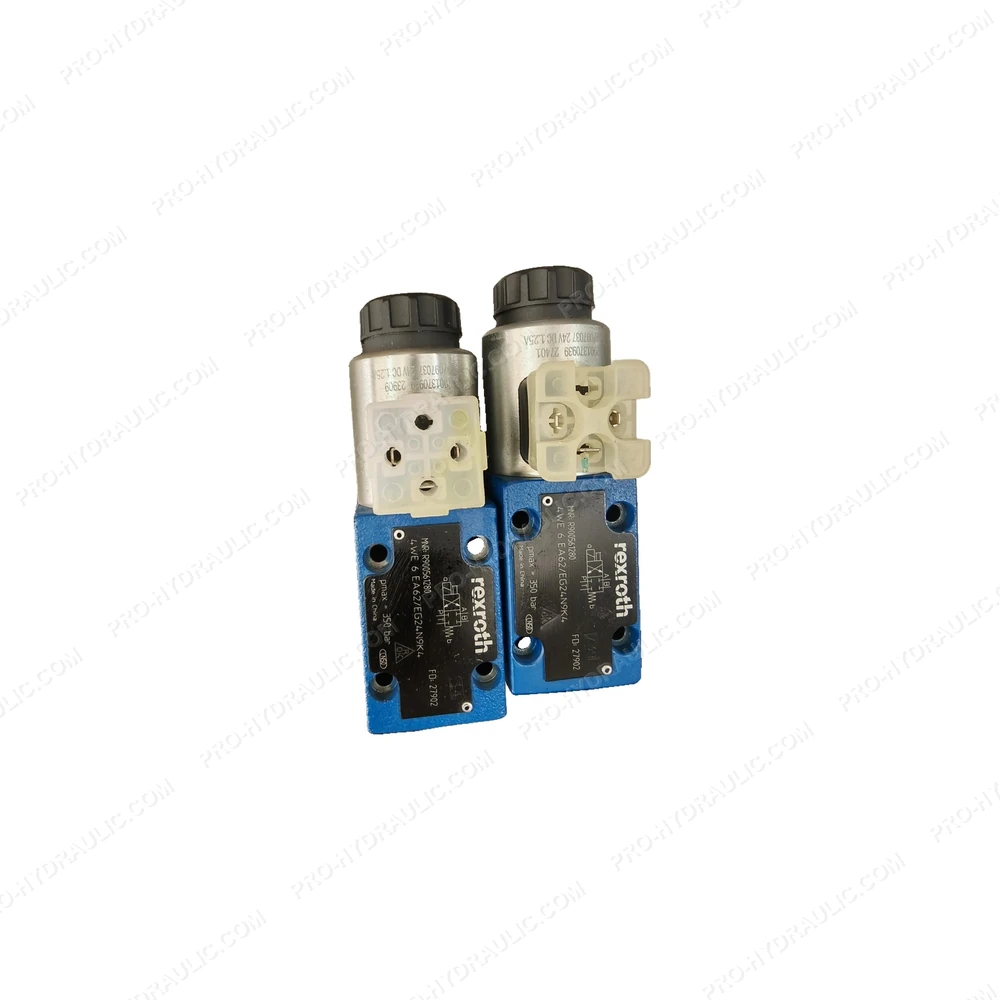

REXROTH 4 WE 6 EA62/EG24N9K4 / R900561280 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4 WE 6 EA62/EG24N9K4 / R900561280 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a 4/2-way design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
