Product Overview
The Rexroth 4WE 10 E50/EG24NSK4/M (Material Number R901380326) is a high-performance solenoid operated directional spool valve from the proven Rexroth 4WE series. Designed as a direct-operated, four-way directional control valve, it governs the start, stop, and direction of hydraulic fluid flow within a system by shifting a precision-ground spool via a wet-pin AC or DC solenoid. With a size 10 (NG10 / CETOP 5) interface, this valve is engineered for reliable switching performance in demanding industrial hydraulic circuits, offering fast response, low-pressure drop, and long service life in continuous-duty applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4-Way, 3-Position) |
| Model Designation | 4WE 10 E50/EG24NSK4/M |
| Material Number | R901380326 |
| Size / Nominal Diameter | NG10 (CETOP 5 / ISO 4401-05) |
| Spool Type | Type “E” Spool (Closed Center, All Ports Blocked in Neutral) |
| Actuation | Solenoid Operated, Spring Return / Spring Centered |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Operating Pressure | Up to 350 bar (P, A, B ports); 210 bar max at T port |
| Nominal Flow Rate | Up to 120 L/min (NG10 standard) |
| Mounting & Connection | Subplate Mounting per ISO 4401-05 / CETOP 5, 4-Way Port Pattern |
| Seal Material | NBR (Nitrile) — “N” designation, suitable for mineral oil based fluids |
| Electrical Connection | DIN EN 175301-803 (ISO 4400) standard connector |
Engineering Features & Advantages
- Precision Performance: The integrated solenoid Operated, Spring Return / Spring Centered ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a size 10 (NG10 / CETOP 5) interface, this valve is engineered for reliable switching performance in demanding industrial hydraulic circuits, offering fast response, low-pressure drop, and long service life in continuous-duty applications.
PRODUCT IMAGES

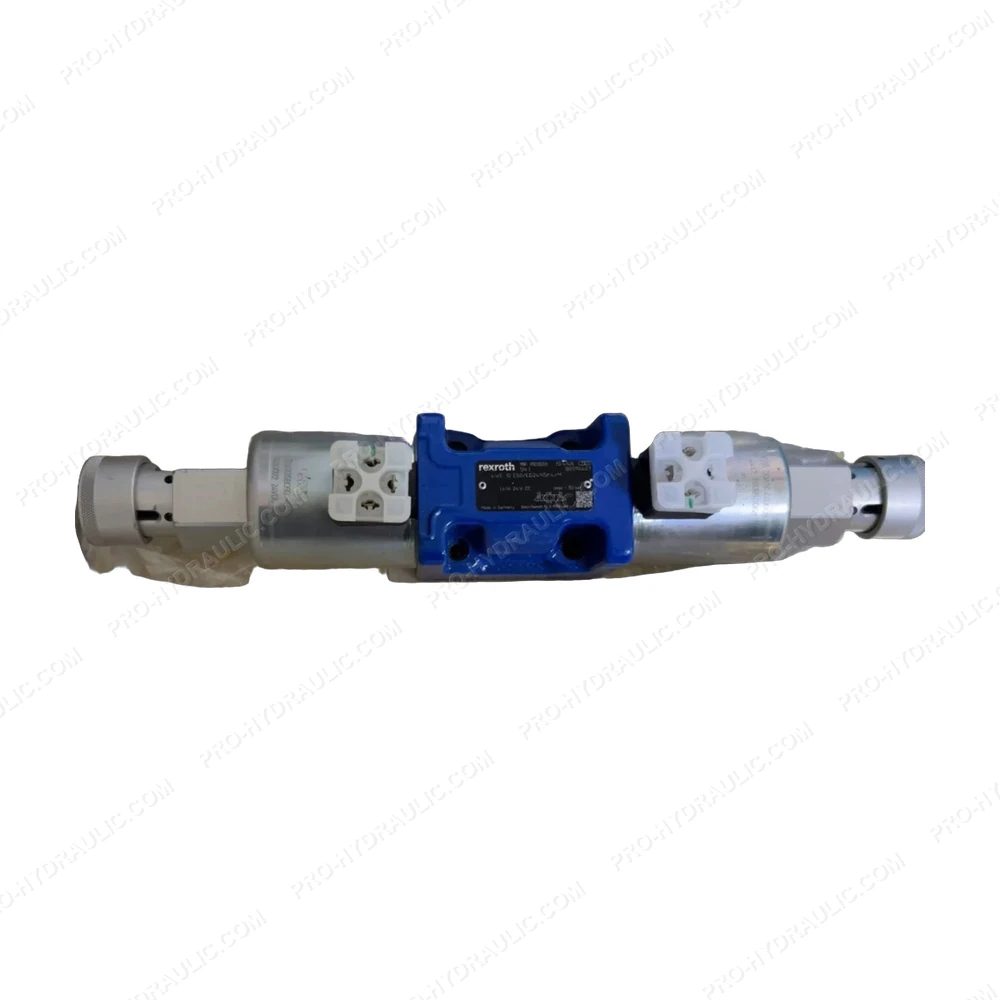

Rexroth 4WE 10 E50/EG24NSK4/M / R901380326 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 10 E50/EG24NSK4/M / R901380326 Solenoid Directional Valve. This Germany-made 24 VDC hydraulic component features a 4/3-way design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
