The REXROTH 4WE 10 E52/HG24N9K4/M is a heavy-duty industrial directional control valve engineered for precise flow direction and reliable operation in demanding hydraulic circuits. This solenoid-actuated, 4-way, 3-position valve features a wet-pin AC/DC solenoid with a 24 V DC coil, a spring-centered spool, and a high-performance cast iron housing. The E52 spool type provides a closed-center configuration for load holding and precise actuator control. The HG24N9K4 solenoid system ensures high switching reliability and long service life, while the standard ISO 4401-05 (CETOP 5) mounting pattern allows direct integration into existing manifolds and subplates.
REXROTH 4WE 10 E52/HG24N9K4/M Technical Specifications
| Valve Type | 4-way, 3-position directional control valve |
| Actuation | Solenoid actuated, spring return |
| Spool Type | E52 (closed center, all ports blocked in neutral) |
| Nominal Flow Rate | Up to 120 L/min (31.7 gpm) |
| Maximum Operating Pressure | 350 bar (5075 psi) at ports P, A, B; 210 bar (3045 psi) at port T |
| Coil Voltage | 24 V DC (HG24N9K4) |
| Electrical Connection | DIN EN 175301-803 (ISO 4400) connector |
| Mounting Pattern | ISO 4401-05 (CETOP 5), NG10 |
| Hydraulic Fluid | Mineral oil based, phosphate ester (HFD-R) |
| Fluid Temperature Range | -20 °C to +80 °C (-4 °F to +176 °F) |
| Viscosity Range | 2.8 to 500 mm²/s |
| Filtration | ISO 4406 (c) 20/18/15 or better |
| Weight | Approx. 6.5 kg (14.3 lbs) |
Key Engineering Features
- Wet-pin solenoid design with removable coil for high switching force and long life
- Spring-centered spool with positive overlap for reliable neutral position
- High flow capacity up to 120 L/min with low pressure drop
- Standard ISO 4401-05 mounting for direct manifold or subplate installation
- Rugged cast iron body and hardened spool for extended service in harsh environments
- Optional manual override (N9) for emergency operation
Industrial Applications
- Mobile hydraulic systems: excavators, cranes, loaders
- Industrial presses and machine tools
- Material handling and lifting equipment
- Marine and offshore hydraulic power units
- Steel mills and heavy manufacturing lines
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WE 10 E52/HG24N9K4/M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

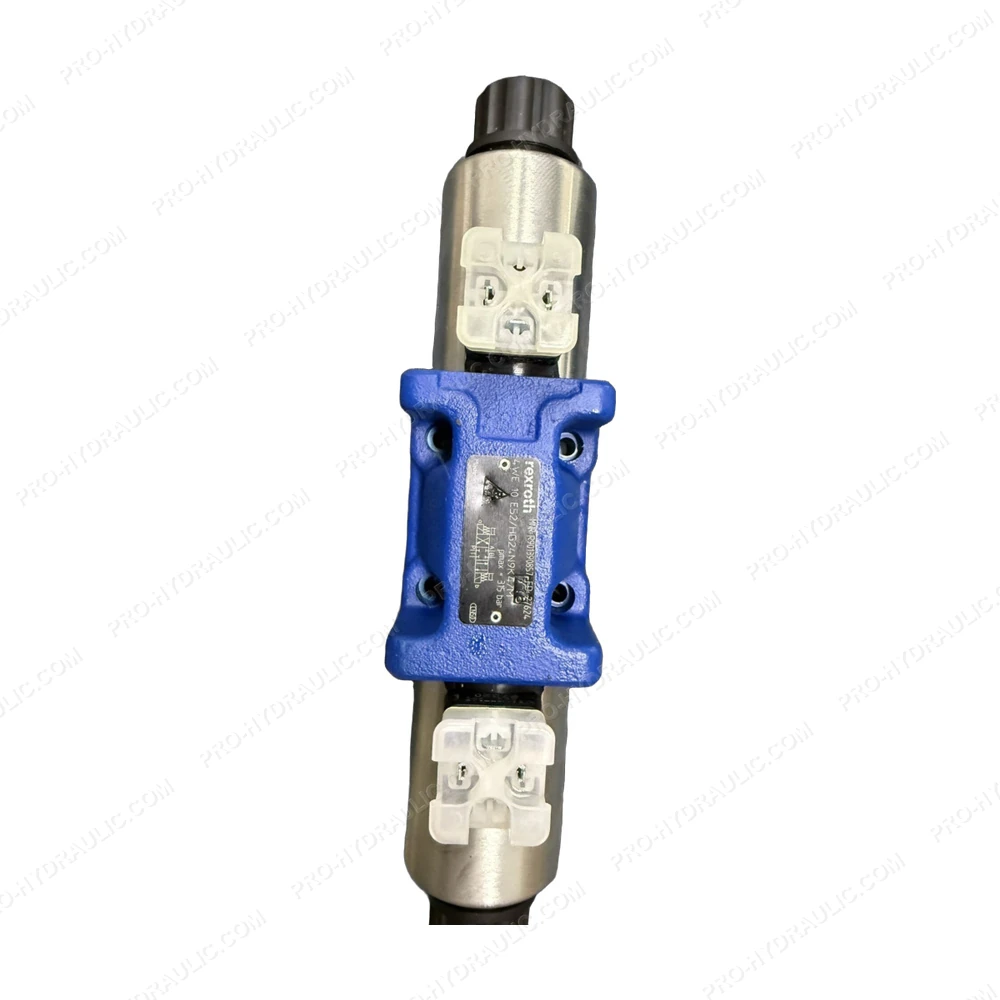

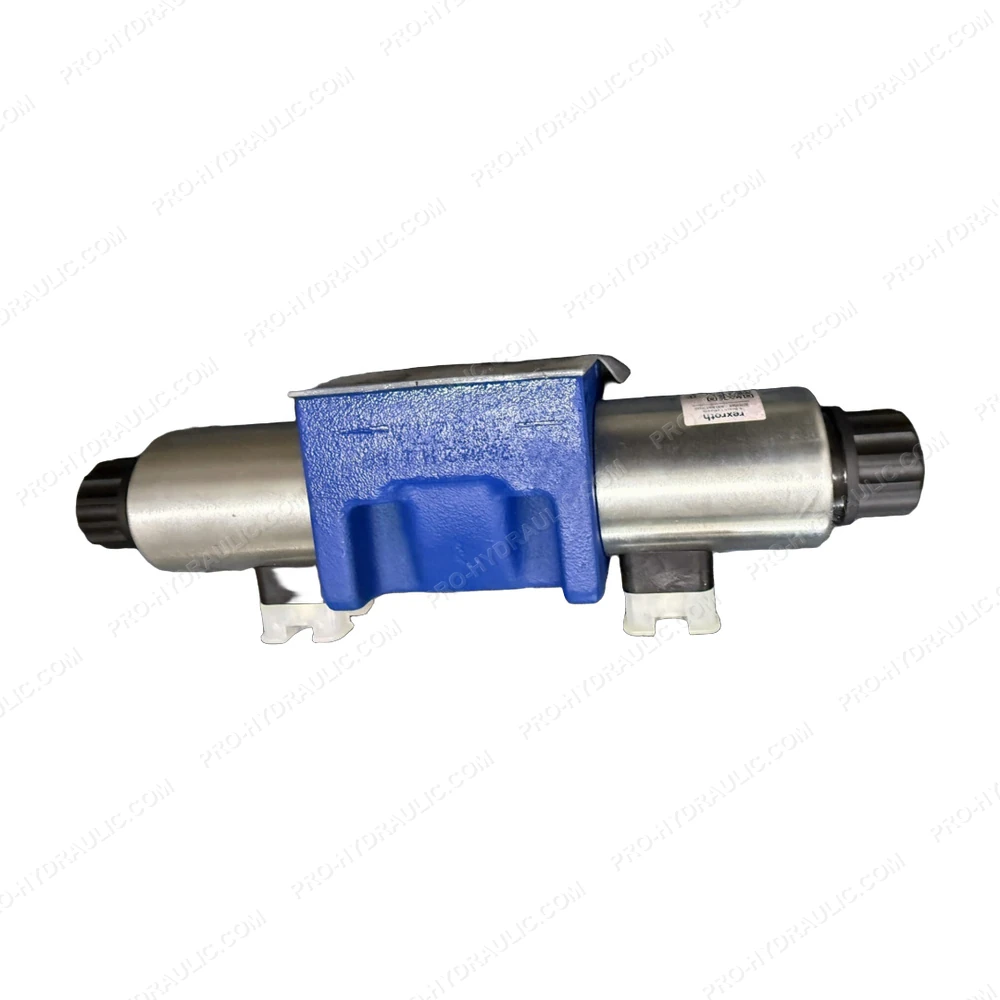

REXROTH 4WE 10 E52/HG24N9K4/M Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WE 10 E52/HG24N9K4/M Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
