Product Overview
The Rexroth 4WE 10 EA50/HG24N9K4/M (Material Number: R901391198) is a high-performance, direct-operated solenoid directional spool valve designed for precise control of start, stop, and direction of fluid flow in industrial hydraulic systems. Featuring a robust 4-way, 3-position (4/3) spool configuration with a “E” type center condition (all ports blocked in the central position), this valve ensures reliable load holding and actuator positioning. The “HG24N9K4” designation indicates a high-power wet-pin AC/DC solenoid with a nominal voltage of 24V DC, equipped with a concealed manual override and a standard electrical connector. Engineered for demanding applications, this valve provides exceptional response times, low-pressure drop, and long service life, making it a critical component in complex hydraulic circuits requiring fail-safe operation and precise directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve |
| Model Designation | 4WE 10 EA50/HG24N9K4/M / R901391198 |
| Spool Configuration | 4-Way, 3-Position (4/3), “E” Center (All Ports Blocked) |
| Operating Pressure | Up to 350 bar (5075 psi) at Ports P, A, B; 210 bar at Port T |
| Nominal Flow Rate | Up to 120 L/min (31.7 gpm) at Δp = 5 bar |
| Actuation Type | High-Power Wet-Pin Solenoid, 24V DC |
| Electrical Connection | DIN EN 175301-803 (Formerly DIN 43650) Connector |
| Mounting & Connection | Subplate Mounting, ISO 4401-05 / CETOP 5 / NG10 Interface |
| Manual Override | Concealed, Push-Pin Type (N9) |
| Seal Material | NBR (Nitrile Rubber) for Mineral Oil Based Fluids |
Engineering Features & Advantages
- Precision Spool & Sleeve Design: The hardened, ground, and honed spool and sleeve assembly ensures minimal internal leakage, precise metering characteristics, and exceptionally long operational life even under high cycle rates.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
Typical Industrial Applications
Engineered for demanding applications, this valve provides exceptional response times, low-pressure drop, and long service life, making it a critical component in complex hydraulic circuits requiring fail-safe operation and precise directional control.
PRODUCT IMAGES

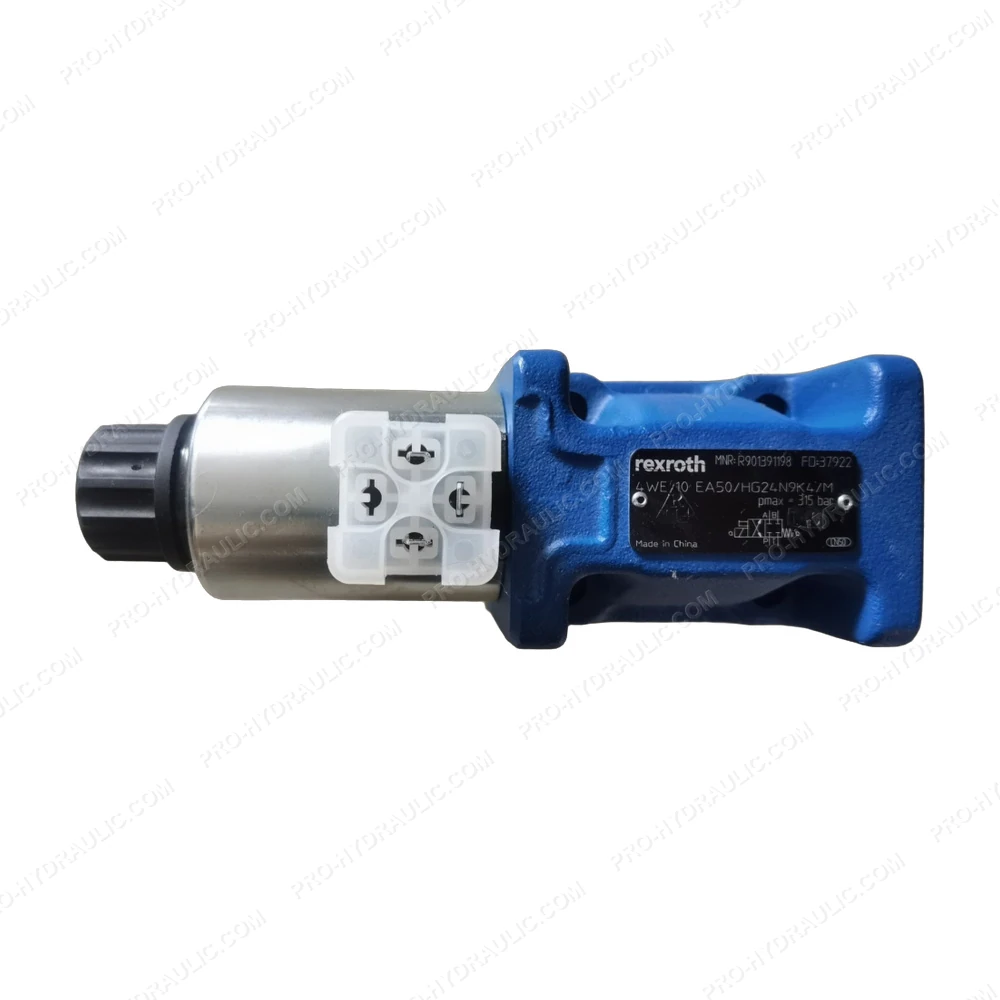

REXROTH 4WE 10 EA50/HG24N9K4/M / R901391198 Solenoid Operated Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 10 EA50/HG24N9K4/M / R901391198 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a spring-centered spool, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
