Product Overview
The Rexroth 4WE 10 H52/HG24N9K4/M (Material Number R901427828) is a high-performance, direct-operated solenoid directional spool valve designed for precise control of start, stop, and direction of fluid flow in industrial hydraulic systems. As part of the renowned Rexroth 4WE series, this valve features a robust 4-way, 3-position (4/3) spool configuration with a “H” type center condition, allowing for efficient pressure relief and load holding in neutral. The “HG24” designation indicates a high-power wet-pin AC/DC solenoid with a 24V DC coil, ensuring reliable actuation even under high-pressure conditions. The “N9” suffix denotes an electrical connection with a standard DIN EN 175301-803 (formerly DIN 43650) connector, while the “K4” indicates a spring-centered, spring-return design. Engineered for demanding industrial environments, this valve provides exceptional response times, low-pressure drop, and long service life, making it a critical component in complex hydraulic circuits requiring precise directional control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4/3 Way) |
| Model Designation | 4WE 10 H52/HG24N9K4/M / R901427828 |
| Spool Type | Type H (Closed Center, P, A, B, T blocked in neutral) |
| Size / Nominal Flow | NG10 (CETOP 5, ISO 4401-05) / Up to 120 L/min |
| Operating Pressure | Up to 350 bar (P, A, B ports); 210 bar (T port) |
| Actuation | High-Performance Wet-Pin Solenoid (HG24) |
| Voltage | 24V DC (Nominal) |
| Electrical Connection | DIN EN 175301-803 (N9) Connector |
| Return Mechanism | Spring Centered / Spring Return (K4) |
| Mounting & Connection | Subplate Mounting (ISO 4401-05-05-0-05) |
| Seal Material | NBR (Nitrile) / FKM (Viton) available |
Engineering Features & Advantages
- Precision Performance: The integrated high-Performance Wet-Pin Solenoid (HG24) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Engineered for demanding industrial environments, this valve provides exceptional response times, low-pressure drop, and long service life, making it a critical component in complex hydraulic circuits requiring precise directional control.
PRODUCT IMAGES

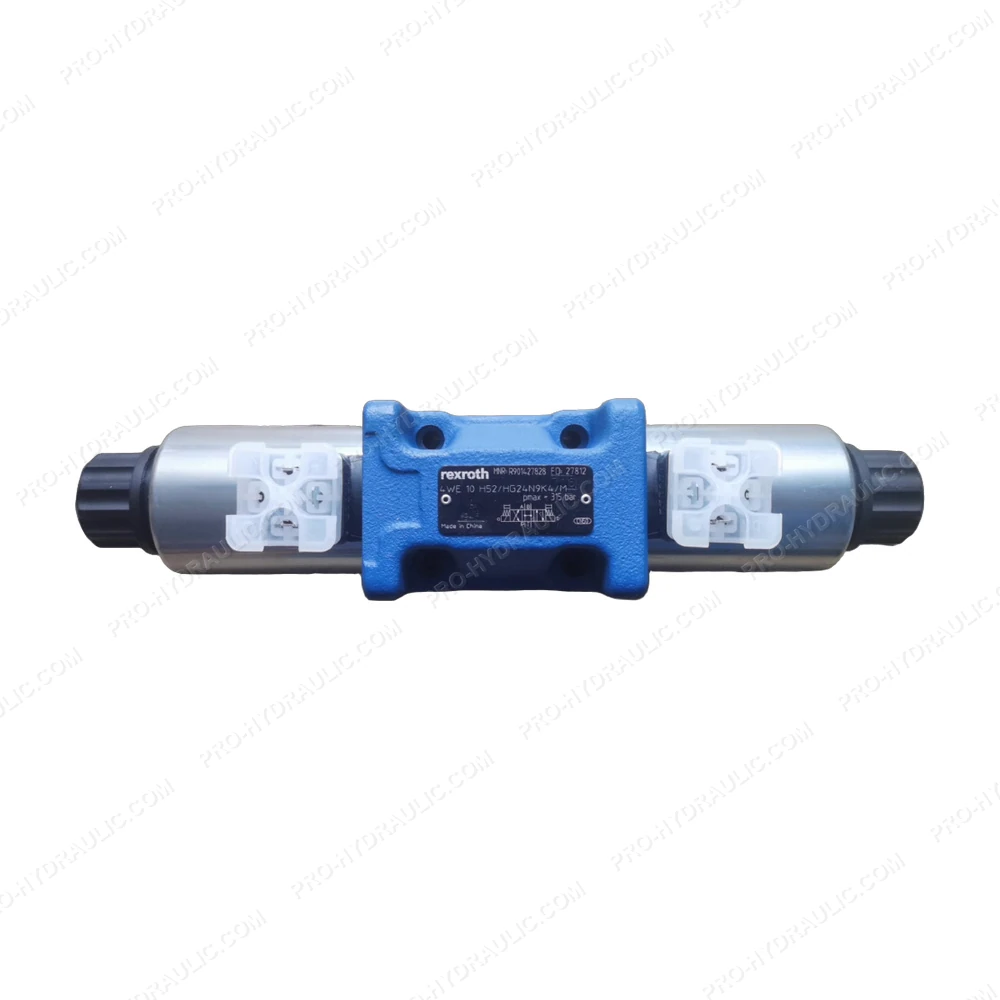

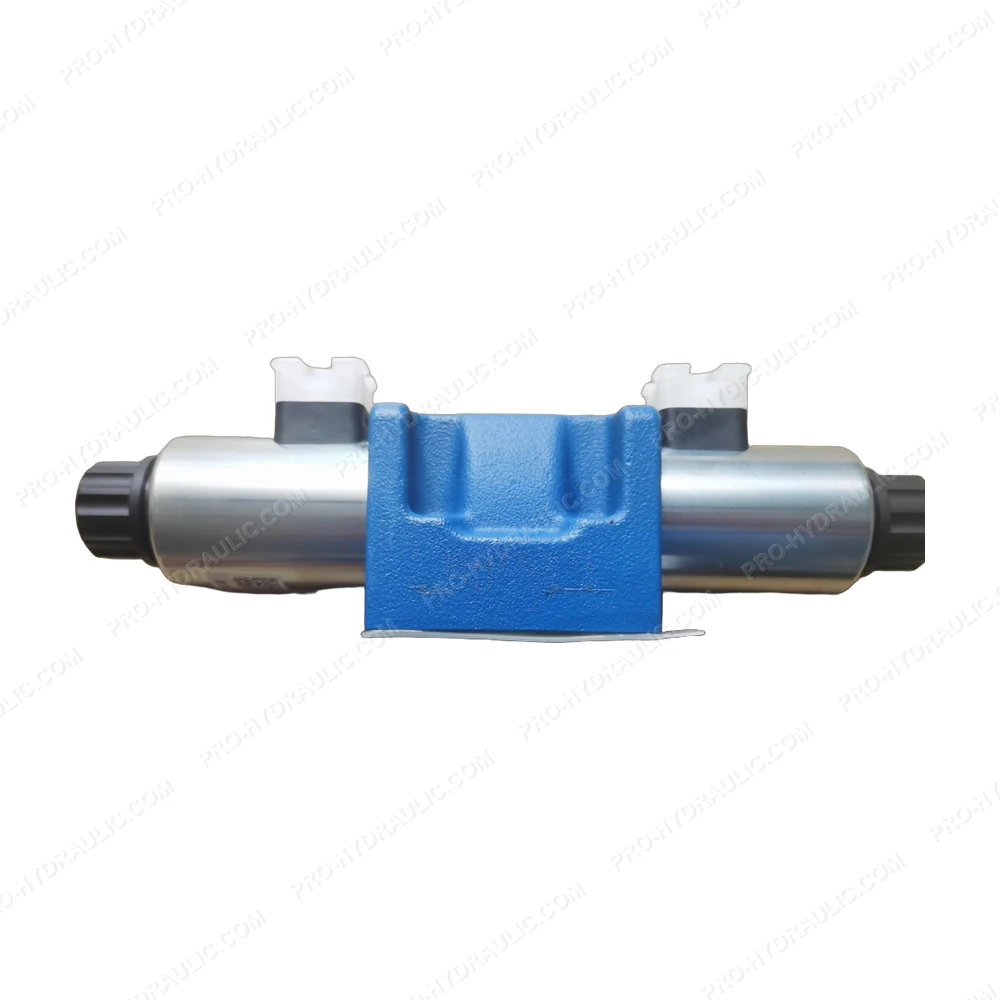

REXROTH 4WE 10 H52/HG24N9K4/M / R901427828 Solenoid Operated Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 10 H52/HG24N9K4/M / R901427828 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
