Product Overview
The Rexroth 4WE 10 J50/EG24N9K4/M (Material Number R901278744) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth 4WE 10 series. Designed for controlling the start, stop, and direction of fluid flow in industrial hydraulic systems, this valve features a 4-way, 3-position (4/3) spool configuration with a “J” type center condition. The valve is actuated by a high-performance wet-pin AC/DC solenoid (EG24N9K4) rated for 24 V DC, with a concealed manual override and a spring-centered return mechanism. The “N9” designation indicates a standard nitrile (NBR) seal package suitable for mineral oil-based hydraulic fluids. With a nominal size of NG10 (Cetop 5 / ISO 4401-05), this valve delivers reliable, high-flow directional control for demanding industrial applications where precise spool positioning and rapid response are critical.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4/3 Way) |
| Model Designation | 4WE 10 J50/EG24N9K4/M / R901278744 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Spool Type | Type “J” — Tandem Center, All Ports Blocked in Neutral |
| Operating Pressure | Up to 350 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | Up to 120 L/min (dependent on spool position and pressure drop) |
| Solenoid Voltage | 24 V DC (EG24N9K4 — Wet-Pin Solenoid, High Power) |
| Electrical Connection | DIN EN 175301-803 (DIN 43650) Connector, 3-Pole + PE |
| Seal Material | NBR (Nitrile) — “N9” Designation |
| Mounting & Connection | Subplate Mounting per ISO 4401-05 / CETOP 5; 4 x M6 Mounting Bolts |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional spool valve (4/3 way) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of NG10 (Cetop 5 / ISO 4401-05), this valve delivers reliable, high-flow directional control for demanding industrial applications where precise spool positioning and rapid response are critical.
PRODUCT IMAGES

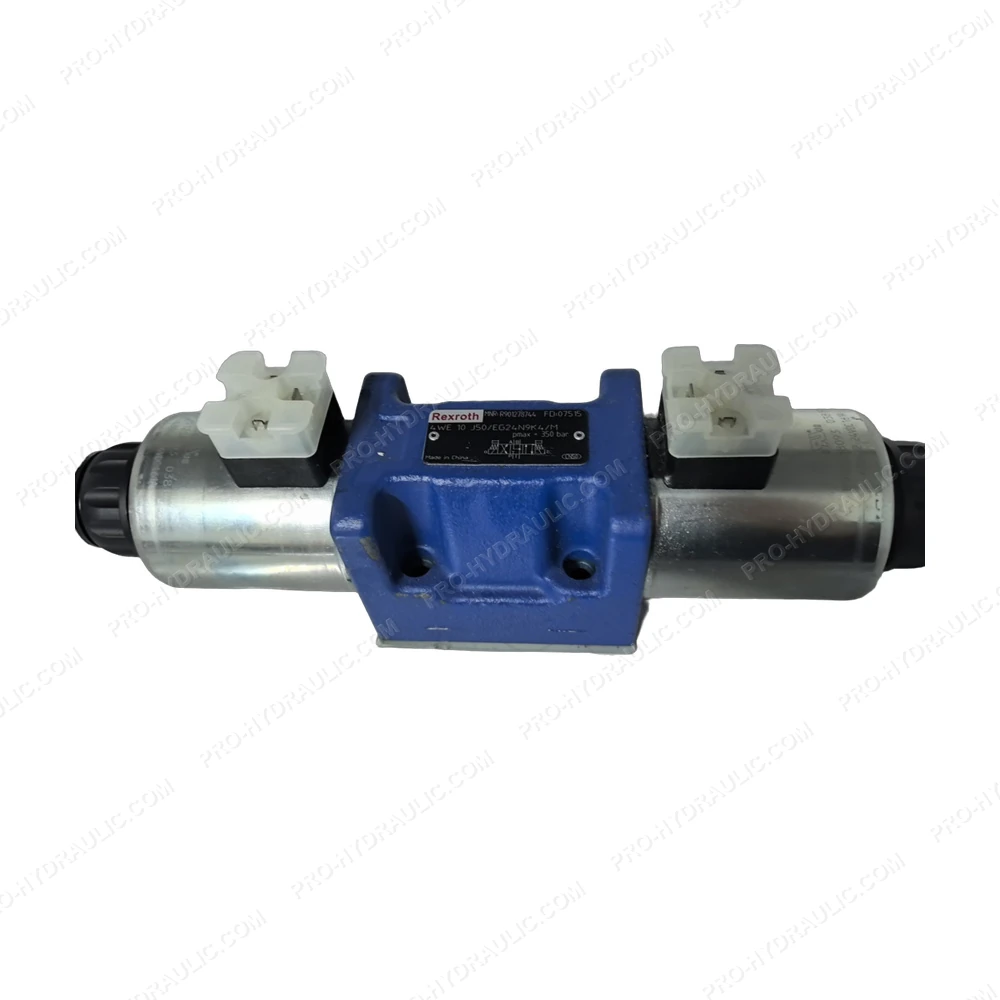

Rexroth 4WE 10 J50/EG24N9K4/M / R901278744 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WE 10 J50/EG24N9K4/M / R901278744 Solenoid Directional Valve. This Germany-made 24 VDC hydraulic component features a 4/3-way design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
