Product Overview
The Rexroth 4WE 10 M50/HG24N9K4/M (Material Number R901401553) is a high-performance solenoid-operated directional spool valve from the proven 4WE series, engineered for precise control of start, stop, and direction of hydraulic fluid flow in industrial power units. Featuring a robust three-position, four-way (4/3) spool design with a closed-center (M-type) configuration, this valve directs pressurized flow to the actuator ports while blocking the pressure gallery in the neutral position. The unit is actuated by a wet-pin AC/DC solenoid (24 V DC) with a concealed manual override, designated by the N9K4 solenoid variant, ensuring reliable shifting and long service life in continuous-duty hydraulic circuits. As a direct-operated directional control valve, it delivers fast response, low pressure drop, and dependable switching performance across a wide range of demanding industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (4/3 Way, Direct-Operated) |
| Model Designation | 4WE 10 M50/HG24N9K4/M |
| Material Number | R901401553 |
| Spool Type / Center Condition | M-Type (Closed Center, All Ports Blocked in Neutral) |
| Nominal Size | NG10 (Size 10, CETOP 5 / ISO 4401-05) |
| Operating Pressure | Up to 350 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | Up to 120 L/min (dependent on spool and pressure differential) |
| Solenoid Voltage | 24 V DC (High-Performance Wet-Pin Solenoid, N9K4 Variant) |
| Actuation | Single/Dual Solenoid with Concealed Manual Override |
| Mounting & Connection | Subplate Mounting per ISO 4401-05 / CETOP 5; DIN 24 V Connector |
| Hydraulic Fluid | Mineral Oil (HL, HLP) per DIN 51524; Viscosity 10–800 mm²/s |
Engineering Features & Advantages
- Precision Performance: The integrated single/Dual Solenoid with Concealed Manual Override ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 120 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
As a direct-operated directional control valve, it delivers fast response, low pressure drop, and dependable switching performance across a wide range of demanding industrial applications.
PRODUCT IMAGES

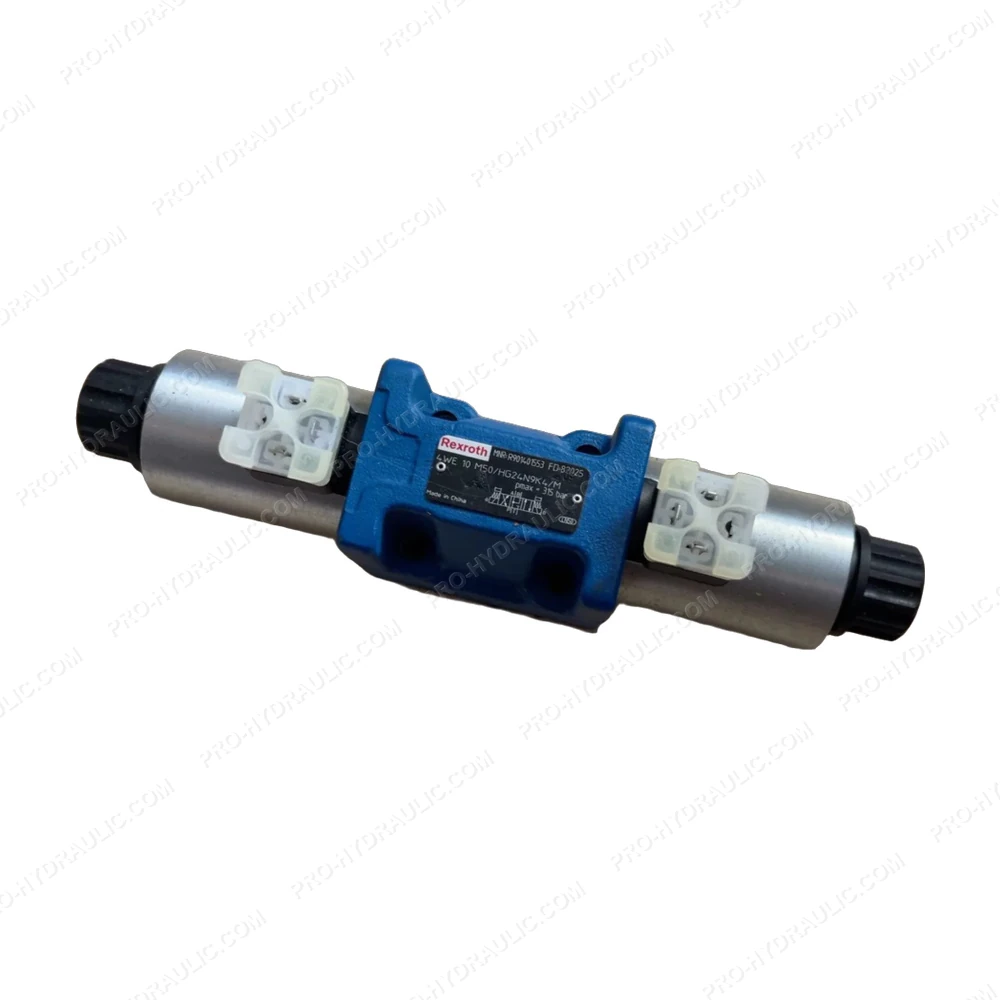

REXROTH 4WE 10 M50/HG24N9K4/M / R901401553 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 10 M50/HG24N9K4/M / R901401553 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
