Product Overview
The Rexroth 4WE 6 C-2X/EG24N9K3V/A1H-00 (Material Number: R900958788) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth 4WE 6 series. Designed around a 4-way, 3-position (4/3) spool configuration with a “C” type center condition, this valve controls the start, stop, and direction of hydraulic fluid flow in industrial power circuits. Actuation is achieved via a high-performance wet-pin AC/DC solenoid (EG24 = 24 V DC) with a concealed manual override, while the N9K3V designation indicates the specific spool/spring arrangement and terminal connection. The valve conforms to ISO 4401 / CETOP 3 (NG6) mounting standards, making it a direct drop-in component for a wide range of hydraulic power units, manifolds, and OEM machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4/3 Way) |
| Model Designation | 4WE 6 C-2X/EG24N9K3V/A1H-00 / R900958788 |
| Spool Type | Type “C” — Closed Center (all ports blocked in neutral) |
| Nominal Size | NG6 / CETOP 3 / ISO 4401-03 |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar (port T) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool and pressure drop) |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Electrical Connection | K3V — DIN EN 175301-803 (ISO 4400) plug-in connector |
| Manual Override | Concealed (N9 designation) — push-pin type |
| Mounting & Connection | Subplate mounting per ISO 4401 / CETOP 3, 4-bolt flange |
| Seal Material | NBR (standard); FKM available on request |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional spool valve (4/3 way) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Designed around a 4-way, 3-position (4/3) spool configuration with a “C” type center condition, this valve controls the start, stop, and direction of hydraulic fluid flow in industrial power circuits.
PRODUCT IMAGES

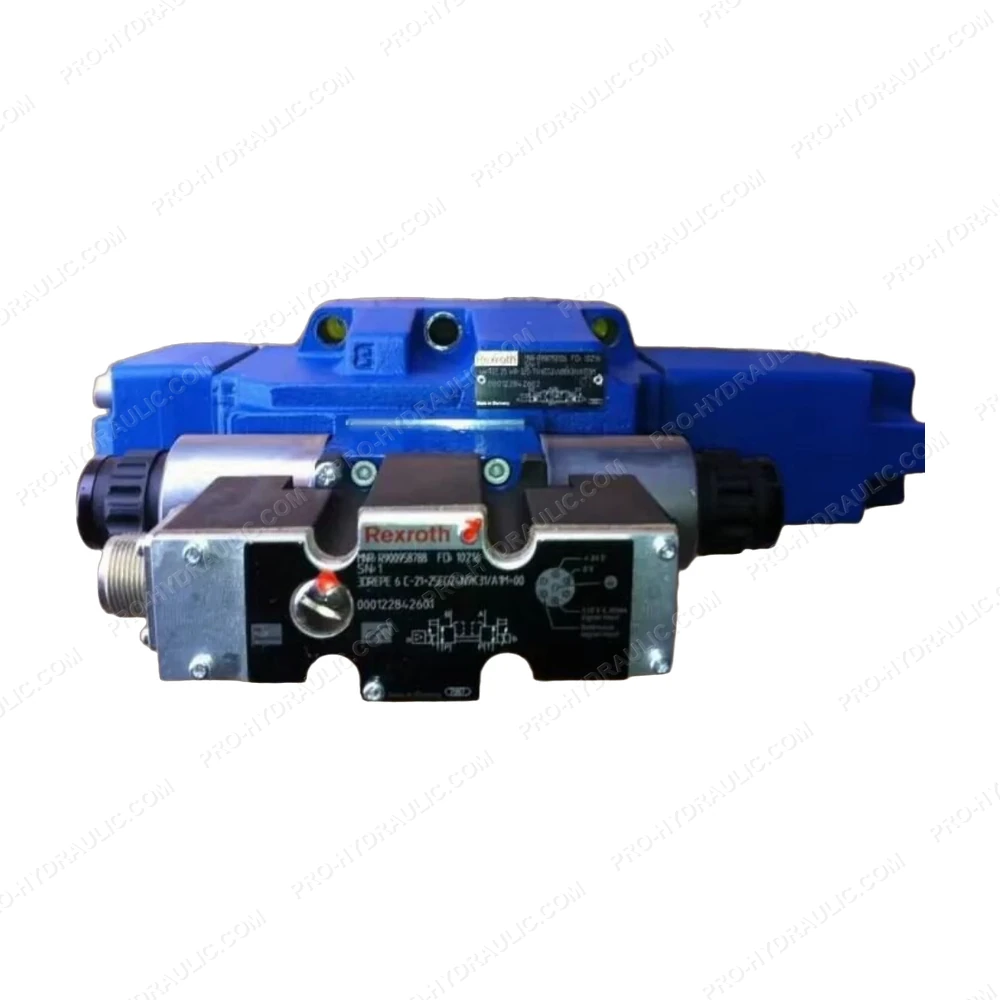

Rexroth 4WE 6 C-2X/EG24N9K3V/A1H-00 / R900958788 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 6 C-2X/EG24N9K3V/A1H-00 / R900958788 Solenoid Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
