Product Overview
The Rexroth 4WE 6 D62/EG24N9K4 S0407 (Material No. R900938379) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth 4WE 6 series, size NG6 (CETOP 3 / ISO 4401-03). It controls the start, stop, and direction of hydraulic fluid flow by shifting a hardened steel spool within a precision-machined housing, using a wet-pin AC/DC solenoid on one end and a spring return on the opposite end. Configured in the “D” spool type (three-position, four-way, closed-center), the valve blocks all ports in the de-energized mid-position, making it ideal for holding actuator position and for use as a pilot valve in multi-stage directional control circuits. With a nominal flow capacity of up to 60 L/min and a maximum operating pressure of 350 bar, this valve is a standard building block in industrial hydraulic power and control systems.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (Directional Control Valve) |
| Model Designation | 4WE 6 D62/EG24N9K4 S0407 |
| Material Number | R900938379 |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03-02-0-05) |
| Spool Type | Type “D” — 3-position, 4-way, closed-center (all ports blocked in mid-position) |
| Actuation | Single solenoid, spring return (EG24N9K4: 24 V DC, N9 design, K4 connector) |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar max. at port T |
| Nominal Flow | Up to 60 L/min (NG6 rated flow) |
| Mounting & Connection | Subplate mounting per ISO 4401-03; standard ISO interface |
| Hydraulic Fluid | Mineral oil HL/HLP per DIN 51524; viscosity 10–500 mm²/s |
Engineering Features & Advantages
- Precision Performance: The integrated single solenoid, spring return (EG24N9K4: 24 V DC, N9 design, K4 connector) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
With a nominal flow capacity of up to 60 L/min and a maximum operating pressure of 350 bar, this valve is a standard building block in industrial hydraulic power and control systems.
PRODUCT IMAGES

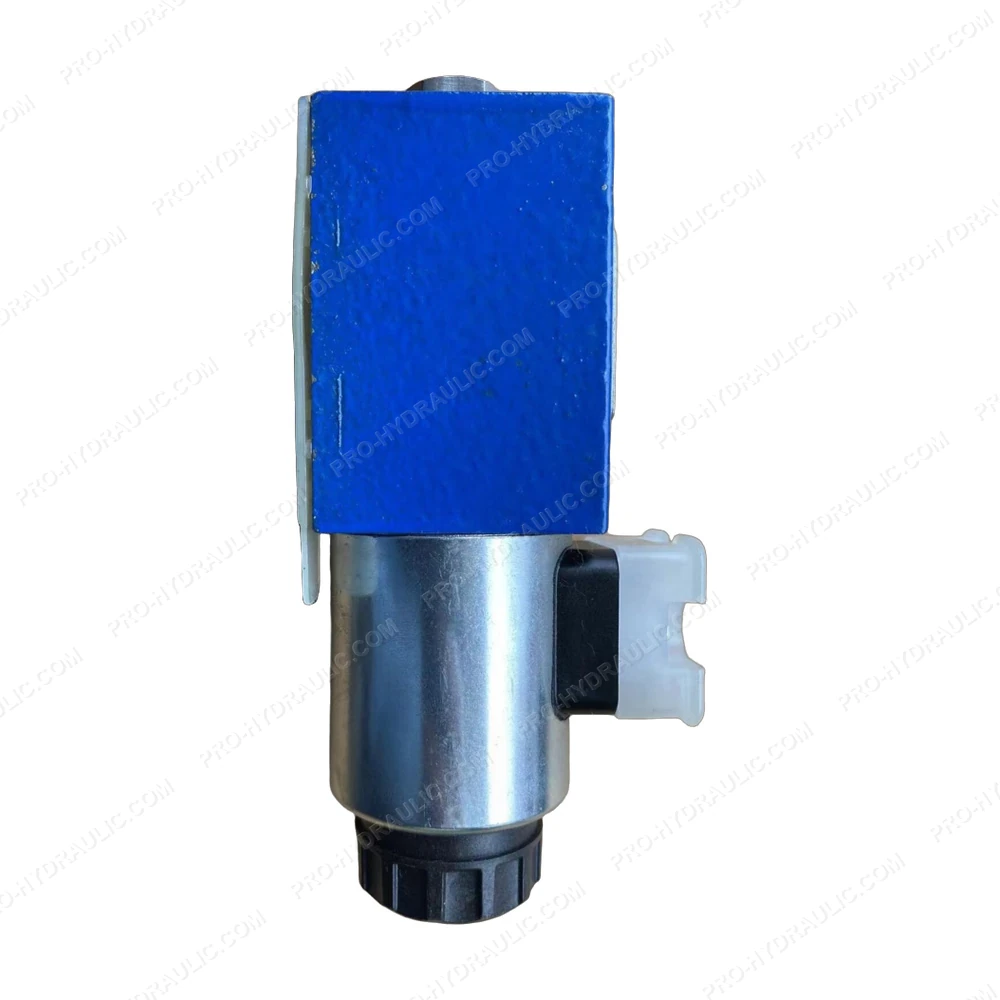

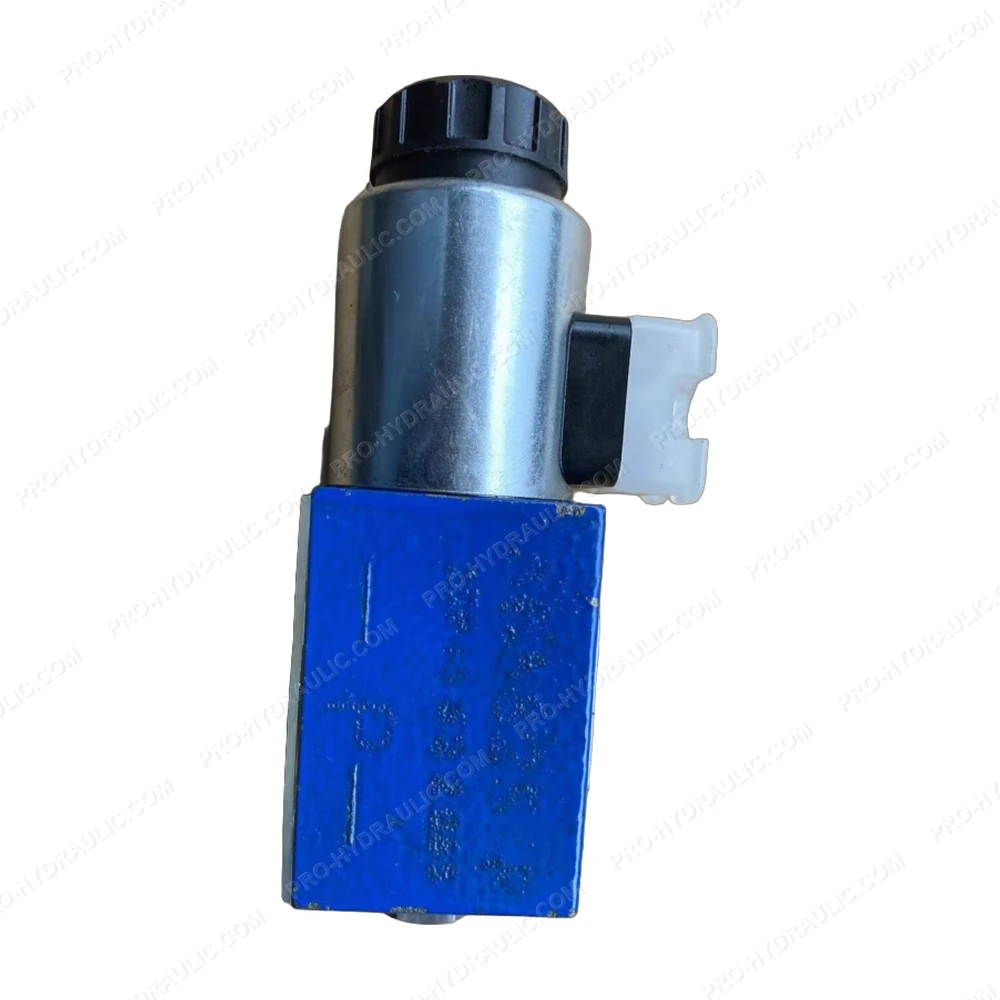

REXROTH 4WE 6 D62/EG24N9K4 S0407 / R900938379 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 6 D62/EG24N9K4 S0407 / R900938379 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
