Product Overview
The Rexroth 4WE 6 E62/EG24N9K4/T06 (material number R900923005) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth 4WE 6 series, size NG6 (CETOP 3 / ISO 4401-03). It controls the start, stop, and direction of hydraulic flow by shifting a precision-ground spool within the valve housing via wet-pin AC/DC solenoids. Configured in the “E62” spool variant with a 3-position, 4-way function and spring-centered neutral, the valve delivers reliable directional control for industrial power units, manifolds, and compact hydraulic circuits requiring fast, repeatable switching performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (Directional Control Valve) |
| Model Designation | 4WE 6 E62/EG24N9K4/T06 |
| Material Number | R900923005 |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03-02-0-05) |
| Spool Type / Function | Type E62, 4-way, 3-position, spring-centered neutral |
| Actuation | Two wet-pin solenoids, single or dual energization |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Electrical Connection | Connector per DIN EN 175301-803, with integrated rectifier option (N9) |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar at T |
| Nominal Flow Rate | Up to 60 L/min (NG6 standard) |
| Mounting & Connection | Subplate mounting, ISO 4401-03 / CETOP 3 interface |
| Seal / Temperature Range | NBR seals, -30 °C to +80 °C (standard)</td |
Engineering Features & Advantages
- Precision Performance: The integrated two wet-pin solenoids, single or dual energization ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original REXROTH specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Configured in the “E62” spool variant with a 3-position, 4-way function and spring-centered neutral, the valve delivers reliable directional control for industrial power units, manifolds, and compact hydraulic circuits requiring fast, repeatable switching performance.
PRODUCT IMAGES

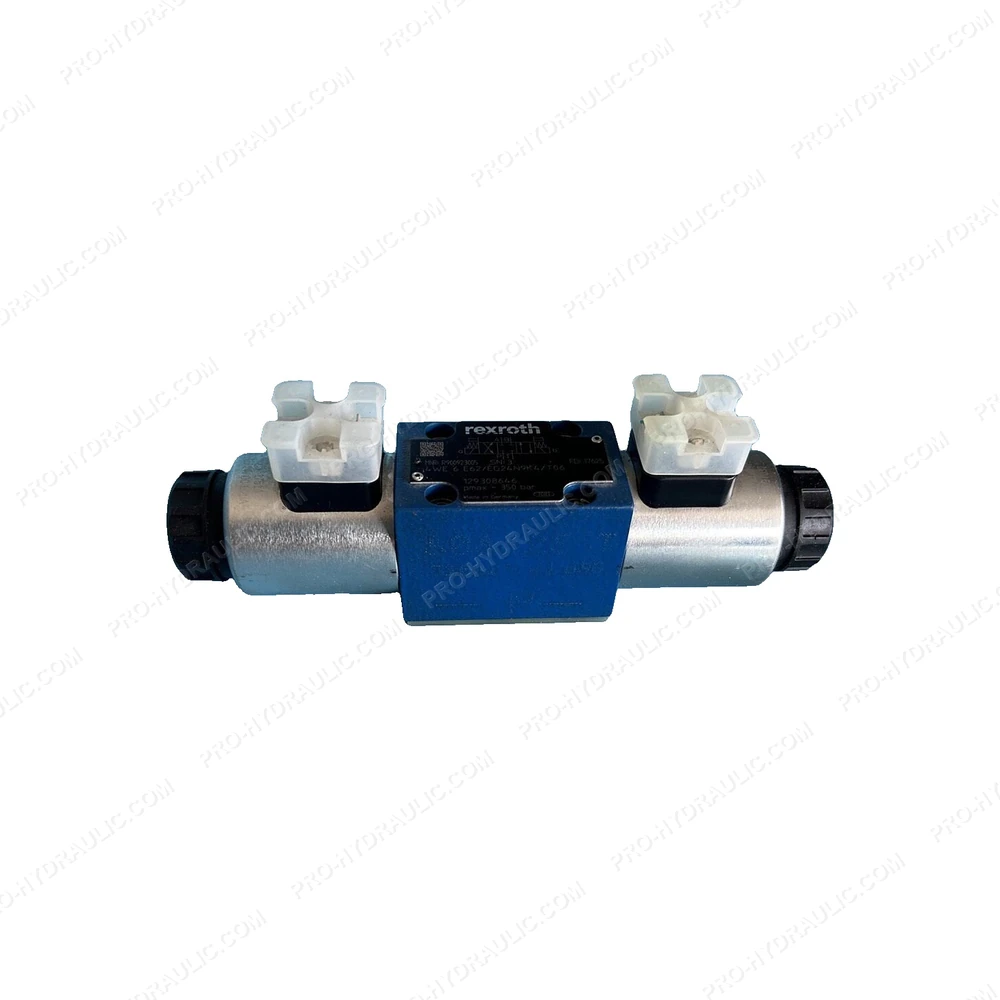

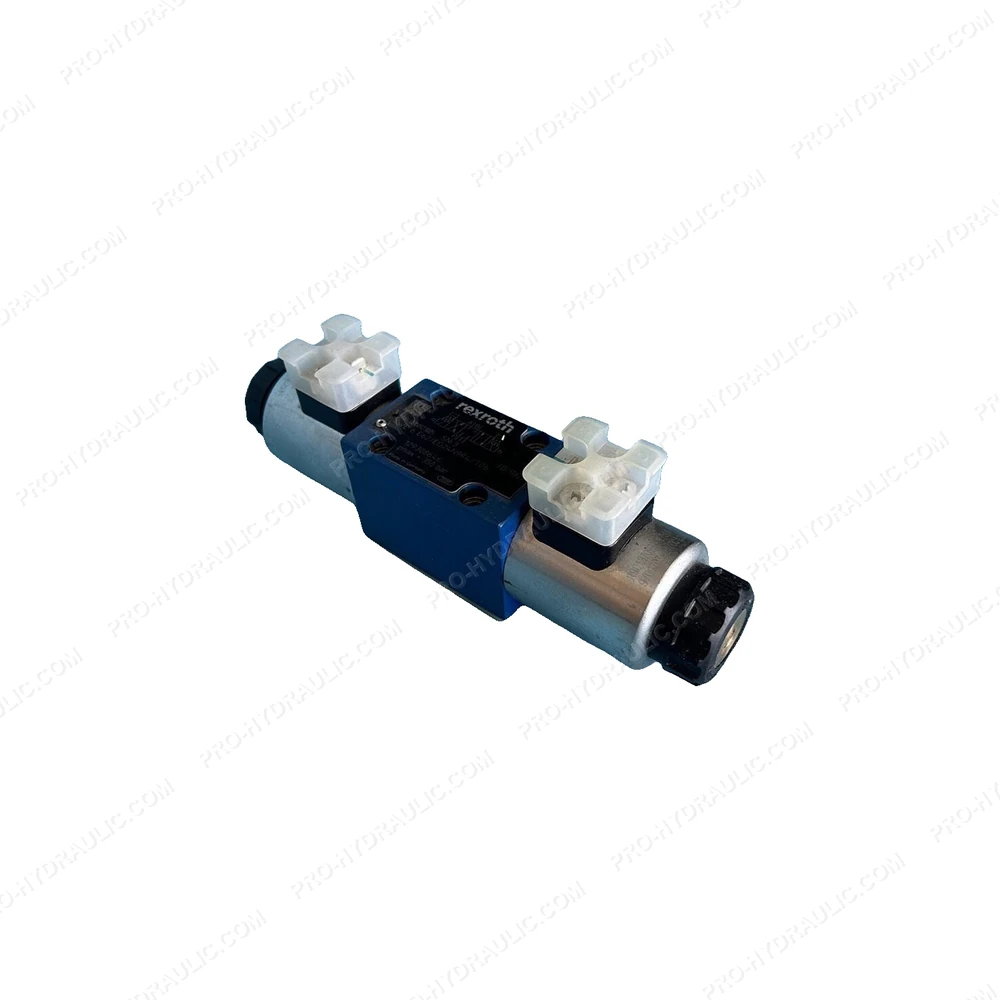

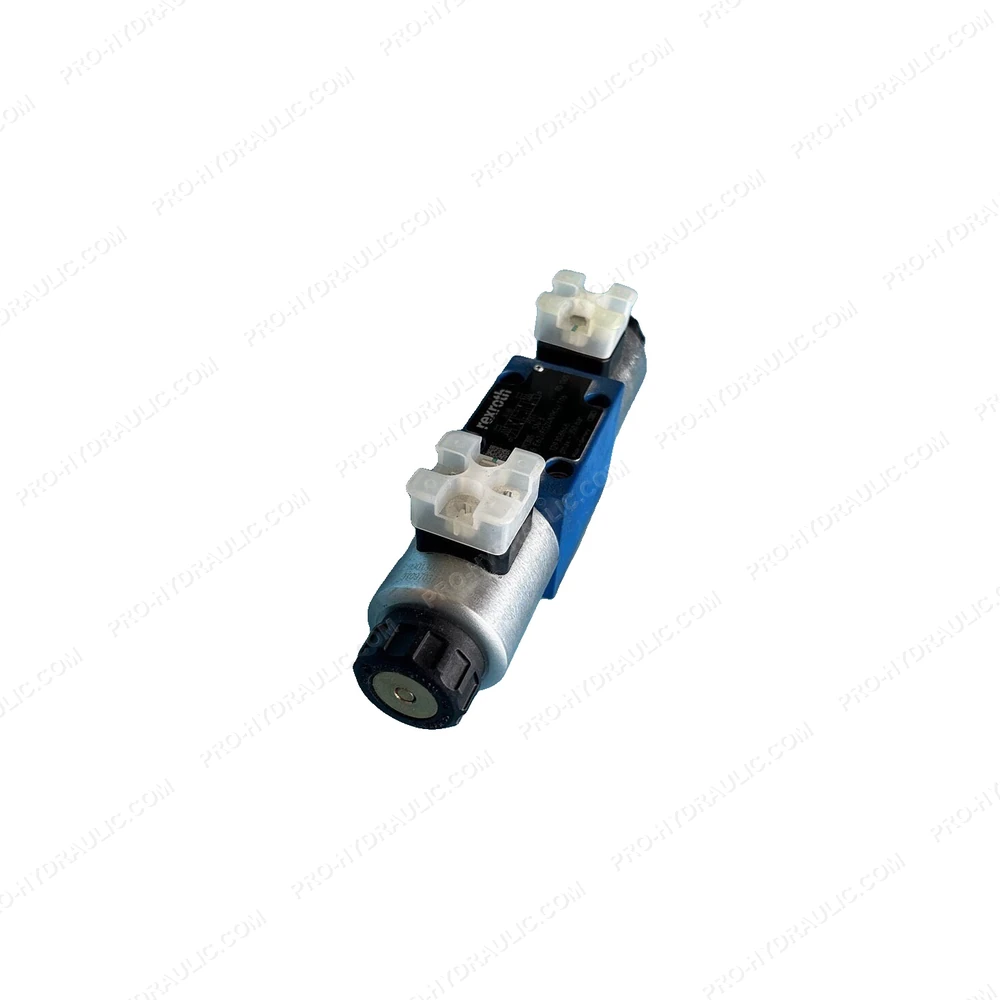

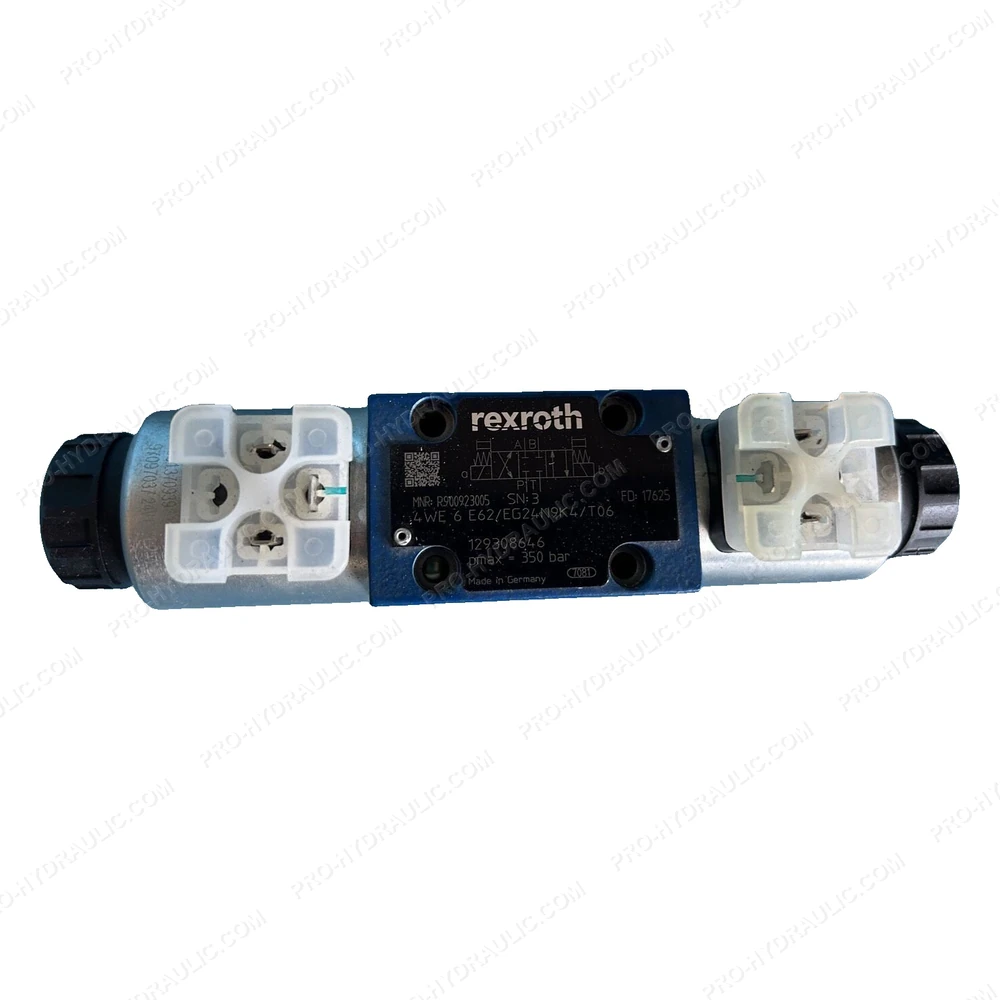

REXROTH 4WE 6 E62/EG24N9K4/T06 / R900923005 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 6 E62/EG24N9K4/T06 / R900923005 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
