Product Overview
The Rexroth 4WE 6 J62/EG24N9K4/B10 (Material No. R900548271) is a direct-operated, solenoid-actuated directional spool valve from the proven Rexroth 4WE 6 series, size NG6 (CETOP 3 / ISO 4401-03). It controls the start, stop, and direction of hydraulic fluid flow in industrial power circuits by shifting a hardened, precision-ground spool within a high-strength cast iron housing. The “J” spool configuration provides a specific center condition for controlled actuator positioning, while the “62” design series denotes the standard high-performance spool and spring arrangement. Equipped with a 24 V DC wet-pin solenoid (EG24) and the N9 manual override, this valve delivers fast, repeatable switching for demanding B2B hydraulic systems requiring precise directional control and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Directional Spool Valve (Directional Control Valve) |
| Model Designation | 4WE 6 J62/EG24N9K4/B10 |
| Material / Part Number | R900548271 |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03-02-0-05) |
| Spool Type | Type J (specific center condition, spring return) |
| Actuation | Single solenoid, wet-pin DC solenoid, spring return to center position |
| Solenoid Voltage | 24 V DC (EG24) |
| Manual Override | N9 (detented / concealed manual override) |
| Electrical Connection | K4 (DIN EN 175301-803, 3-pole connector) |
| Seal Material | B10 (NBR / Buna-N, suitable for mineral oil based hydraulic fluids) |
| Operating Pressure | Up to 350 bar (ports P, A, B); up to 210 bar (port T) |
Engineering Features & Advantages
- Precision Performance: The integrated single solenoid, wet-pin DC solenoid, spring return to center position ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar, supporting stable operation across the full working range.
Typical Industrial Applications
Equipped with a 24 V DC wet-pin solenoid (EG24) and the N9 manual override, this valve delivers fast, repeatable switching for demanding B2B hydraulic systems requiring precise directional control and long service life.
PRODUCT IMAGES

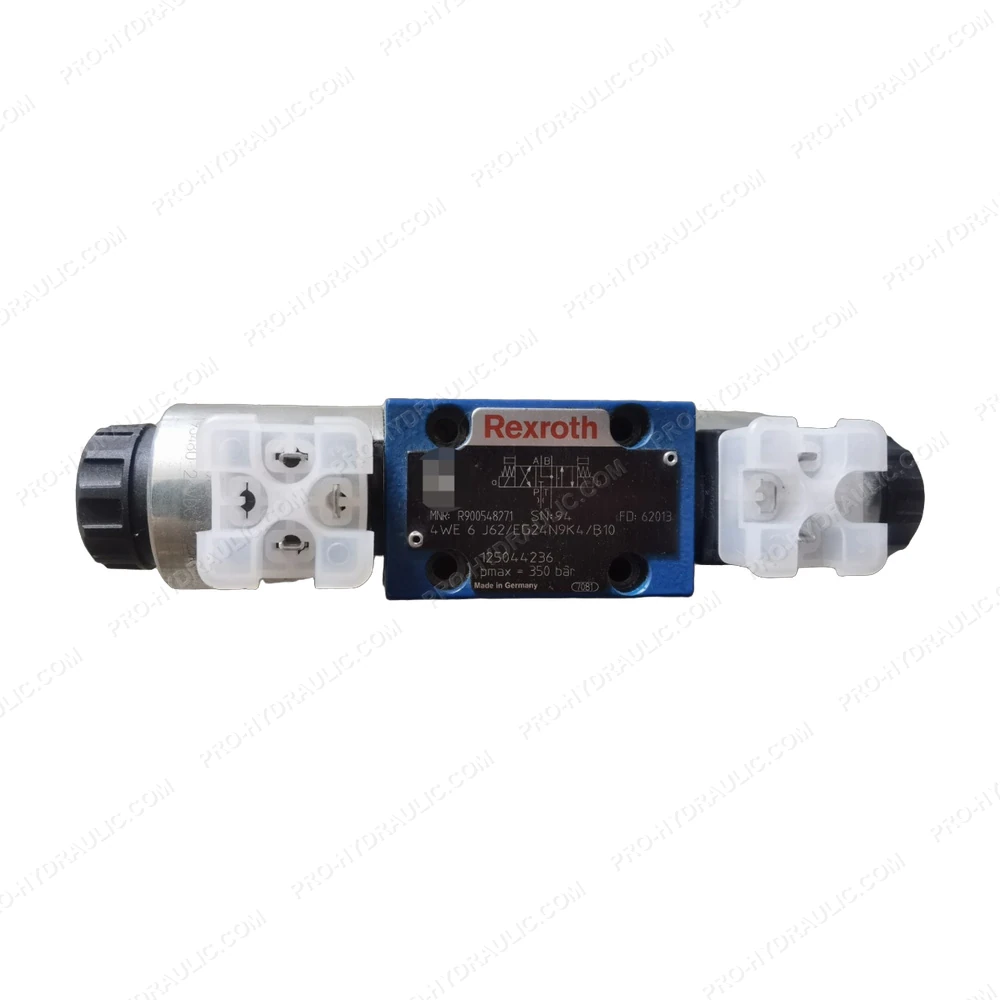

REXROTH 4WE 6 J62/EG24N9K4/B10 / R900548271 Solenoid Directional Spool Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE 6 J62/EG24N9K4/B10 / R900548271 Solenoid Directional Spool Valve. This Germany-made 24V DC hydraulic component features a reliable spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
