The REXROTH 4WE6D62/EG24N9K4SO407 is a heavy-duty industrial directional control valve engineered for precise flow management in high-pressure hydraulic circuits. This solenoid-actuated, spring-centered unit features a D-type spool and wet-pin AC/DC solenoid with a nominal voltage of 24 V DC. The valve is designed for subplate mounting in accordance with ISO 4401-03 and CETOP 3 standards, ensuring direct interchangeability with standard manifold interfaces.
REXROTH 4WE6D62/EG24N9K4SO407 Technical Specifications
| Valve Type | 4/3-way directional control valve, solenoid actuated, spring centered |
| Spool Type | D (closed center, all ports blocked in neutral) |
| Nominal Flow Rate | Up to 60 L/min (15.8 gpm) |
| Maximum Operating Pressure | 350 bar (5076 psi) at ports P, A, B; 210 bar (3045 psi) at port T |
| Solenoid Voltage | 24 V DC (EG24) |
| Electrical Connection | DIN EN 175301-803 (formerly DIN 43650) connector |
| Mounting Pattern | ISO 4401-03-02-0-05 / CETOP 3 |
| Seal Material | NBR (Buna-N) standard; FKM available on request |
| Operating Temperature Range | -20 °C to +80 °C (-4 °F to +176 °F) |
| Hydraulic Fluid | Mineral oil based, phosphate ester, or water glycol (consult factory) |
| Weight | Approx. 1.5 kg (3.3 lbs) |
Key Engineering Features
- Wet-pin solenoid design with removable coil for reduced wear and simplified maintenance
- High-strength cast iron body and hardened spool for extended service life under continuous duty
- Spring-centered spool returns to neutral position upon de-energization, ensuring fail-safe operation
- Optional manual override (N9) for emergency actuation without electrical power
- Compatible with a wide range of hydraulic fluids and operating temperatures
- Compact, space-saving design suitable for manifold mounting in tight installations
Industrial Applications
- Machine tool hydraulic systems (clamping, indexing, tool changing)
- Mobile and industrial hydraulic power units
- Presses and forming equipment
- Material handling and lifting systems
- Test rigs and simulation stands
- Automated assembly lines and robotics
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WE6D62/EG24N9K4SO407, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

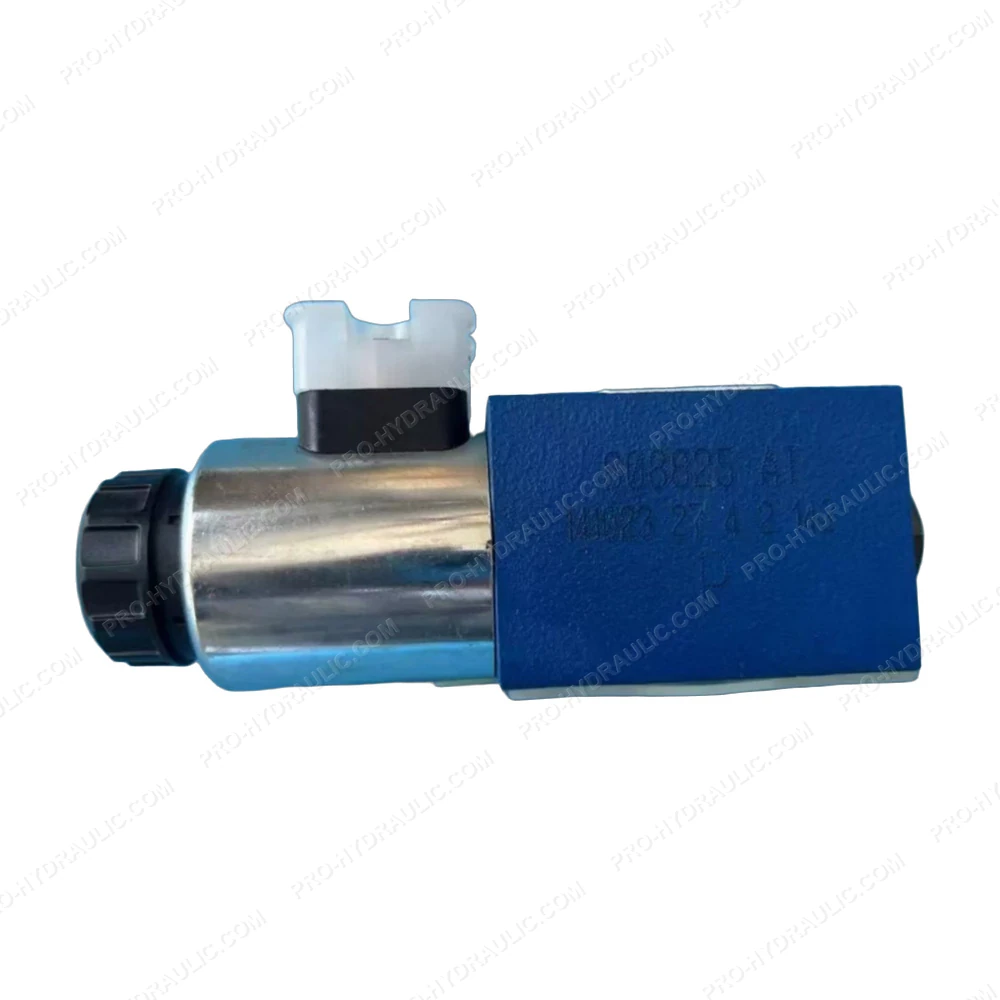

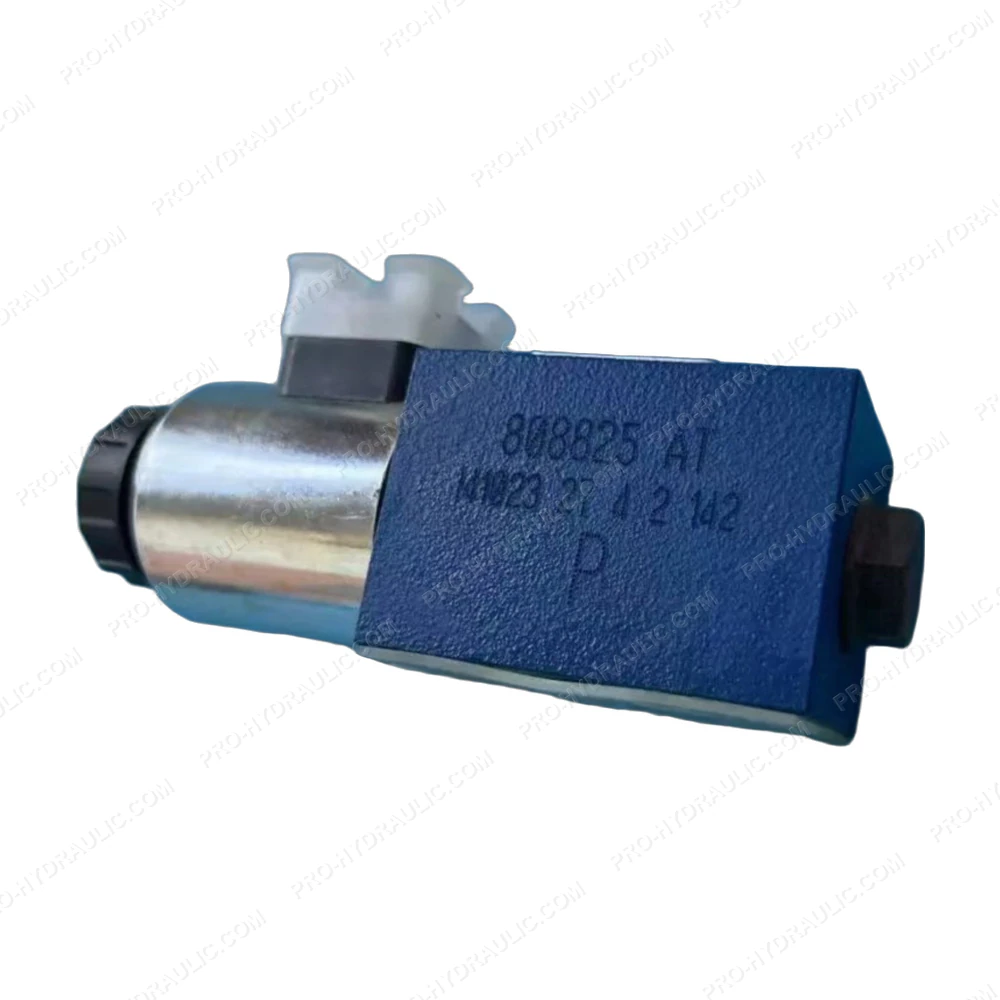

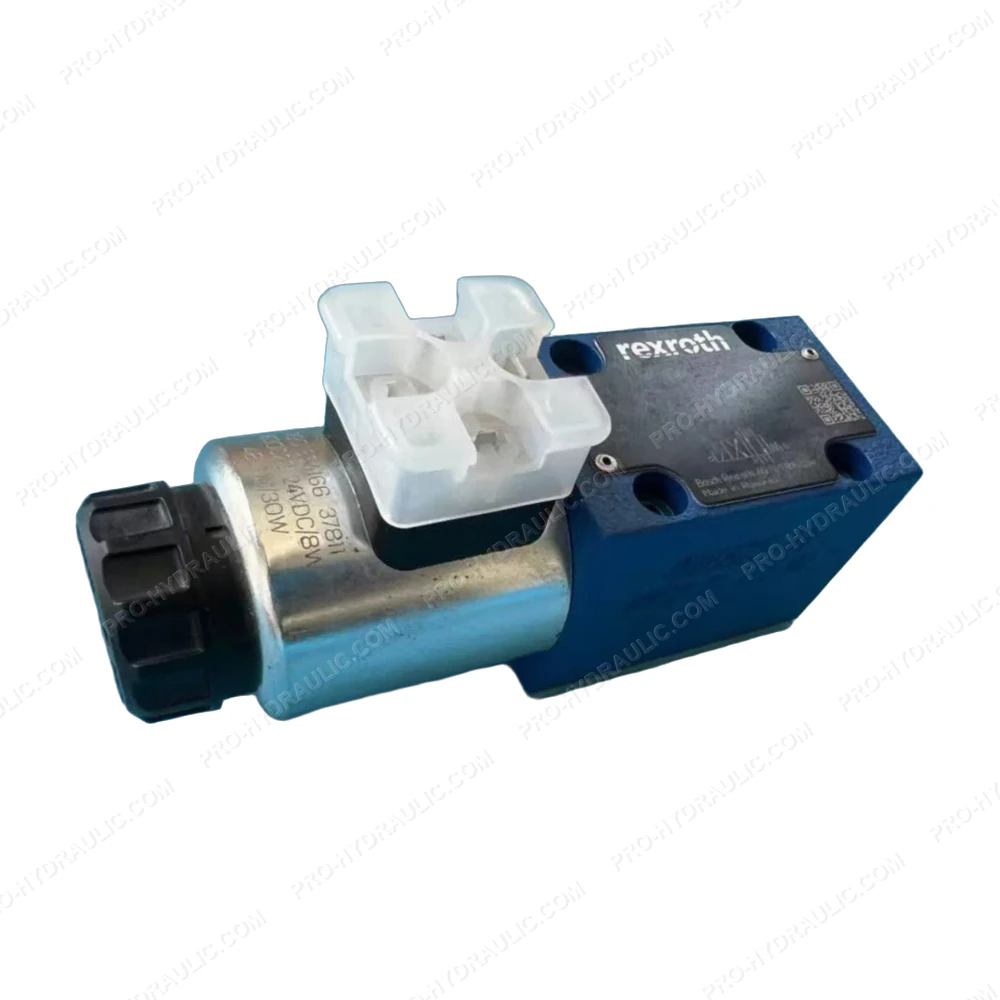

REXROTH 4WE6D62/EG24N9K4SO407 Directional Valve
