Product Overview
The Rexroth 4WE6D62/OFEG24N9K72LS0407 (Material Number: R901235381) is a high-performance solenoid-operated directional spool valve from the globally recognized 4WE6 series. Engineered by Bosch Rexroth, this direct-acting, 4-way, 3-position valve is designed to control the start, stop, and direction of hydraulic fluid flow in industrial hydraulic systems. The “D” spool configuration provides a closed-center function (all ports blocked in the neutral position), ensuring precise actuator holding and system pressure maintenance. With a nominal size of NG6 (CETOP 3 / ISO 4401-03), this valve is a compact yet robust solution for demanding motion control applications requiring high reliability and fast response times.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve |
| Model Designation | 4WE6D62/OFEG24N9K72LS0407 / R901235381 |
| Series | Rexroth 4WE6 Series (NG6 / CETOP 3 / ISO 4401-03) |
| Spool Type | Type D — Closed Center (All Ports Blocked in Neutral) |
| Actuation | Dual Solenoid, Spring Centered / Spring Return |
| Operating Pressure | Up to 350 bar (P, A, B ports); 210 bar (T port) |
| Nominal Flow Rate | Up to 80 L/min (dependent on spool and pressure differential) |
| Solenoid Voltage | 24 V DC (G24 designation) |
| Electrical Connection | DIN EN 175301-803 (ISO 4400) Connector, with Rectifier |
| Mounting & Connection | Subplate Mounting, ISO 4401-03-02-0-05 Interface |
| Seal Material | NBR (Nitrile Rubber) — Standard for Mineral Oil Based Fluids |
Engineering Features & Advantages
- Precision Performance: The integrated dual Solenoid, Spring Centered / Spring Return ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 80 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of NG6 (CETOP 3 / ISO 4401-03), this valve is a compact yet robust solution for demanding motion control applications requiring high reliability and fast response times.
PRODUCT IMAGES

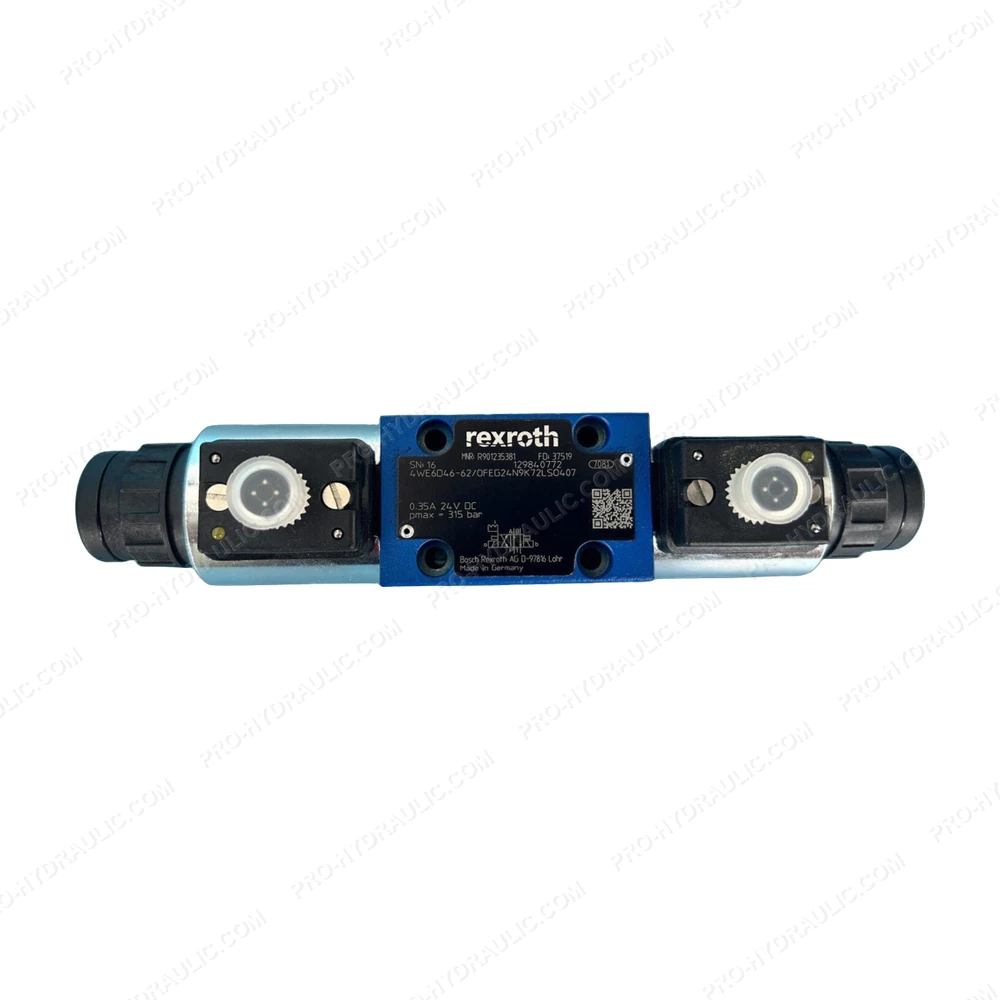

Rexroth 4WE6D62/OFEG24N9K72LS0407 / R901235381 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE6D62/OFEG24N9K72LS0407 / R901235381 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
