Product Overview
The Rexroth 4WE6D6X/EG24K4QMBG24 (Material No. R900574632) is a direct-operated, solenoid-actuated directional spool valve from the proven 4WE6 series, designed for precise control of start, stop, and direction of hydraulic fluid flow in industrial power units. Featuring a “D” type spool configuration (three-position, four-way, closed-center), this valve delivers reliable directional control with a nominal size of NG6 (CETOP 3 / ISO 4401-03). The EG24 designation indicates a 24 V DC high-performance wet-pin solenoid with integrated manual override, while the K4QMBG24 suffix denotes the specific electrical connector and solenoid variant. Engineered for high cycle rates and long service life, this valve is a direct-fit replacement for OEM Rexroth installations and is widely deployed in demanding industrial hydraulic circuits requiring accurate, repeatable spool positioning.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4-Way, 3-Position) |
| Model Designation | 4WE6D6X/EG24K4QMBG24 / R900574632 |
| Spool Type | Type “D” — Closed Center (All Ports Blocked in Neutral) |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03 / DIN 24340-A6) |
| Operating Pressure | Up to 350 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool and pressure drop) |
| Solenoid Voltage | 24 V DC (EG24 high-performance wet-pin solenoid) |
| Electrical Connection | K4QMBG24 — DIN EN 175301-803 (formerly DIN 43650) connector with integrated rectifier/plug |
| Manual Override | Integrated manual actuation (standard) |
| Mounting & Connection | Subplate mounting per ISO 4401-03-02-0-05; 4 x M5 mounting bolts |
| Seal Material | NBR (Buna-N) — suitable |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional spool valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Engineered for high cycle rates and long service life, this valve is a direct-fit replacement for OEM Rexroth installations and is widely deployed in demanding industrial hydraulic circuits requiring accurate, repeatable spool positioning.
PRODUCT IMAGES

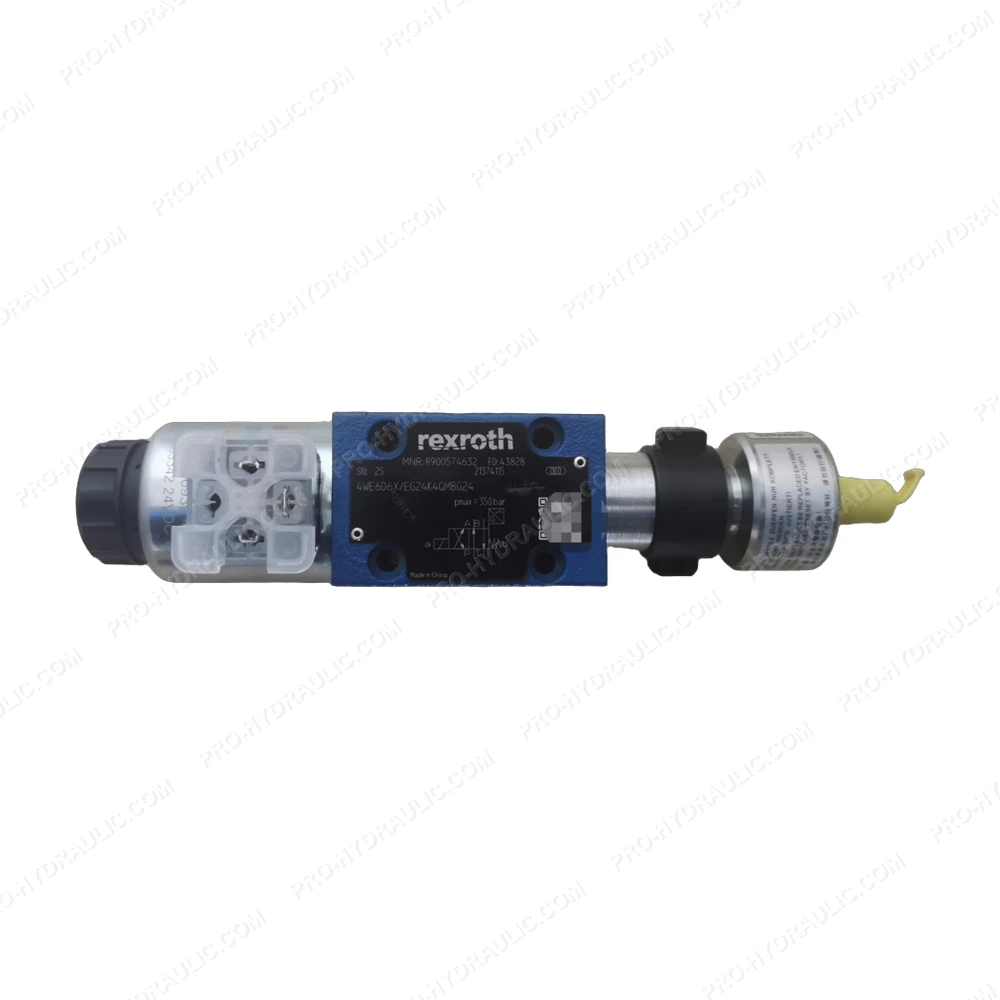

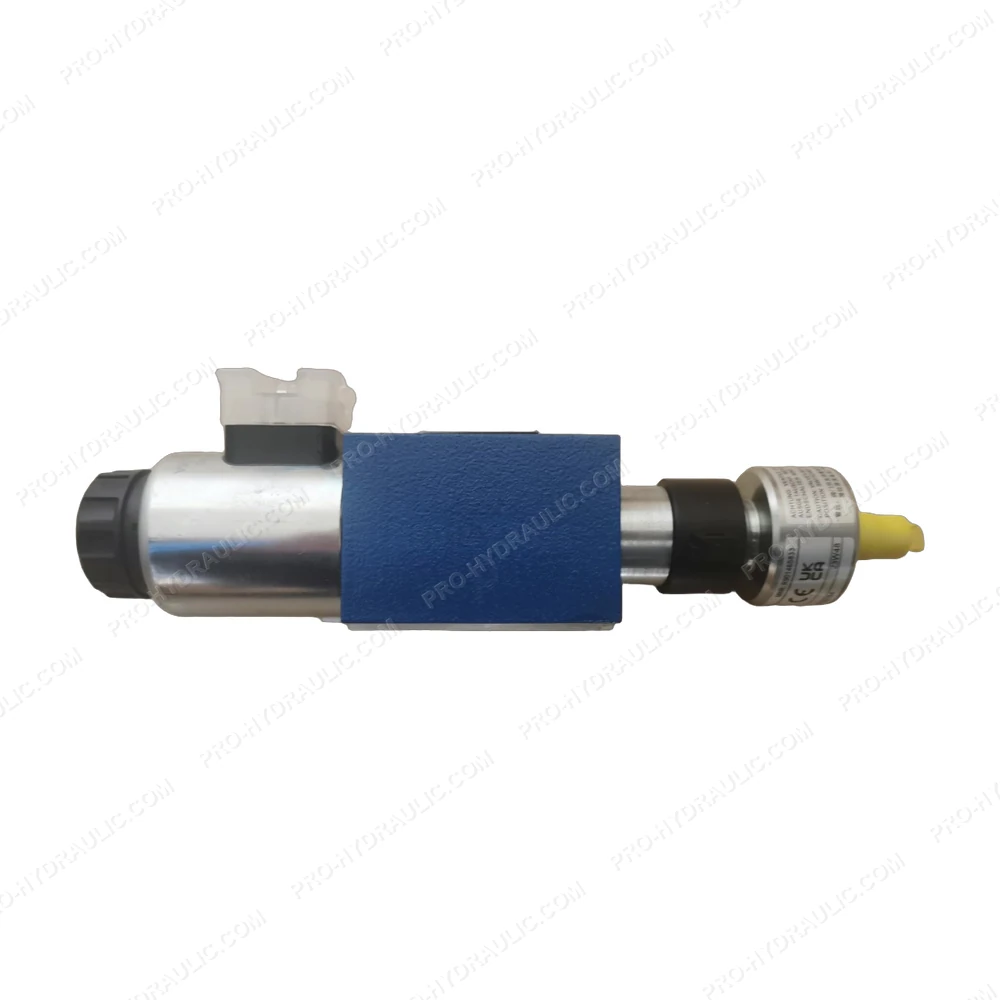

Rexroth 4WE6D6X/EG24K4QMBG24 / R900574632 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE6D6X/EG24K4QMBG24 / R900574632 Solenoid Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
