Product Overview
The Rexroth 4WE6D6X/EG24N9K4/0YBG24 (Material No. R901432613) is a direct-operated, solenoid-actuated directional spool valve from the proven 4WE6 series, size 6 (NG6 / CETOP 3). It is designed to control the start, stop, and direction of hydraulic fluid flow within industrial power units and manifold systems. The valve features a “D” type spool configuration (three-position, four-way, closed center) and is equipped with two wet-pin AC/DC solenoids rated for 24 V DC, designated by the EG24N9K4 solenoid code. The “0YBG24” suffix indicates a specific electrical and sealing variant, including a manual override and NBR (Buna-N) seals. This valve is a core component in demanding hydraulic circuits, providing reliable, high-cycle switching for precise actuator control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4-Way, 3-Position) |
| Model Designation | 4WE6D6X/EG24N9K4/0YBG24 |
| Material Number | R901432613 |
| Size / Interface | NG6 (CETOP 3 / ISO 4401-03) |
| Spool Type | Type D (Closed Center, P, A, B, T blocked in neutral) |
| Operating Pressure | Up to 350 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool position and pressure drop) |
| Solenoid Voltage | 24 V DC (Nominal) |
| Solenoid Type | Wet-pin, AC/DC (EG24N9K4), with manual override |
| Seal Material | NBR (Buna-N) / “Y” variant |
| Mounting Pattern | Subplate mounting per ISO 4401-03-02-0-05 |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional spool valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
It is designed to control the start, stop, and direction of hydraulic fluid flow within industrial power units and manifold systems.
PRODUCT IMAGES

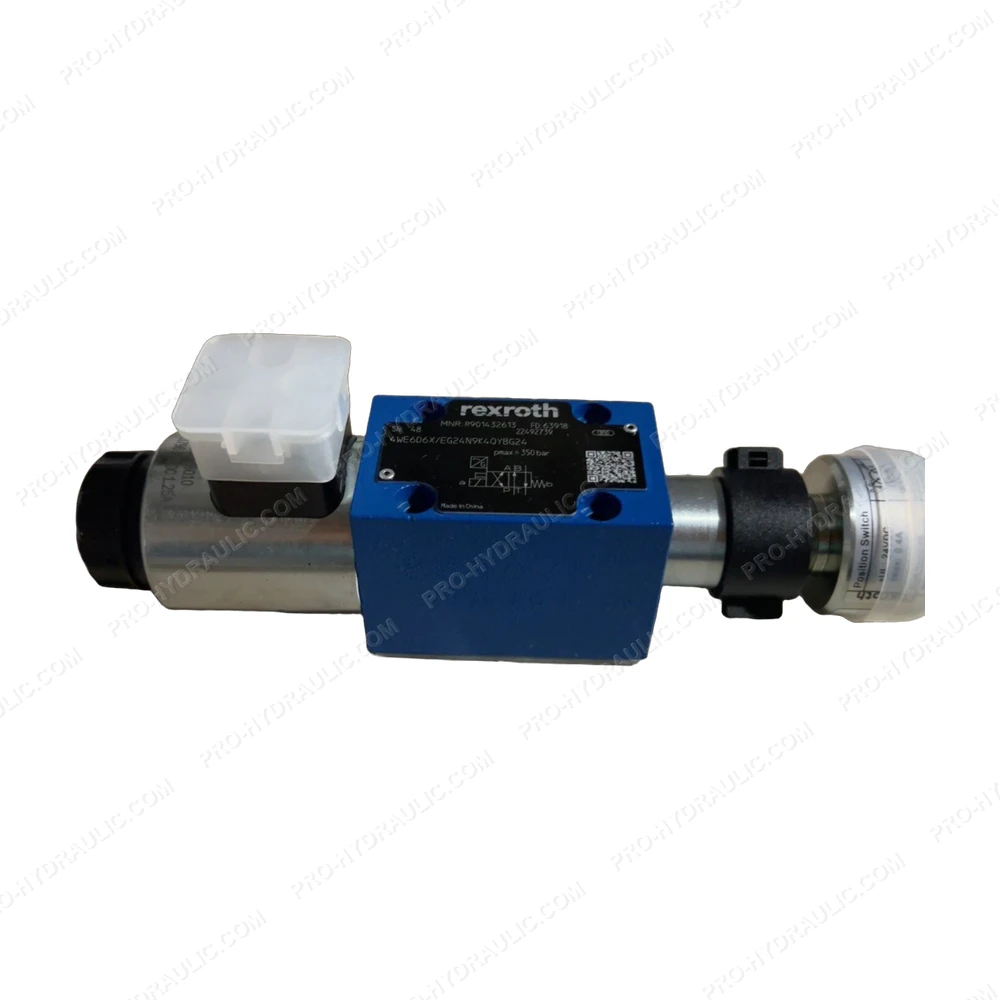

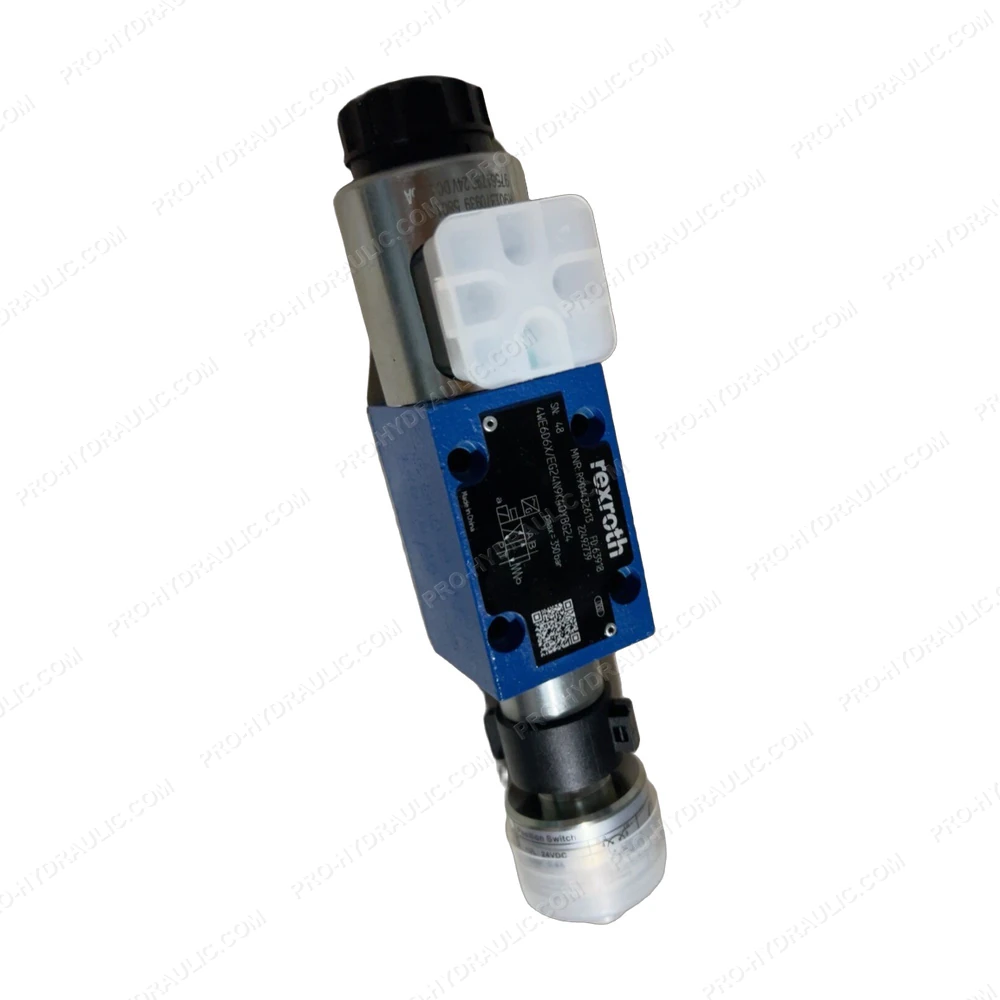

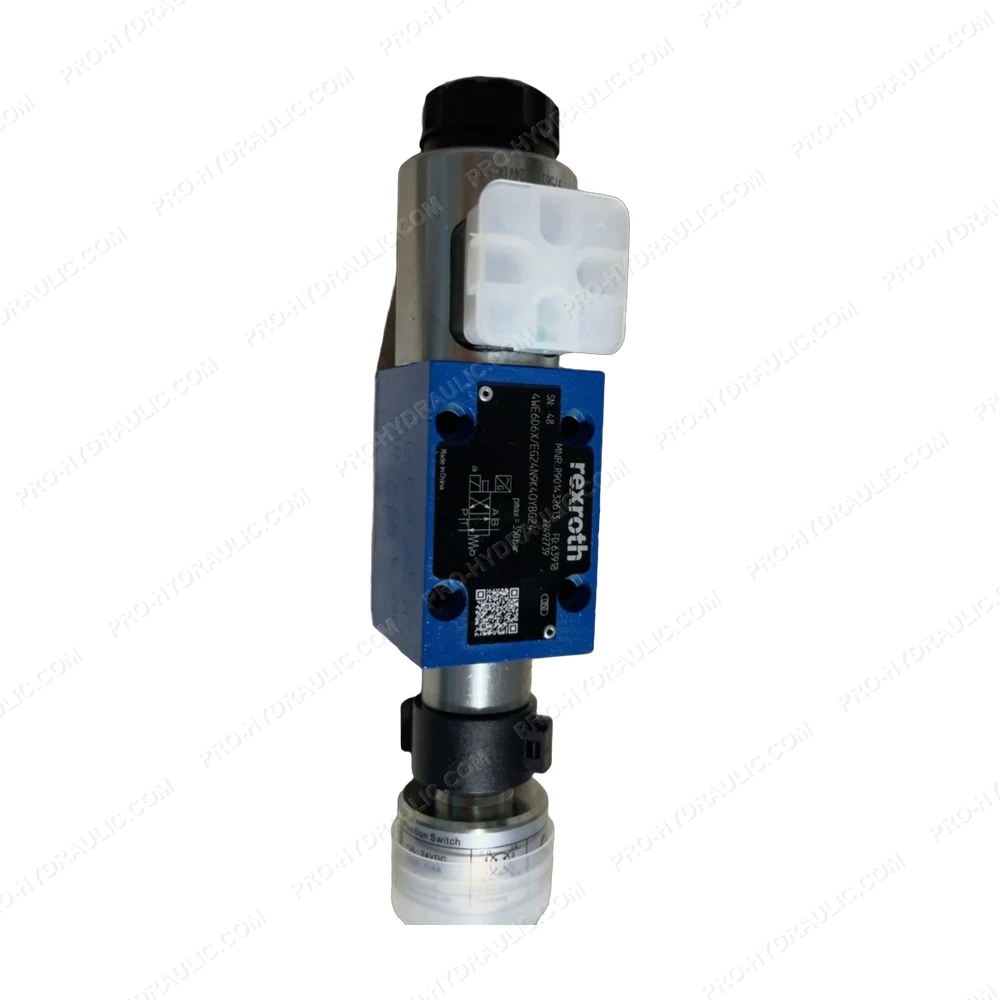

Rexroth 4WE6D6X/EG24N9K4/0YBG24 / R901432613 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE6D6X/EG24N9K4/0YBG24 / R901432613 Solenoid Directional Control Valve. This Germany-made 24 VDC hydraulic component features a 4-way 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
