Product Overview
The Rexroth 4WE6E62/EG24N4K4 (Material Number: R900908764) is a high-performance solenoid-operated directional spool valve from the globally recognized Rexroth 4WE6 series. Designed as a direct-acting, wet-pin solenoid valve, it controls the start, stop, and direction of hydraulic fluid flow within industrial hydraulic systems. The “E” spool configuration provides a closed-center, three-position function (P, T, A, B blocked in the neutral position), making it ideal for precise actuator positioning and load holding. With a nominal size of NG6 (CETOP 3 / ISO 4401-03), this valve is engineered for reliable, leak-free operation in demanding B2B environments, offering fast response times and long service life.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve |
| Model Designation | 4WE6E62/EG24N4K4 / R900908764 |
| Spool Type | Type E – Closed Center (All ports blocked in neutral) |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Operating Pressure | Up to 350 bar (P, A, B ports); 160 bar (T port) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool position and pressure differential) |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Electrical Connection | DIN EN 175301-803 (formerly DIN 43650) – 3-pin connector |
| Mounting & Connection | Subplate mounting per ISO 4401-03-02-0-05 / CETOP 3 |
| Seal Material | NBR (Nitrile) – standard for mineral oil-based hydraulic fluids |
| Fluid Temperature Range | -20°C to +80°C (NBR seals) |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional spool valve delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
Typical Industrial Applications
Designed as a direct-acting, wet-pin solenoid valve, it controls the start, stop, and direction of hydraulic fluid flow within industrial hydraulic systems.
PRODUCT IMAGES

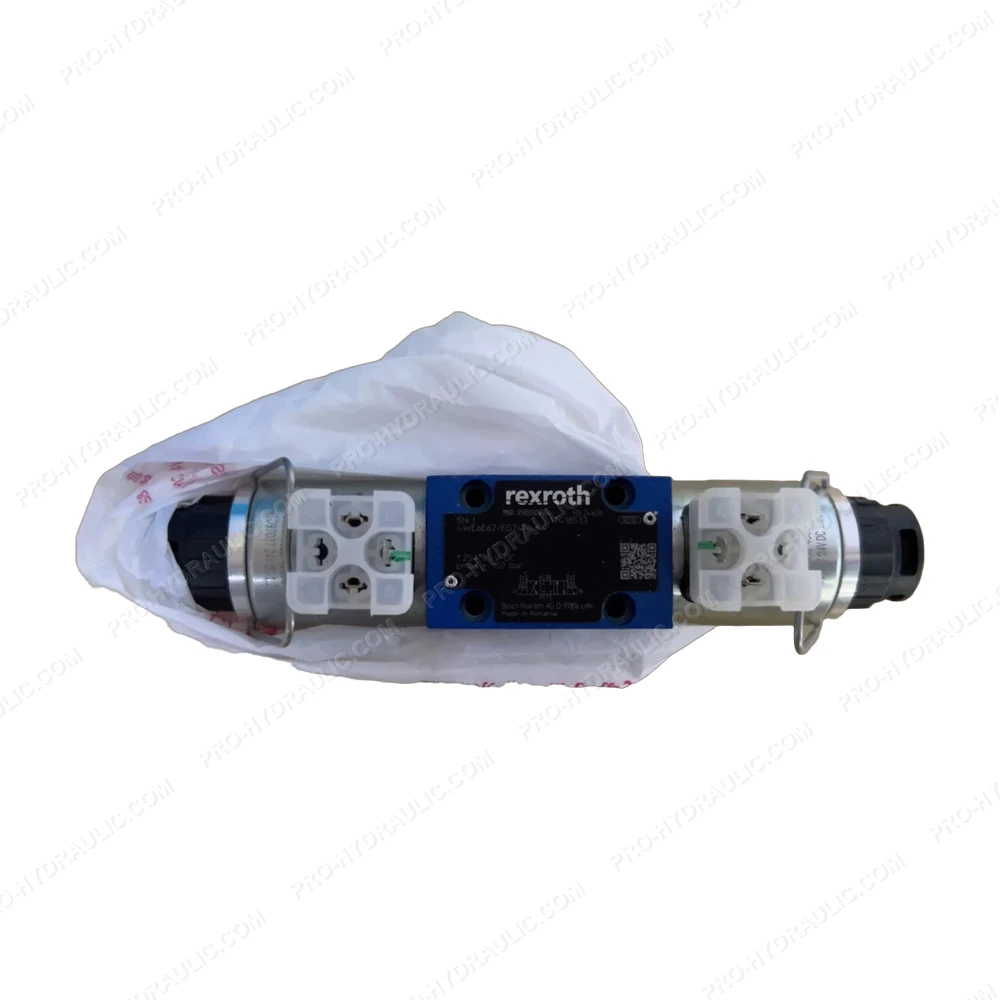

Rexroth 4WE6E62/EG24N4K4 / R900908764 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WE6E62/EG24N4K4 / R900908764 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
