Product Overview
The Rexroth 4WE6E6X/EG24N9K4 (R900561278) is a direct-operated, solenoid-actuated directional spool valve from the globally recognized Bosch Rexroth 4WE6 series. Designed around the proven 4WE6 platform with a nominal size of NG6 (CETOP 3 / ISO 4401-03), this valve controls the start, stop, and direction of hydraulic fluid flow within industrial power units and manifold systems. The “E” spool designation provides a closed-center, three-position configuration (P, T, A, B blocked in the neutral position), making it ideal for holding actuator position and preventing drift when the solenoids are de-energized. The “6X” series index denotes the current Rexroth design generation, while the EG24N9K4 solenoid designation specifies a 24 V DC high-performance wet-pin solenoid with a nominal 30 W rating, an ISO 4400 / DIN EN 175301-803 (DIN 43650) plug connection, and a manual override. As a core component in modern hydraulic control circuits, this valve delivers fast, repeatable spool shifting and precise flow direction control for demanding industrial machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (Direct-Acting, 4-Way, 3-Position) |
| Model Designation | 4WE6E6X/EG24N9K4 / R900561278 |
| Manufacturer | Bosch Rexroth |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03 / NFPA D03) |
| Spool Type | Type “E” — Closed Center (P, T, A, B blocked in neutral) |
| Operating Pressure | Up to 350 bar (ports P, A, B); 210 bar (port T) |
| Nominal Flow Rate | Up to 60 L/min (dependent on spool and pressure drop) |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Solenoid Power | Nominal 30 W (high-performance wet-pin solenoid) |
| Electrical Connection | DIN EN 175301-803 (ISO 4400 / DIN 43650) 3-pole plug |
Engineering Features & Advantages
- Precision Performance: The solenoid operated directional spool valve (direct-acting, 4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
As a core component in modern hydraulic control circuits, this valve delivers fast, repeatable spool shifting and precise flow direction control for demanding industrial machinery.
PRODUCT IMAGES

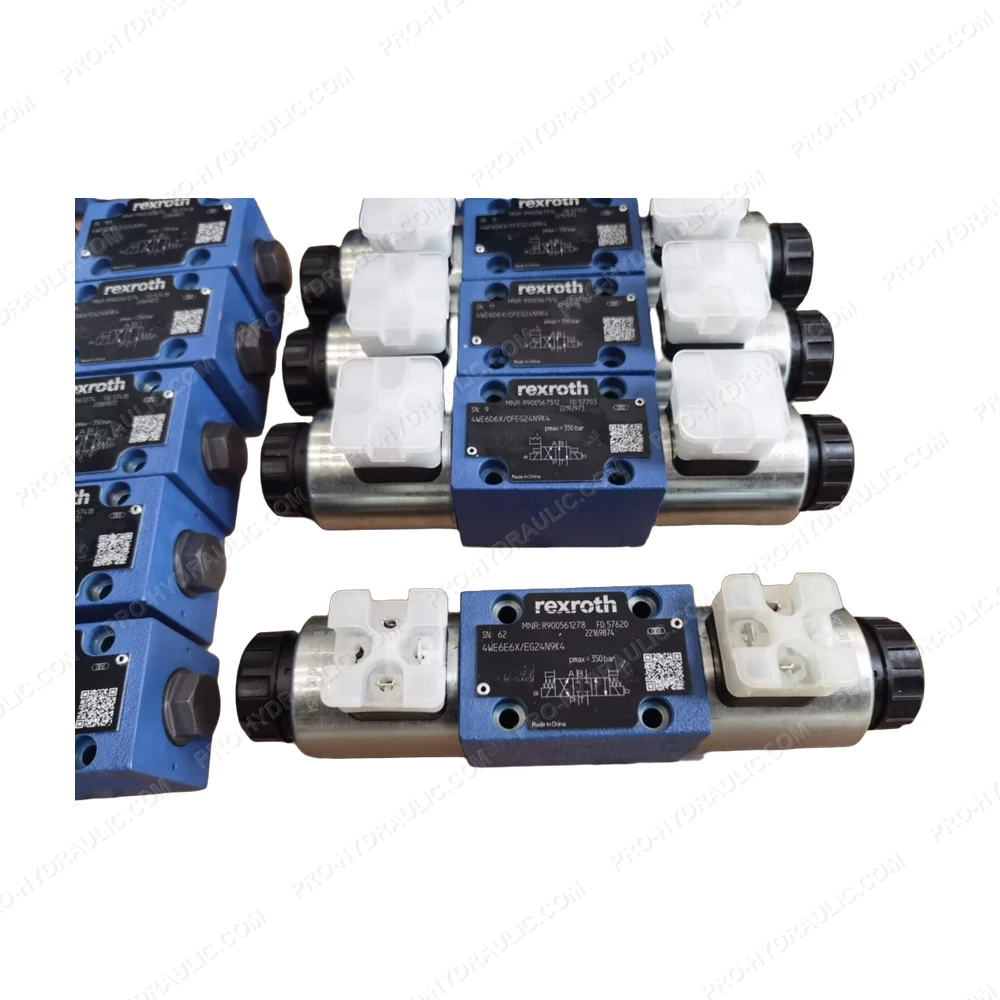

Rexroth 4WE6E6X/EG24N9K4 / R900561278 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WE6E6X/EG24N9K4 / R900561278 Solenoid Operated Directional Valve. This Germany-made 24 VDC hydraulic component features a 4/3-way design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
