Product Overview
The Rexroth 4WE6E6X/EG24N9K72LSO407 (R901235382) is a direct-operated, solenoid-actuated directional spool valve from the proven 4WE6 series, engineered by Bosch Rexroth for precise control of start, stop, and direction of hydraulic fluid flow in industrial power units. Featuring a 3-position, 4-way (4/3) spool configuration with a closed-center “E” spool type, this valve directs pressurized flow to the selected actuator port while venting the opposite port to tank, enabling controlled extension, retraction, and holding of cylinders or bidirectional rotation of hydraulic motors. The valve is actuated by two wet-pin AC/DC solenoids with a nominal 24 VDC coil (EG24 designation), and includes a concealed manual override as standard for emergency operation and system commissioning. With a size 6 (NG6 / CETOP 3) interface, the 4WE6E6X is a compact, high-response component widely specified in machine tools, injection molding equipment, and general industrial hydraulic manifolds where reliable directional control and long service life are essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Solenoid Operated Directional Spool Valve (4/3 Way, Direct Operated) |
| Model Designation | 4WE6E6X/EG24N9K72LSO407 / R901235382 |
| Series / Size | 4WE6 Series, Size 6 (NG6 / CETOP 3 / ISO 4401-03) |
| Spool Type | Type “E” — Closed Center, All Ports Blocked in Neutral |
| Actuation | Dual Wet-Pin Solenoids with Concealed Manual Override |
| Coil Voltage | 24 VDC (EG24 Designation) |
| Operating Pressure | Up to 350 bar (P, A, B ports); 210 bar max at T port |
| Nominal Flow Rate | Up to 60 L/min (Size 6 standard rating) |
| Mounting & Connection | Subplate Mounting per ISO 4401-03 / DIN 24340 Form A6; 4 x M5 mounting bolts |
| Hydraulic Fluid | Mineral Oil Based Hydraulic Fluid (HLP/HLVP), Viscosity 10–500 mm²/s |
Engineering Features & Advantages
- Precision Performance: The integrated dual Wet-Pin Solenoids with Concealed Manual Override ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a size 6 (NG6 / CETOP 3) interface, the 4WE6E6X is a compact, high-response component widely specified in machine tools, injection molding equipment, and general industrial hydraulic manifolds where reliable directional control and long service life are essential.
PRODUCT IMAGES

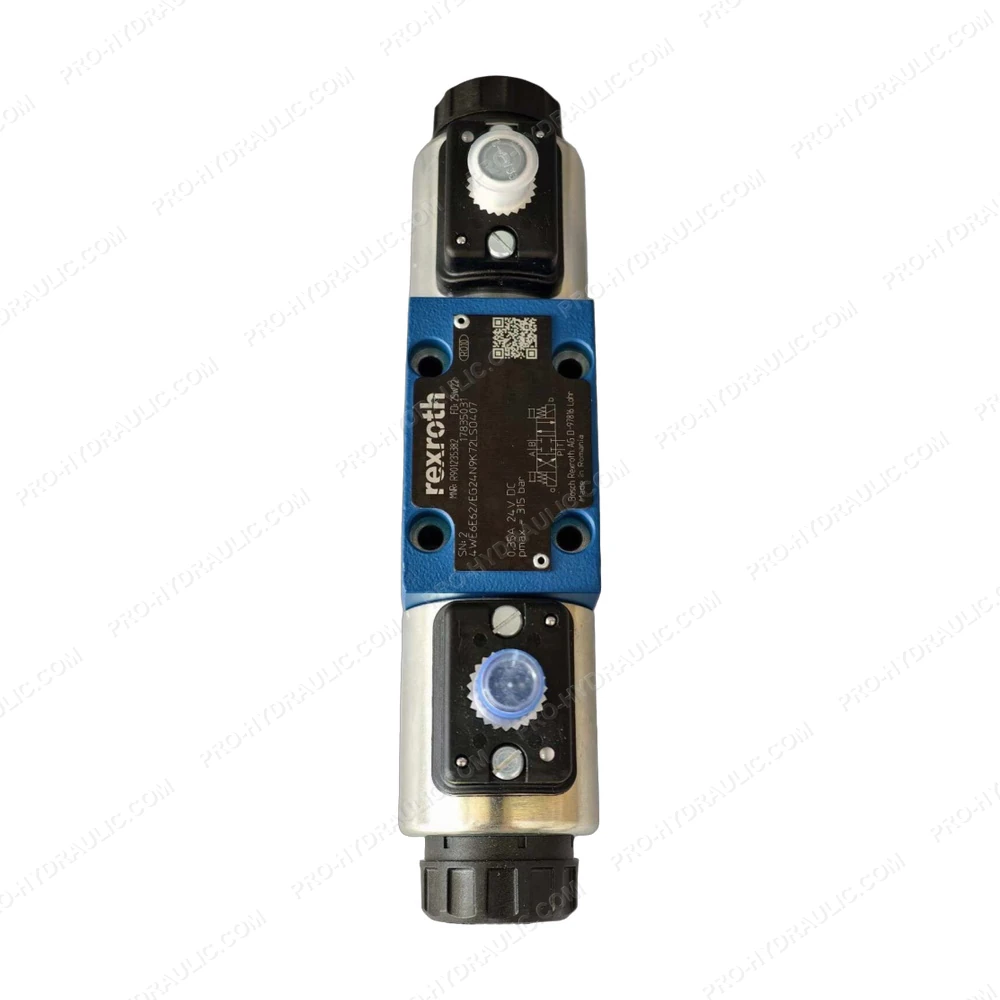

Rexroth 4WE6E6X/EG24N9K72LSO407 / R901235382 Solenoid Operated Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WE6E6X/EG24N9K72LSO407 / R901235382 Solenoid Operated Directional Control Valve. This Germany-made 24V DC hydraulic component features a 4-way, 3-position design with spring return, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
