The REXROTH 4WEH 16 D72/6HG24N9ETK4/B10 is a heavy-duty industrial directional spool valve engineered for pilot-operated control of start, stop, and direction of fluid flow in high-pressure hydraulic systems. This size 16 valve features a 4-way, 3-position design with a D72 spool type, spring return, and a 24 V DC wet-pin solenoid with integrated manual override. The N9 design indicates a high-performance solenoid with a nominal voltage of 24 V DC and a rectifier integrated into the coil, ensuring reliable switching even under fluctuating supply conditions. The ETK4 designation specifies an external pilot oil supply and external pilot oil return, while the B10 indicates a high-pressure pilot stage with a maximum pilot pressure of 100 bar. The valve is designed for subplate mounting according to ISO 4401-07, CETOP 7, and NFPA T3.5.1 R2/DIN 24340 A16 patterns, providing a compact and robust solution for demanding industrial applications.
REXROTH 4WEH 16 D72/6HG24N9ETK4/B10 Technical Specifications
| Valve Type | Directional spool valve, pilot-operated |
| Size | 16 |
| Spool Type | D72 |
| Number of Positions | 3 |
| Actuation | Solenoid, wet-pin, 24 V DC |
| Manual Override | Integrated |
| Pilot Oil Supply | External (ET) |
| Pilot Oil Return | External (ET) |
| Pilot Stage | B10, max. 100 bar |
| Mounting Pattern | ISO 4401-07, CETOP 7, NFPA T3.5.1 R2/DIN 24340 A16 |
| Maximum Operating Pressure | 350 bar (main stage) |
| Maximum Flow Rate | 300 L/min |
| Hydraulic Fluid | Mineral oil, phosphate ester, or water-glycol (depending on seals) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 800 mm²/s |
| Filtration | ISO 4406 (c) 20/18/15 or better |
| Weight | Approx. 12.5 kg |
Key Engineering Features
- Pilot-operated design with wet-pin solenoid for high switching reliability and long service life.
- D72 spool provides precise flow control and low pressure drop in all positions.
- External pilot oil supply and return allow flexible system integration and stable pilot pressure.
- Integrated manual override enables emergency operation without electrical power.
- High-pressure pilot stage (B10) ensures reliable valve actuation even at low main system pressures.
- Robust cast iron housing and hardened spool for extended durability in harsh environments.
- Compliant with ISO 4401-07, CETOP 7, and NFPA T3.5.1 R2/DIN 24340 A16 mounting patterns for drop-in replacement.
Industrial Applications
- Hydraulic presses and forming machines
- Injection molding and die-casting equipment
- Steel mills and heavy metal processing
- Marine and offshore hydraulic systems
- Mobile and industrial cranes
- Test stands and simulation rigs
- Material handling and lifting equipment
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WEH 16 D72/6HG24N9ETK4/B10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

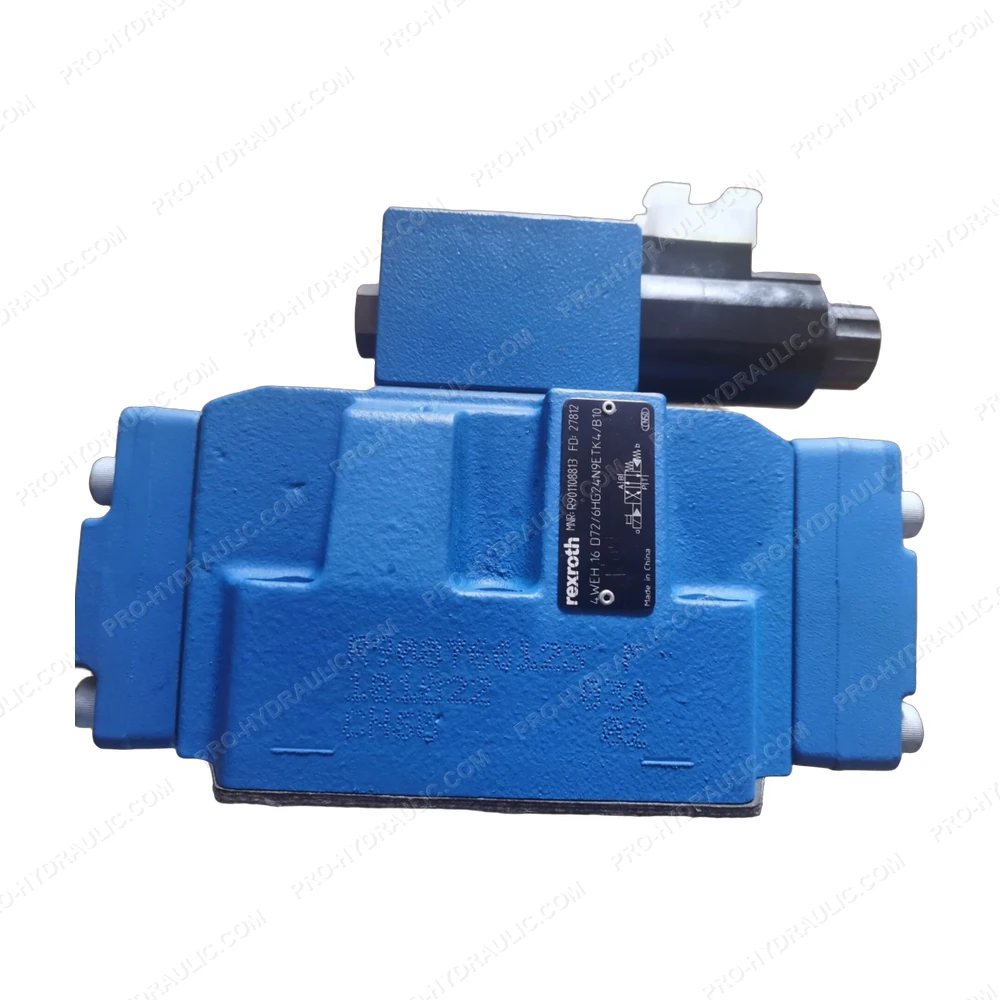

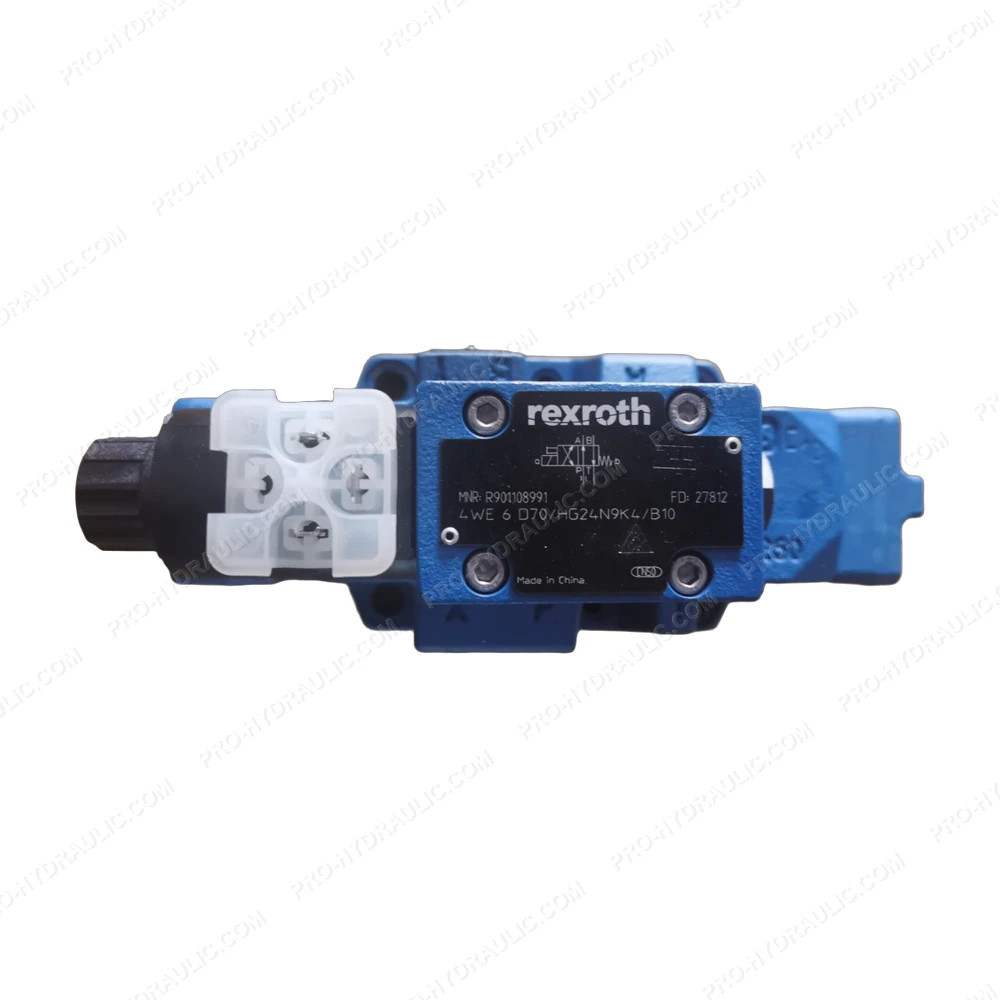

REXROTH 4WEH 16 D72/6HG24N9ETK4/B10 Directional Spool Valve
