Product Overview
The Rexroth 4WEH 25 J6X/6E24N9ETSK4/B10V (Material No. R901298310) is a high-performance electro-hydraulic directional spool valve from the renowned Rexroth 4WEH series, size NG25. This pilot-operated, solenoid-actuated directional control valve is engineered to manage the start, stop, and direction of hydraulic fluid flow in demanding industrial circuits. The main spool is hydraulically piloted by a wet-pin DC solenoid directional valve, enabling reliable switching of high flow rates with minimal electrical power. The “J6X” designation indicates a spring-centered, spring-return spool with a specific flow pattern, while the “6E24N9ETSK4” pilot valve configuration provides 24 V DC solenoid actuation with an emergency manual override and integrated throttle/check provisions. Designed for subplate mounting in accordance with ISO 4401 and DIN 24340 standards, this valve delivers precise, repeatable control in high-pressure hydraulic systems up to 350 bar, making it a critical component in modern industrial automation and heavy machinery.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Electro-Hydraulic Directional Spool Valve (Pilot-Operated) |
| Model Designation | 4WEH 25 J6X/6E24N9ETSK4/B10V |
| Material Number | R901298310 |
| Nominal Size | NG25 (DIN 24340 / ISO 4401) |
| Spool Type | Type J — Spring-Centered, Spring-Return |
| Actuation | Electro-Hydraulic (Wet-Pin DC Solenoid Pilot Valve) |
| Solenoid Voltage | 24 V DC (Nominal) |
| Operating Pressure | Up to 350 bar (Main Ports P, A, B); Pilot Pressure per Rexroth Standard |
| Nominal Flow Rate | Approx. 450 L/min (NG25, dependent on spool type and pressure drop) |
| Mounting & Connection | Subplate Mounting — ISO 4401-08 / DIN 24340 Form NG25 |
| Seal Material | NBR (Nitrile) — Standard Industrial Hydraulic |
Engineering Features & Advantages
- Precision Performance: The integrated electro-Hydraulic (Wet-Pin DC Solenoid Pilot Valve) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 450 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Designed for subplate mounting in accordance with ISO 4401 and DIN 24340 standards, this valve delivers precise, repeatable control in high-pressure hydraulic systems up to 350 bar, making it a critical component in modern industrial automation and heavy machinery.
PRODUCT IMAGES

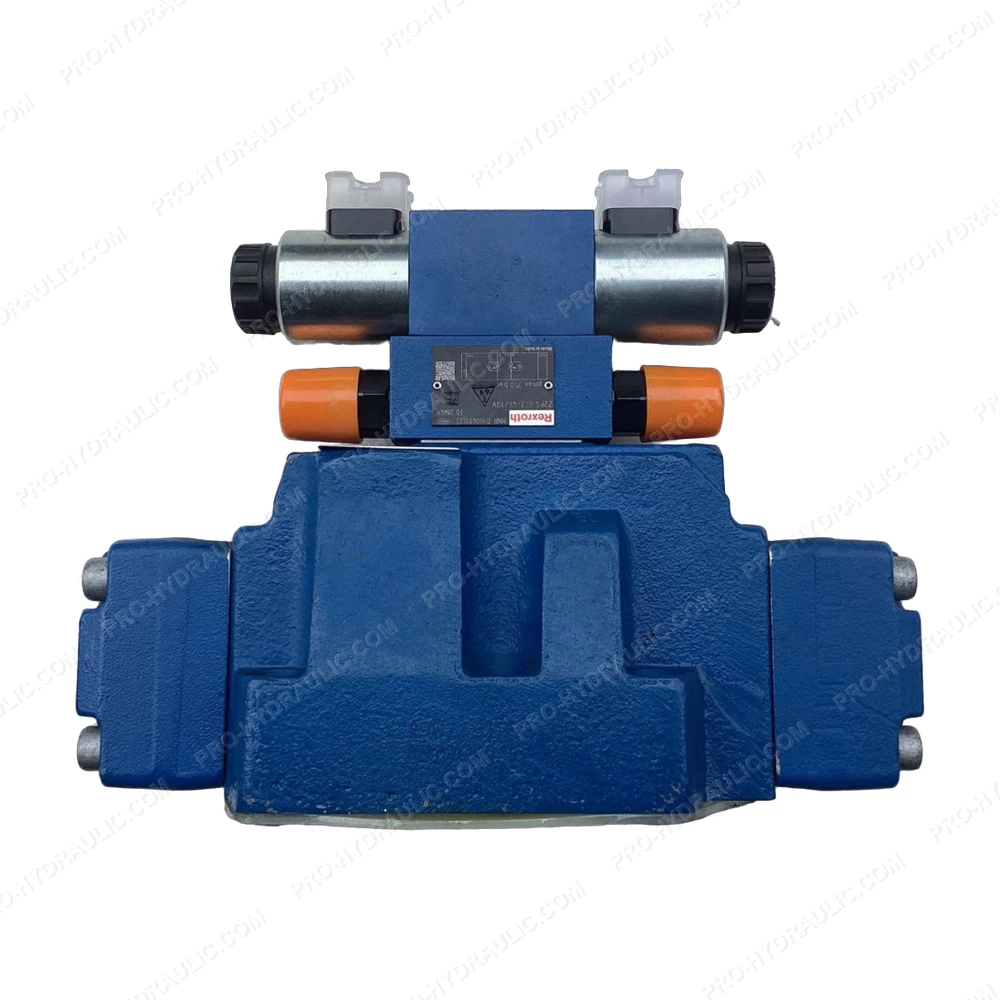

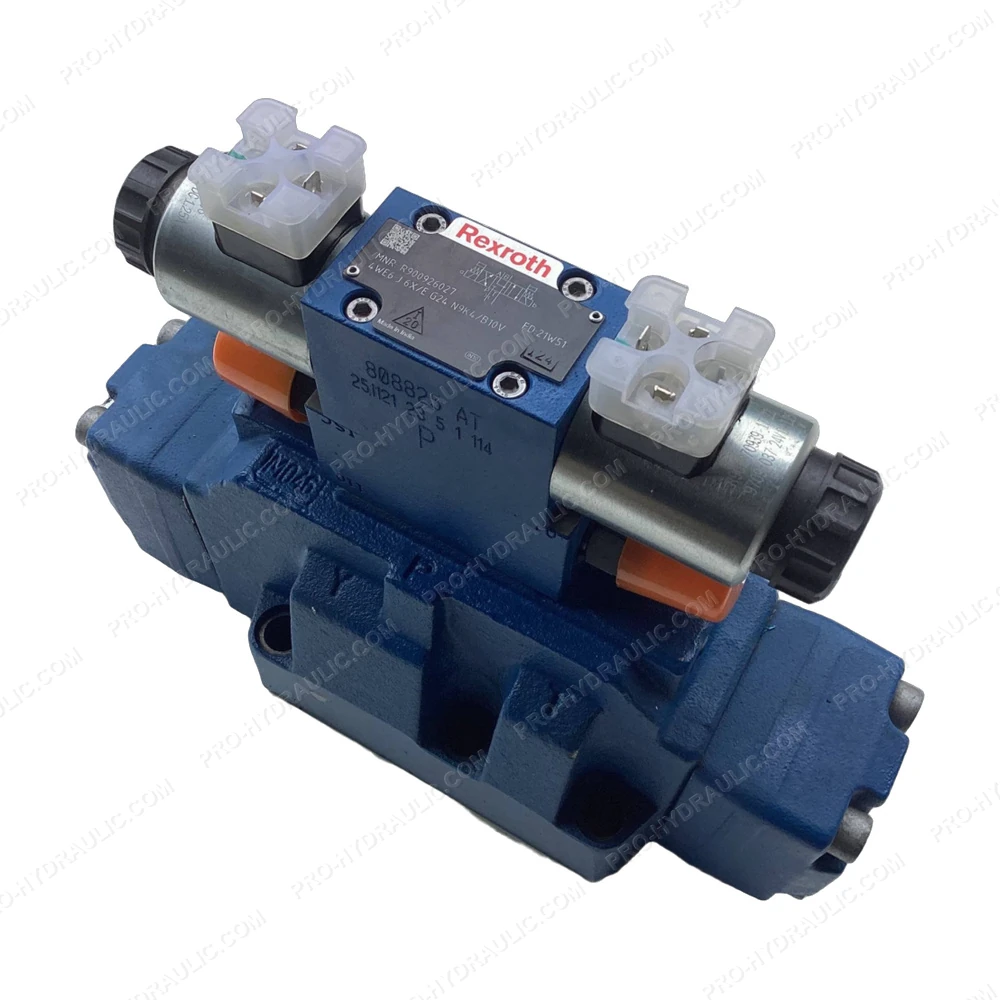

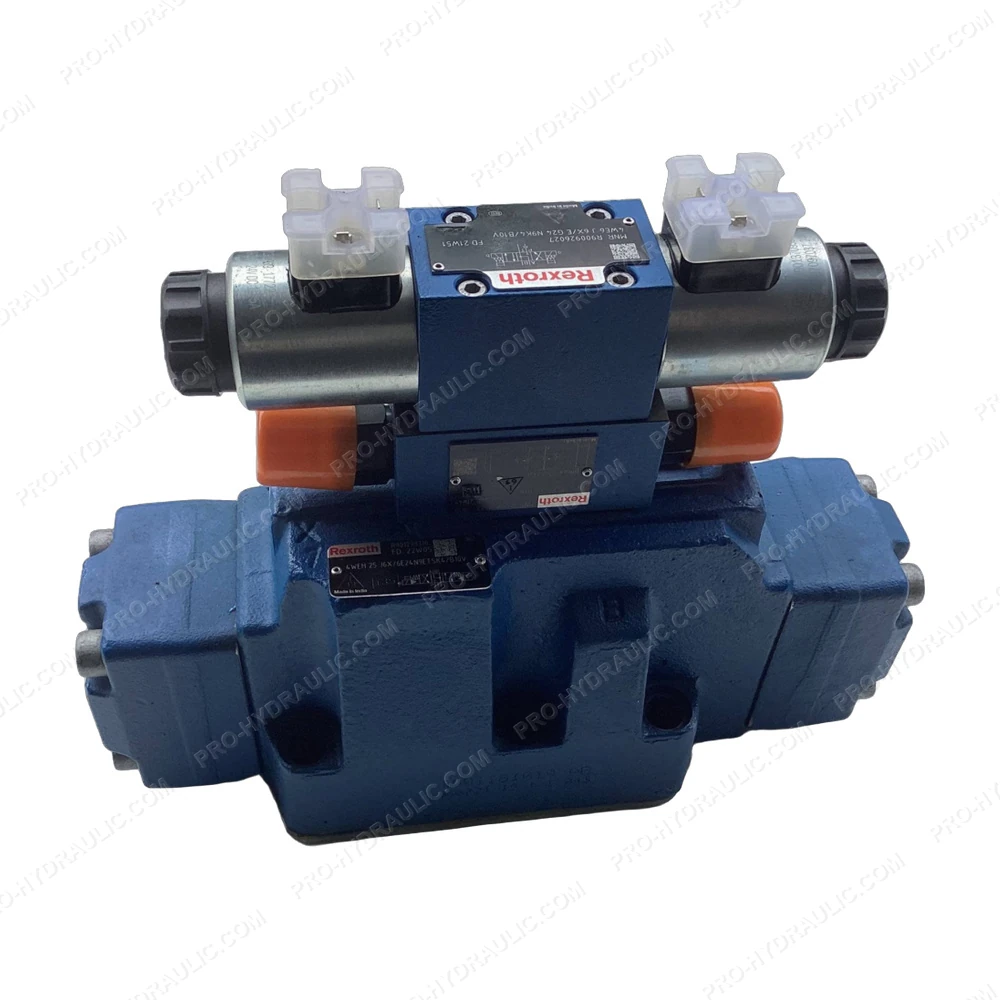

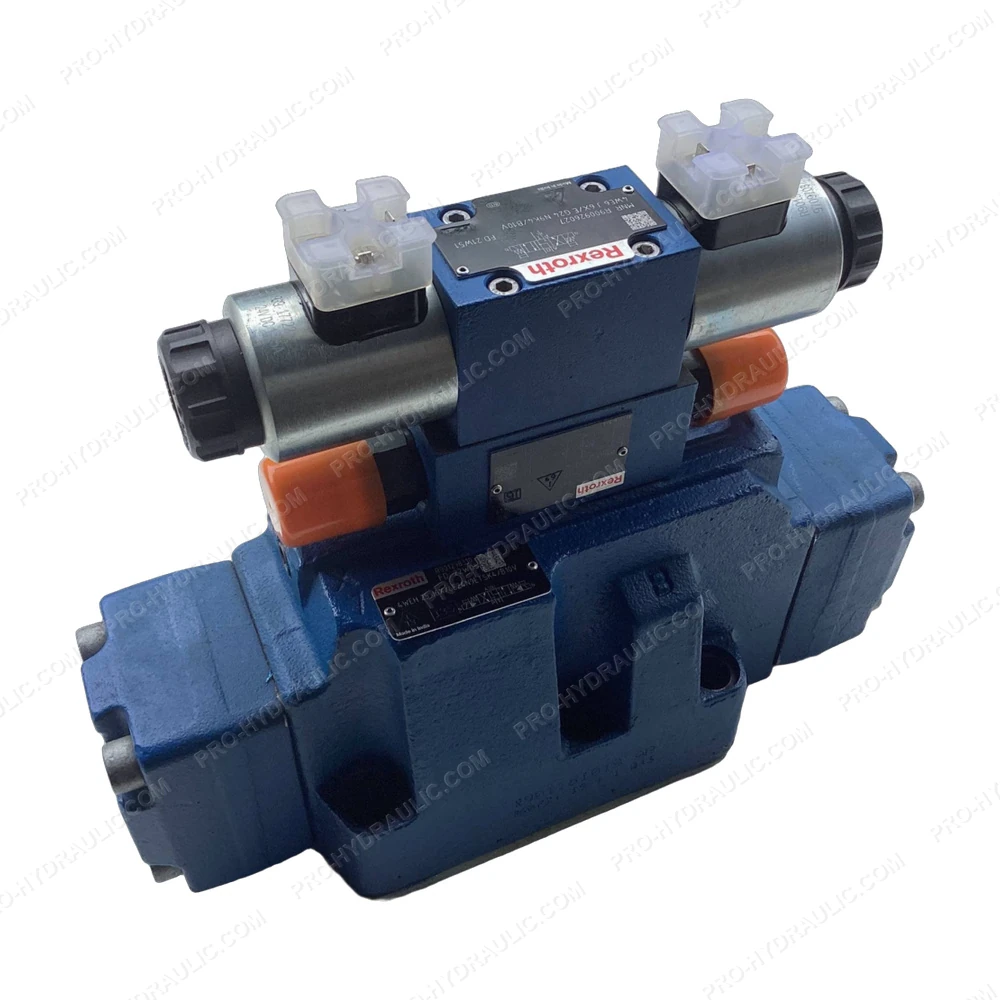

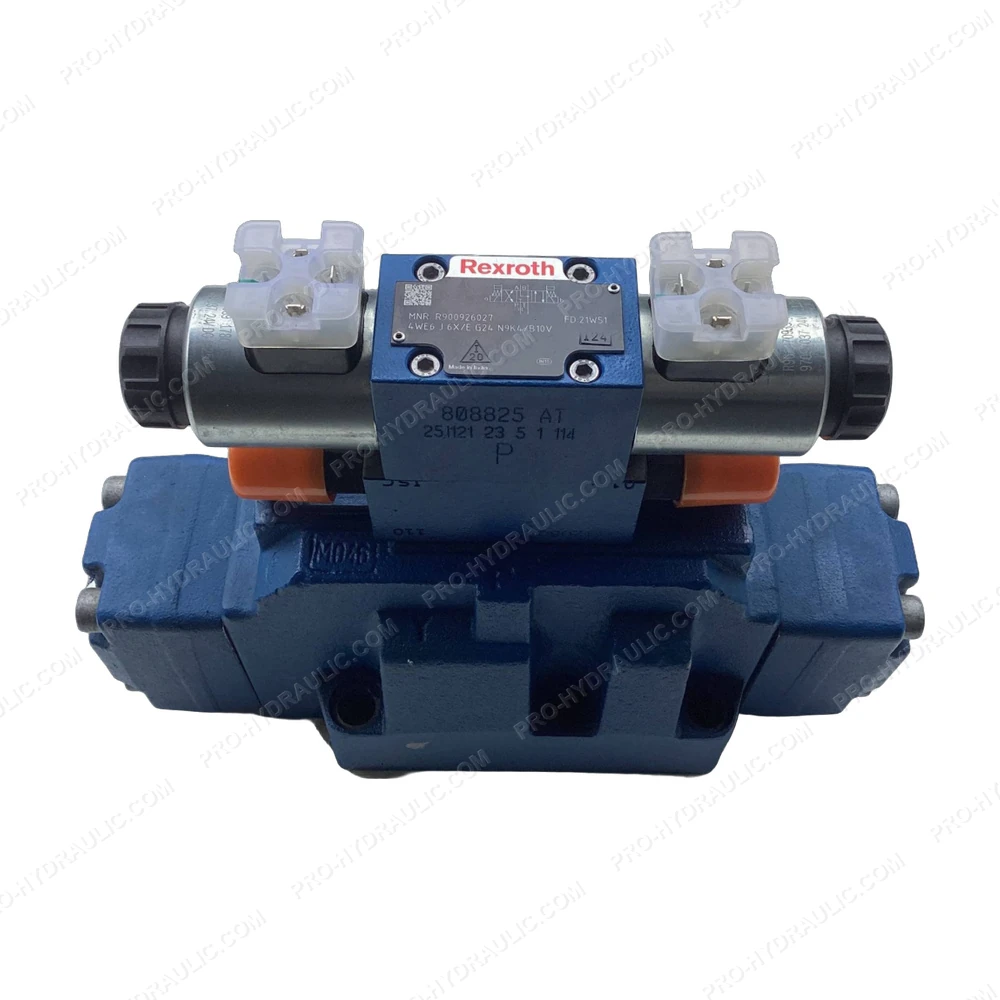

Rexroth 4WEH 25 J6X/6E24N9ETSK4/B10V / R901298310 Electro-Hydraulic Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WEH 25 J6X/6E24N9ETSK4/B10V / R901298310 Solenoid Operated Directional Spool Valve. This Germany-made 24 VDC hydraulic component features a 4-way pilot-operated design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
