The REXROTH 4WEH16J7X/6HG24N9ETK4/B10 is a heavy-duty industrial directional spool valve engineered for pilot-operated control of start, stop, and direction of fluid flow in high-pressure hydraulic systems. This NG16 (CETOP 8 / ISO 4401-08) size valve features a J-type spool with closed-center characteristics, providing precise actuator positioning and load holding. The integrated high-performance wet-pin AC solenoid (24 V DC, 6HG24N9ETK4) ensures reliable, fast switching with low power consumption. The B10 designation indicates a high-capacity return spring for defined fail-safe spool return. Designed for continuous operation in demanding industrial environments, this valve offers excellent contamination tolerance and long service life.
REXROTH 4WEH16J7X/6HG24N9ETK4/B10 Technical Specifications
| Valve Type | Pilot-operated directional spool valve |
| Size | NG16 (CETOP 8 / ISO 4401-08) |
| Spool Type | J (closed center, all ports blocked in neutral) |
| Actuation | High-performance wet-pin AC solenoid, 24 V DC |
| Max. Operating Pressure | 350 bar (pilot and main ports) |
| Max. Flow Rate | Up to 300 L/min |
| Mounting Pattern | CETOP 8 / ISO 4401-08-07-0-94 |
| Return Spring | B10 (high-capacity spring return) |
| Hydraulic Fluid | Mineral oil based, HLP/HM per ISO 6743-4 |
| Viscosity Range | 10 to 500 mm²/s |
| Fluid Temperature Range | -20 °C to +80 °C |
| Ambient Temperature Range | -20 °C to +50 °C |
| Protection Class | IP65 (with suitable connector) |
| Weight | Approx. 7.5 kg |
Key Engineering Features
- Pilot-operated design with wet-pin AC solenoid for high switching reliability and long life
- J-type spool provides closed-center function, ideal for holding loads and precise positioning
- High-capacity B10 return spring ensures rapid, defined spool return to neutral
- NG16 (CETOP 8) mounting pattern for direct integration into standard hydraulic manifolds
- Rated for continuous operation at pressures up to 350 bar and flows up to 300 L/min
- Robust construction with excellent contamination tolerance for harsh industrial environments
- 24 V DC solenoid coil with low power consumption and high pull-in force
Industrial Applications
- Hydraulic presses and forming machines
- Injection molding and die-casting equipment
- Heavy-duty mobile and industrial hydraulic systems
- Machine tools and automated production lines
- Steel mills and metallurgical equipment
- Marine and offshore hydraulic control systems
- Test rigs and specialized hydraulic power units
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WEH16J7X/6HG24N9ETK4/B10, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

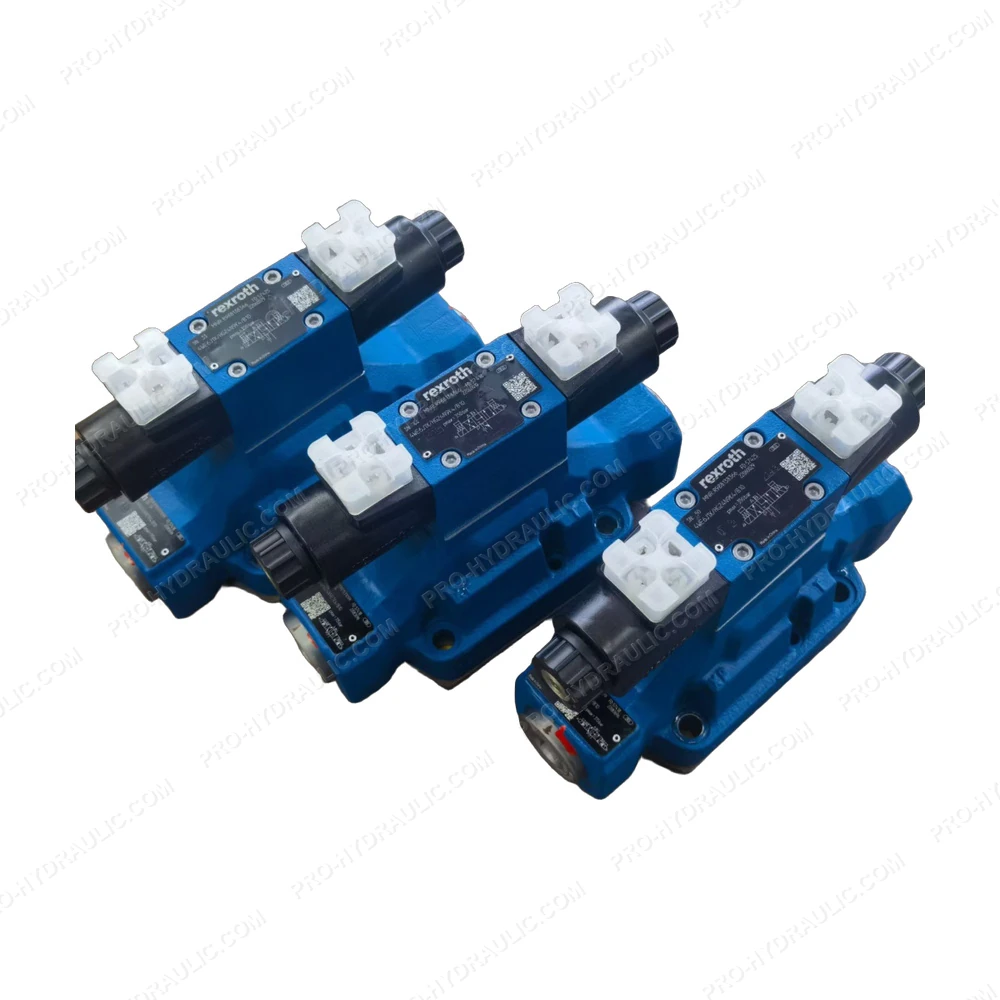

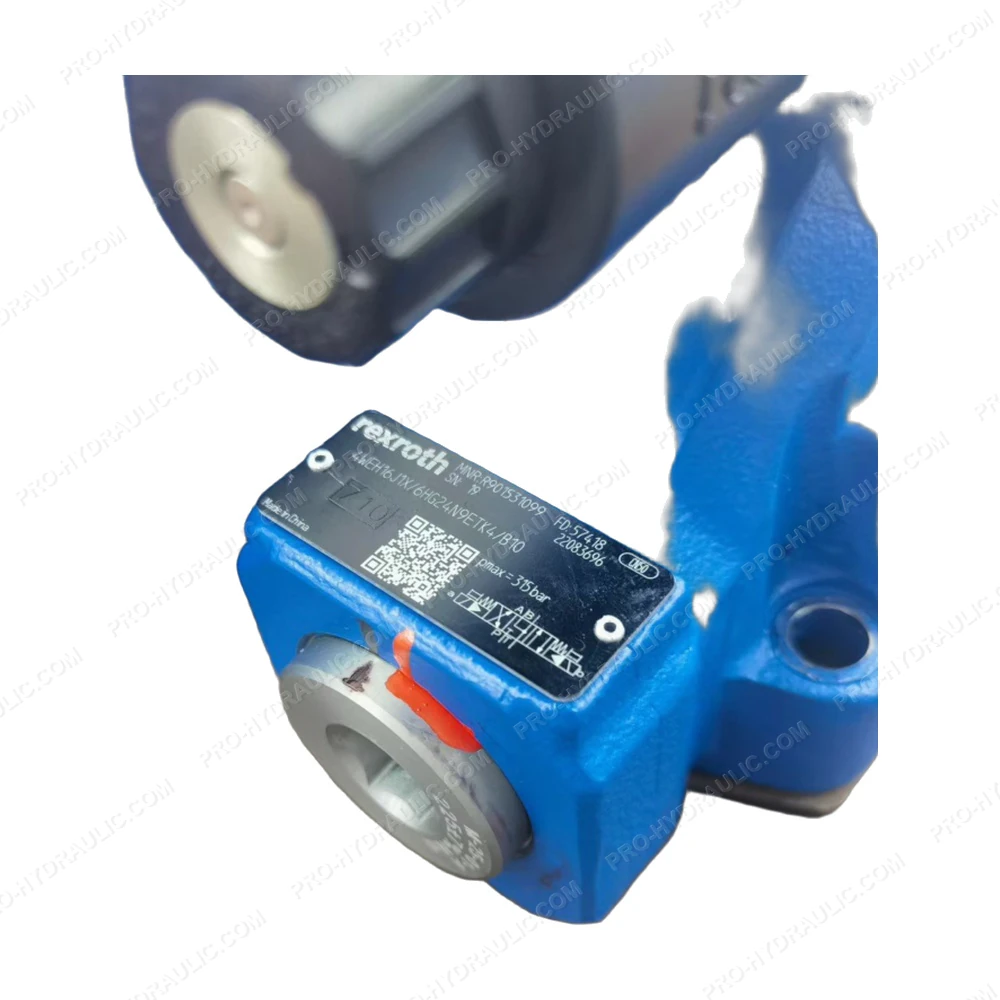

REXROTH 4WEH16J7X/6HG24N9ETK4/B10 Directional Spool Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WEH16J7X/6HG24N9ETK4/B10 Directional Spool Valve. This precision-engineered industrial component delivers reliable fluid control for heavy-duty systems.
