Product Overview
The Rexroth 4WRA6V30-23/G24N9K4/V-589 (Material Number R900953854) is a direct-operated, proportional directional valve from the proven 4WRA series, engineered by Bosch Rexroth for precise, infinitely variable control of flow direction and magnitude in industrial hydraulic systems. Utilizing a proportional solenoid acting directly on the valve spool, this NG6 (CETOP 3 / ISO 4401-03) size valve delivers smooth, stepless directional control proportional to the electrical command signal, making it ideal for applications requiring accurate velocity and position regulation rather than simple on/off switching. The “V” suffix denotes FKM (Viton) seal compatibility for use with phosphate ester (HFD) and other aggressive hydraulic fluids, while the G24 designates a 24 VDC high-performance proportional solenoid. As a genuine Rexroth proportional valve, it provides the dynamic response, hysteresis performance, and long-term repeatability demanded by modern closed-loop and open-loop industrial control architectures.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Direct-Operated, Spool Type) |
| Model Designation | 4WRA6V30-23/G24N9K4/V-589 |
| Material Number | R900953854 |
| Valve Size | NG6 (CETOP 3 / ISO 4401-03-02-0-05) |
| Actuation Type | Proportional Solenoid, Single or Dual (G24 = 24 VDC) |
| Spool Type | “V” Spool (Proportional, Meter-In / Meter-Out Control) |
| Operating Pressure | Up to 315 bar (Working Ports A/B); 350 bar (Port P) |
| Nominal Flow Rate | Approx. 30 L/min at Δp = 10 bar per land |
| Hysteresis | ≤ 6% of nominal stroke (typical) |
| Response Sensitivity | ≤ 1% of nominal stroke |
| Seal Material | FKM (Viton) — “V” suffix, suitable for HFD fluids |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (direct-operated, spool type) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 30 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
As a genuine Rexroth proportional valve, it provides the dynamic response, hysteresis performance, and long-term repeatability demanded by modern closed-loop and open-loop industrial control architectures.
PRODUCT IMAGES

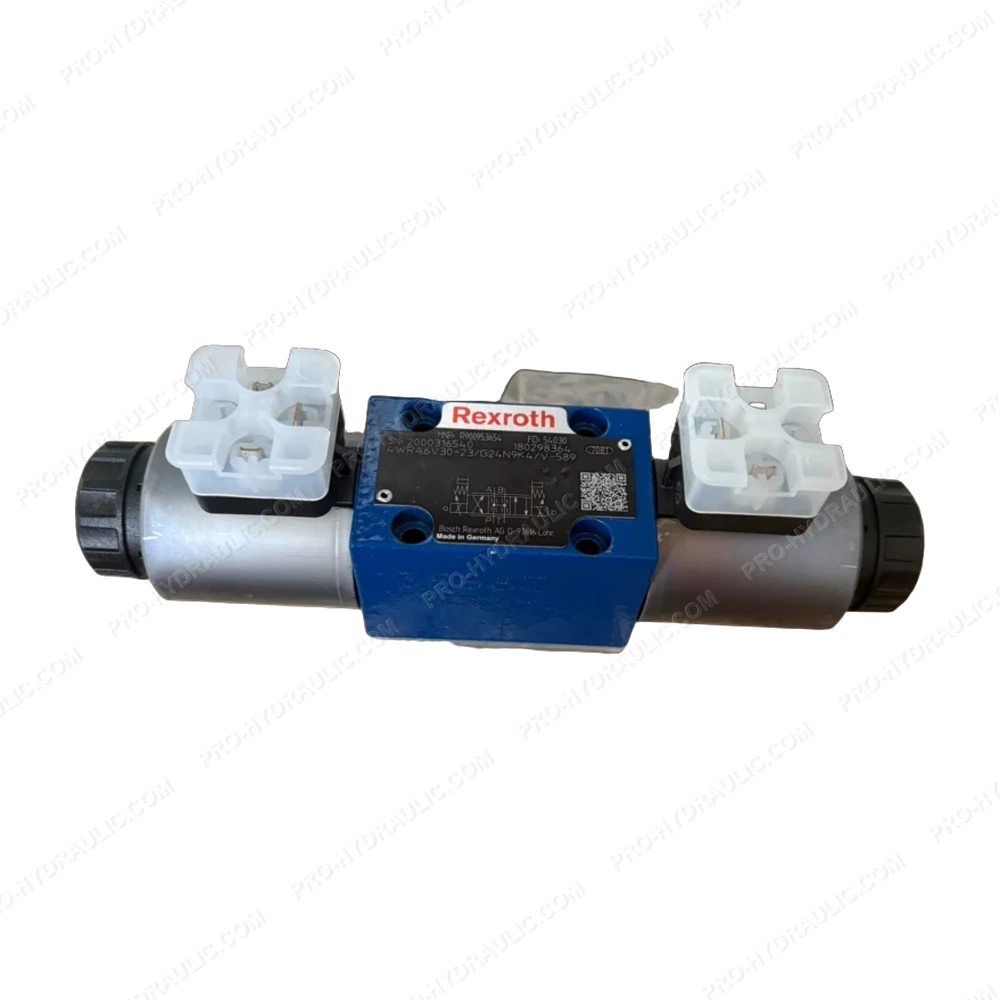

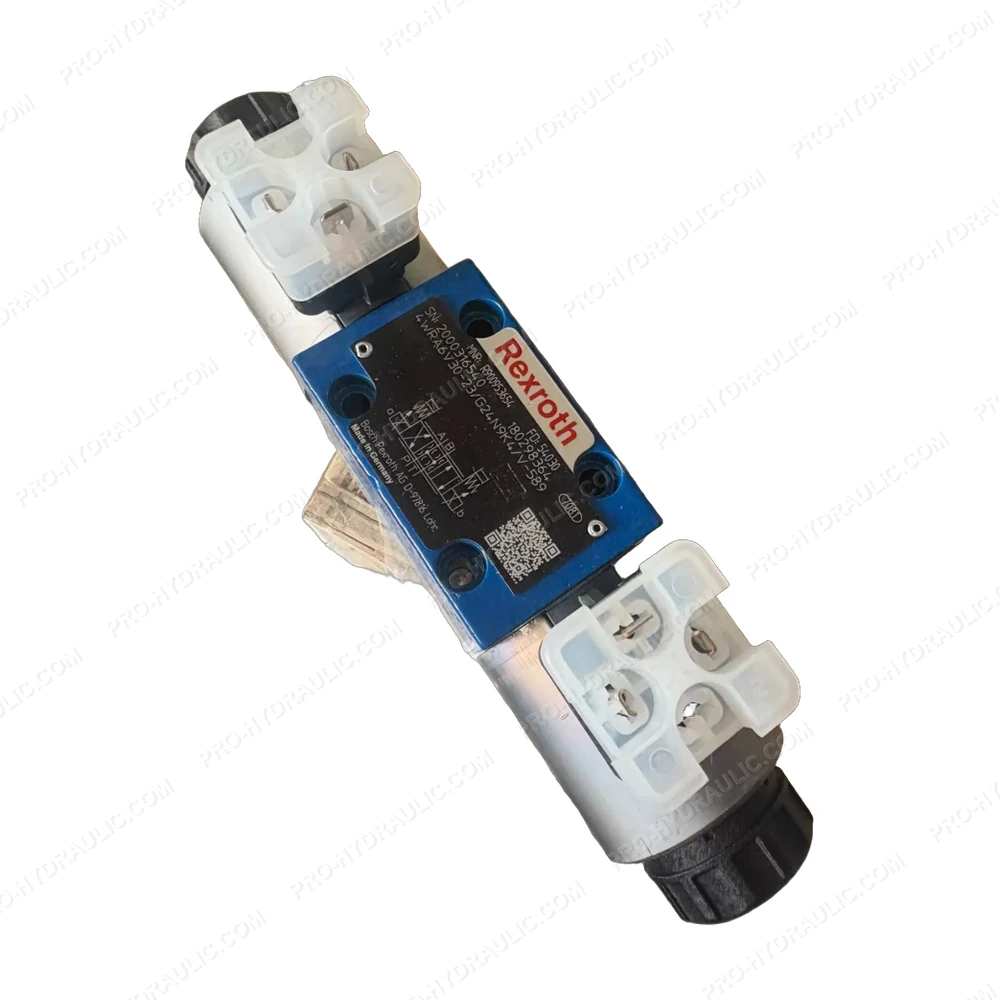

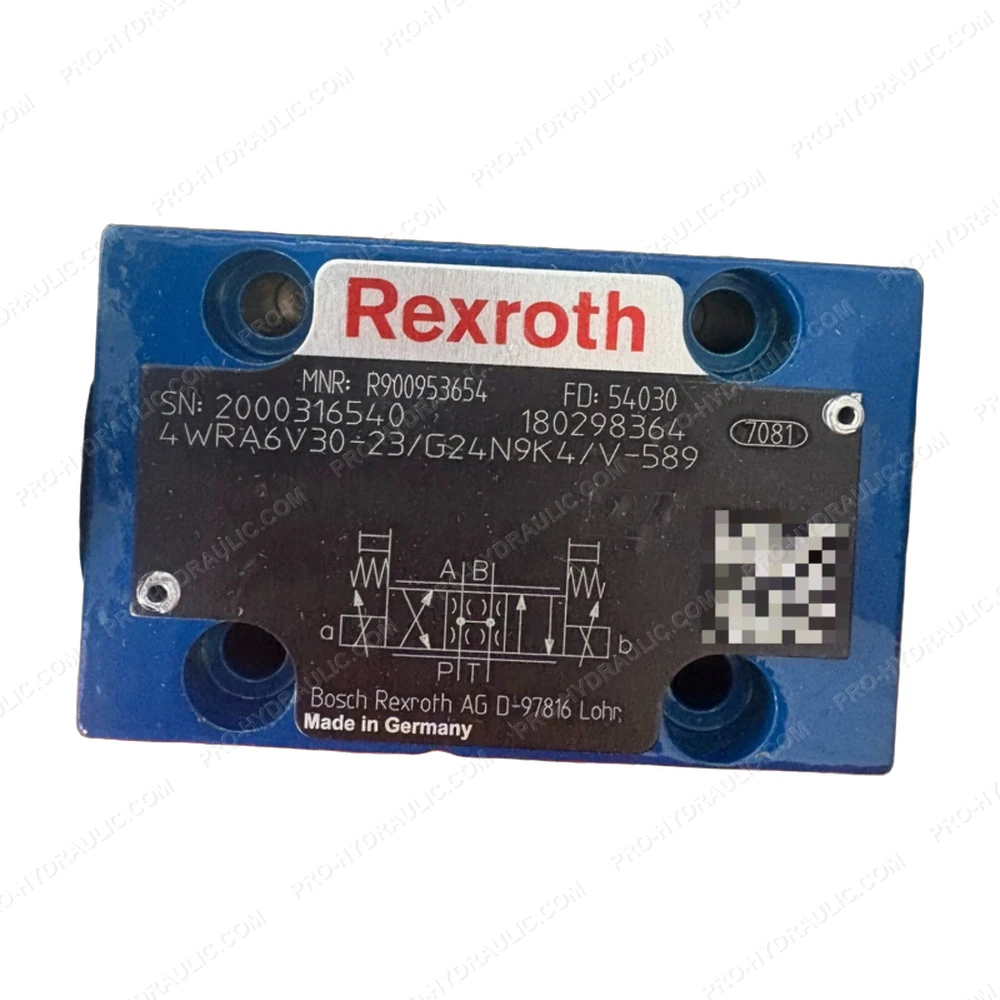

Rexroth 4WRA6V30-23/G24N9K4/V-589 / R900953854 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRA6V30-23/G24N9K4/V-589 / R900953854 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a direct-operated proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
