Product Overview
The Rexroth 4WRAE 10 E60-22/G24K4/V (Material Number: R900954061) is a high-performance, direct-operated proportional directional valve designed for precise control of flow direction and magnitude in industrial hydraulic systems. Manufactured by Bosch Rexroth, this valve features a 4-way, 3-position spool configuration (4WRAE) with a nominal size of NG10 (CETOP 5 / ISO 4401-05). The “E60” designation indicates a nominal flow capacity of 60 L/min at a 10 bar pressure drop per metering edge, while the “22” denotes the component series. The integrated “G24K4/V” solenoid configuration specifies 24 V DC high-power proportional solenoids with a central electrical connector and a spring-centered, de-energized neutral position. This valve is engineered to deliver infinitely variable directional and flow control proportional to the electrical input signal, making it a critical component in closed-loop and open-loop hydraulic control architectures where precise actuator velocity and position management are required.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (4-Way, 3-Position) |
| Model Designation | 4WRAE 10 E60-22/G24K4/V |
| Material Number | R900954061 |
| Nominal Size | NG10 (CETOP 5 / ISO 4401-05) |
| Nominal Flow Rate | 60 L/min (at Δp = 10 bar per metering edge) |
| Operating Pressure | Up to 315 bar (P, A, B ports); 160 bar (T port) |
| Solenoid Voltage | 24 V DC (High-Power Proportional Solenoid) |
| Electrical Connection | Central connector, K4 (DIN EN 175301-803, 3-pole + PE) |
| Spool Type | E60 (Progressive flow characteristic, closed-center) |
| Mounting & Connection | Subplate mounting per ISO 4401-05-05-0-05 |
| Seal Material | NBR (Nitrile) / Optional FKM (Viton) available |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 60 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The Rexroth 4WRAE 10 E60-22/G24K4/V (Material Number: R900954061) is a high-performance, direct-operated proportional directional valve designed for precise control of flow direction and magnitude in industrial hydraulic systems.
PRODUCT IMAGES

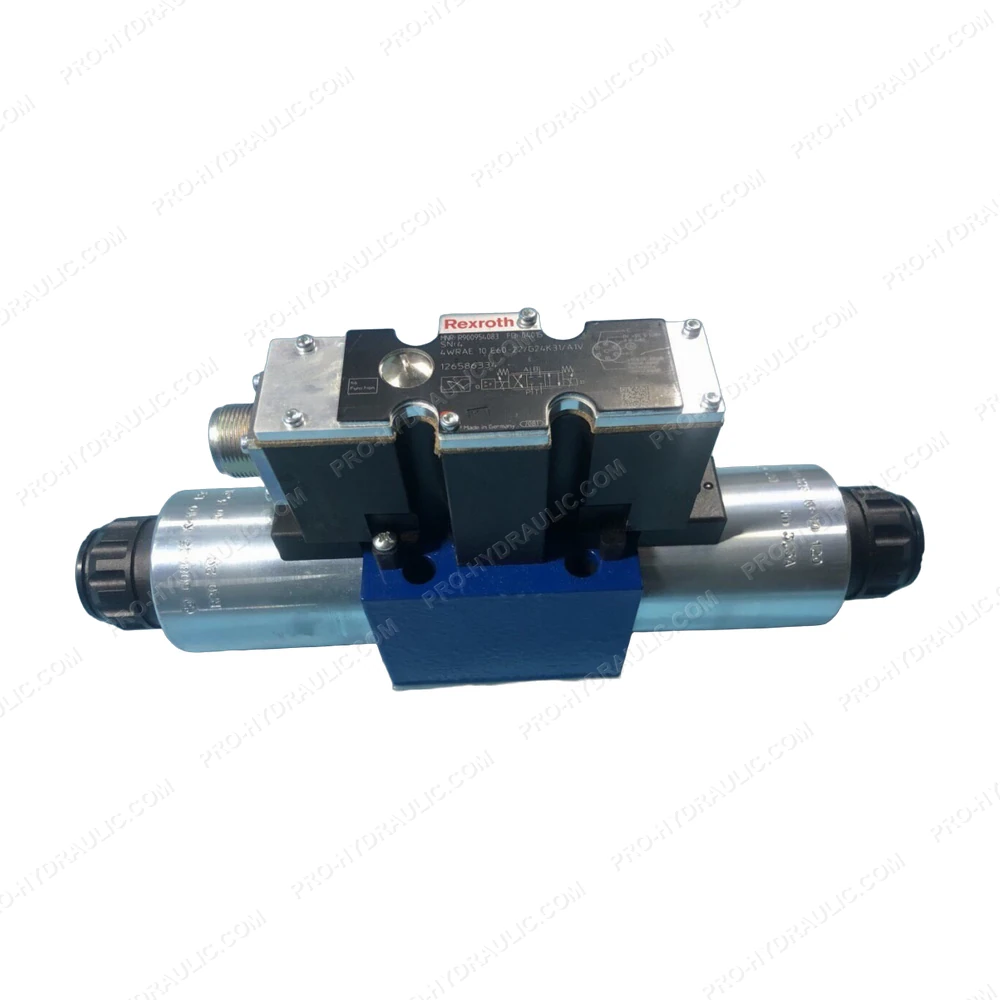

Rexroth 4WRAE 10 E60-22/G24K4/V / R900954061 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRAE 10 E60-22/G24K4/V / R900954061 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
