The REXROTH 4WRAE 10 E60-22/G24N9K31/A1V is a heavy-duty industrial proportional directional valve engineered for continuous, high-cycle operation in demanding hydraulic systems. It features a direct-operated, spring-centered 4-way spool design with integrated position feedback, providing precise flow control proportional to the electrical command signal.
REXROTH 4WRAE 10 E60-22/G24N9K31/A1V Technical Specifications
| Valve Type | Proportional Directional Valve, 4-way, direct-operated |
| Size | NG10 (CETOP 5 / ISO 4401-05) |
| Spool Type | E60-22 (progressive flow characteristic) |
| Actuation | Proportional solenoid, wet-pin armature, dual coil |
| Coil Voltage | 24 V DC (G24) |
| Electrical Connection | Connector N9 (DIN EN 175301-803, 3-pole + PE) |
| Nominal Flow | 60 L/min at Δp = 10 bar per land |
| Maximum Operating Pressure | 315 bar (P, A, B ports); 210 bar (T port) |
| Hysteresis | ≤ 5% of nominal stroke |
| Mounting Pattern | Subplate, ISO 4401-05-05-0-94 |
| Seal Material | NBR (standard); FKM optional |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 800 mm²/s |
| Material Number | R900558756 |
Key Engineering Features
- Direct-operated proportional solenoid with wet-pin armature for high dynamic response and minimal wear
- Integrated inductive position feedback for precise spool position control and repeatability
- Spring-centered fail-safe position in the event of power loss or signal interruption
- Progressive flow characteristic (E60-22) optimized for smooth acceleration and deceleration of actuators
- Rugged housing and hardened spool/sleeve pair for long service life in contaminated environments
- Compatible with REXROTH proportional amplifier modules and standard 24 V DC control systems
Industrial Applications
- Injection molding machines – clamp and injection axis control
- Hydraulic presses – force and position regulation
- Machine tools – feed and rapid traverse drives
- Steel and metallurgy – continuous casting and rolling mill adjustment
- Test rigs and simulation systems – dynamic load profiling
- Mobile and industrial hydraulic power units – flow and pressure control
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRAE 10 E60-22/G24N9K31/A1V, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

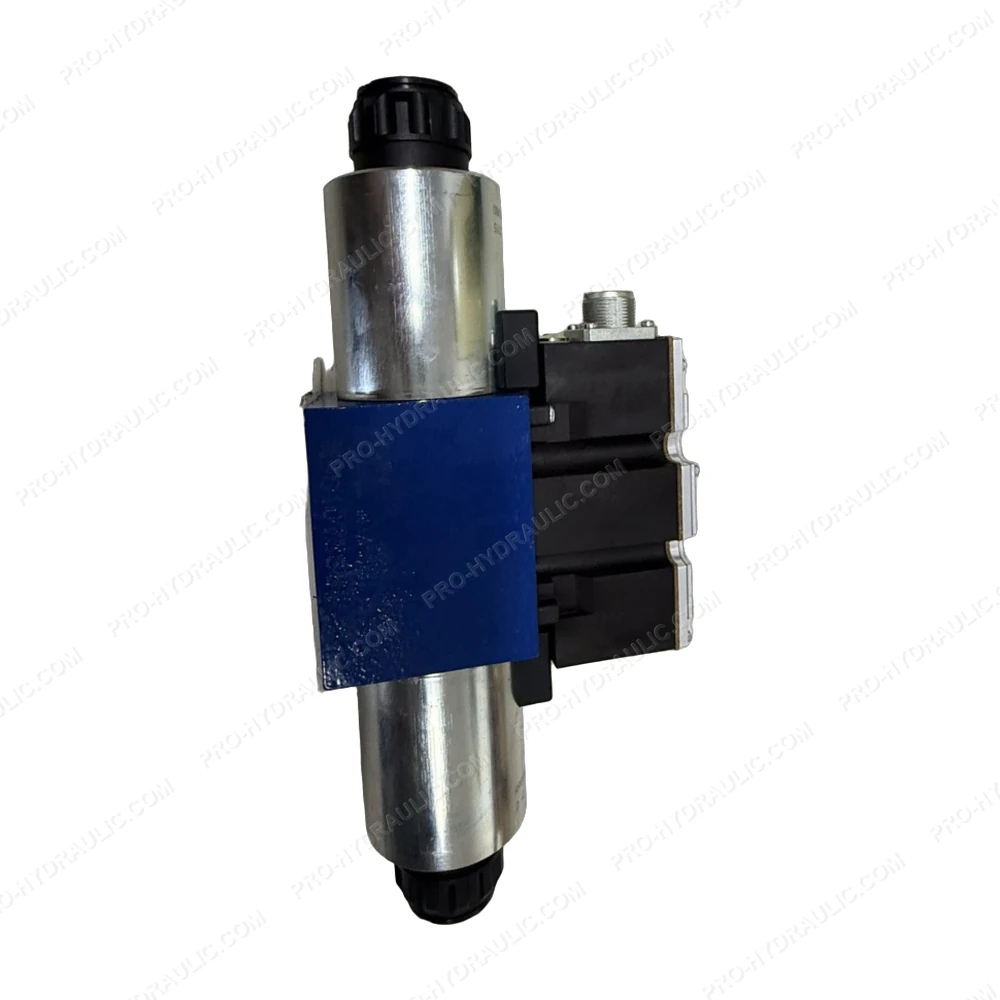

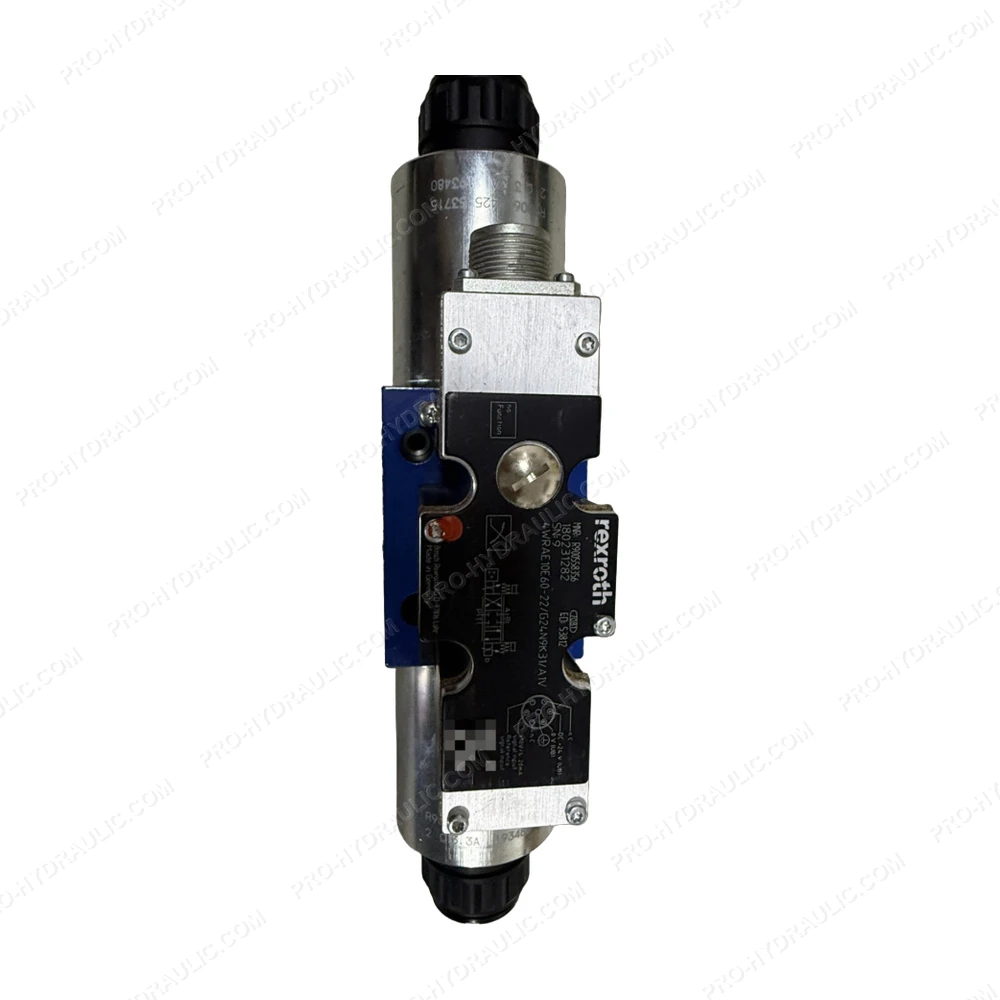

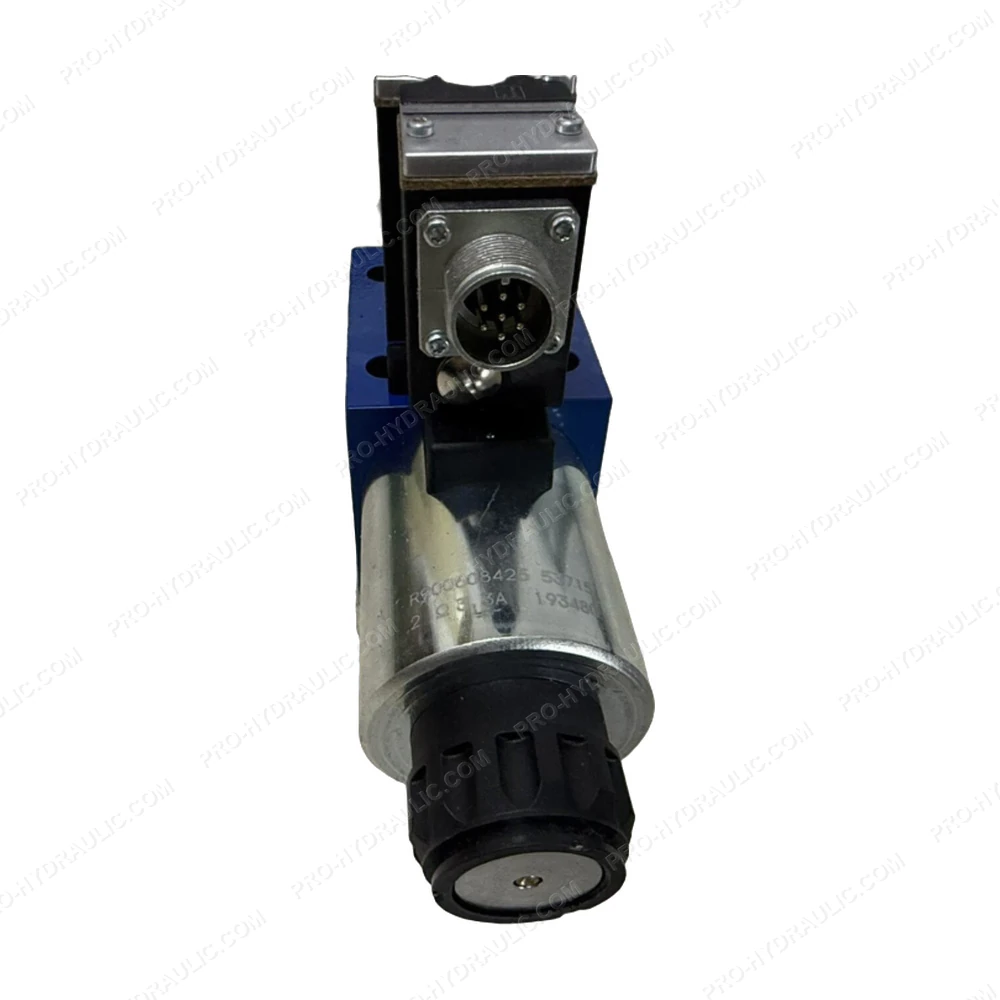

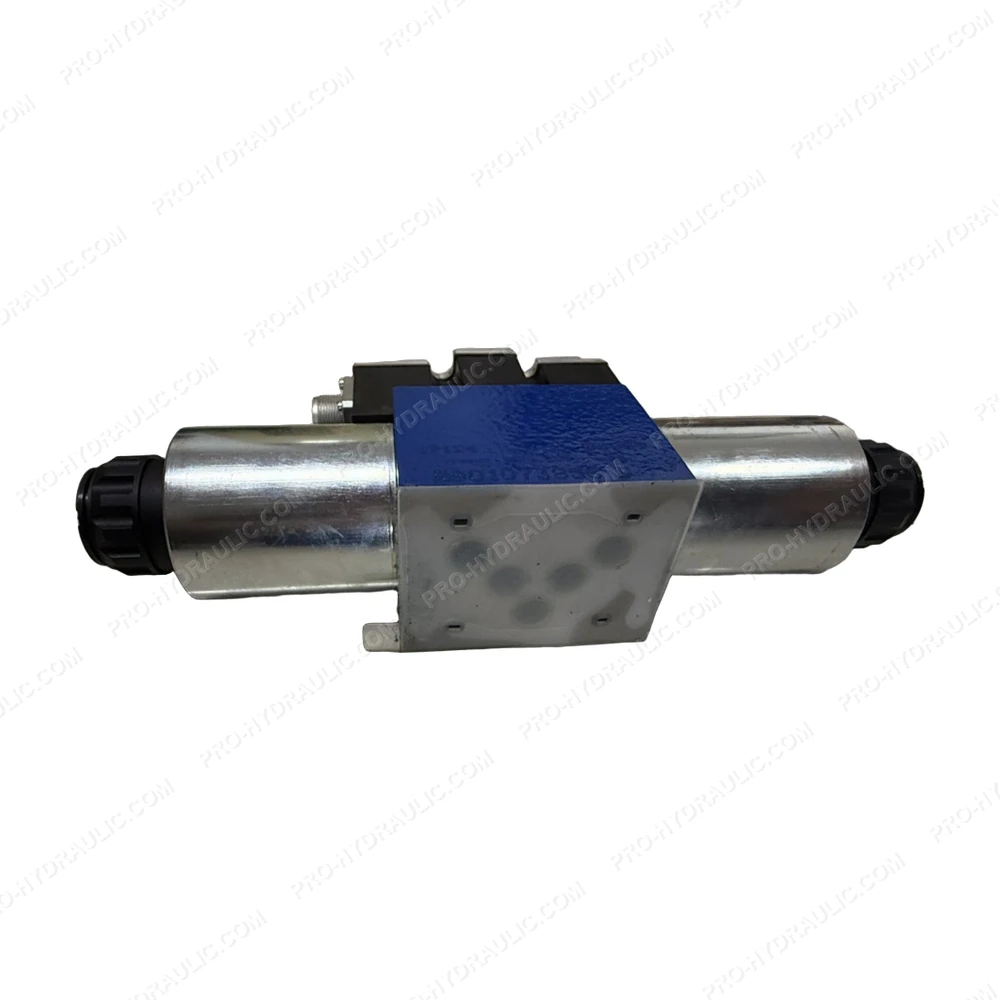

REXROTH 4WRAE 10 E60-22/G24N9K31/A1V Proportional Directional Valve
