Product Overview
The Rexroth 4WRAE6E30-30/VN9/24A1 (material number R890000346) is a direct-operated, proportional directional valve from the Bosch Rexroth 4WRAE series, size 6 (NG6 / CETOP 3). It controls the direction and magnitude of flow in proportion to the electrical input signal applied to its proportional solenoids, making it the core interface between electronic control systems and hydraulic actuators. With a spring-centred, three-position spool design and integrated position feedback, the valve delivers smooth, stepless directional control with minimal hysteresis, enabling precise velocity and force regulation in demanding industrial circuits. The “E30” spool variant provides a defined mid-position overlap characteristic suited to controlled deceleration and load holding, while the 24 V DC solenoid configuration is compatible with standard industrial amplifier cards such as the Rexroth VT-VSPA or VT-2000 series.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (direct-operated, 4-way, 3-position) |
| Model Designation | 4WRAE6E30-30/VN9/24A1 / R890000346 |
| Manufacturer | Bosch Rexroth |
| Nominal Size | NG6 (CETOP 3 / ISO 4401-03) |
| Spool Type | E30 — closed-centre, overlapped proportional spool |
| Actuation | Dual proportional solenoids, spring-centred to mid-position |
| Solenoid Voltage | 24 V DC (24A1 configuration) |
| Operating Pressure | Up to 315 bar (P, A, B ports); T port limited per manufacturer data |
| Nominal Flow Rate | Approx. 30 L/min at Δp = 10 bar per metering edge (size 6 class) |
| Hysteresis / Response | Low hysteresis with integrated spool position feedback; fast step response |
| Mounting & Connection | Subplate mounting, ISO 4401-03-04-0-05 / CETOP 3 interface; DIN EN 175301-803 solenoid connector |
Engineering Features & Advantages
- Precision Performance: The integrated dual proportional solenoids, spring-centred to mid-position ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Precision-manufactured to original Rexroth specifications for direct replacement, minimising downtime and eliminating fitment issues.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 30 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The “E30” spool variant provides a defined mid-position overlap characteristic suited to controlled deceleration and load holding, while the 24 V DC solenoid configuration is compatible with standard industrial amplifier cards such as the Rexroth VT-VSPA or VT-2000 series.
PRODUCT IMAGES

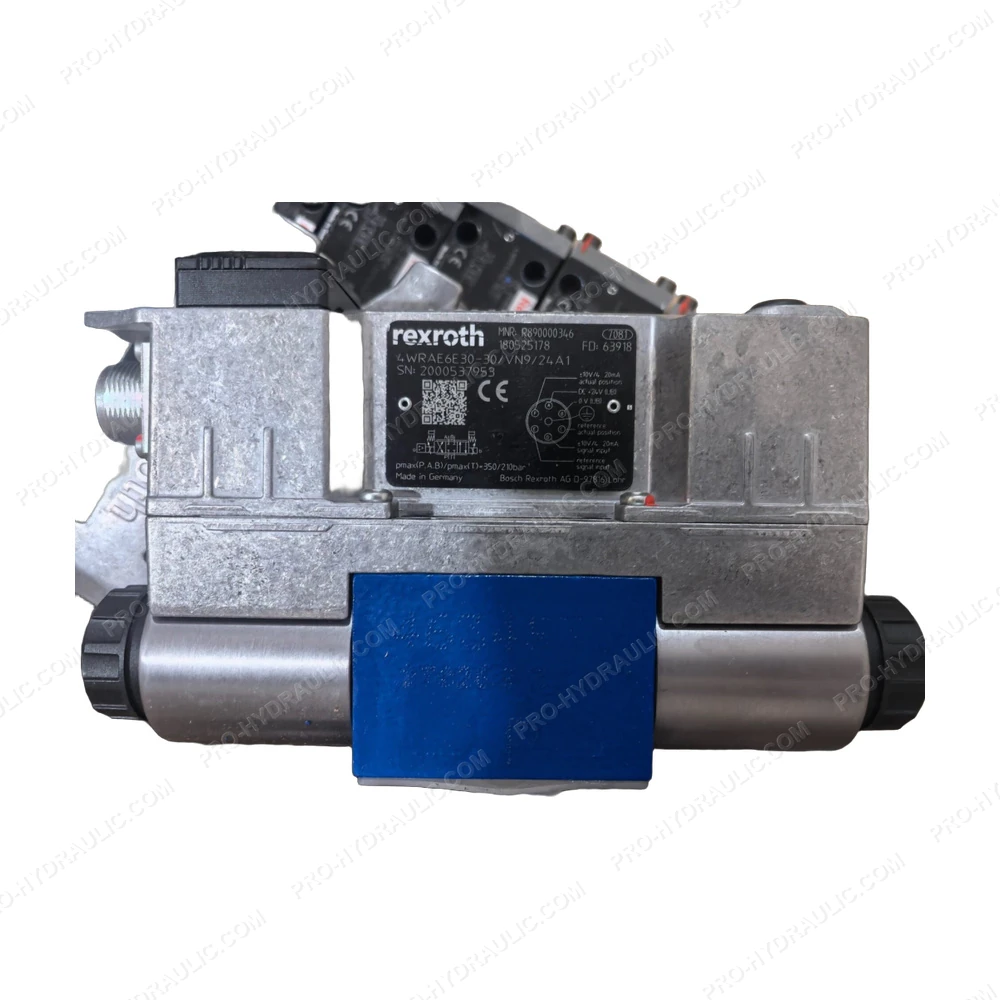

Rexroth 4WRAE6E30-30/VN9/24A1 / R890000346 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRAE6E30-30/VN9/24A1 / R890000346 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a direct-operated proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
