Product Overview

The Rexroth 4WRAP 6 W7-04-30/G24K4/M (Material Number R900972654) is a high-response, pilot-operated proportional directional valve from the renowned Rexroth WRAP series. Engineered for precise control of flow direction and magnitude in demanding hydraulic systems, this valve utilizes a proportional solenoid to infinitely vary the spool position, thereby regulating both the direction and rate of fluid flow. Its robust design and advanced metering characteristics make it an essential component for achieving accurate velocity, position, and force control in a wide array of industrial and mobile hydraulic applications.

Technical Specifications

ParameterSpecification / Feature
Component TypeProportional Directional Valve
Model Designation4WRAP 6 W7-04-30/G24K4/M / R900972654
Operating PressureUp to 315 bar (P, A, B ports); 160 bar (T port)
Nominal Flow Rate4 l/min at Δp = 10 bar per land
ActuationProportional Solenoid, 24 V DC (G24)
Electrical ConnectionComponent plug, 4-pole (K4)
Mounting & ConnectionSubplate mounting, ISO 4401-03 (CETOP 3, NG6)
Spool TypeW7 (Progressive flow characteristic, closed center)
Seal MaterialNBR (Nitrile Rubber), suitable for mineral oil-based fluids

Engineering Features & Advantages

  • Precision Proportional Control: The valve provides infinitely variable control of flow direction and magnitude, enabling smooth acceleration and deceleration of actuators for precise velocity and position control.
  • High-Response Solenoid: The advanced proportional solenoid design ensures fast response times and high repeatability, critical for dynamic closed-loop control systems.
  • Robust WRAP Series Design: Built for industrial reliability, the valve features a durable housing and precision-machined spool, ensuring long service life even under continuous, high-cycle operation.
  • Optimized Flow Characteristics: The W7 spool type offers a progressive flow profile, providing excellent fine control at low command signals while allowing high flow rates at maximum input.
  • Direct Fit Replacement: Manufactured to exact Rexroth OEM specifications, ensuring dimensional and functional compatibility for seamless integration and drop-in replacement.

Typical Industrial Applications

This proportional directional valve is ideally suited for a wide range of heavy industrial applications requiring precise motion control

PRODUCT IMAGES

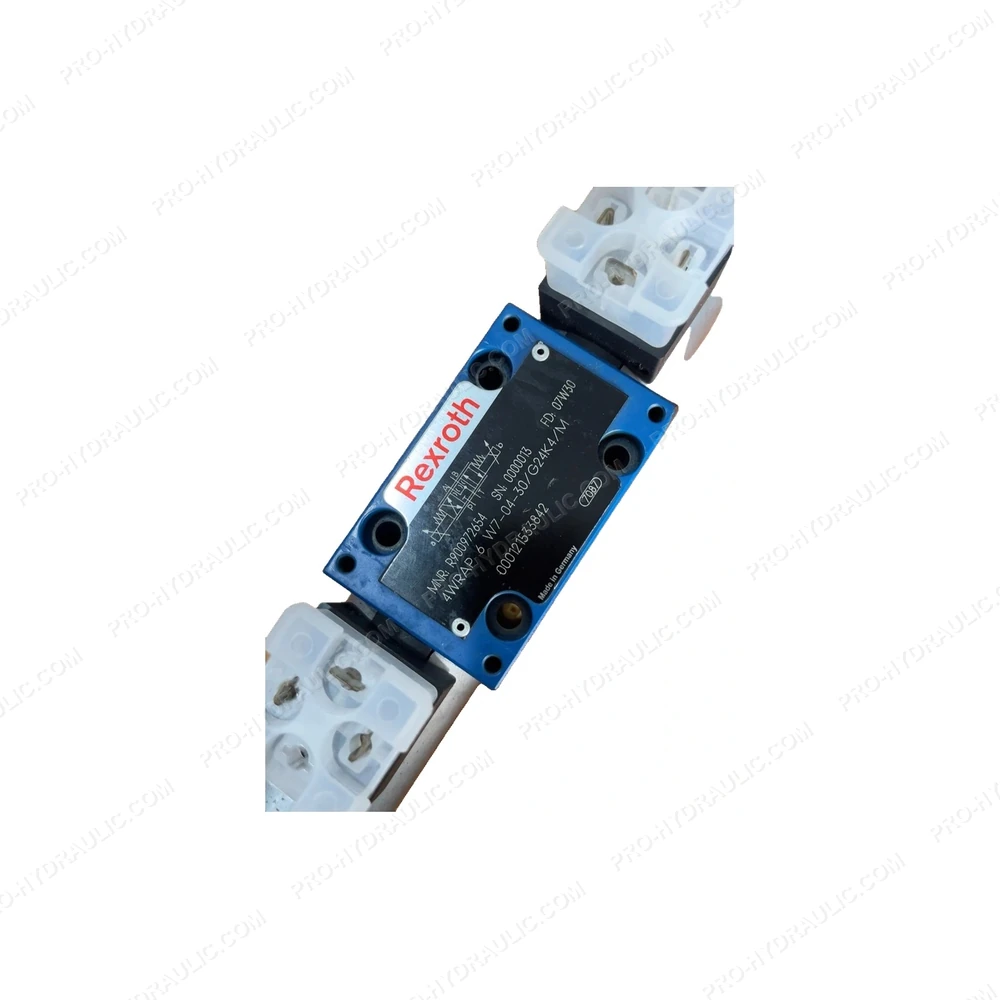

REXROTH 4WRAP 6 W7-04-30/G24K4/M / R900972654

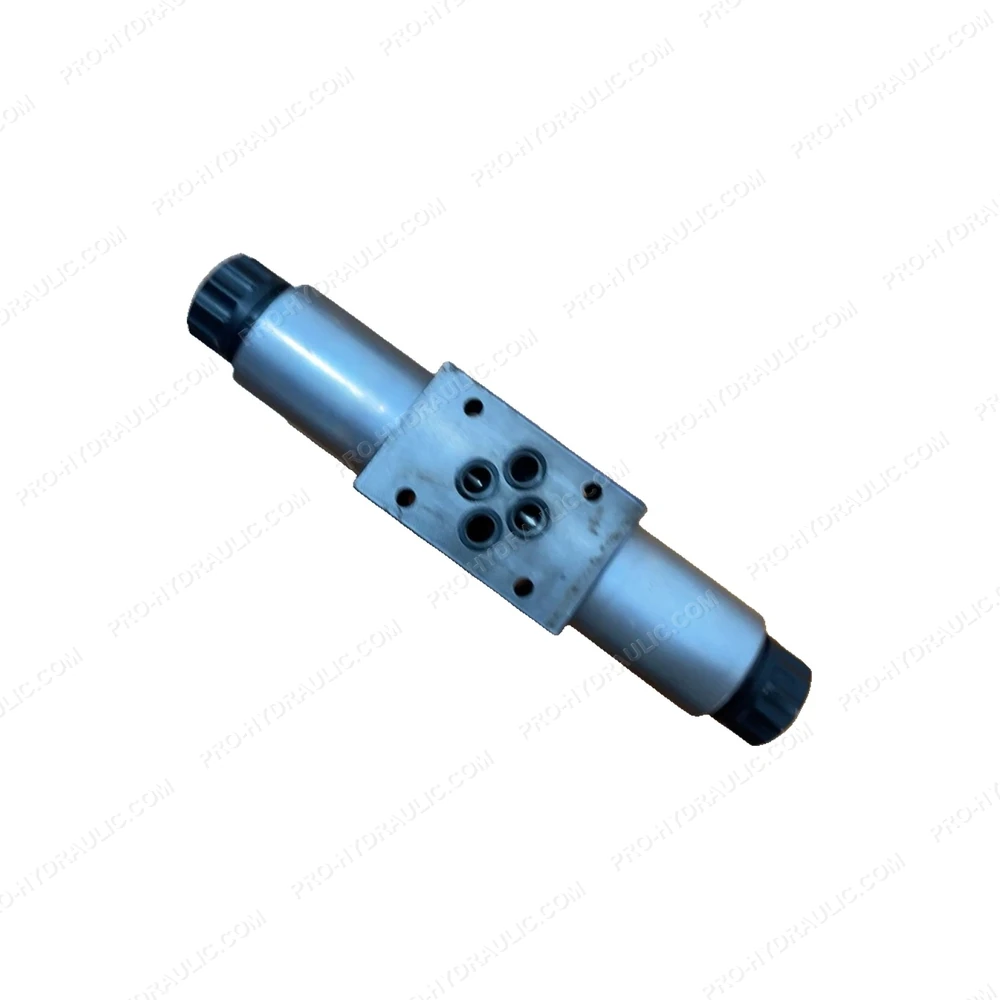

REXROTH 4WRAP 6 W7-04-30/G24K4/M / R900972654

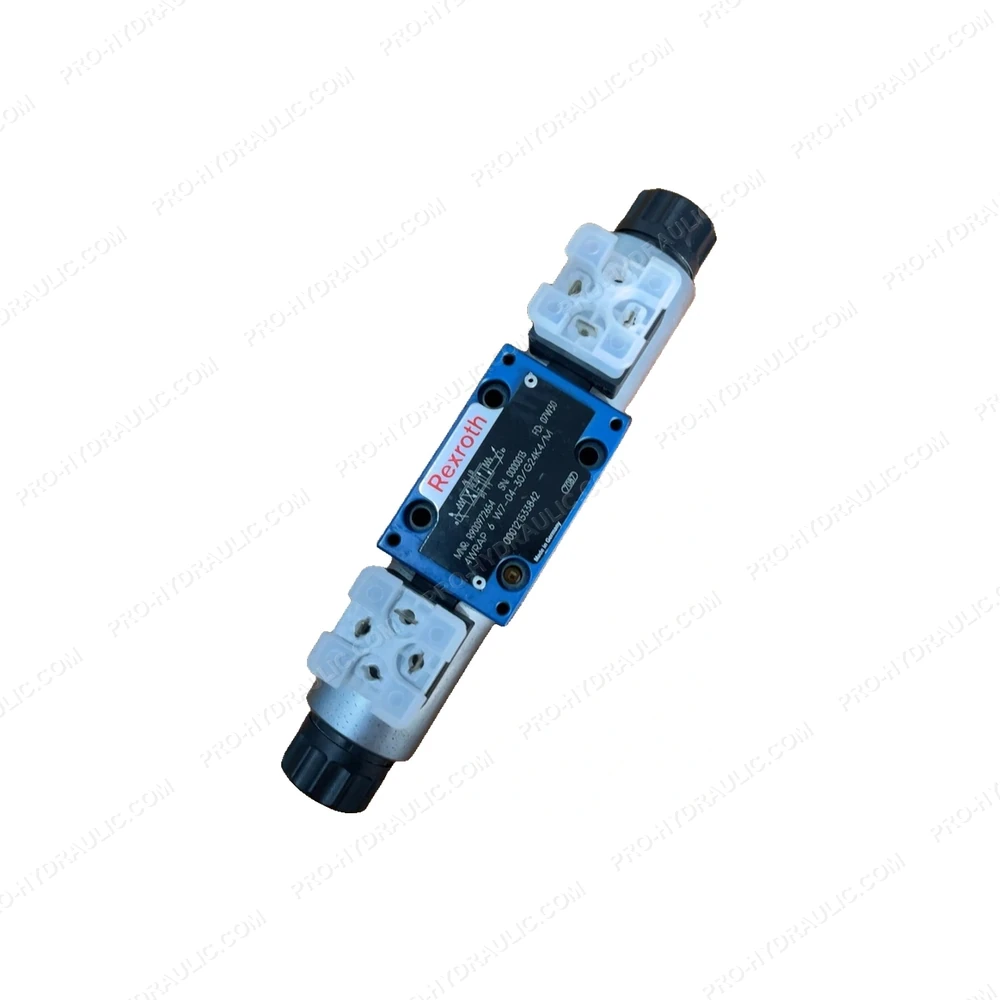

REXROTH 4WRAP 6 W7-04-30/G24K4/M / R900972654

Rexroth 4WRAP 6 W7-04-30/G24K4/M / R900972654 Proportional Directional Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine REXROTH 4WRAP 6 W7-04-30/G24K4/M / R900972654 Solenoid Directional Control Valve. This Germany-made 24V DC hydraulic component features a direct-operated spool design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
