The REXROTH 4WREE 6 E1-32-30/V/24A1 / R901496446 is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. As part of the Rexroth 4WREE series, it features a direct-operated, 4-way design with integrated electronics, providing high dynamic response and repeatability for demanding motion control applications.
REXROTH 4WREE 6 E1-32-30/V/24A1 / R901496446 Technical Specifications
| Parameter | Value |
|---|---|
| Valve Type | Proportional Directional Valve, 4-way |
| Size | NG6 (CETOP 3, ISO 4401-03) |
| Nominal Flow | 32 L/min at Δp = 10 bar per land |
| Max. Operating Pressure | 315 bar (ports P, A, B); 210 bar (port T) |
| Spool Type | E1 – progressive flow characteristic |
| Actuation | Proportional solenoid with integrated electronics (OBE) |
| Supply Voltage | 24 V DC |
| Electrical Connection | Connector according to EN 175301-803 |
| Mounting Pattern | Subplate mounting, ISO 4401-03-02-0-05 |
| Seal Material | NBR (standard); FKM optional |
| Weight | Approx. 2.5 kg |
Key Engineering Features
- Direct-operated proportional solenoid with position feedback for high accuracy
- Integrated digital electronics (OBE) for simplified wiring and parameterization
- Progressive spool design (E1) ensures fine control at low flow rates
- Rugged construction for high-pressure industrial environments
- Compatible with mineral oil and HFC/HFD fluids upon request
Industrial Applications
- Plastic injection molding machines – injection and clamping control
- Machine tools – feed and positioning axes
- Presses – force and speed regulation
- Test rigs – dynamic flow and pressure simulation
- General hydraulic systems requiring precise directional control
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WREE 6 E1-32-30/V/24A1 / R901496446, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

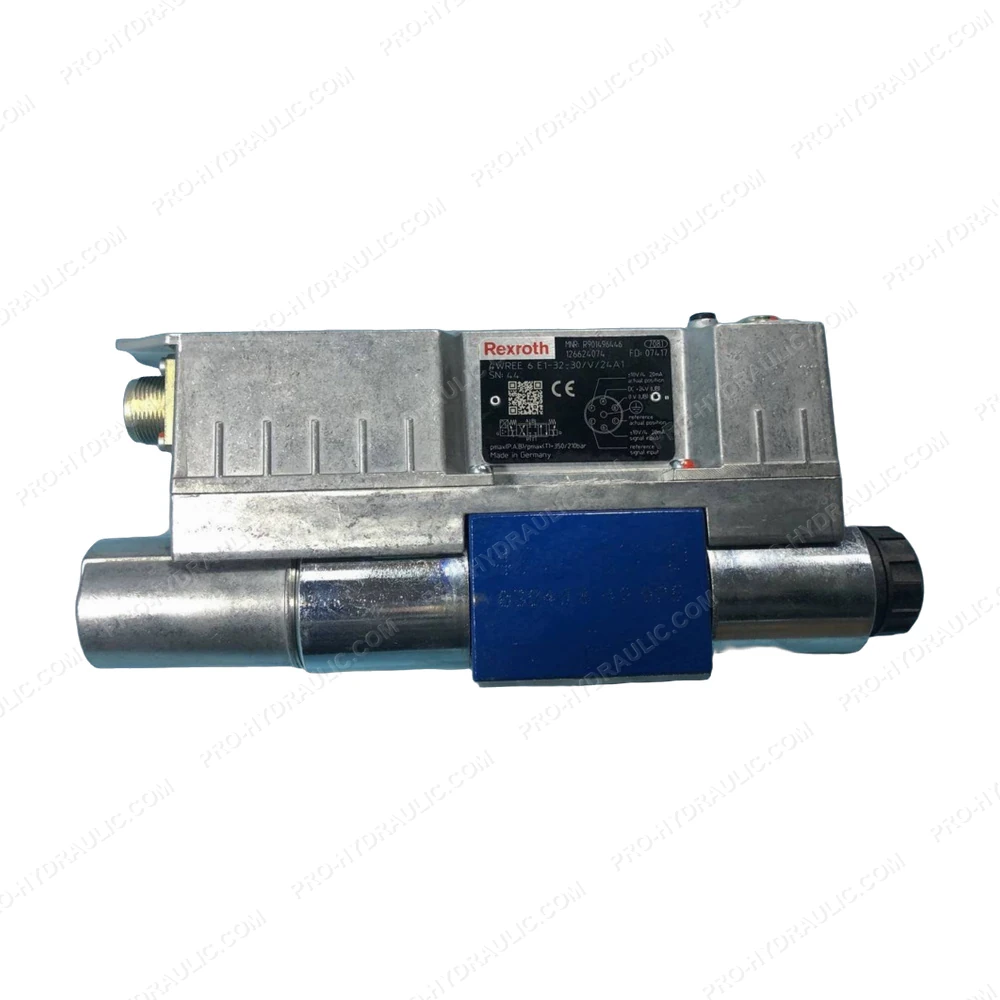

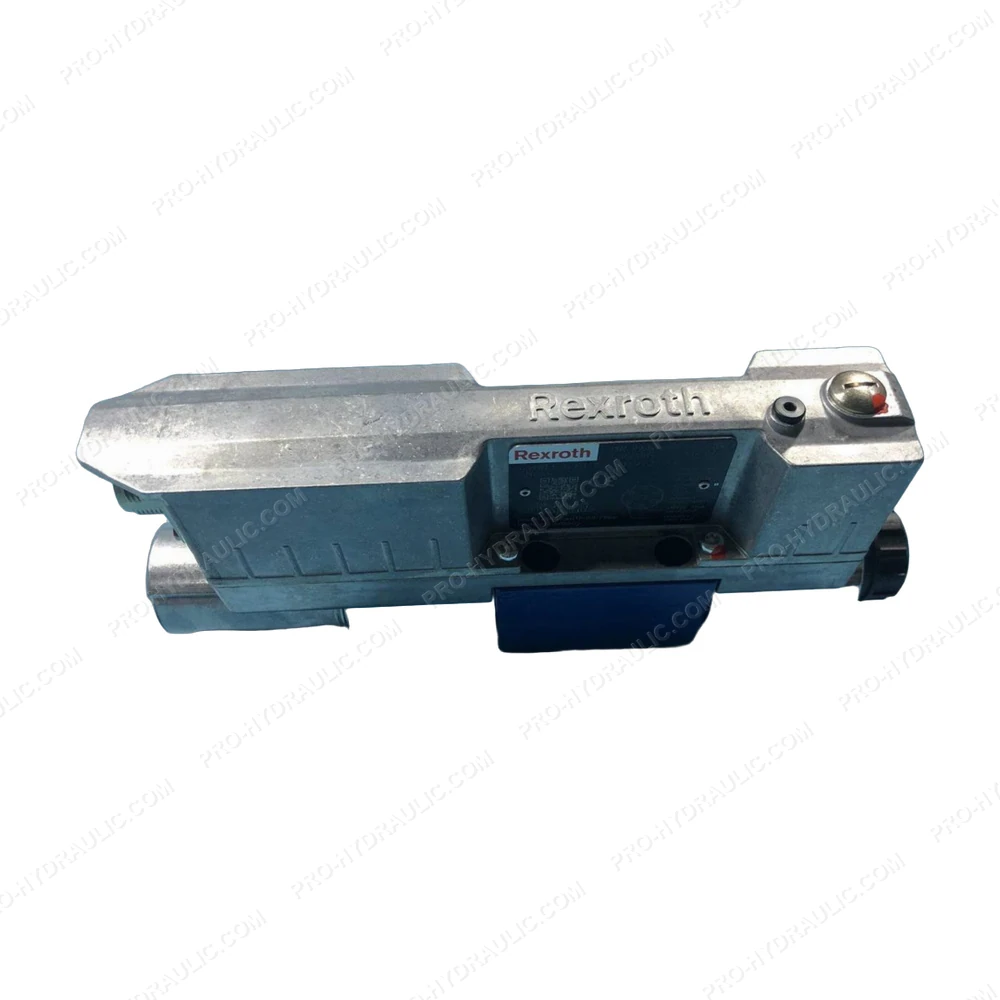

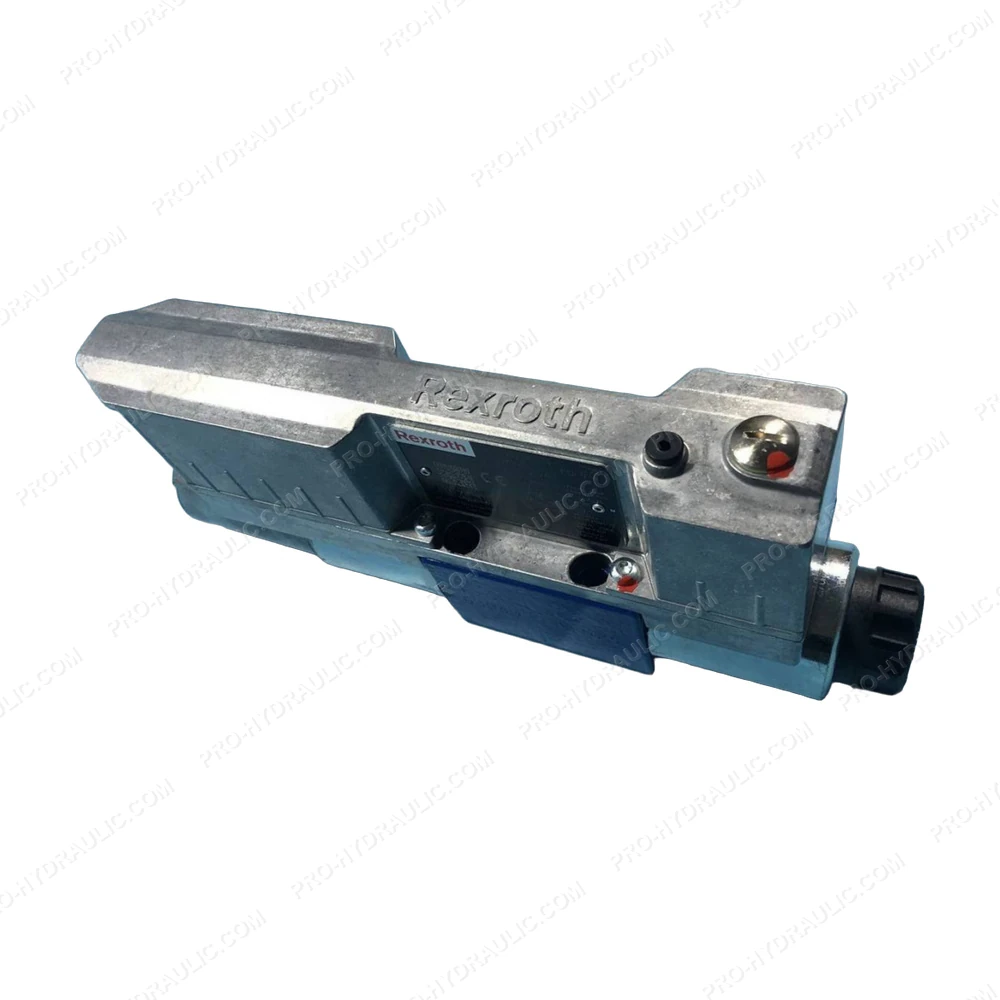

REXROTH 4WREE 6 E1-32-30/V/24A1 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WREE 6 E1-32-30/V/24A1 / R901496446 Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
