The REXROTH 4WREE 6 W16-30/V/24A1 / R901496437 is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. It features a 4-way, 3-position design with a wet-pin proportional solenoid, spring centering, and integrated position feedback for closed-loop operation. The valve is designed for subplate mounting according to ISO 4401-03 (CETOP 03) and offers high dynamic response with minimal hysteresis.
REXROTH 4WREE 6 W16-30/V/24A1 / R901496437 Technical Specifications
| Valve Type | Proportional directional valve, 4-way, 3-position |
| Size | NG6 (CETOP 03 / ISO 4401-03) |
| Nominal Flow | 16 L/min at Δp = 30 bar per land |
| Maximum Operating Pressure | 315 bar (P, A, B ports); 210 bar (T port) |
| Nominal Solenoid Voltage | 24 V DC |
| Solenoid Type | Wet-pin proportional solenoid with position feedback |
| Control | Closed-loop position control via integrated electronics |
| Mounting Pattern | ISO 4401-03-04-0-94 |
| Hydraulic Fluid | Mineral oil based on DIN 51524 (HL, HLP) |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 500 mm²/s |
| Filtration | ISO 4406 (c) 18/16/13 or better |
| Weight | Approx. 2.8 kg |
Key Engineering Features
- Closed-loop position control for high accuracy and repeatability
- Wet-pin proportional solenoids with integrated position transducer
- Spring-centered fail-safe position in case of power loss
- Low hysteresis and high dynamic response
- Subplate mounting per ISO 4401-03 for easy integration
- Rugged construction for demanding industrial environments
Industrial Applications
- Machine tools and CNC equipment
- Injection molding machines
- Presses and forming machinery
- Material handling and lifting systems
- Test rigs and simulation equipment
- General industrial hydraulic control circuits
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WREE 6 W16-30/V/24A1 / R901496437, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

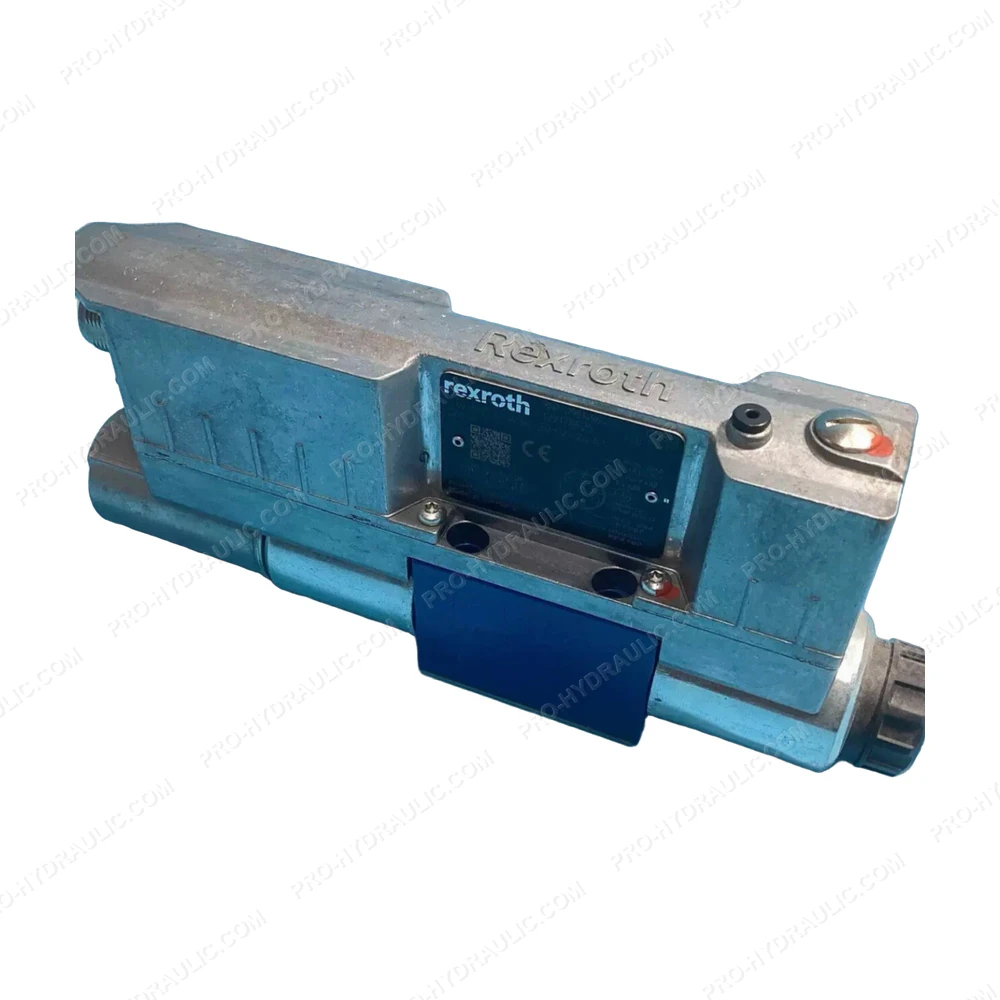

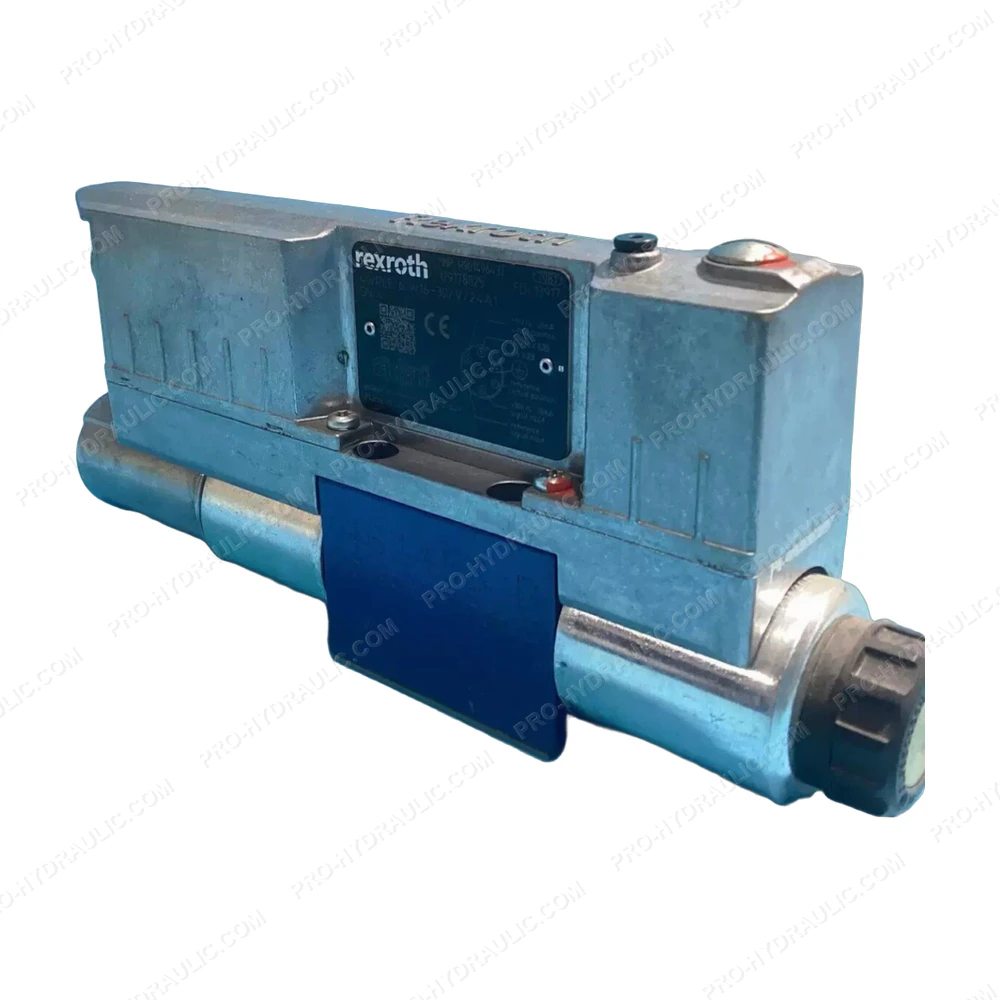

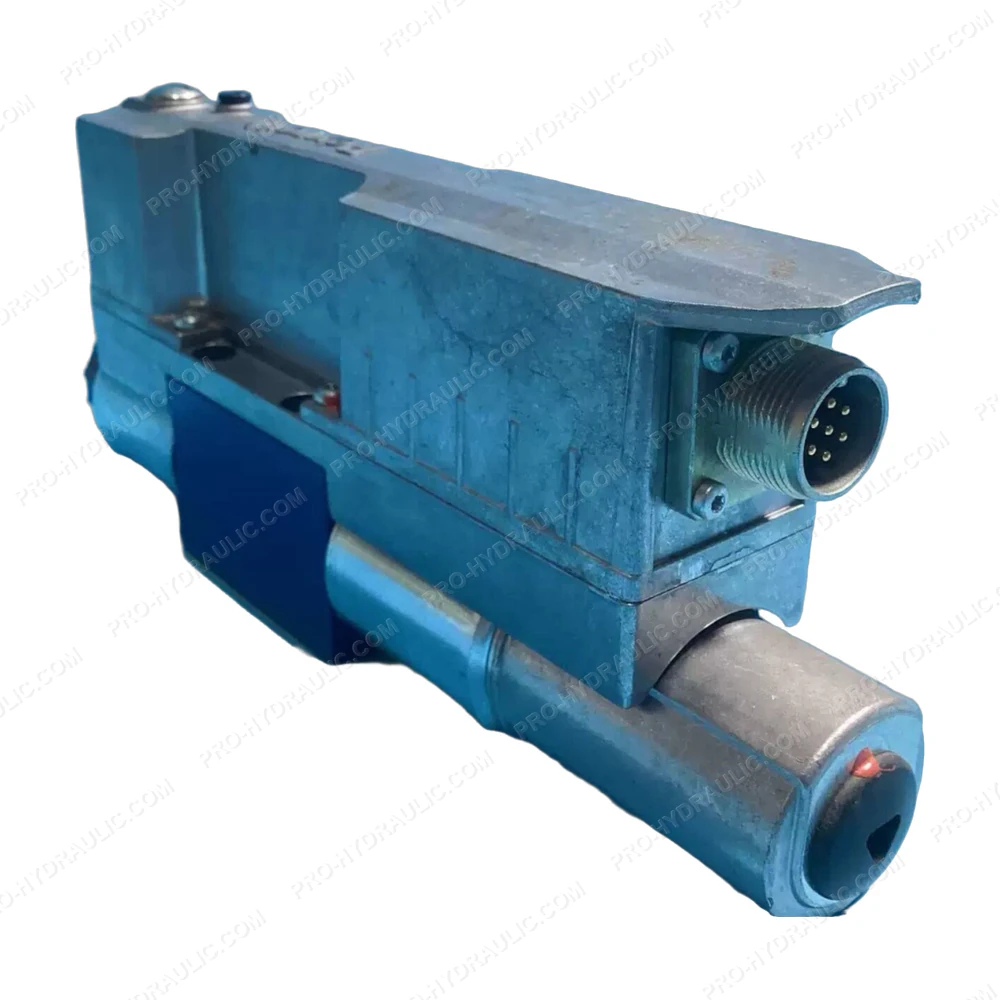

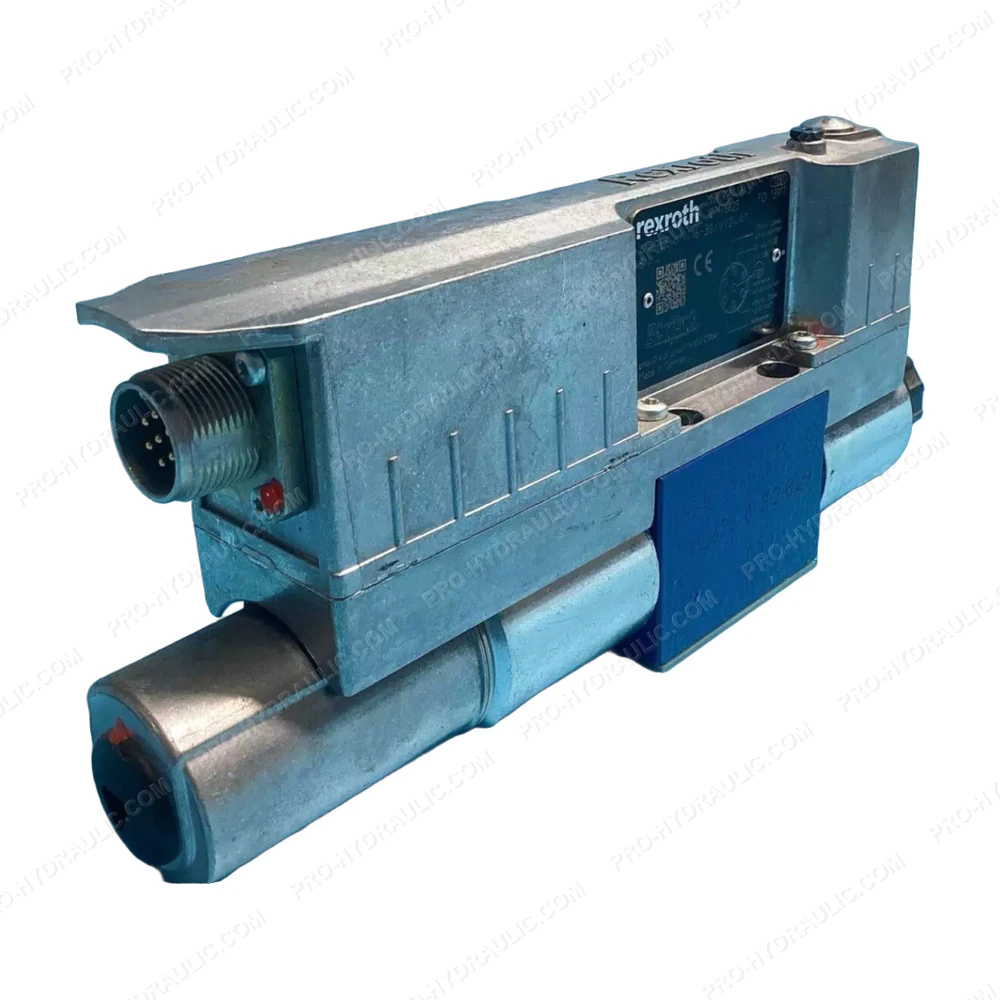

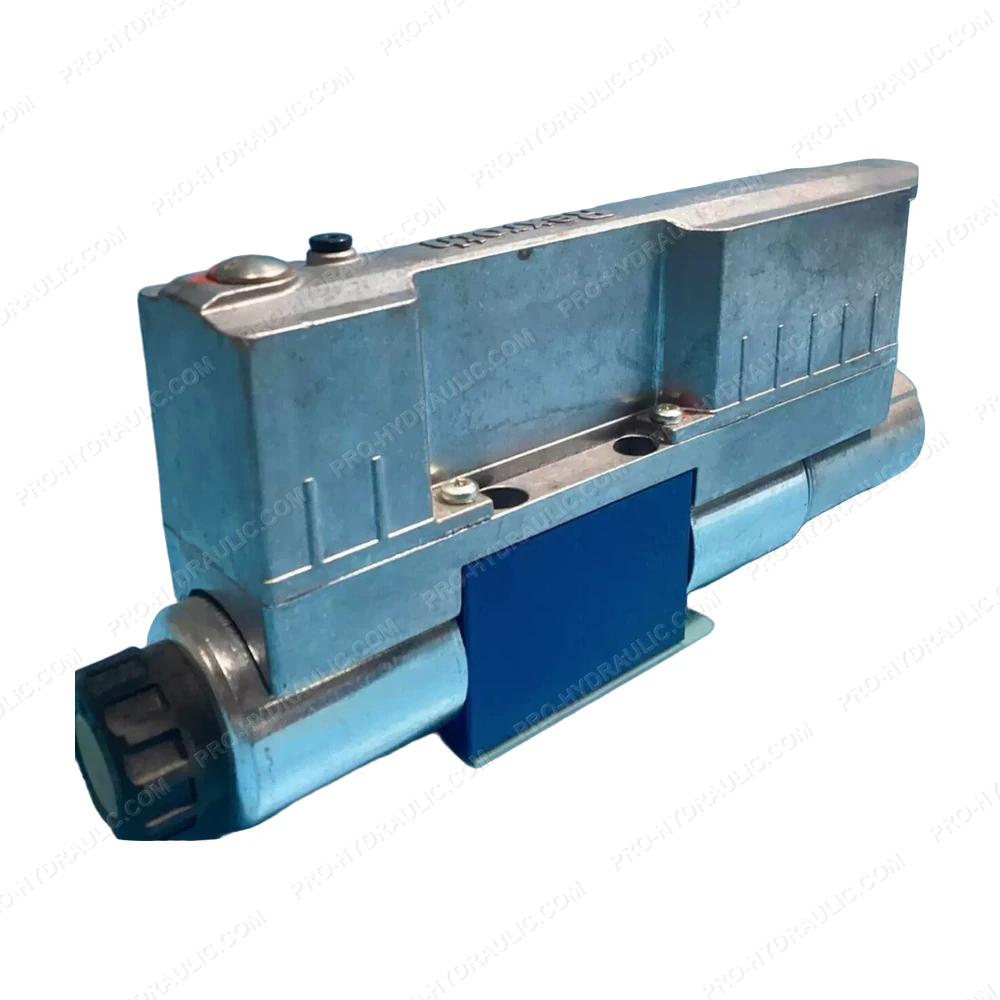

REXROTH 4WREE 6 W16-30/V/24A1 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WREE 6 W16-30/V/24A1 / R901496437 Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
