Product Overview
The Rexroth 4WREE 6 W16-30/V/24F1 (Material No. R901523727) is a high-response, direct-operated proportional directional valve designed for precise control of flow direction and magnitude in industrial hydraulic systems. Featuring a four-way, three-position spool configuration with spring-centered fail-safe positioning, this valve utilizes proportional solenoid actuation to deliver infinitely variable flow control proportional to the electrical command signal. The integrated position feedback and onboard control electronics ensure exceptional repeatability, minimal hysteresis, and fast dynamic response, making it a critical component in closed-loop motion control architectures where accurate velocity and position regulation of hydraulic actuators is required.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (4-Way, 3-Position) |
| Model Designation | 4WREE 6 W16-30/V/24F1 / R901523727 |
| Nominal Flow Rate | 16 L/min at Δp = 30 bar per land (spool symbol W16) |
| Operating Pressure | Up to 315 bar (P, A, B ports); 210 bar max on T port |
| Actuation Type | Proportional solenoid with integrated position feedback and onboard amplifier (OBE) |
| Command Signal | ±10 V DC or 4–20 mA (differential input) |
| Supply Voltage | 24 V DC (nominal), via F1 electrical interface |
| Hysteresis | ≤ 0.2% of nominal stroke (with position feedback) |
| Response Time | ≤ 10 ms (step response, 0 to 100% stroke) |
| Mounting & Connection | ISO 4401-03 (NG6 / CETOP 3) subplate mounting; DIN EN 175301-803 (F1) electrical connector |
| Seal Material | NBR (Nitrile) — suitable for mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 16 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
R901523727) is a high-response, direct-operated proportional directional valve designed for precise control of flow direction and magnitude in industrial hydraulic systems.
PRODUCT IMAGES

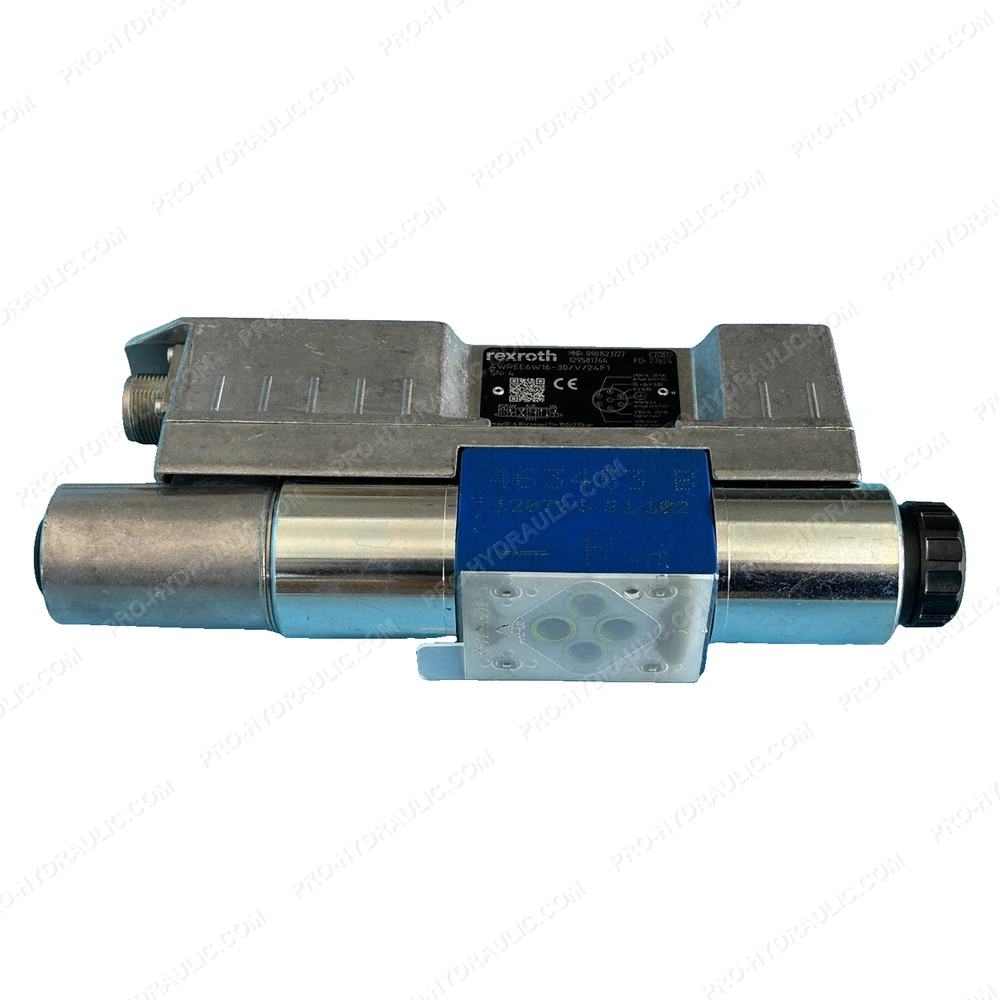

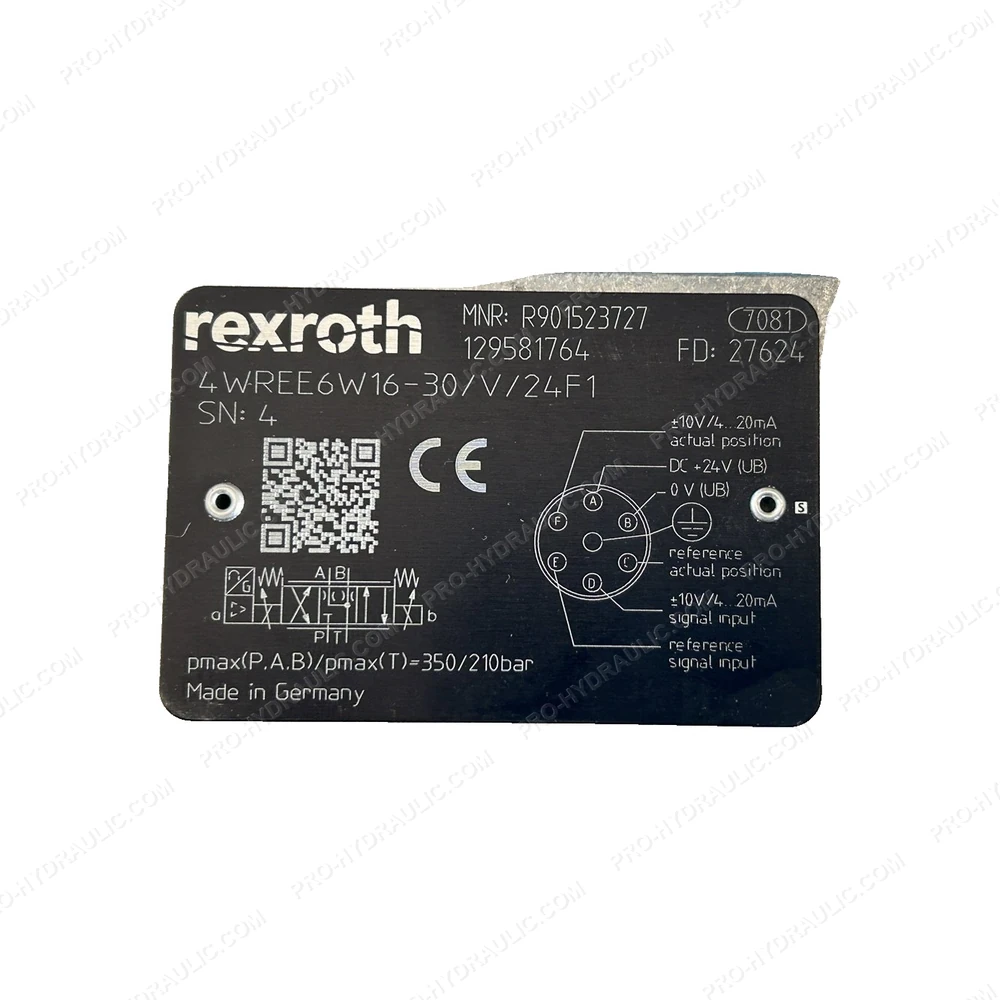

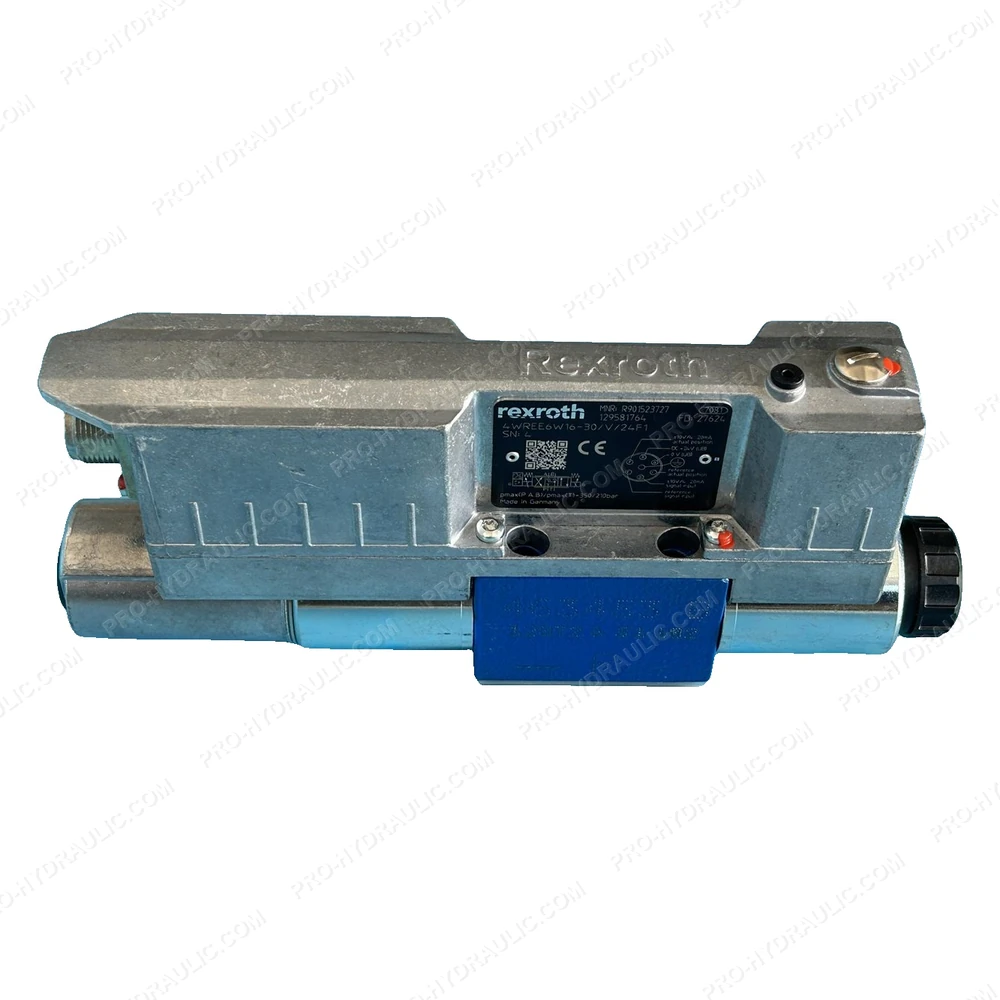

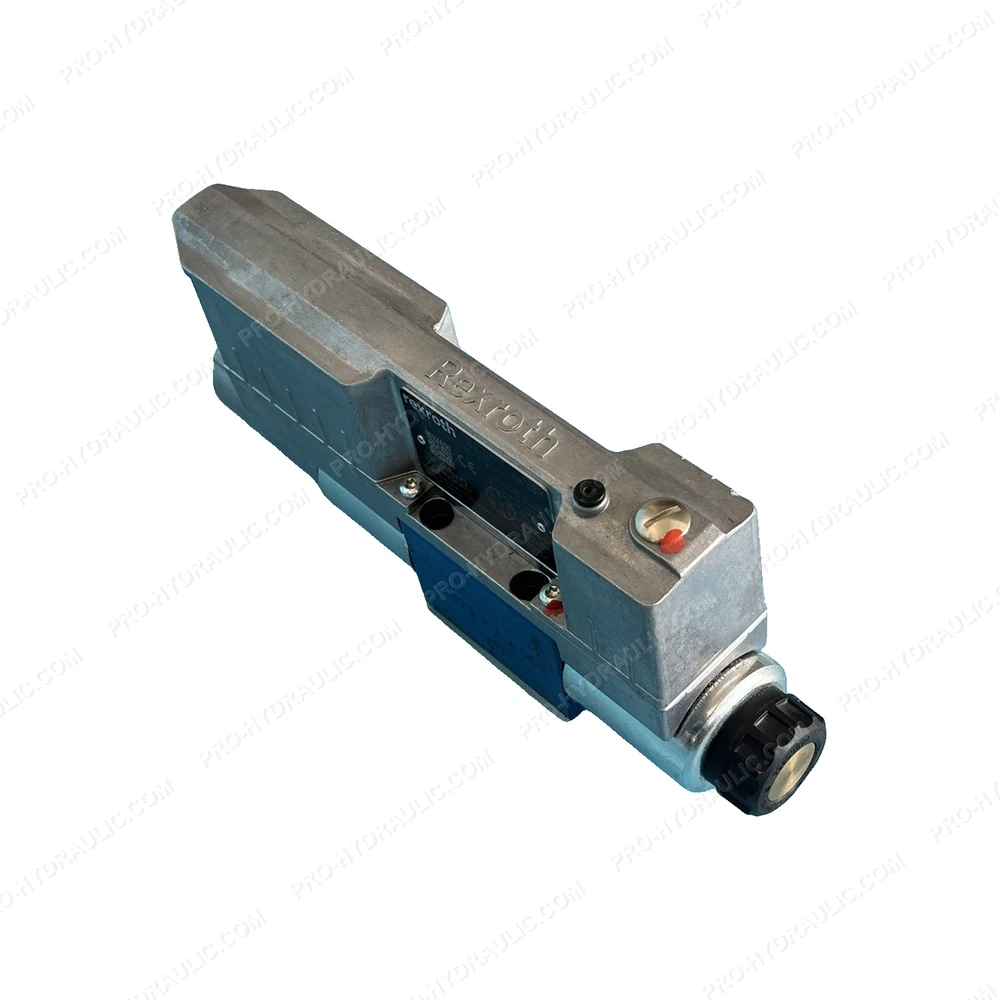

REXROTH 4WREE 6 W16-30/V/24F1 / R901523727 Proportional Directional Valve
⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WREE 6 W16-30/V/24F1 / R901523727 Proportional Directional Control Valve. This Germany-made 24V DC hydraulic component features a direct-operated spool design, delivering precise, leak-free fluid control for heavy-duty industrial systems.
