Product Overview
The Rexroth 4WREE10E75-3X/V/24F1 (Material Number R901572041) is a high-response, direct-operated proportional directional valve from the Bosch Rexroth 4WREE series. Engineered with a size 10 (NG10 / CETOP 5) subplate interface, this valve features integrated digital on-board electronics (OBE) with a 24 VDC supply and command value input of 0 to ±10 V. The 4WREE platform utilizes a precision-machined spool and sleeve assembly actuated by a proportional solenoid, enabling infinitely variable control of flow direction and magnitude proportional to the electrical command signal. With a nominal flow of 75 L/min at a 10 bar pressure differential per land, the valve delivers fast, repeatable response for demanding closed-loop position, velocity, and force control tasks in industrial hydraulic systems. Its spring-centered, fail-safe spool design ensures a defined mid-position in the event of power loss, making it a reliable choice for critical motion control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Direct-Operated, Spool Type) |
| Model Designation | 4WREE10E75-3X/V/24F1 / R901572041 |
| Valve Size | NG10 (Size 10) per ISO 4401 / CETOP 5 |
| Spool Type & Function | “E” Spool — Closed Center, Spring-Centered, Fail-Safe Mid-Position |
| Nominal Flow Rate | 75 L/min (at Δp = 10 bar per metering land) |
| Operating Pressure | Up to 315 bar (P, A, B ports); T port rated to 160 bar |
| Actuation | Proportional Solenoid with Integrated On-Board Electronics (OBE) |
| Electrical Supply | 24 VDC (Nominal), Ripple < 10% |
| Command Signal | 0 to ±10 V (Differential Input), Optional 4–20 mA |
| Mounting & Connection | Subplate Mounting per ISO 4401-05 / CETOP 5; 4-Way, 3-Position |
Engineering Features & Advantages
- Precision Performance: The integrated proportional Solenoid with Integrated On-Board Electronics (OBE) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 75 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Its spring-centered, fail-safe spool design ensures a defined mid-position in the event of power loss, making it a reliable choice for critical motion control applications.
PRODUCT IMAGES

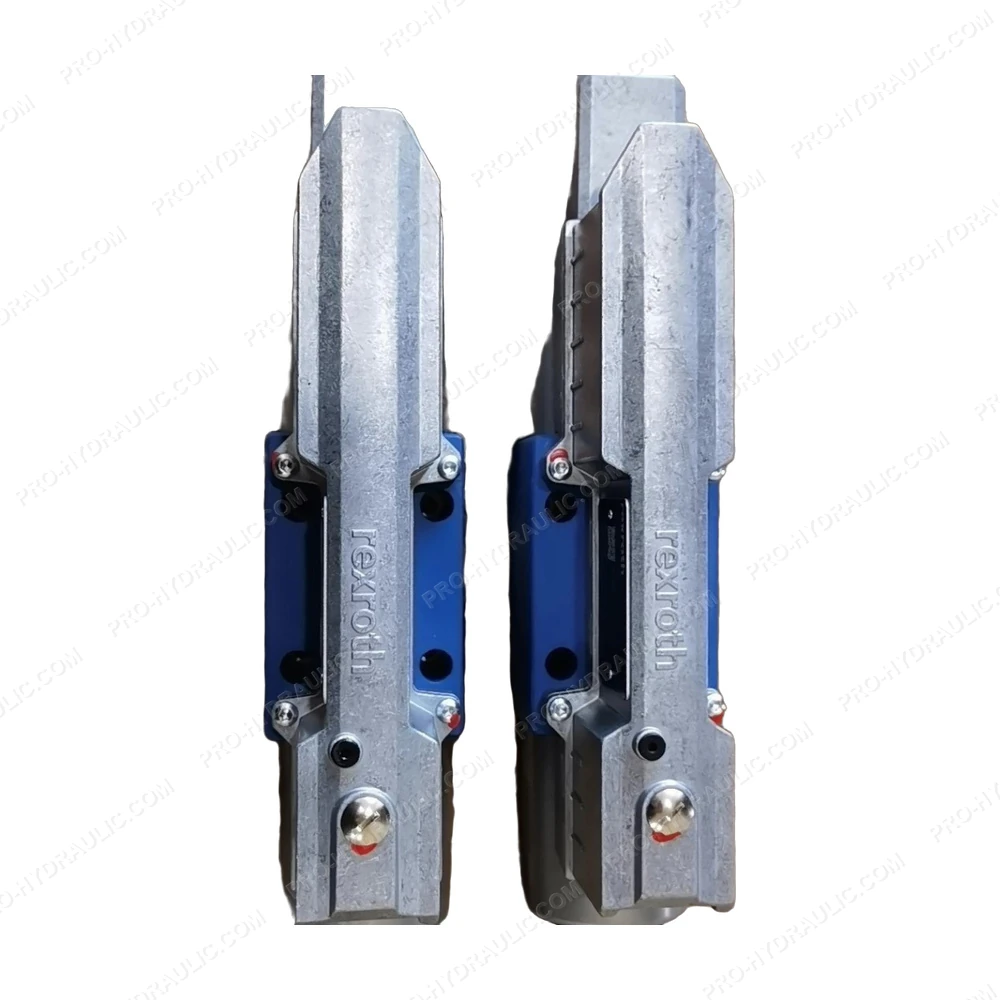

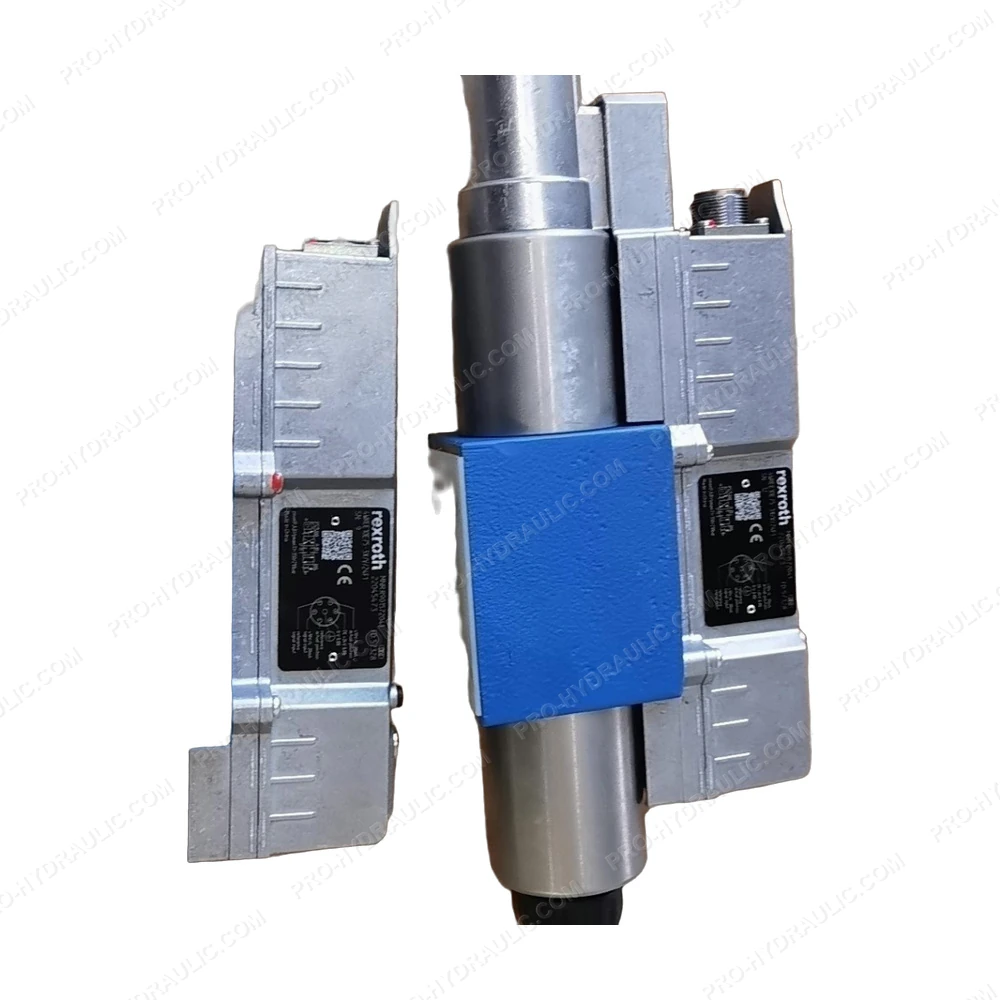

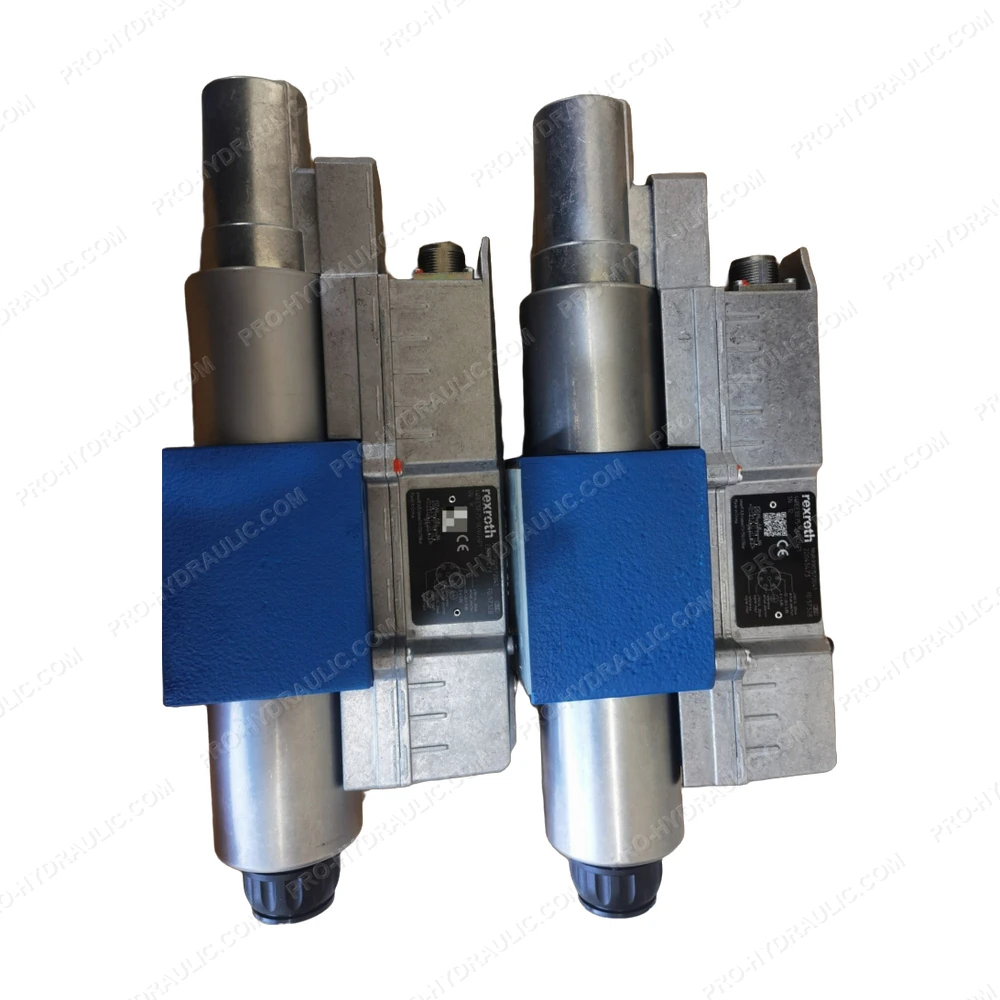

Rexroth 4WREE10E75-3X/V/24F1 / R901572041 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WREE10E75-3X/V/24F1 / R901572041 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
