Product Overview
The Rexroth 4WREE6W1-32-30/V/24A1 (R901496447) is a high-performance, direct-operated proportional directional valve from the renowned Rexroth 4WREE series. Engineered for precise control of flow direction and magnitude, this valve operates on a proportional solenoid principle, where the spool position is infinitely variable and directly proportional to the electrical input signal. This allows for smooth, stepless control of actuator speed and direction in demanding industrial hydraulic systems. The “W1” spool design provides a specific flow metering characteristic, making it ideal for applications requiring fine control and excellent repeatability. With a nominal size of 6 and a flow rate of up to 32 L/min, it is a compact yet powerful solution for modern, energy-efficient hydraulic circuits.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve |
| Model Designation | 4WREE6W1-32-30/V/24A1 / R901496447 |
| Nominal Size (NG) | 6 |
| Max. Operating Pressure | 315 bar (Ports P, A, B); 210 bar (Port T) |
| Nominal Flow Rate | 32 L/min at Δp = 10 bar per land |
| Actuation | Proportional Solenoid, 24 V DC |
| Spool Type | W1 (Metering characteristic for fine control) |
| Mounting & Connection | Subplate mounting, ISO 4401-03-02-0-05 / CETOP 3 |
| Electrical Interface | DIN EN 175301-803 (Plug-in connector) |
| Seal Material | NBR (Nitrile Rubber) |
Engineering Features & Advantages
- Precision Proportional Control: The valve’s spool position is infinitely adjustable via a proportional solenoid, enabling precise, stepless control of flow rate and direction. This results in smooth acceleration and deceleration of actuators, reducing shock and improving system dynamics.
- High-Resolution W1 Spool: The W1 spool design offers a specific flow metering profile that provides excellent fine control at low flow rates, making it ideal for applications requiring high accuracy and repeatability.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
The “W1” spool design provides a specific flow metering characteristic, making it ideal for applications requiring fine control and excellent repeatability.
PRODUCT IMAGES

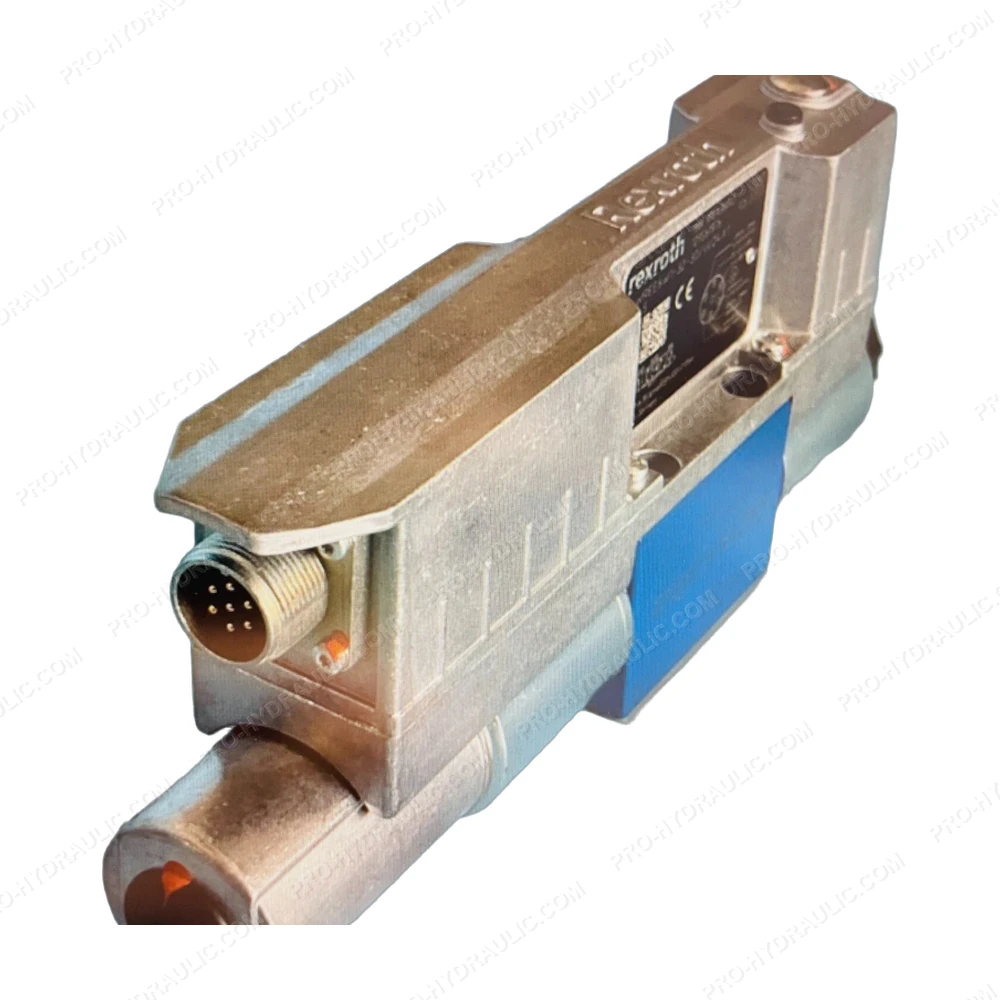

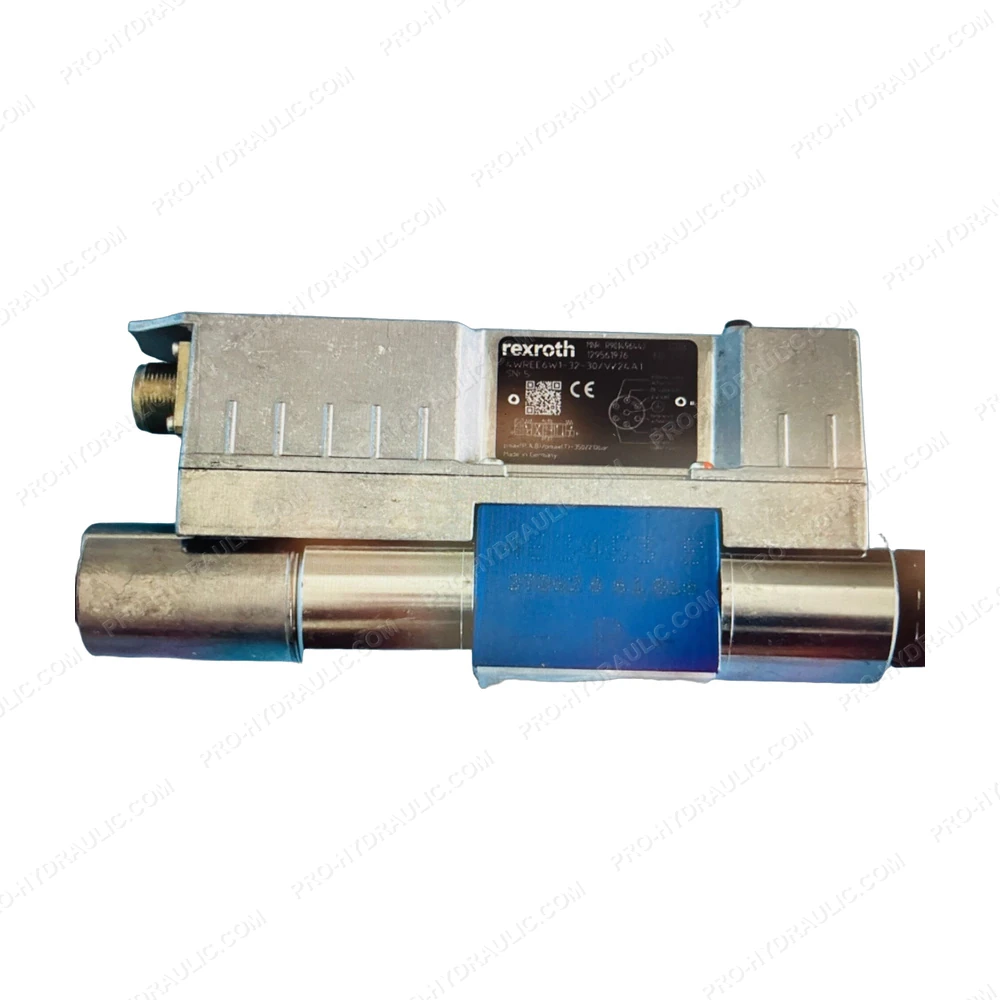

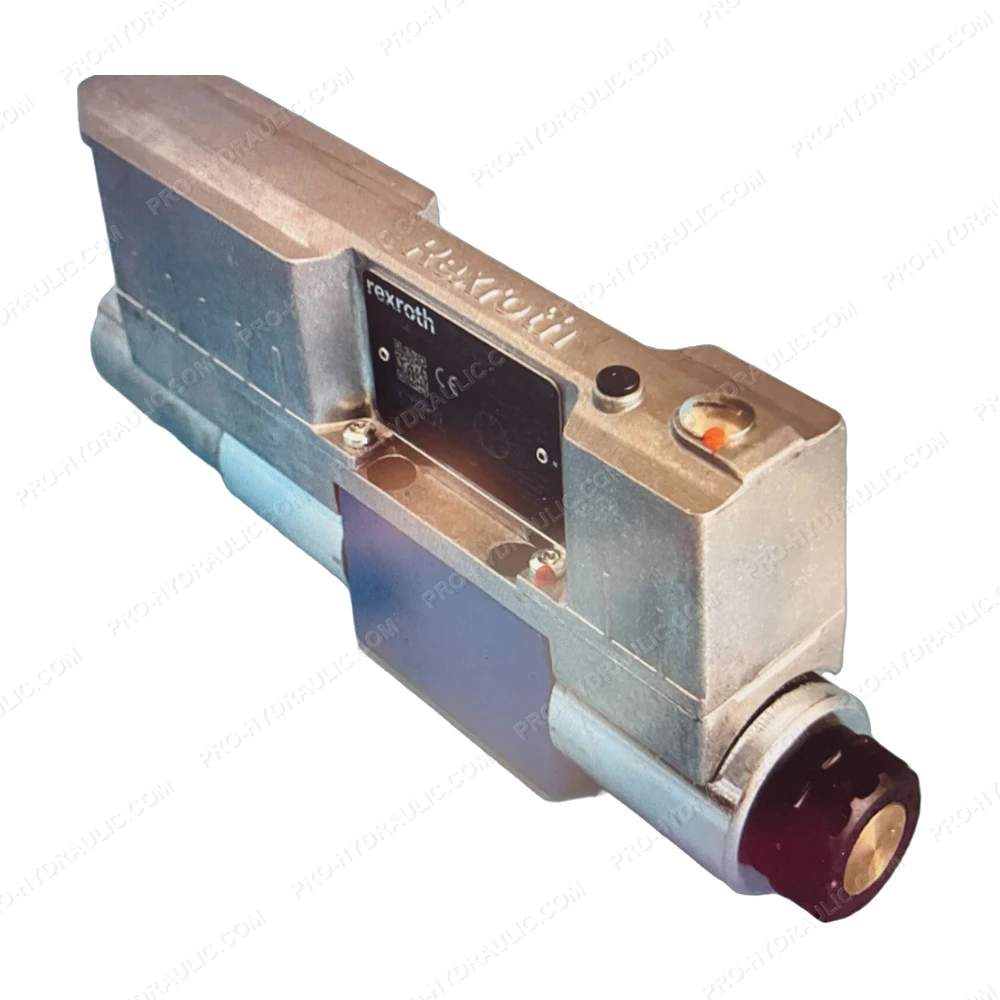

Rexroth 4WREE6W1-32-30/V/24A1 / R901496447 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WREE6W1-32-30/V/24A1 / R901496447 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
