Product Overview

The Rexroth 4WREE6W1-32-3X/V/24F1 (Material No. R901496441) is a high-response, direct-operated proportional directional valve from the proven Rexroth 4WREE series, size 6 (NG6 / CETOP 3). It features a 4-way, 3-position spool configuration with a W1 spool type and spring-centered neutral position, designed to provide infinitely variable control of flow direction and magnitude in proportion to the electrical input signal. The valve is actuated by a single proportional solenoid with integrated position feedback (V = with position feedback / electrical feedback), enabling precise, repeatable spool positioning and excellent dynamic response. With a rated pressure of up to 315 bar and a nominal flow capacity of approximately 32 L/min at Δp = 10 bar per land, this valve is engineered for demanding industrial applications requiring accurate velocity, force, and position control of hydraulic actuators. The 24 VDC solenoid (24F1) and ISO 4401-03-02-0-05 mounting interface ensure seamless integration into standard hydraulic power units and manifold blocks.

Technical Specifications

ParameterSpecification / Feature
Component TypeProportional Directional Valve (4-way, 3-position)
Model Designation4WREE6W1-32-3X/V/24F1
Material NumberR901496441
Valve SizeNG6 (CETOP 3 / ISO 4401-03)
Spool TypeW1 (progressive flow characteristic, closed-center)
Nominal Flow Rate32 L/min at Δp = 10 bar per land
Operating PressureUp to 315 bar (ports P, A, B); 210 bar (port T)
ActuationSingle proportional solenoid with position feedback (V)
Solenoid Voltage24 VDC (24F1)
Mounting & ConnectionISO 4401-03-02-0-05 subplate mounting; DIN EN 175301-803 (ISO 4400) electrical connector
Hysteresis≤ 1% of nominal stroke (with position feedback)

Engineering Features & Advantages

  • Precision Performance: The integrated single proportional solenoid with position feedback (V) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
  • Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
  • Direct Fit Replacement: Exact dimensional and functional compatibility with original REXROTH standards, allowing straightforward retrofit into existing hydraulic systems without rework.
  • Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 32 L/min, supporting stable operation across the full working range.

Typical Industrial Applications

With a rated pressure of up to 315 bar and a nominal flow capacity of approximately 32 L/min at Δp = 10 bar per land, this valve is engineered for demanding industrial applications requiring accurate velocity, force, and position control of hydraulic actuators.

PRODUCT IMAGES

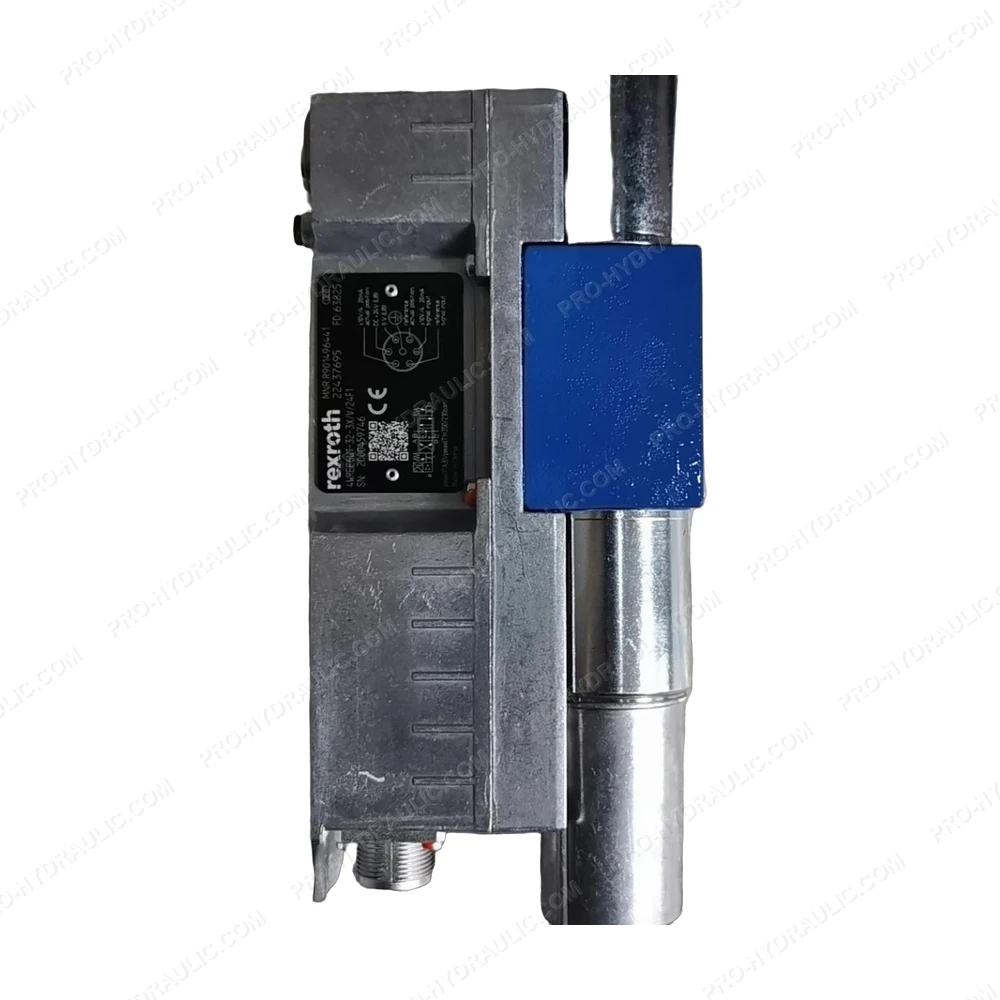

REXROTH 4WREE6W1-32-3X/V/24F1 / R901496441

REXROTH 4WREE6W1-32-3X/V/24F1 / R901496441 Proportional Directional Valve

⚡ Emergency Plant Maintenance & Ready-to-Ship Notice:

  • Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
  • Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
  • Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
  • Peace of Mind: Covered by our 12-Month Replacement Warranty.

Shop the genuine REXROTH 4WREE6W1-32-3X/V/24F1 / R901496441 High-Response Proportional Directional Control Valve. This German-made 24V DC hydraulic component features a direct-operated spool design, delivering precise, leak-free fluid control for heavy-duty industrial systems.
