Product Overview
The Rexroth 4WRKE 10W5-100L-37/6EG24ETK31/F1D3M (Material No. R900766091) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRKE series, designed for precise control of flow direction and magnitude in demanding industrial hydraulic systems. The valve operates on a two-stage principle: a proportional pilot valve with a wet-pin DC solenoid controls the pilot pressure, which in turn actuates the main spool of the second stage. The main stage features position feedback via an integrated inductive displacement transducer, enabling closed-loop spool position control for exceptional repeatability and dynamic response. With a nominal size of NG10 (size 10) and a rated flow of 100 L/min at a 10 bar pressure drop per land, this valve is engineered for continuous duty in high-cycle industrial applications where accurate velocity, force, and position control of hydraulic actuators is essential.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, Two-Stage) |
| Model Designation | 4WRKE 10W5-100L-37/6EG24ETK31/F1D3M |
| Material Number | R900766091 |
| Nominal Size | NG10 (Size 10) per ISO 4401 |
| Spool Type / Configuration | W5 — Progressive flow characteristic, closed-center spool |
| Rated Flow | 100 L/min at Δp = 10 bar per metering land |
| Operating Pressure | Up to 350 bar (ports P, A, B); pilot stage up to 315 bar |
| Pilot Pressure | External pilot supply required (port X), typically 25–50 bar |
| Actuation | Proportional solenoid, wet-pin DC design, 24 V DC |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Electrical Connection | Component plug per DIN EN 175301-803 (K31) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid, wet-pin DC design, 24 V DC ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 100 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of NG10 (size 10) and a rated flow of 100 L/min at a 10 bar pressure drop per land, this valve is engineered for continuous duty in high-cycle industrial applications where accurate velocity, force, and position control of hydraulic actuators is essential.
PRODUCT IMAGES

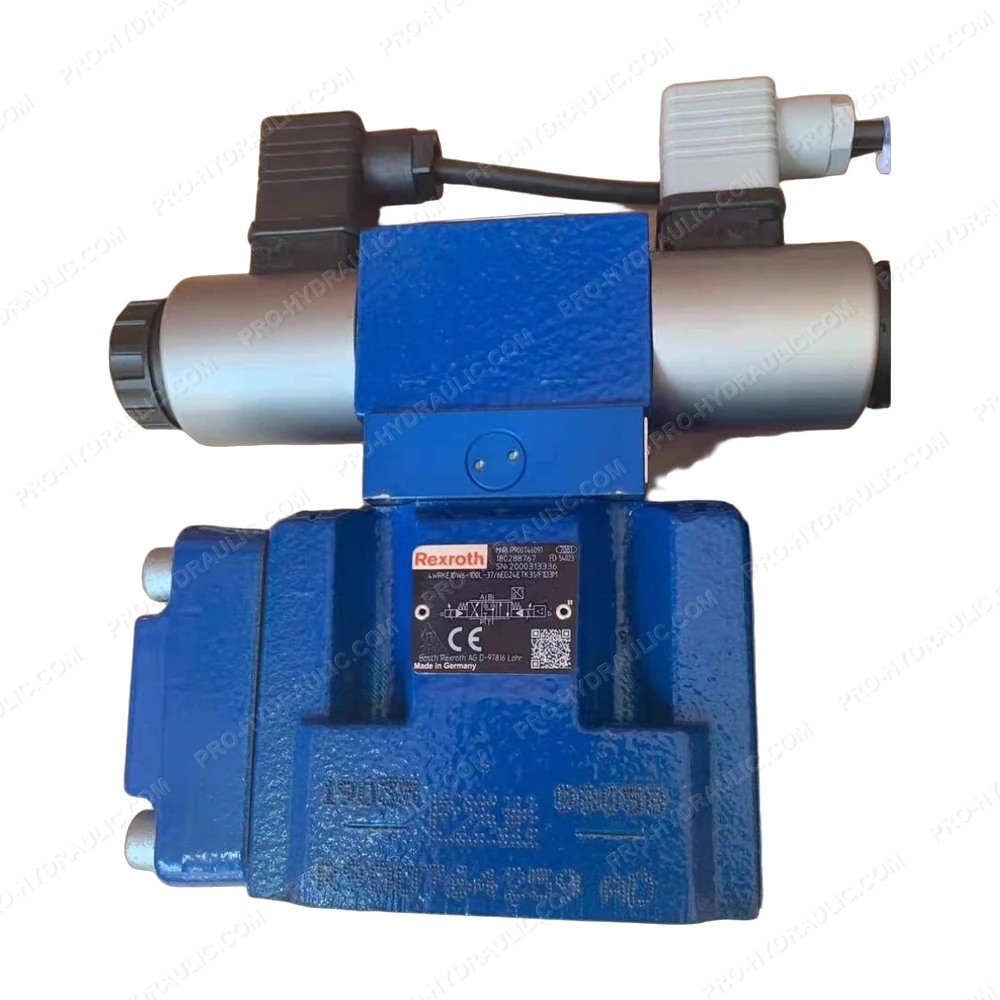

Rexroth 4WRKE 10W5-100L-37/6EG24ETK31/F1D3M / R900766091 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRKE 10W5-100L-37/6EG24ETK31/F1D3M / R900766091 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way, 3-position design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
