Product Overview
The Rexroth 4WRKE 16 W6-220L-3X/6EG24EK31/A1M-909 (Material Number R901551915) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRKE series, size NG16. It is engineered to control both the direction and the magnitude of flow in proportion to an electrical input signal, making it a core control element in demanding industrial hydraulic systems. The valve combines a pilot stage with a main stage spool, actuated by a proportional solenoid with integrated position feedback, delivering precise, repeatable metering of flow for smooth acceleration, deceleration, and load positioning. With a rated flow of approximately 220 L/min at a 10 bar (Δp) valve pressure differential and a 3X series design, this valve is suited for closed-loop and open-loop applications requiring fast response, high resolution, and excellent dynamic performance.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, 4-Way) |
| Model Designation | 4WRKE 16 W6-220L-3X/6EG24EK31/A1M-909 |
| Material Number | R901551915 |
| Nominal Size | NG16 (DIN 24340 / ISO 4401 size 16) |
| Series | 3X (Series 30 to 39, installation and connection dimensions unchanged) |
| Spool Type / Flow Characteristic | W6 spool with progressive flow characteristic (L-type metering) |
| Rated Flow | Approx. 220 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 350 bar (ports P, A, B); pilot stage rated to 315 bar |
| Actuation | Proportional solenoid, single-ended, with inductive position feedback |
| Solenoid Voltage | 24 V DC (EG24 designation) |
| Electrical Connection | Component plug, 6-pole + PE (EK31 designation) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid, single-ended, with inductive position feedback ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 220 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a rated flow of approximately 220 L/min at a 10 bar (Δp) valve pressure differential and a 3X series design, this valve is suited for closed-loop and open-loop applications requiring fast response, high resolution, and excellent dynamic performance.
PRODUCT IMAGES

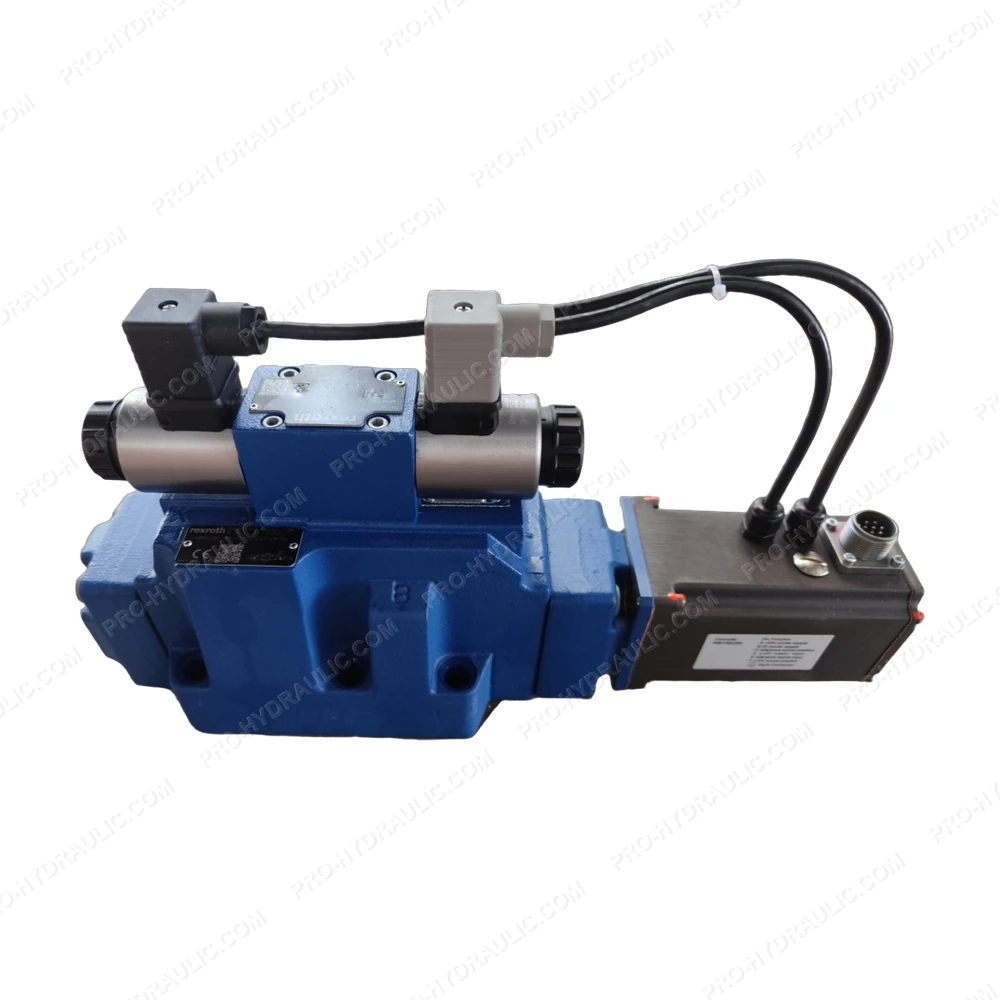

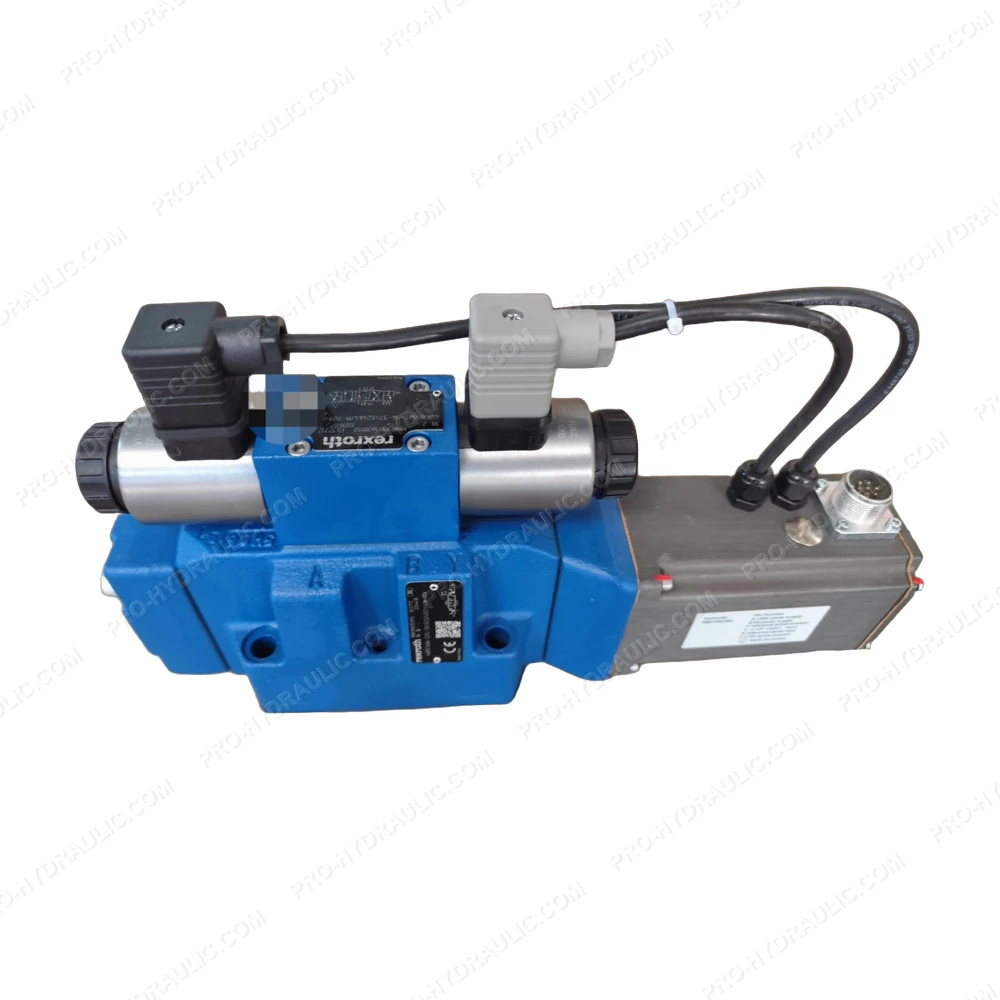

Rexroth 4WRKE 16 W6-220L-3X/6EG24EK31/A1M-909 / R901551915 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRKE 16 W6-220L-3X/6EG24EK31/A1M-909 / R901551915 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a 4-way proportional design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
