Product Overview
The Rexroth 4WRKE 16 W8-200L-35/6EG24ETK31/A103M (Material Number R900711320) is a high-response, pilot-operated proportional directional valve designed for precise control of flow direction and magnitude in demanding industrial hydraulic systems. Featuring a size 16 (NG16) main stage with a 200 L/min nominal flow rating at a 35 bar pressure differential across the valve, this two-stage valve combines a proportional pilot valve with a robust main spool stage. The integrated electrical position feedback (ET) and on-board control electronics (integrated amplifier) ensure exceptional repeatability, minimal hysteresis, and fast dynamic response. This valve is engineered for applications requiring smooth, infinitely variable directional control with high flow capacity and excellent pressure stability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, Two-Stage) |
| Model Designation | 4WRKE 16 W8-200L-35/6EG24ETK31/A103M / R900711320 |
| Size / Nominal Diameter | NG16 (Size 16) |
| Nominal Flow Rate | 200 L/min at Δp = 35 bar (per land, per direction) |
| Operating Pressure | Up to 350 bar (main stage); pilot stage up to 315 bar |
| Spool Type | W8 — Progressive flow characteristic, closed-center (overlapping) spool |
| Actuation | Proportional solenoid with electrical position feedback (ET) and integrated control electronics |
| Electrical Supply | 24 V DC (EG24), nominal solenoid voltage |
| Command Signal | ±10 V DC or 4–20 mA (factory-configured), differential input |
| Mounting & Connection | ISO 4401-07-07-0-94 (NG16) subplate mounting; DIN EN 175301-803 (ISO 4400) electrical connector |
| Seal Material | NBR (Buna-N) — compatible with mineral oil-based hydraulic fluids |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid with electrical position feedback (ET) and integrated control electronics ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 350 bar and flow rates up to 200 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve is engineered for applications requiring smooth, infinitely variable directional control with high flow capacity and excellent pressure stability.
PRODUCT IMAGES

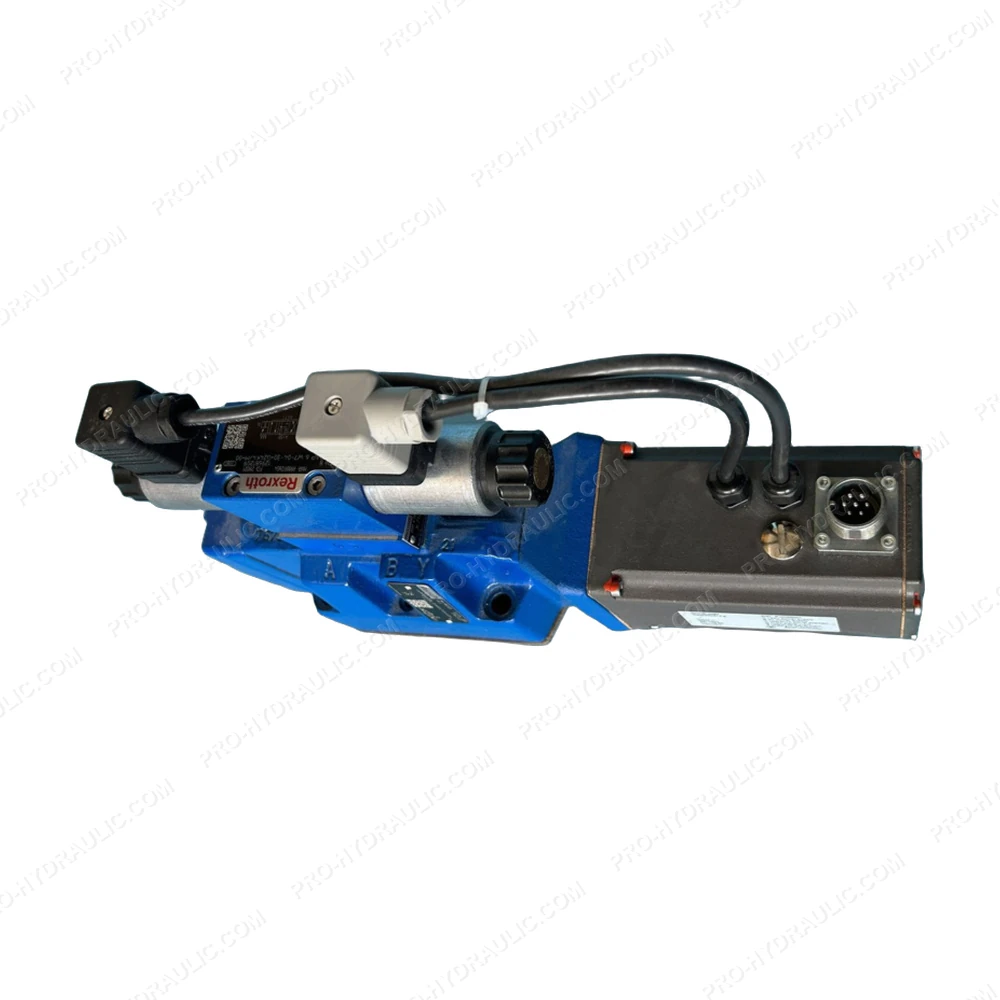

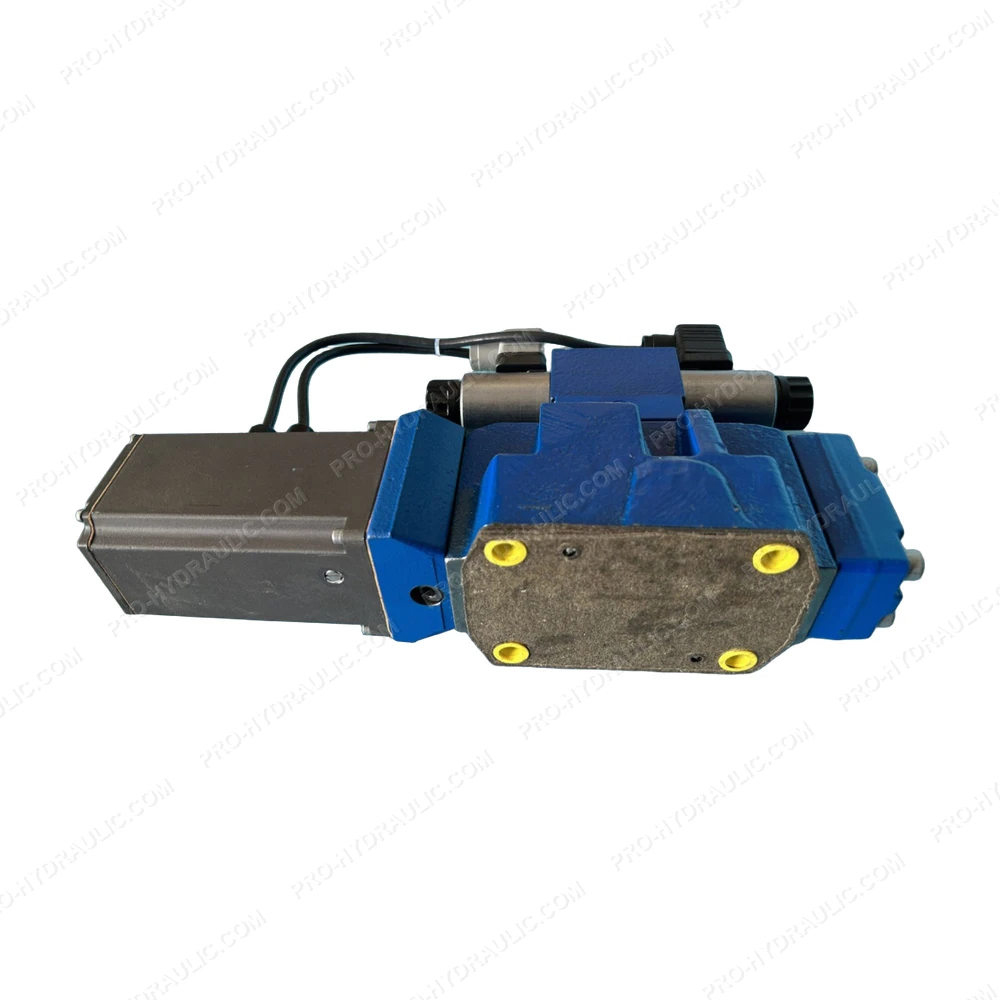

Rexroth 4WRKE 16 W8-200L-35/6EG24ETK31/A103M / R900711320 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WRKE 16 W8-200L-35/6EG24ETK31/A103M / R900711320 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
