The REXROTH 4WRKE 25 W6-220L-33/6EG24EK31/A1D3M is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in high-pressure hydraulic systems. As a pilot-operated, two-stage proportional valve with electrical position feedback, it delivers exceptional dynamic response and repeatability for demanding motion control applications.
REXROTH 4WRKE 25 W6-220L-33/6EG24EK31/A1D3M Technical Specifications
| Valve Type | Proportional Directional Valve, Pilot-Operated, 2-Stage |
| Size | NG25 (Size 25) |
| Nominal Flow | 220 L/min at Δp = 10 bar per land |
| Spool Type | W6 (progressive flow characteristic) |
| Max Operating Pressure | 350 bar (P, A, B ports); 315 bar (T port) |
| Pilot Pressure | External or internal, min. 25 bar |
| Electrical Actuation | Proportional solenoid with position feedback (EG24) |
| Supply Voltage | 24 V DC |
| Command Signal | ±10 V or 4–20 mA (via amplifier) |
| Mounting Pattern | ISO 4401-08-08-0-05 (CETOP 8) |
| Seal Material | NBR (standard); FKM optional |
| Fluid Temperature Range | -20 °C to +80 °C |
| Viscosity Range | 10 to 800 mm²/s |
| Filtration | ISO 4406 (c) 18/16/13 or better |
| Part Number | R901005192 |
Key Engineering Features
- Two-stage pilot-operated design with integrated pilot control valve for high flow capacity and precise control.
- Electrical position feedback via inductive displacement transducer ensures high repeatability and minimal hysteresis.
- Progressive flow characteristic (W6 spool) enables fine control at low command signals and high flow at full stroke.
- Robust cast iron housing and hardened spool for long service life in continuous duty applications.
- Compatible with REXROTH proportional amplifier modules for closed-loop position, velocity, or force control.
- Optional integrated pressure reducing valve for pilot oil supply, reducing external piping requirements.
Industrial Applications
- Hydraulic presses and forming machinery requiring precise force and position control.
- Injection molding machines for accurate injection speed and pressure profiling.
- Steel and metal processing equipment with high dynamic response demands.
- Marine and offshore hydraulic systems with high flow and pressure requirements.
- Test rigs and simulation systems for aerospace and automotive component validation.
- Heavy-duty material handling and lifting equipment with proportional motion control.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRKE 25 W6-220L-33/6EG24EK31/A1D3M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

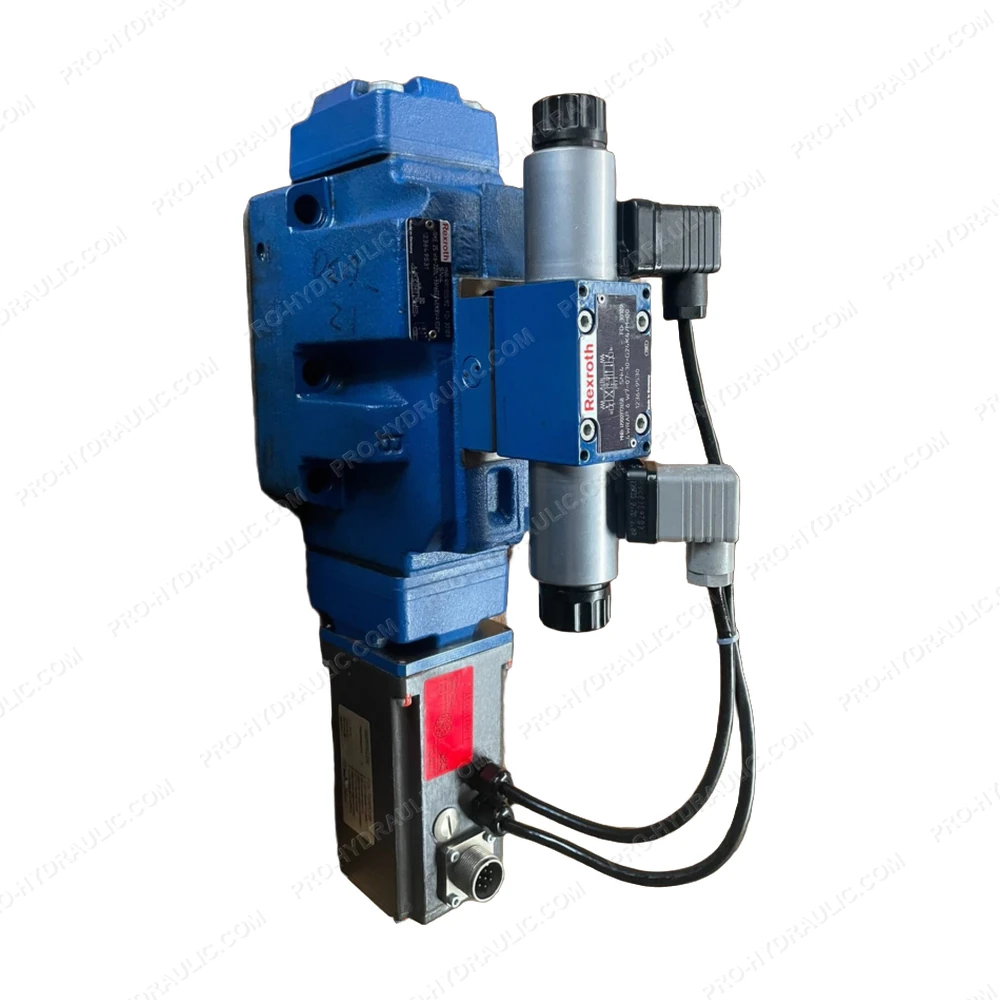

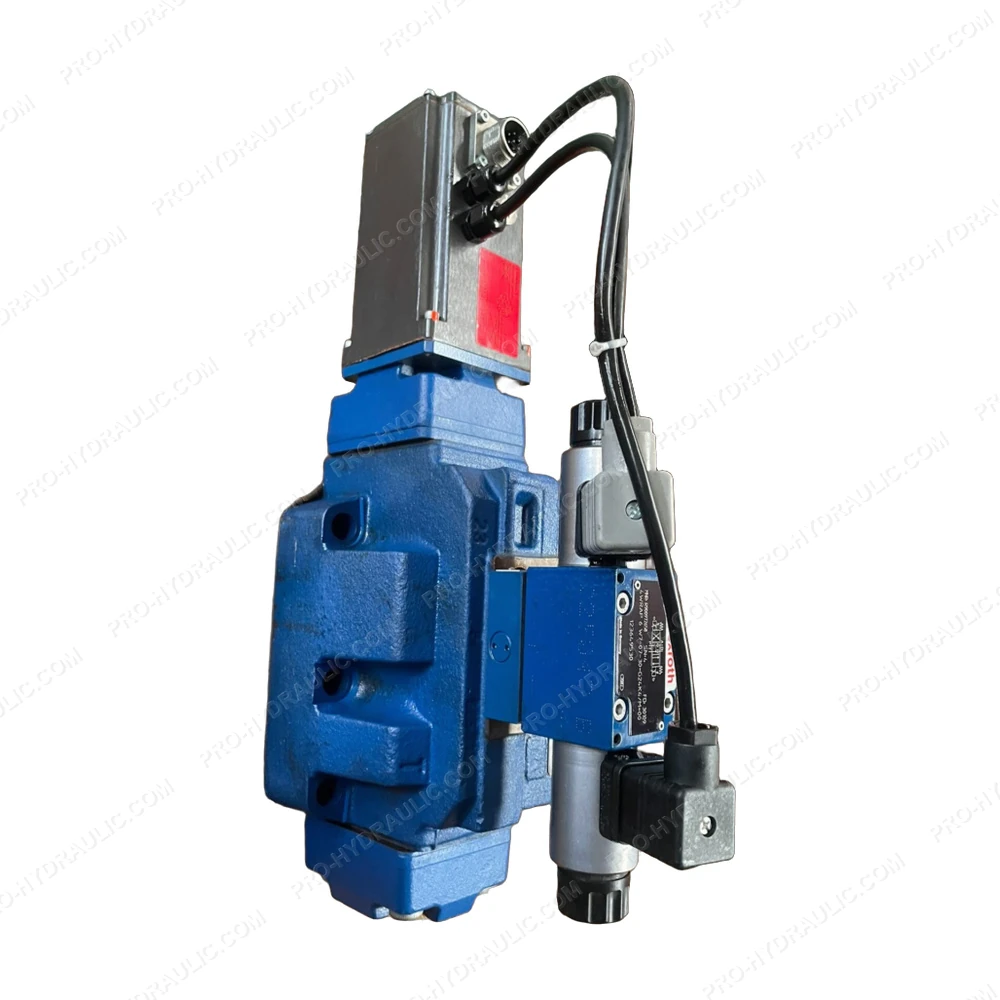

REXROTH 4WRKE 25 W6-220L-33/6EG24EK31/A1D3M Proportional Directional Valve
