The REXROTH 4WRKE10E100L-3X/6EG24ETK31/A1D3M is a heavy-duty industrial proportional directional valve engineered for precise, continuous control of flow direction and magnitude in hydraulic systems. As part of the Rexroth 4WRKE series, this pilot-operated, two-stage valve features integrated electronics (OBE) and position feedback for closed-loop operation, ensuring high accuracy and dynamic response in demanding applications.
REXROTH 4WRKE10E100L-3X/6EG24ETK31/A1D3M Technical Specifications
| Manufacturer | REXROTH |
| Model | 4WRKE10E100L-3X/6EG24ETK31/A1D3M |
| Material Number | R900704216 |
| Valve Type | Proportional Directional Valve, Pilot-Operated |
| Size | NG10 (CETOP 5, ISO 4401) |
| Nominal Flow | 100 L/min at Δp = 10 bar per land |
| Spool Type | E-type, closed center |
| Actuation | Proportional solenoid with integrated electronics (OBE) |
| Supply Voltage | 24 V DC |
| Electrical Connection | Connector according to EN 175301-803 |
| Max. Operating Pressure | 350 bar (pilot and main stage) |
| Mounting Pattern | Subplate mounting, ISO 4401-05-04-0-05 |
| Seal Material | NBR (standard) |
| Weight | Approx. 7.5 kg |
Key Engineering Features
- Pilot-operated design with position feedback for high-resolution control of flow direction and magnitude.
- Integrated electronics (OBE) simplify wiring and reduce installation time.
- Closed-loop control of spool position ensures repeatability and minimal hysteresis.
- Robust construction with high-grade materials for extended service life in harsh environments.
- Compatible with mineral oil-based hydraulic fluids.
- Optional manual override for emergency operation.
Industrial Applications
- Injection molding machines
- Hydraulic presses
- Machine tools
- Steel and aluminum processing equipment
- Test rigs and simulation systems
- General industrial automation requiring precise motion control
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRKE10E100L-3X/6EG24ETK31/A1D3M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

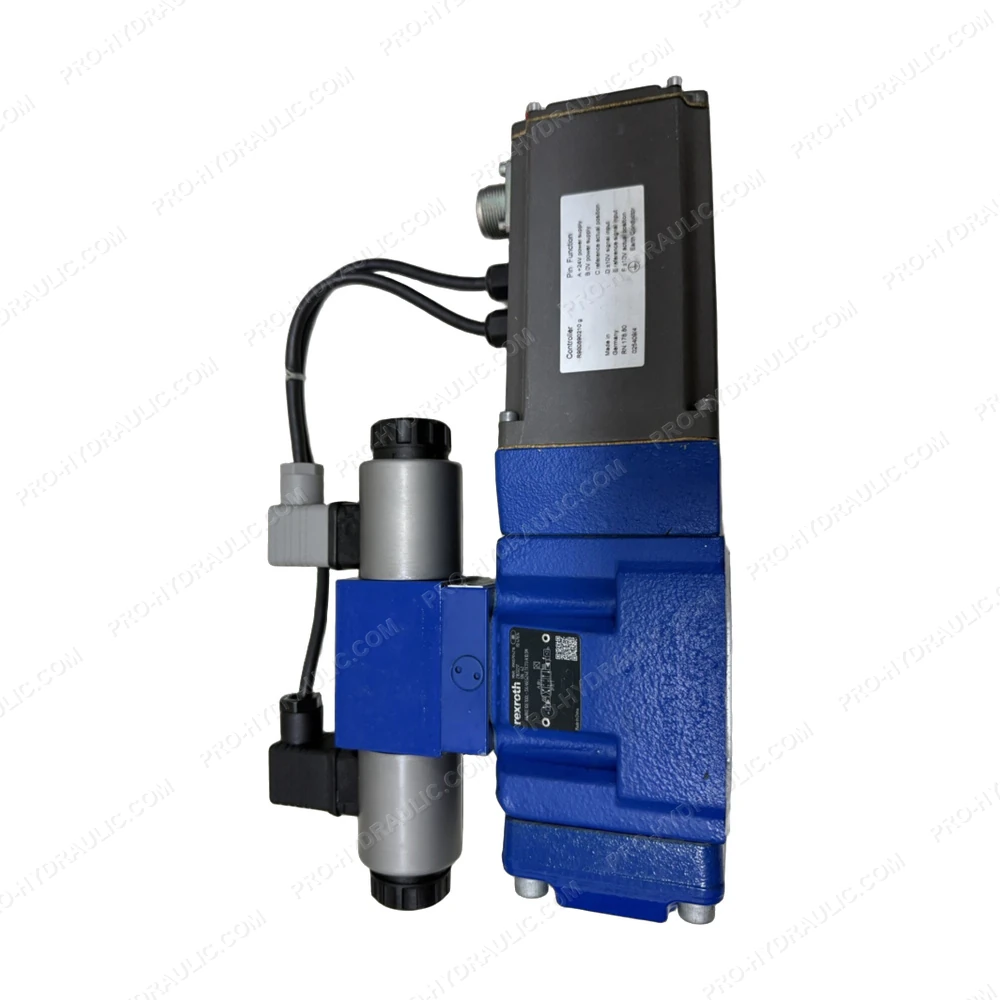

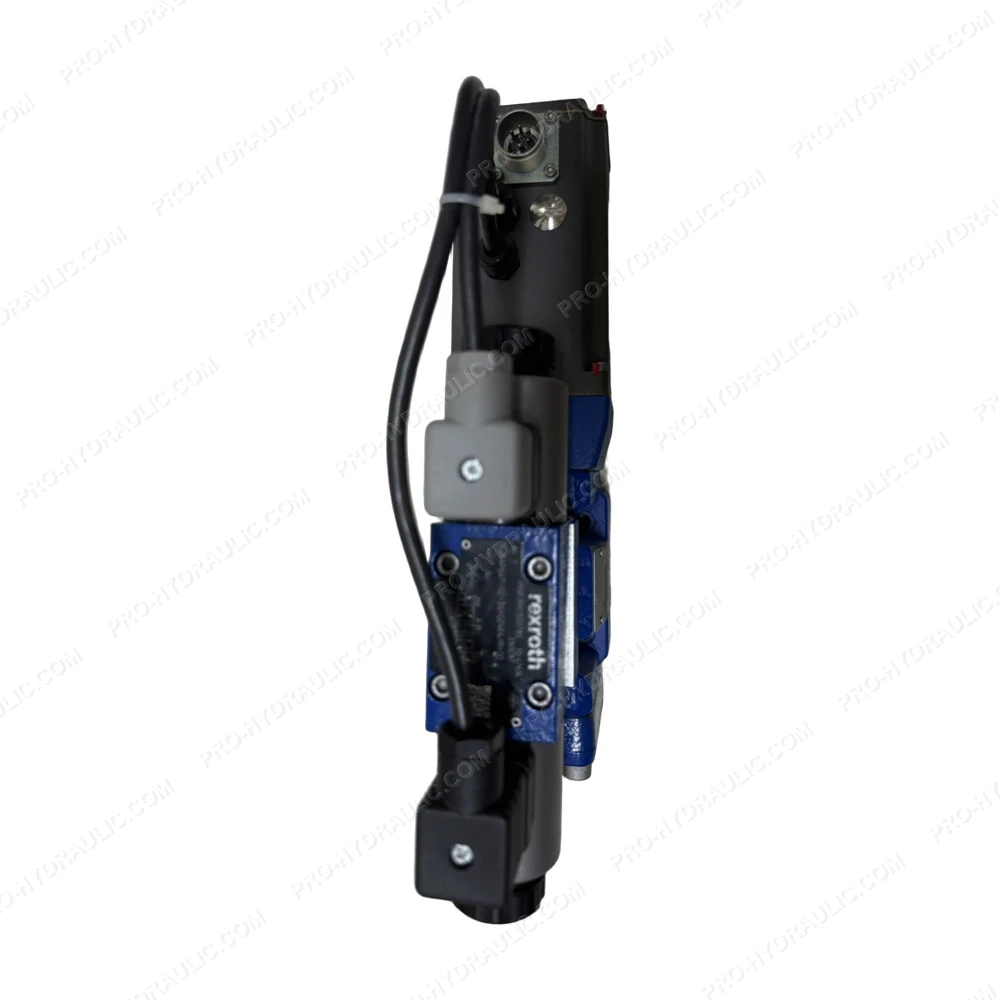

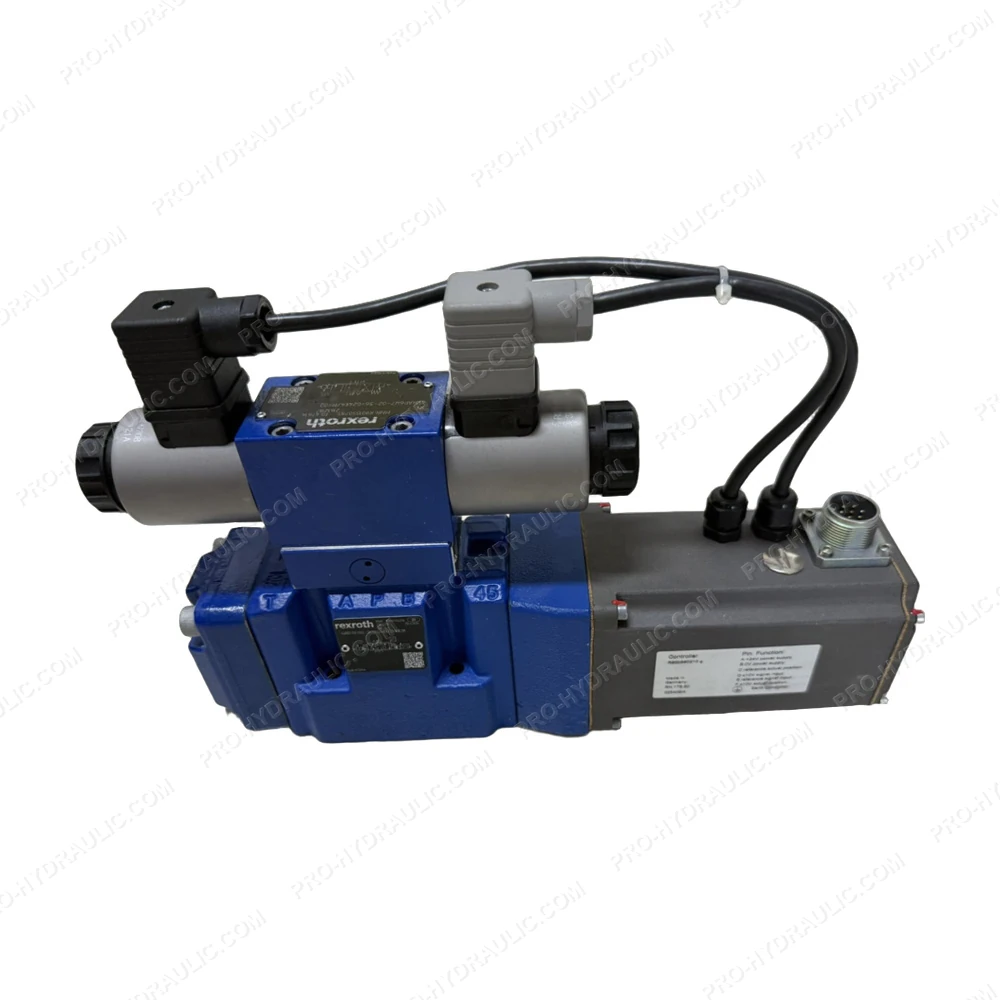

REXROTH 4WRKE10E100L-3X/6EG24ETK31/A1D3M Proportional Directional Valve
