Product Overview
The Rexroth 4WRKE16W6-200L-3X/6EG24K31/F1D3M (material number R901000254) is a high-response, pilot-operated proportional directional valve from the Rexroth 4WRKE series, size NG16 (nominal flow 200 L/min). It features integrated on-board electronics (OBE) with a ±10 V analog command interface and a spring-centered, fail-safe spool position. The valve uses a two-stage design in which a proportional pilot valve controls the main spool via hydraulic pilot pressure, enabling precise, continuously variable control of flow direction and magnitude in proportion to the electrical input signal. With a nominal flow of 200 L/min at a 10 bar valve pressure differential and a maximum operating pressure of 350 bar, this valve is engineered for demanding industrial motion-control loops requiring fast response, high flow capacity, and excellent repeatability.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (pilot-operated, two-stage) |
| Model Designation | 4WRKE16W6-200L-3X/6EG24K31/F1D3M |
| Material Number | R901000254 |
| Size / Nominal Flow | NG16 / 200 L/min at Δp = 10 bar per land |
| Spool Type | W6 — progressive flow characteristic, spring-centered |
| Operating Pressure | Up to 350 bar (ports P, A, B); pilot stage internally supplied |
| Actuation | Proportional solenoid with integrated on-board electronics (OBE) |
| Command Signal | ±10 V analog (differential input), 6 m cable with connector |
| Electrical Supply | 24 V DC (nominal), EG24 solenoid |
| Mounting & Connection | Subplate mounting per ISO 4401-07 / DIN 24340 NG16, 4-way |
| Seal / Fluid Compatibility | NBR seals, mineral oil based hydraulic fluids (HLP/HM) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid with integrated on-board electronics (OBE) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Constructed for continuous duty with durable, corrosion-resistant materials and proven engineering for maximum system uptime.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
With a nominal flow of 200 L/min at a 10 bar valve pressure differential and a maximum operating pressure of 350 bar, this valve is engineered for demanding industrial motion-control loops requiring fast response, high flow capacity, and excellent repeatability.
PRODUCT IMAGES

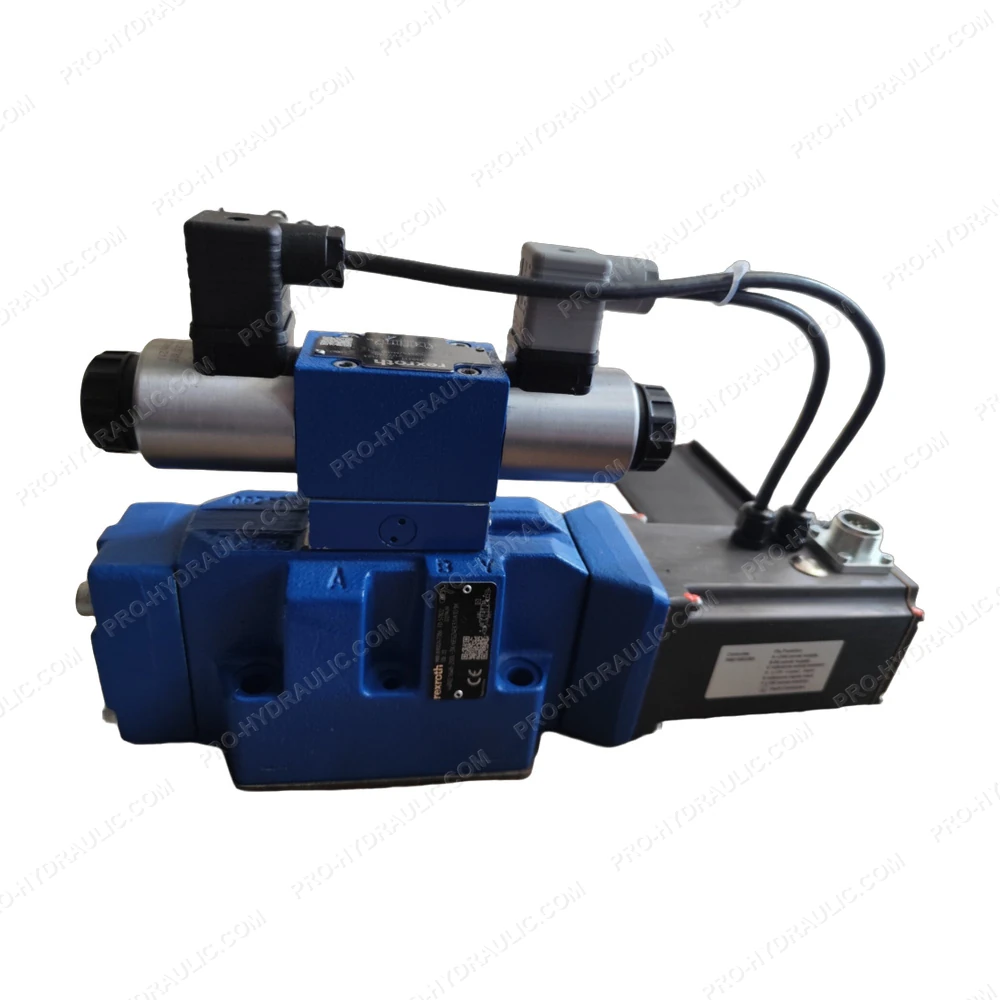

Rexroth 4WRKE16W6-200L-3X/6EG24K31/F1D3M / R901000254 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRKE16W6-200L-3X/6EG24K31/F1D3M / R901000254 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
