The REXROTH 4WRKE25E350L-35/6EG24EK31/F1D3M is a heavy-duty industrial proportional directional valve engineered for high-response flow control in demanding hydraulic circuits. This pilot-operated, two-stage valve features a size 25 main stage with a nominal flow capacity of 350 L/min at a 35 bar pressure drop per land, providing precise, continuous modulation of flow direction and magnitude proportional to the electrical command signal. The integrated 6EG24EK31 pilot valve with 24 V DC wet-pin solenoid and position feedback ensures accurate spool positioning and repeatable performance under varying load conditions.
REXROTH 4WRKE25E350L-35/6EG24EK31/F1D3M Technical Specifications
| Manufacturer | REXROTH |
| Model / Part Number | 4WRKE25E350L-35/6EG24EK31/F1D3M / R901084667 |
| Valve Type | Proportional Directional Valve, Pilot-Operated, Two-Stage |
| Size | NG25 (Size 25) |
| Nominal Flow | 350 L/min at Δp = 35 bar per land |
| Spool Type | E-type, progressive flow characteristics |
| Actuation | Proportional solenoid, wet-pin armature, 24 V DC |
| Pilot Valve | 6EG24EK31 with integrated electronics and position feedback |
| Mounting Pattern | ISO 4401 / CETOP / DIN 24340 (NG25) |
| Maximum Operating Pressure | 350 bar (main stage) |
| Fluid | Mineral oil based hydraulic fluids, HLP/HM per ISO 6743-4 |
| Seal Material | FKM (F1D3M designation) |
Key Engineering Features
- Two-stage pilot-operated design with high-response proportional solenoid actuation for precise flow and direction control.
- Integrated position feedback and control electronics (6EG24EK31) for closed-loop spool positioning and excellent repeatability.
- Wet-pin armature solenoid with 24 V DC coil, designed for continuous duty and high dynamic response.
- E-type spool with progressive flow characteristics, optimized for smooth acceleration and deceleration of actuators.
- ISO 4401 / CETOP NG25 mounting interface for direct integration into standard hydraulic manifolds.
- FKM seals (F1D3M) for compatibility with high-temperature and fire-resistant hydraulic fluids.
- Robust construction with hardened spool and sleeve for long service life in high-cycle industrial applications.
Industrial Applications
- Hydraulic presses and forging equipment requiring precise force and position control.
- Injection molding machines for accurate injection speed and pressure profiling.
- Steel and metal processing lines with high-dynamic roll gap and tension control.
- Marine and offshore hydraulic systems with demanding load-holding and positioning requirements.
- Test stands and simulation equipment for dynamic flow and pressure regulation.
- Heavy-duty mobile and industrial machinery with proportional motion control needs.
For technical inquiries, dimensional drawings, or replacement support for REXROTH 4WRKE25E350L-35/6EG24EK31/F1D3M, contact the Pro-Hydraulic engineering team.
PRODUCT IMAGES

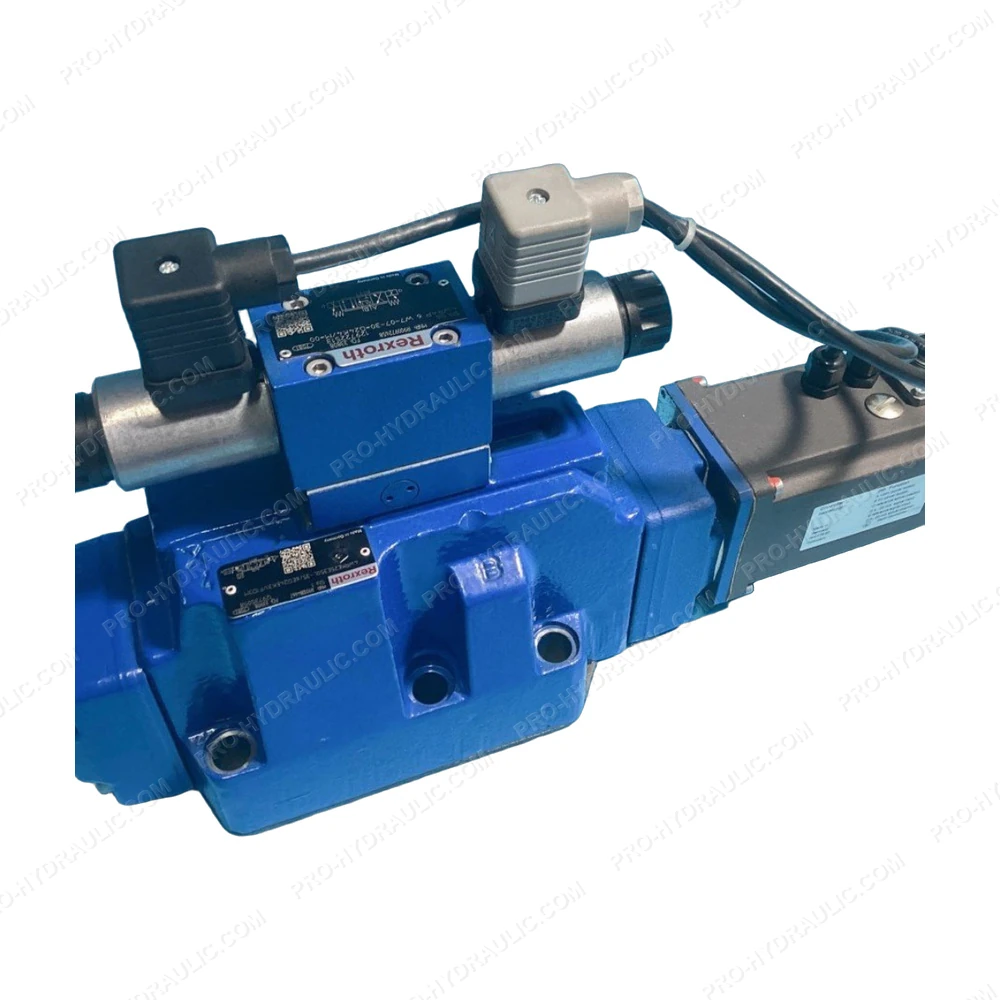

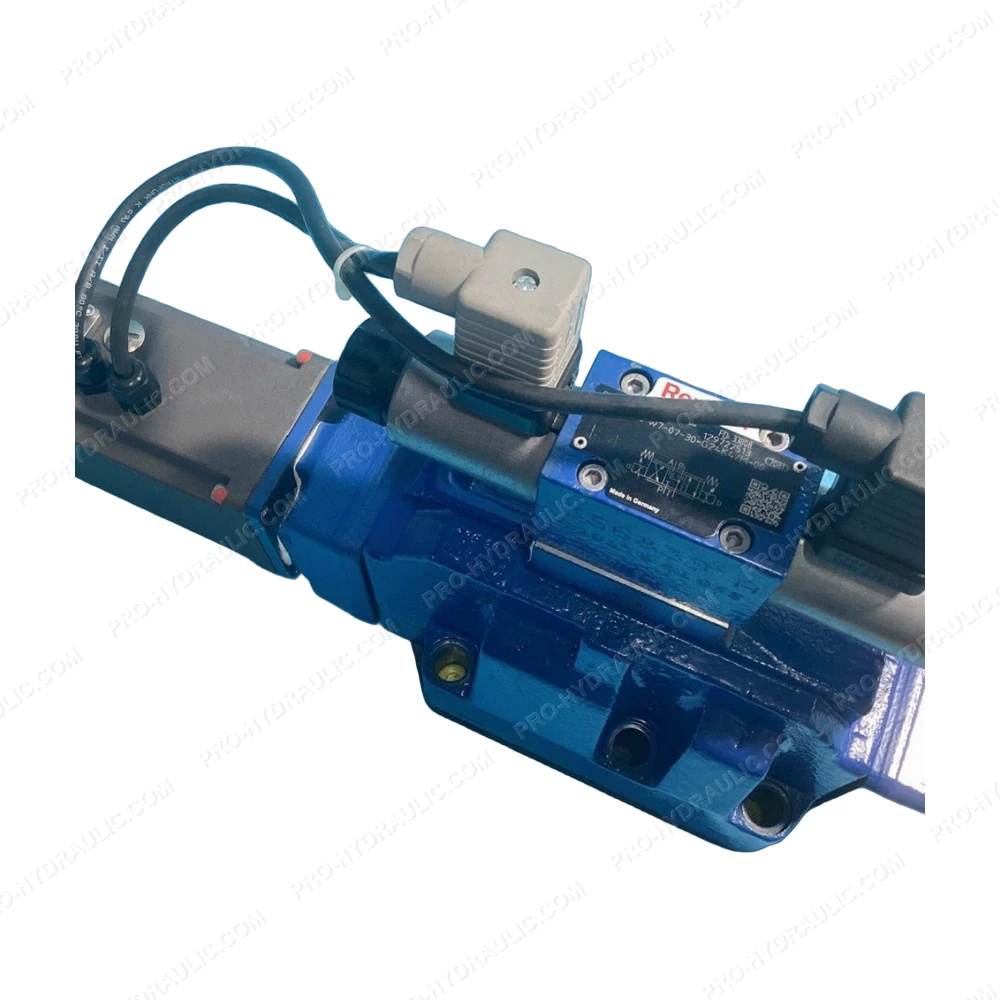

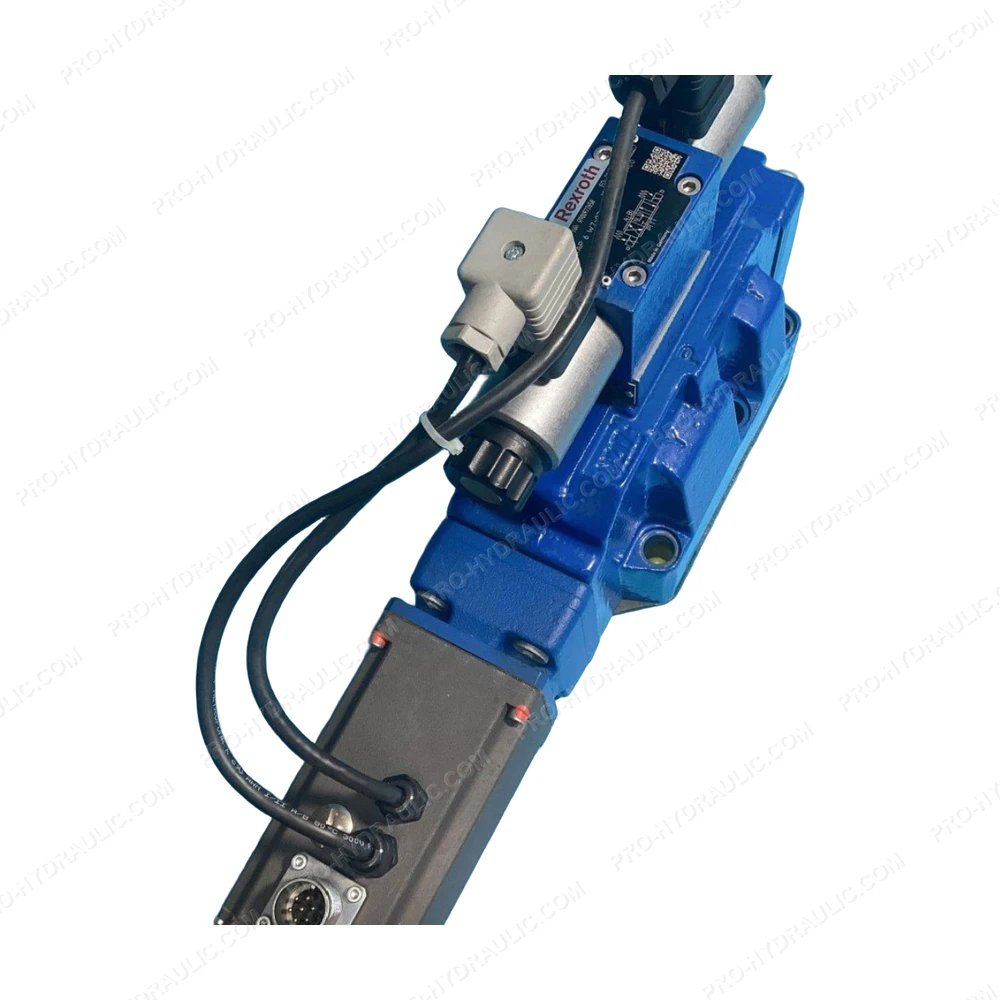

REXROTH 4WRKE25E350L-35/6EG24EK31/F1D3M Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the REXROTH 4WRKE25E350L-35/6EG24EK31/F1D3M Proportional Directional Valve. This precision-engineered industrial component delivers reliable performance and tight fluid control for heavy-duty systems.
