Product Overview
The Rexroth 4WRLE16 E1Z-180SJ-3X /G24 K0/A1M (Material No. 0811404306) is a high-response, pilot-operated proportional directional valve from the renowned Rexroth 4WRLE series. Engineered for precise control of flow direction and magnitude in demanding hydraulic systems, this valve features a size 16 (NG16) main stage with integrated position feedback and a nominal flow capacity of 180 L/min at a 10 bar pressure drop per land. The “E1Z” designation indicates an external pilot oil supply and external pilot oil return configuration, while the “SJ” spool type provides a specific progressive flow characteristic optimized for smooth acceleration and deceleration of actuators. The “3X” series denotes the current generation of this valve family, incorporating advanced manufacturing tolerances and enhanced spool-to-sleeve matching for superior metering accuracy. With a /G24 K0/A1M solenoid configuration, this valve operates on 24 V DC and includes an integrated amplifier module (A1M) with position control loop, enabling closed-loop operation when paired with an external position transducer. This valve serves as a critical interface between electronic control systems and hydraulic actuators, delivering exceptional dynamic response, minimal hysteresis, and repeatable performance in the most demanding industrial applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, with Position Feedback) |
| Model Designation | 4WRLE16 E1Z-180SJ-3X /G24 K0/A1M |
| Material Number | 0811404306 |
| Valve Size | NG16 (Size 16) |
| Nominal Flow Rate | 180 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 315 bar (main stage); pilot pressure range 20–315 bar |
| Spool Type | SJ – Progressive flow characteristic with fine metering in center range |
| Pilot Oil Supply | External (E1Z configuration – external pilot supply and external pilot return) |
| Solenoid Voltage | 24 V DC (/G24) |
| Integrated Electronics | A1M – Integrated amplifier with position control loop |
Engineering Features & Advantages
- Precision Performance: The integrated a1M – Integrated amplifier with position control loop ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 180 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
This valve serves as a critical interface between electronic control systems and hydraulic actuators, delivering exceptional dynamic response, minimal hysteresis, and repeatable performance in the most demanding industrial applications.
PRODUCT IMAGES

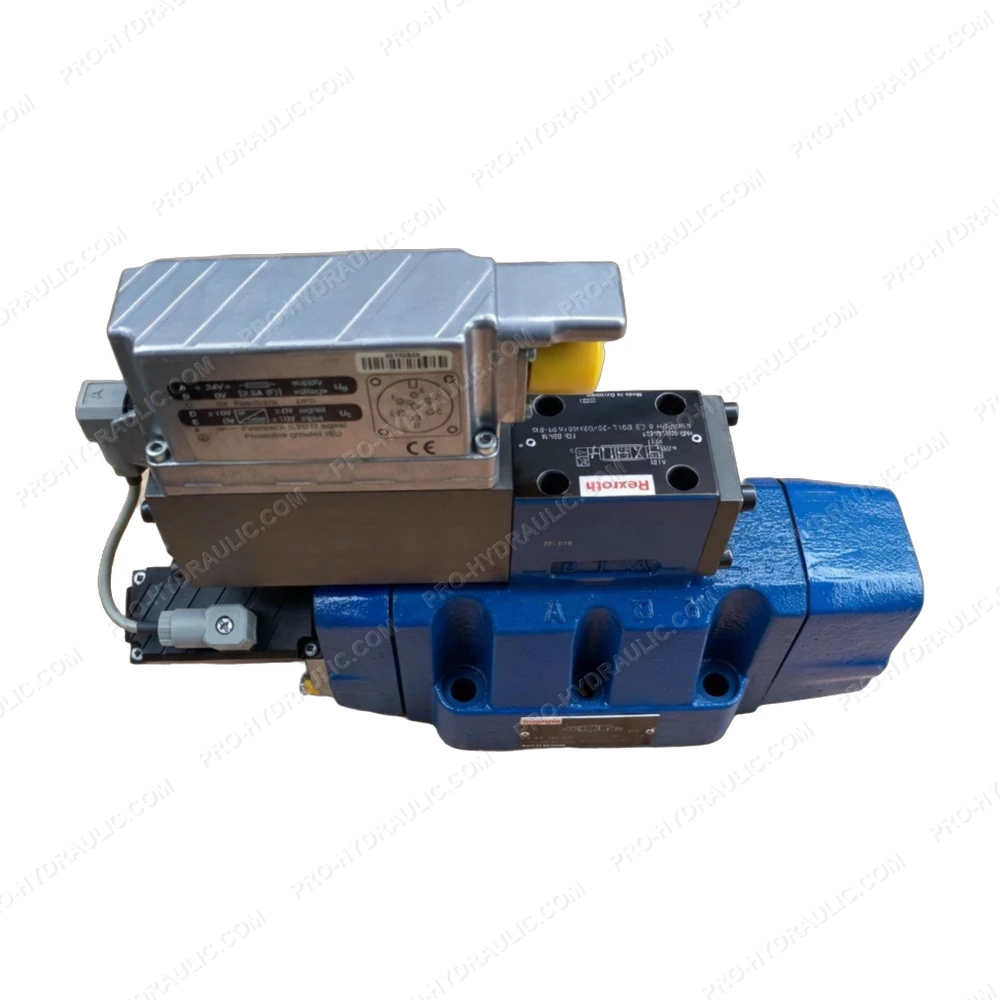

Rexroth 4WRLE16 E1Z-180SJ-3X /G24 K0/A1M / 0811404306 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRLE16 E1Z-180SJ-3X /G24 K0/A1M / 0811404306 Proportional Directional Valve. This Germany-made 24 VDC hydraulic component features a pilot-operated design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
