Product Overview
The Rexroth 4WRPEH 10 C3 B50L-20/G24K0/A1M (Material Number: 0811404800) is a high-response, direct-operated proportional directional valve with integrated digital electronics (OBE) and position feedback. As part of the Rexroth 4WRPEH series, this valve is engineered to deliver precise, continuous control of flow direction and magnitude in proportion to an electrical input signal. The “C3” spool design provides a specific flow characteristic optimized for position, velocity, and force control in demanding closed-loop industrial systems. With a nominal size of NG10 (Size 10) and a rated flow of 50 L/min at a 20 bar pressure drop per land, this valve serves as a critical interface between electronic control systems and hydraulic actuators, offering exceptional dynamic response, minimal hysteresis, and superior repeatability for high-precision motion control applications.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (4-Way, 3-Position) |
| Model Designation | 4WRPEH 10 C3 B50L-20/G24K0/A1M / 0811404800 |
| Nominal Size | NG10 (Size 10) per ISO 4401 |
| Spool Type | C3 – Progressive flow characteristic with positive overlap |
| Rated Flow | 50 L/min at Δp = 20 bar per land |
| Operating Pressure | Up to 315 bar (P, A, B ports); 210 bar (T port) |
| Actuation Type | Proportional solenoid with integrated digital electronics (OBE) and position feedback |
| Electrical Supply | 24 V DC (G24), K0 connector type |
| Command Signal | ±10 V, 4–20 mA, or 0–10 V (configurable via A1M interface) |
| Mounting & Connection | Subplate mounting per ISO 4401-05-04-0-05; 4-way, 3-position |
| Hysteresis | ≤ 0.2% of nominal stroke |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (4-way, 3-position) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 50 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
With a nominal size of NG10 (Size 10) and a rated flow of 50 L/min at a 20 bar pressure drop per land, this valve serves as a critical interface between electronic control systems and hydraulic actuators, offering exceptional dynamic response, minimal hysteresis, and superior repeatability for high-precision motion control applications.
PRODUCT IMAGES

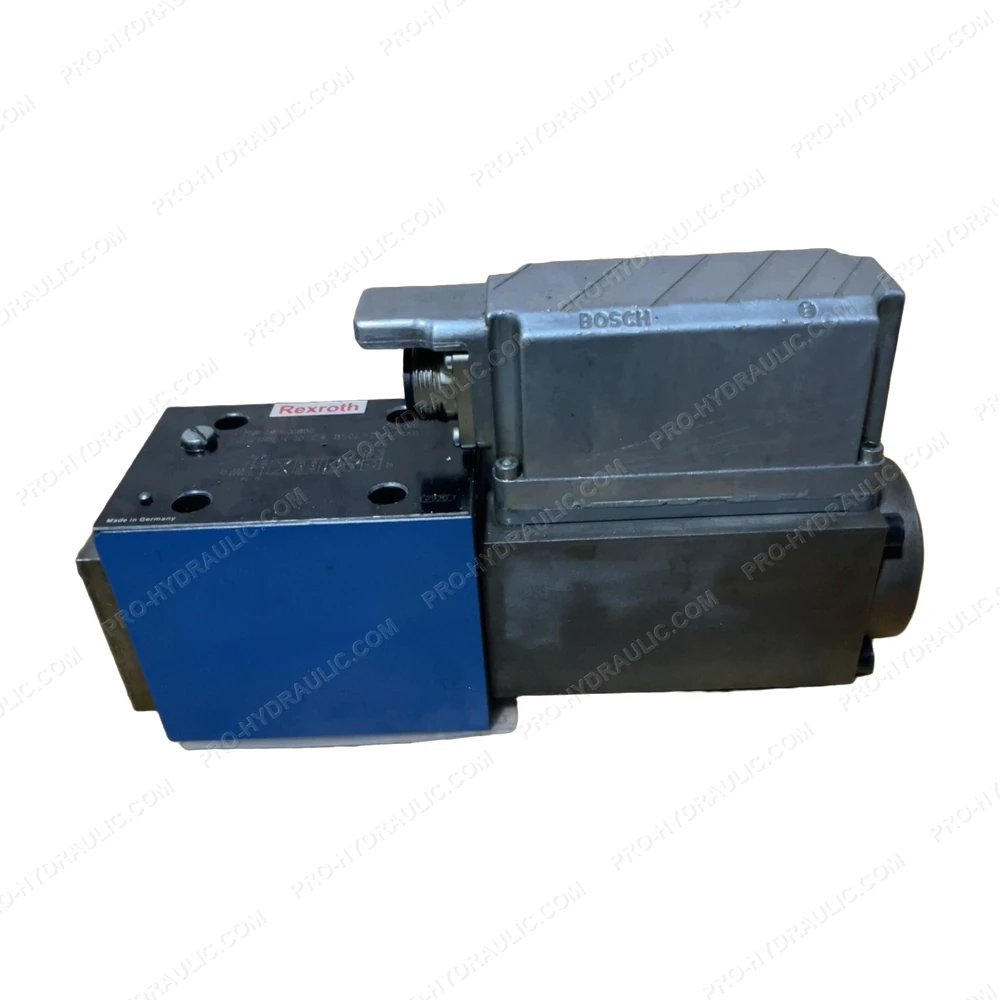

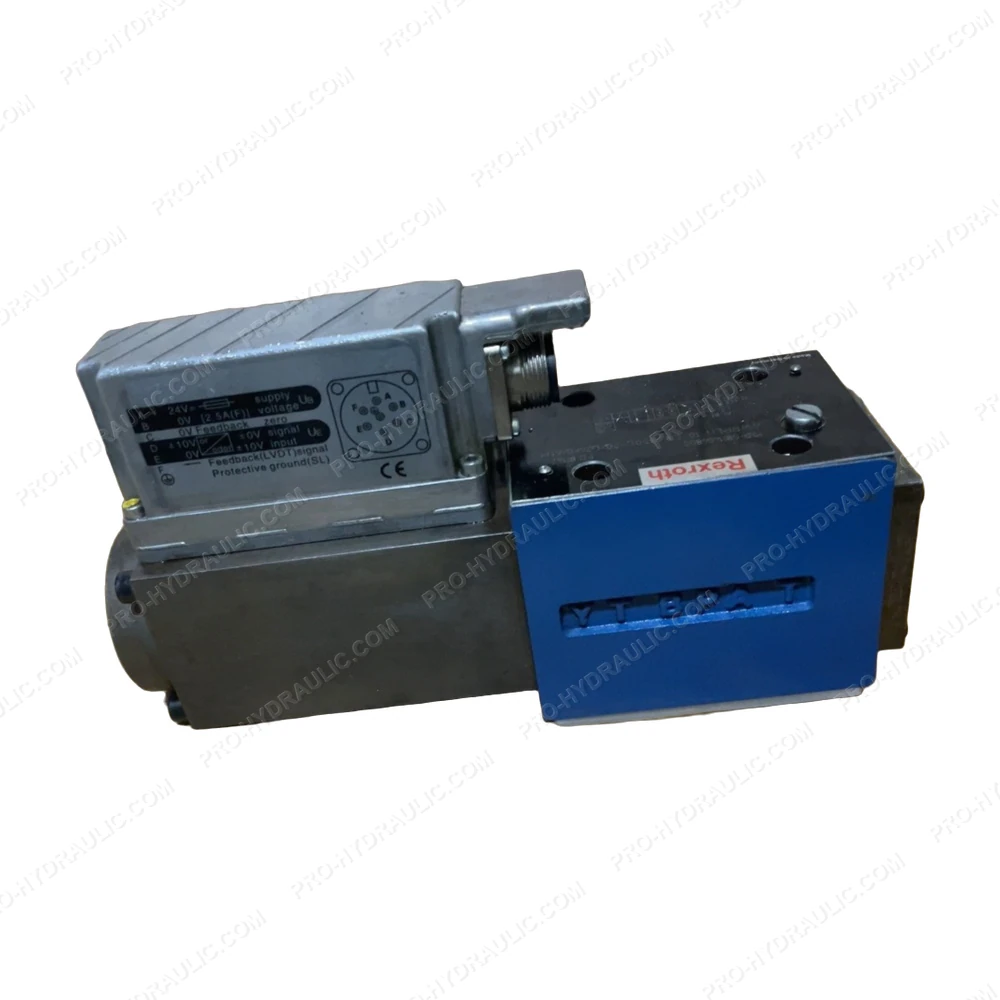

Rexroth 4WRPEH 10 C3 B50L-20/G24K0/A1M / 0811404800 Proportional Directional Valve
