Product Overview
The Rexroth 4WRPEH10C3B50L-20/G24K0/F1M (Material Number: 0811404819) is a high-response, pilot-operated proportional directional valve from the renowned Rexroth 4WRPEH series. Engineered for precise electro-hydraulic control of flow direction and magnitude, this valve features integrated digital on-board electronics (OBE) with a ±10 V or 4–20 mA command interface. The “C3” spool type provides a critical-center, overlapped configuration optimized for position and velocity control in demanding closed-loop systems. With a nominal flow capacity of 50 L/min at Δp = 10 bar per land and a maximum operating pressure of 350 bar, this valve delivers exceptional dynamic response, minimal hysteresis, and superior repeatability. Its robust design and precise metering characteristics make it the preferred choice for high-performance industrial applications requiring accurate motion control, pressure regulation, and energy-efficient operation.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, with On-Board Electronics) |
| Model Designation | 4WRPEH10C3B50L-20/G24K0/F1M / 0811404819 |
| Spool Type & Function | C3 – Critical center, overlapped, 4-way, 3-position |
| Nominal Flow Rate | 50 L/min at Δp = 10 bar per land |
| Maximum Operating Pressure | 350 bar (P, A, B ports); 210 bar (T port) |
| Nominal Solenoid Voltage | 24 V DC (G24) |
| Command Signal Interface | ±10 V or 4–20 mA (selectable via on-board electronics) |
| Electrical Connection | K0 – Connector M12, 6-pin (standard industrial) |
| Mounting Pattern | ISO 4401-05-05-0-94 (NG10 / CETOP 5) |
| Seal Material | F1M – FKM (Viton) for high-temperature and aggressive fluids |
| Hysteresis | ≤ 0.5% of nominal stroke |
Engineering Features & Advantages
- Precision Performance: The proportional directional valve (pilot-operated, with on-board electronics) delivers precise, repeatable performance with low hysteresis and stable control across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
- Rated Capability: Rated for pressure ratings of 350 bar (P, A, B ports); 210 bar (T port) and flow rates up to 50 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
Its robust design and precise metering characteristics make it the preferred choice for high-performance industrial applications requiring accurate motion control, pressure regulation, and energy-efficient operation.
PRODUCT IMAGES

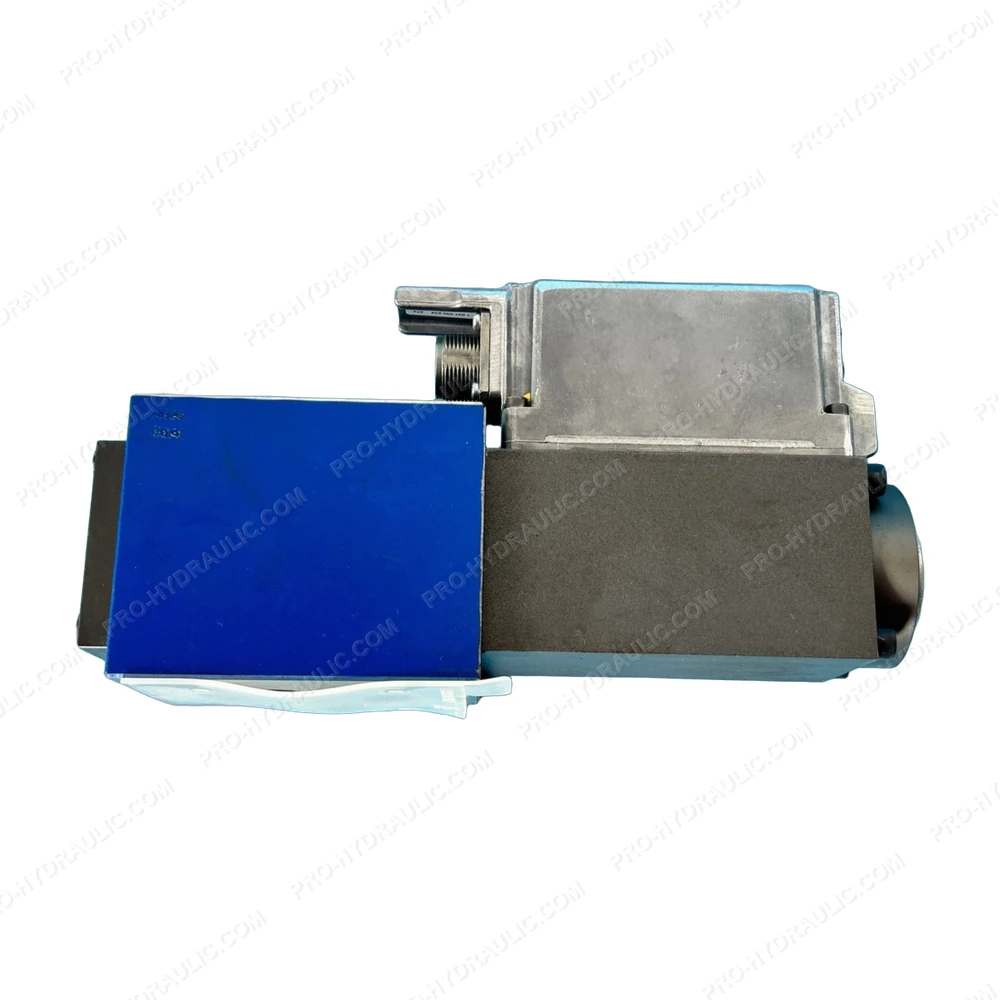

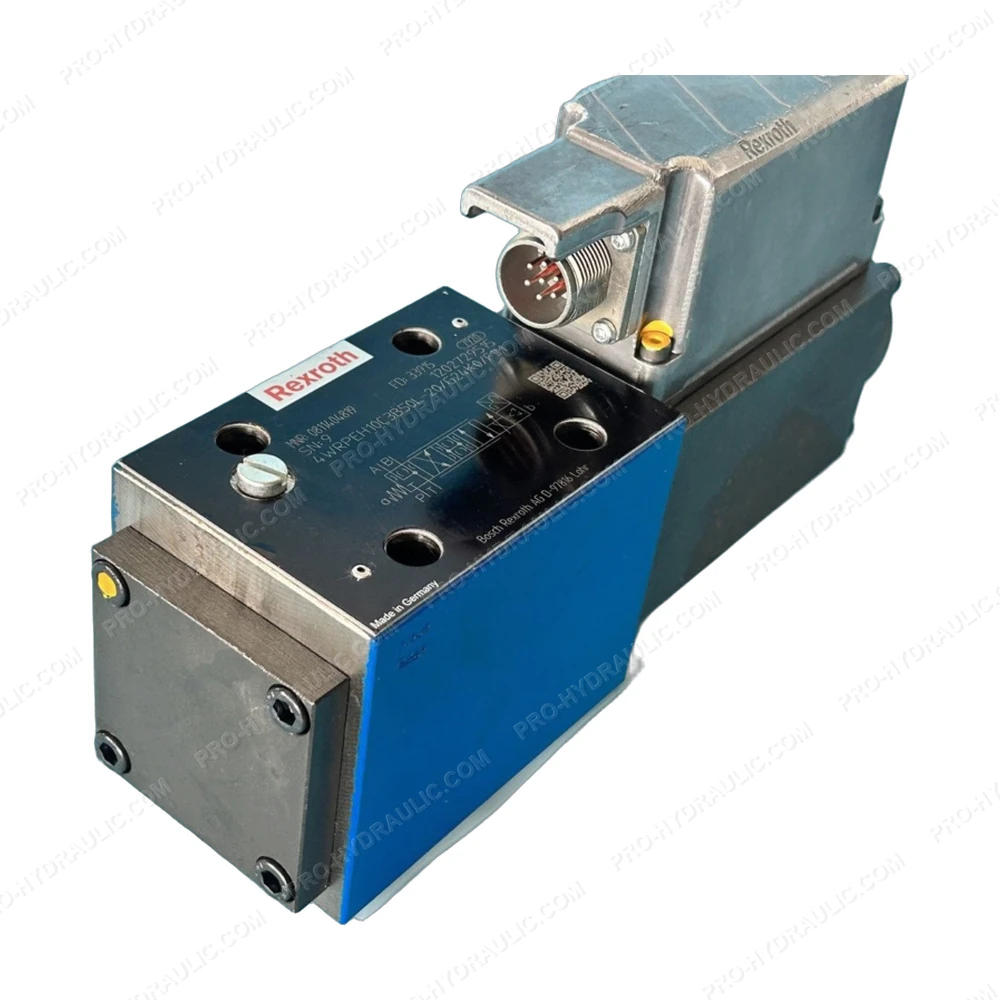

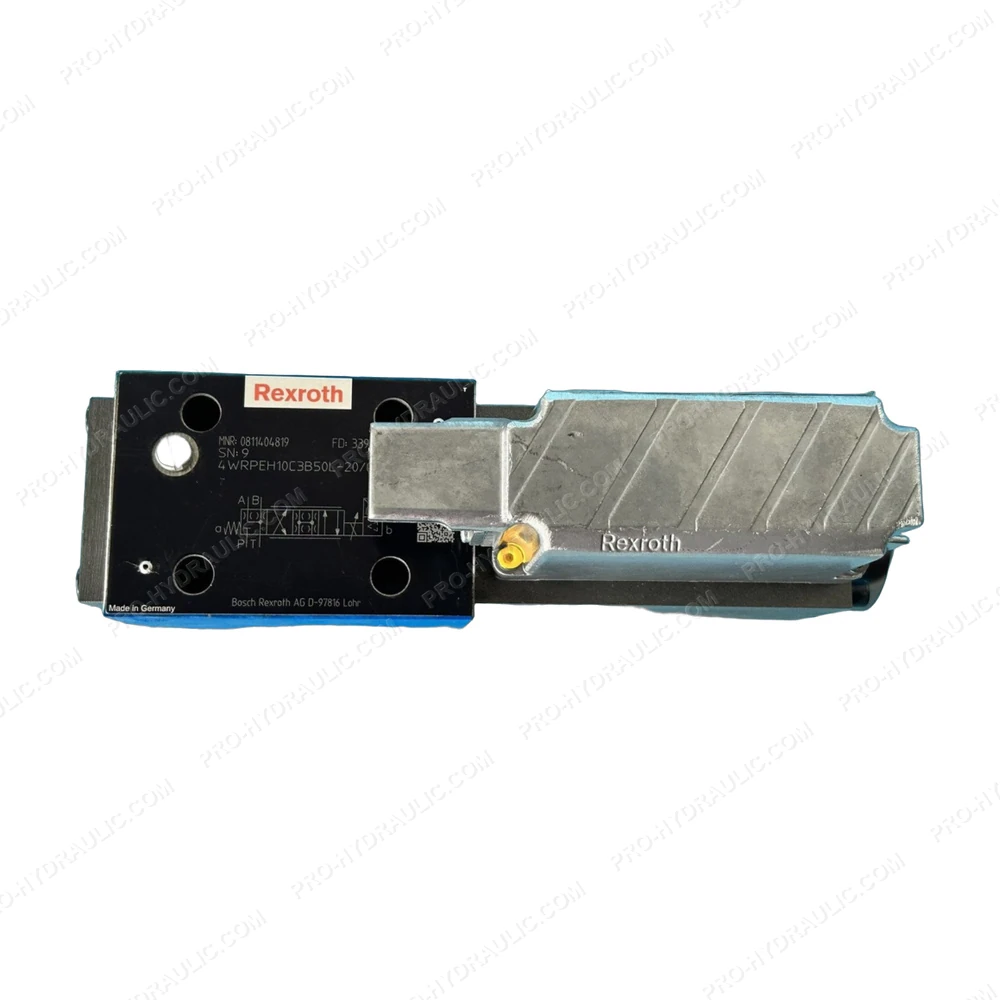

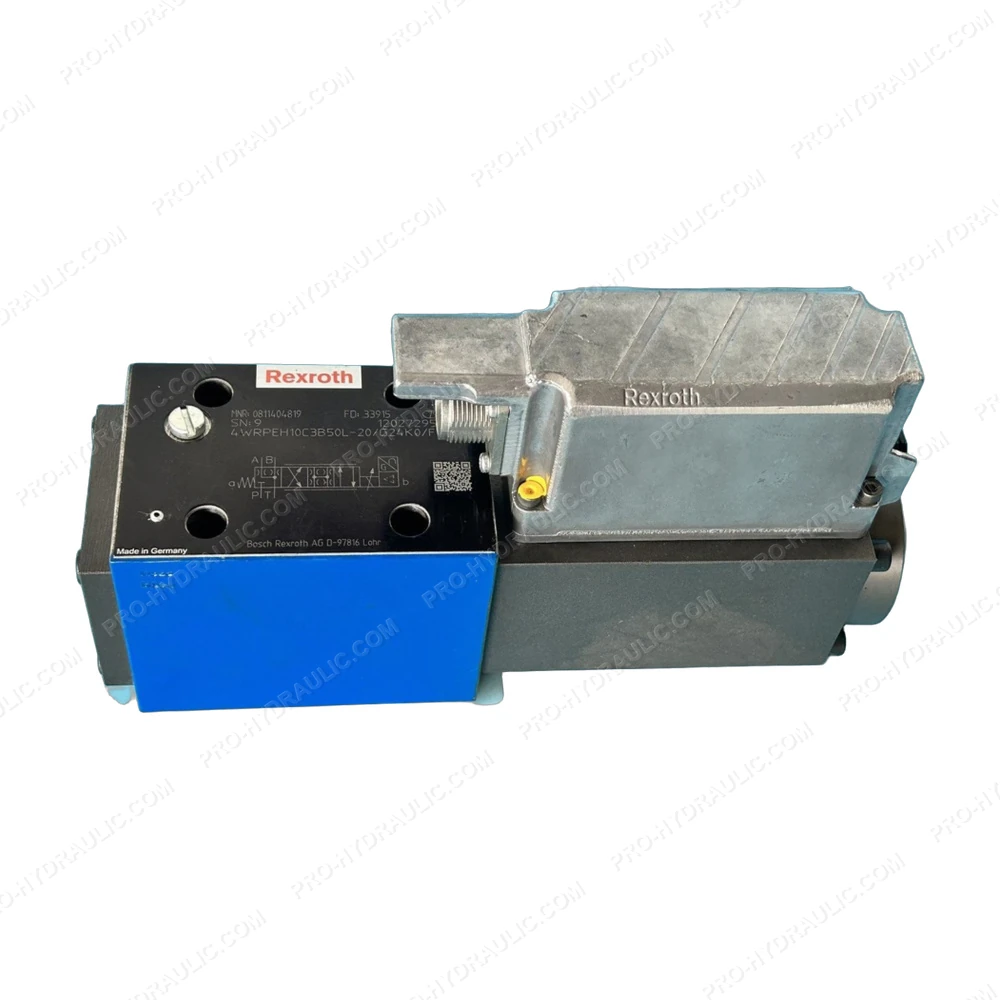

Rexroth 4WRPEH10C3B50L-20/G24K0/F1M / 0811404819 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine Rexroth 4WRPEH10C3B50L-20/G24K0/F1M / 0811404819 Proportional Directional Valve. This Germany-made 24V DC hydraulic component features a 4-way proportional design, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
