Product Overview
The Rexroth 4WRPEH6C3B12L-31/M/24F1 (Material Number R901382348) is a high-response, direct-operated proportional directional valve from the Bosch Rexroth 4WRPEH series. Featuring a size 6 (NG6 / CETOP 3) subplate interface, this valve uses a precision-machined spool within a hardened sleeve to proportionally control both flow direction and magnitude in response to an analog electrical command signal. The integrated position feedback and high-response solenoid actuation deliver fast, repeatable spool positioning, making it a critical control element for electro-hydraulic motion control loops in demanding industrial systems. The “C3” spool type provides a closed-center configuration with defined overlap characteristics, while the “12L” designation indicates a nominal flow rating of approximately 12 L/min at a 10 bar (Δp) pressure drop per land. The “24F1” suffix denotes a 24 VDC high-response proportional solenoid with integrated position transducer, enabling closed-loop spool position control via a Rexroth proportional amplifier card.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Direct-Operated, Spool Type) |
| Model Designation | 4WRPEH6C3B12L-31/M/24F1 |
| Material Number | R901382348 |
| Valve Size | NG6 (CETOP 3 / ISO 4401-03) |
| Spool Type | C3 — Closed Center, Defined Overlap |
| Nominal Flow Rate | ~12 L/min per land at Δp = 10 bar |
| Operating Pressure | Up to 315 bar (P, A, B ports); T port limited to 160 bar |
| Actuation | Proportional solenoid with integrated position feedback (24 VDC) |
| Command Signal | Analog ±10 V or 4–20 mA via proportional amplifier |
| Hysteresis | ≤ 0.2% of nominal stroke (with closed-loop position control) |
| Response Time | ≤ 10 ms (typical, 0–100% step response) |
Engineering Features & Advantages
- Precision Performance: The integrated proportional solenoid with integrated position feedback (24 VDC) ensures precise, repeatable control with low hysteresis and stable performance across the full working range.
- Industrial Reliability: Designed for dependable long-term operation in demanding industrial environments, with quality bearings and sealing systems ensuring extended maintenance intervals.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth standards, allowing straightforward retrofit into existing hydraulic systems without rework.
- Rated Capability: Rated for pressure ratings up to 315 bar and flow rates up to 12 L/min, supporting stable operation across the full working range.
Typical Industrial Applications
The integrated position feedback and high-response solenoid actuation deliver fast, repeatable spool positioning, making it a critical control element for electro-hydraulic motion control loops in demanding industrial systems.
PRODUCT IMAGES

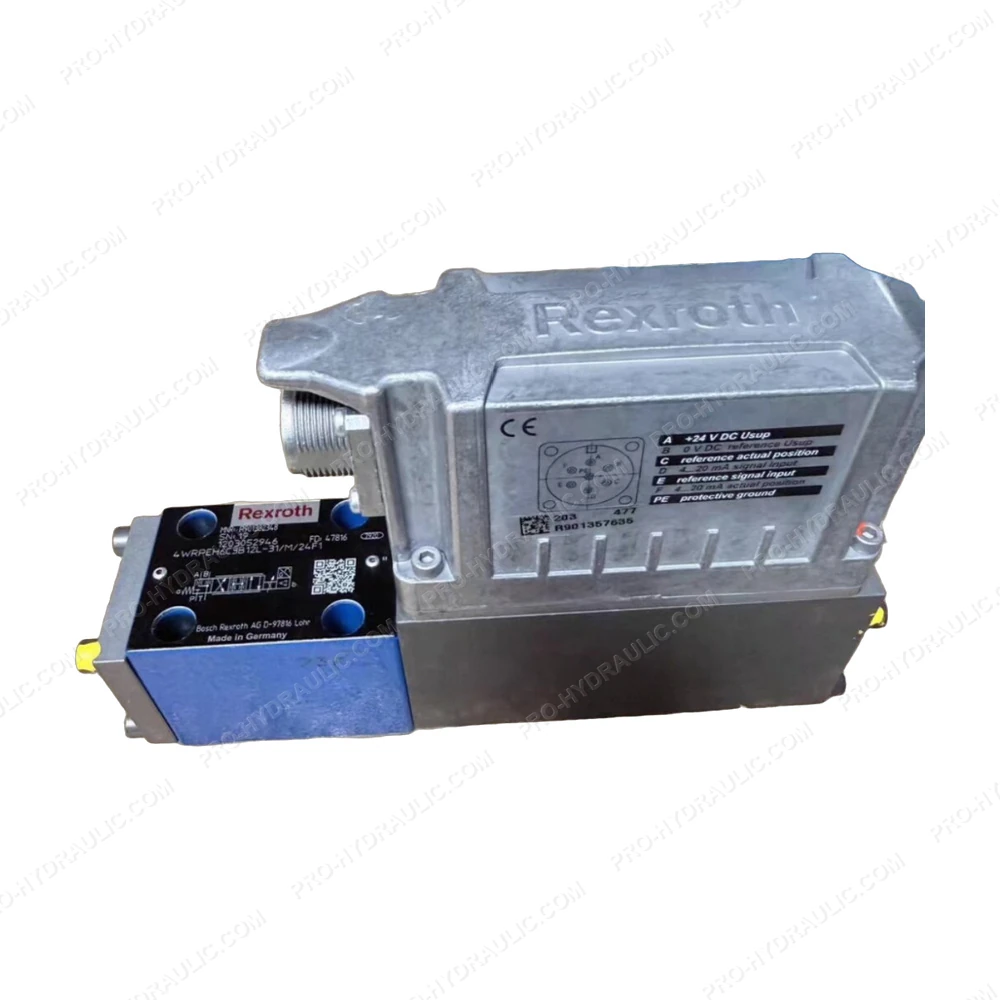

Rexroth 4WRPEH6C3B12L-31/M/24F1 / R901382348 Proportional Directional Valve
âš¡ Emergency Plant Maintenance & Ready-to-Ship Notice:
- Authentic & Fully Tested: 100% bench tested for hydraulic response, pressure rating, and null-bias stability before dispatch.
- Fast Dispatch: In-stock units ready for same-day dispatch via DHL / FedEx Express directly to your plant.
- Pre-Shipment Verification: High-definition photos, video testing runs, and serial number verification provided prior to shipment.
- Peace of Mind: Covered by our 12-Month Replacement Warranty.
Shop the genuine REXROTH 4WRPEH6C3B12L-31/M/24F1 / R901382348 Proportional Directional Control Valve. This Germany-made 24 VDC hydraulic component features a 4-way, 3-position design with integrated electronics, delivering leak-free, reliable fluid control for heavy-duty industrial systems.
