Product Overview
The Rexroth 4WRPH 10 C1 B100L-20/G24Z4/M (Material Number: 0811404076) is a high-response, pilot-operated proportional directional valve from the Bosch Rexroth 4WRPH series. Designed for precise, continuous control of flow direction and magnitude in industrial hydraulic systems, this valve utilizes a position-controlled pilot stage with a main spool featuring progressive flow characteristics. The integrated digital amplifier (G24Z4 configuration) with 24 V DC solenoid actuation enables fast, repeatable response to analog command signals, making it ideal for closed-loop position, velocity, and force control applications. The “B100L” designation indicates a nominal flow of 100 L/min at a 10 bar pressure drop across the valve, while the “C1” spool type provides a specific overlap and metering profile optimized for high dynamic response. This valve is a direct-fit replacement for OEM Rexroth part number 0811404076 and is engineered for demanding industrial environments requiring precise hydraulic motion control.
Technical Specifications
| Parameter | Specification / Feature |
|---|---|
| Component Type | Proportional Directional Valve (Pilot-Operated, High-Response) |
| Model Designation | 4WRPH 10 C1 B100L-20/G24Z4/M / 0811404076 |
| Nominal Flow Rate | 100 L/min at Δp = 10 bar per land |
| Operating Pressure | Up to 315 bar (working port); pilot pressure up to 315 bar |
| Actuation Type | Proportional solenoid with integrated digital amplifier (G24Z4: 24 V DC, Z4 connector) |
| Spool Type | C1 – Progressive flow characteristic, closed-center (overlap) design |
| Mounting & Connection | ISO 4401-05 (NG10) subplate mounting; DIN EN 175301-803 (Z4) electrical connector |
| Response Time | High-response design, typical step response < 10 ms (dependent on signal and system) |
| Hysteresis | ≤ 0.5% of nominal stroke (with integrated amplifier) |
Engineering Features & Advantages
- Precision Performance: The position-controlled pilot stage and progressive main spool deliver highly accurate flow metering with minimal hysteresis and excellent repeatability, enabling precise closed-loop control of position, velocity, and force.
- High Dynamic Response: Integrated digital amplifier and optimized solenoid design provide fast step response and high frequency response, making the valve suitable for demanding motion control cycles in injection molding, press, and testing applications.
- Industrial Reliability: Built for continuous operation under severe industrial conditions, with robust construction and wear-resistant internal components for extended service life.
- Direct Fit Replacement: Exact dimensional and functional compatibility with original Rexroth OEM standards, ensuring drop-in replacement without modification to existing manifolds or piping.
Typical Industrial Applications
This valve is a direct-fit replacement for OEM Rexroth part number 0811404076 and is engineered for demanding industrial environments requiring precise hydraulic motion control.
PRODUCT IMAGES

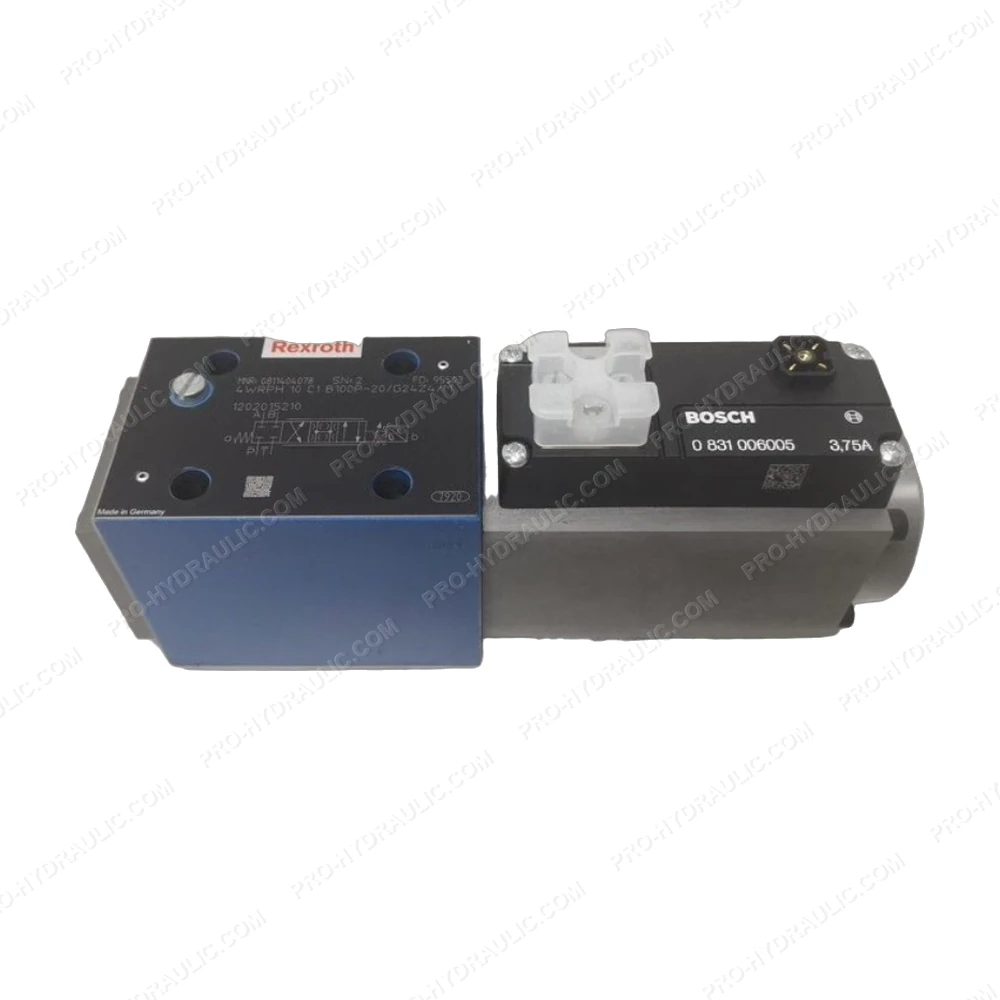

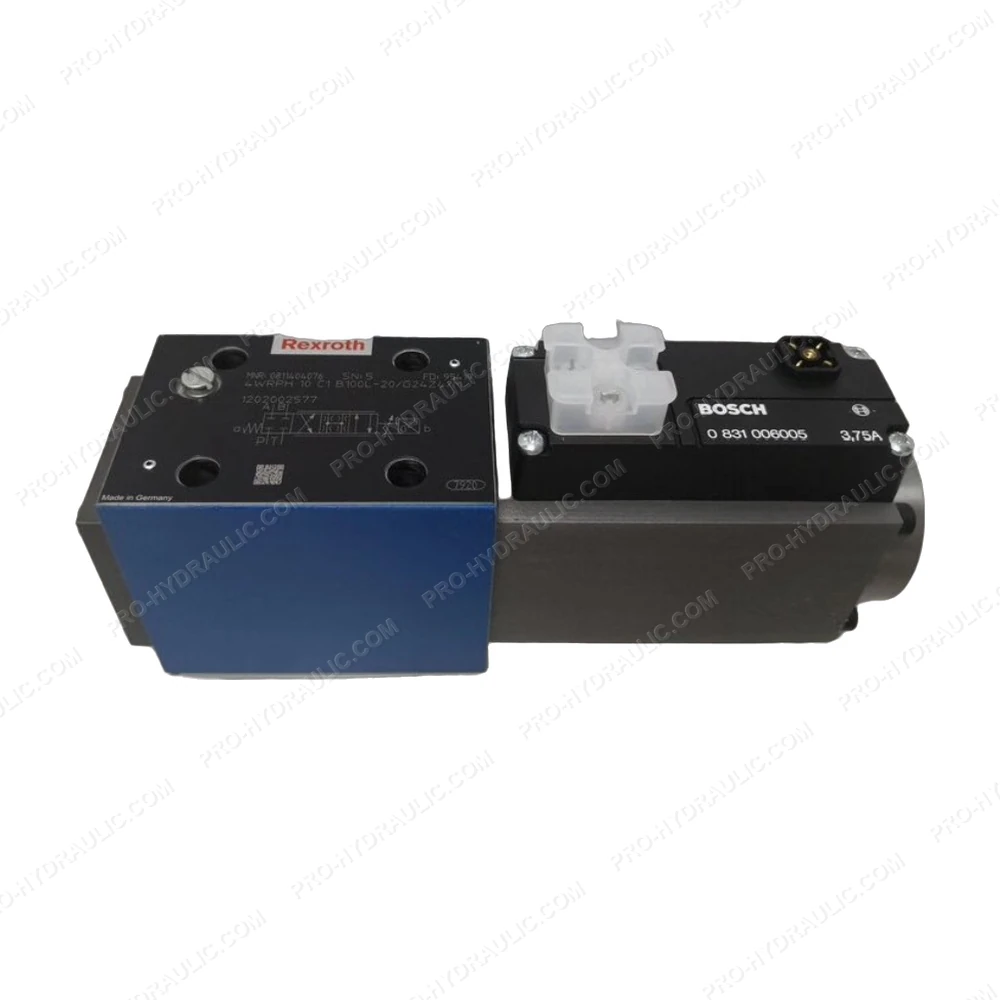

Rexroth 4WRPH 10 C1 B100L-20/G24Z4/M / 0811404076 High-Response Proportional Directional Valve
